GIGABYTE B365M DS3H WIFI Gaming Motherboard Supports Intel 8th and 9th Gen Core Processors with B365 Chipset LGA 1151 Socket



Intel B365 Ultra Durable motherboard with GIGABYTE 8118 Gaming LAN, PCIe Gen3 x4 M.2,RGB FUSION 2.0, Intel® Dual Band 802.11ac WIFI, CEC 2019 ready

• Supports 9th and 8th Gen Intel^® Core™ Processors


• Dual Channel Non-ECC Unbuffered DDR4


• New Hybrid Digital PWM Design


• High Quality Audio Capacitors


• Ultra-Fast M.2 with PCIe Gen3 X4 & SATA interface


• Intel^® Dual Band 802.11ac WIFI & BT 4.2


• RGB FUSION 2.0 with Addressable RGB & RGB LED Strips Support


• GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management


• CEC 2019 Ready, Save the Power as Easy as One Click


• Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP


• Anti-Sulfur Resistors Design


• Ultra Durable™ 15KV Surge LAN Protection


• Intel^® Optane™ Memory Ready


• GIGABYTE UEFI DualBIOS™

• CPU




1. Support for 9th and 8th Generation Intel^® Core™ i9 processors/Intel^® Core™ i7 processors/Intel^® Core™ i5 processors/Intel^® Core™ i3 processors/Intel^® Pentium^® processors/Intel^® Celeron^® processors in the LGA1151 package


2. L3 cache varies with CPU

(Please refer "CPU Support List" for more information.)

• Chipset




1. Intel^® B365 Express Chipset




• Memory




1. 4 x DDR4 DIMM sockets supporting up to 64 GB of system memory


2. Dual channel memory architecture


3. Support for DDR4 2666/2400/2133 MHz memory modules


4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)


5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules


6. Support for Extreme Memory Profile (XMP) memory modules
   * To support 2666 MHz or XMP memory, you must install a 9th or 8th Generation Intel^® Core™ i9/i7/i5 processor.

(Please refer "Memory Support List" for more information.)

• Onboard Graphics

Integrated Graphics Processor-Intel^® HD Graphics support:

1. 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
   * Support for HDMI 1.4 version and HDCP 2.2.

Maximum shared memory of 1 GB
Actual support may vary by CPU

• Audio




1. Realtek^® ALC887 codec


2. High Definition Audio


3. 2/4/5.1/7.1-channel
   * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.


4. Support for S/PDIF Out




• LAN




1. Realtek^® GbE LAN chip (10/100/1000 Mbit)




• Wireless Communication module




1. Wi-Fi 802.11 a/b/g/n/ac, supporting 2.4/5 GHz Dual-Band


2. BLUE.TOOTH 4.2


3. Support for 11ac wireless standard and up to 433 Mbps data rate
   * Actual data rate may vary depending on environment and equipment.




• Expansion Slots




1. 1 x PCI Express x16 slot, running at x16


2. 2 x PCI Express x1 slots
   (All of the PCI Express slots conform to PCI Express 3.0 standard.)




• Storage Interface

Chipset:

1. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support)


2. 6 x SATA 6Gb/s connectors


3. Support for RAID 0, RAID 1, RAID 5, and RAID 10
   * Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.

Intel^® Optane™ Memory Ready

• USB

Chipset:

1. 6 x USB 3.1 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)


2. 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)




• Internal I/O Connectors




1. 1 x 24-pin ATX main power connector


2. 1 x 8-pin ATX 12V power connector


3. 1 x CPU fan header


4. 2 x system fan headers


5. 2 x addressable LED strip headers


6. 1 x RGB LED strip header


7. 1 x M.2 Socket 3 connector


8. 6 x SATA 6Gb/s connectors


9. 1 x front panel header


10. 1 x front panel audio header


11. 1 x S/PDIF Out header


12. 1 x USB 3.1 Gen 1 header


13. 2 x USB 2.0/1.1 headers


14. 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)


15. 1 x serial port header


16. 1 x parallel port header


17. 1 x Clear CMOS jumper

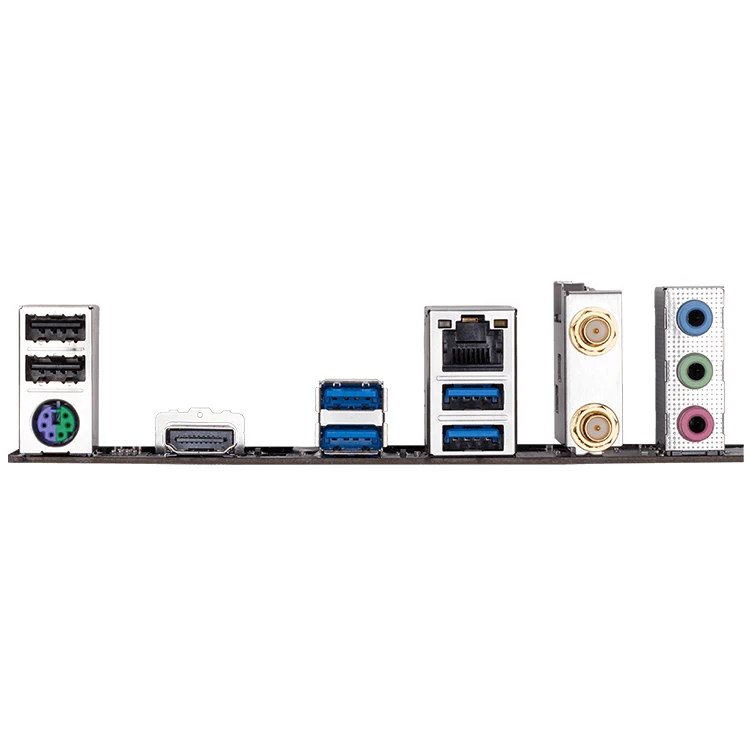

• Back Panel Connectors




1. 1 x PS/2 keyboard/mouse port


2. 2 x SMA antenna connectors (1T1R)


3. 1 x HDMI port


4. 4 x USB 3.1 Gen 1 ports


5. 2 x USB 2.0/1.1 ports


6. 1 x RJ-45 port


7. 3 x audio jacks




• I/O Controller




1. iTE^® I/O Controller Chip




• H/W Monitoring




1. Voltage detection


2. Temperature detection


3. Fan speed detection


4. Overheating warning


5. Fan fail warning


6. Fan speed control
   * Whether the fan speed control function is supported will depend on the cooler you install.




• BIOS




1. 2 x 128 Mbit flash


2. Use of licensed AMI UEFI BIOS


3. Support for DualBIOS™


4. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0




• Unique Features




1. Support for APP Center
   * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
   @BIOS
   AutoGreen
   Cloud Station
   EasyTune
   Easy RAID
   Fast Boot
   Game Boost
   ON/OFF Charge
   Platform Power Management
   RGB Fusion
   Smart Backup
   Smart Keyboard
   Smart Survey
   System Information Viewer
   USB Blocker


2. Support for Q-Flash


3. Support for Xpress Install




• Bundled Software




1. Norton^® Internet Security (OEM version)


2. Realtek 8118 Gaming LAN bandwidth Control Utility




• Operating System




1. Support for Windows 10 64-bit




• Form Factor




1. Micro ATX Form Factor; 24.4cm x 22.6cm




• Remark




1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.


2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.
