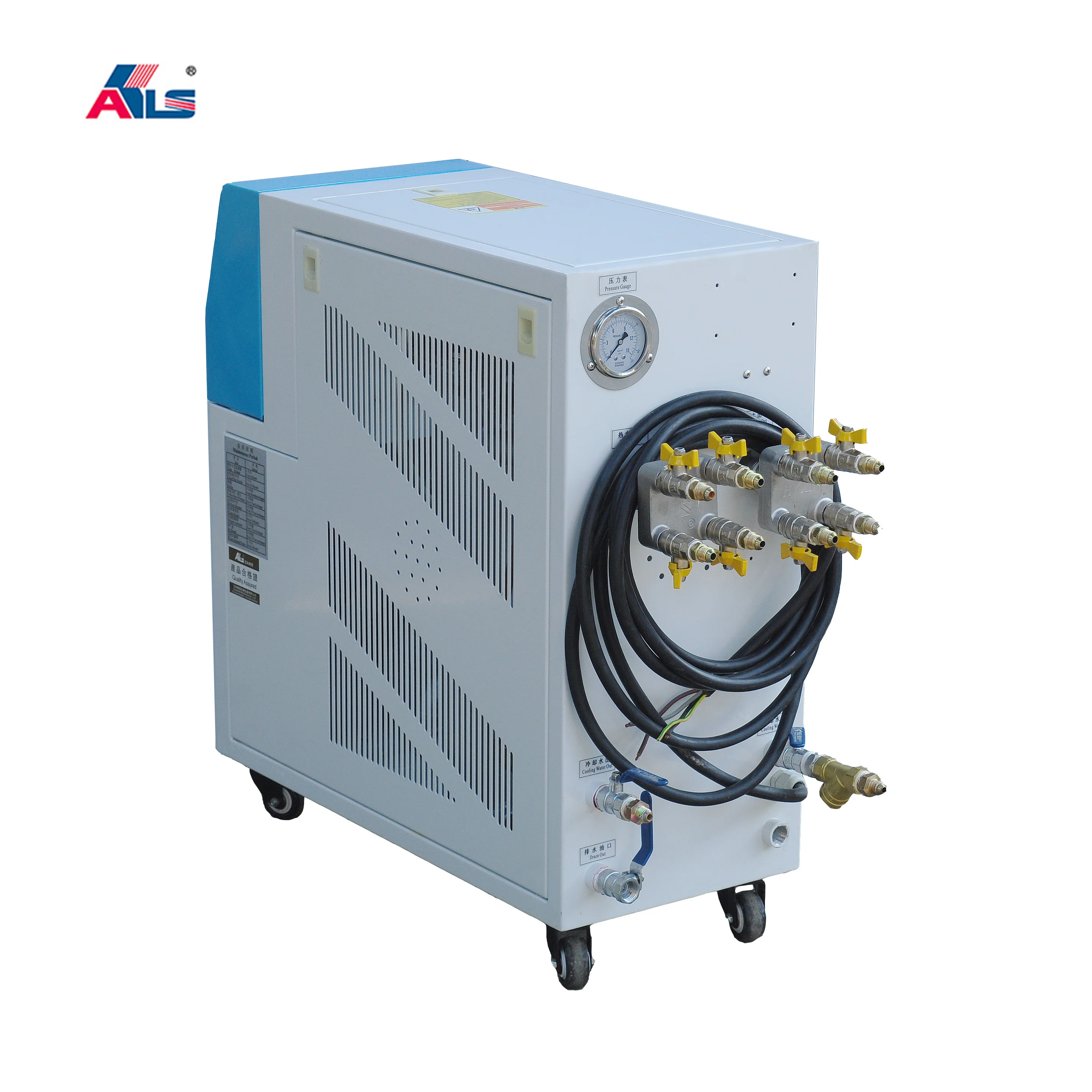

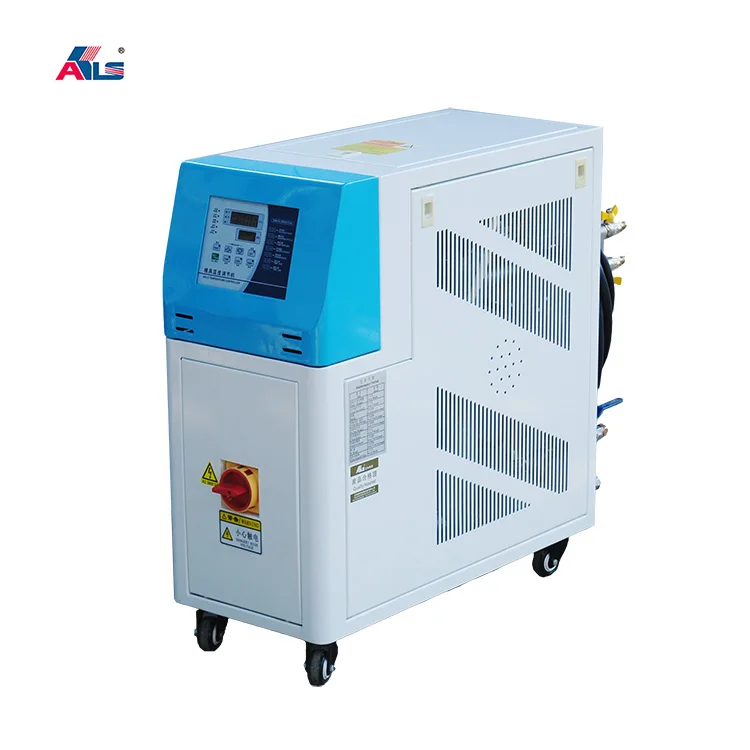

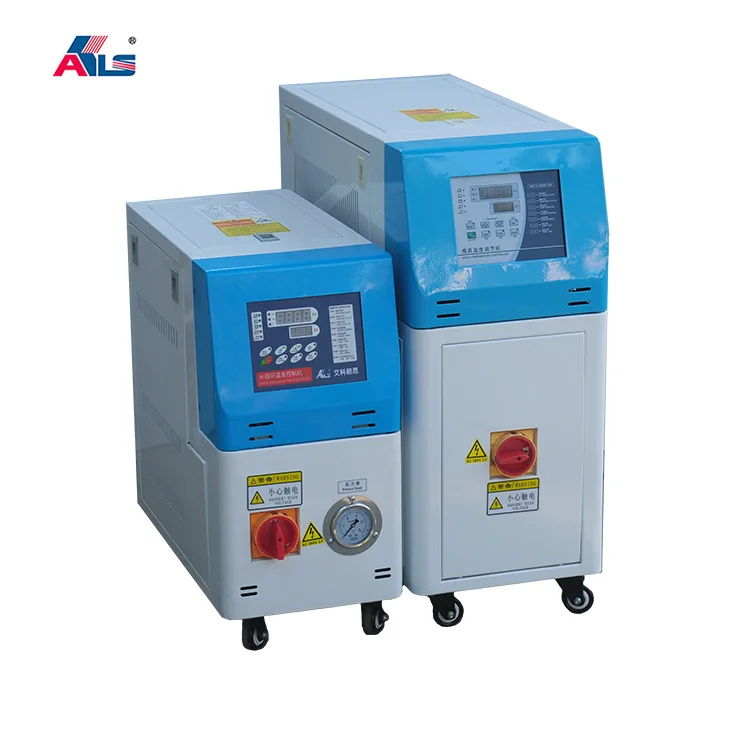

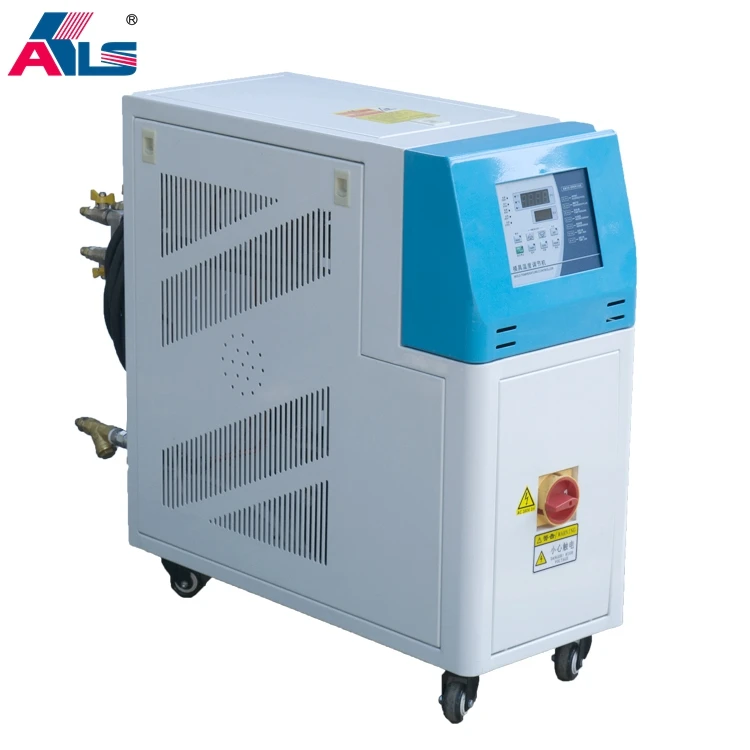

Регулятор температуры выдувной формы для масляного нагрева 12 кВт/промышленный регулятор

Описание и отзывы

Трекер стоимости

Характеристики



Model Features

1. Highest temperature reaching 120℃

2. The panel control adopted micro,easy operation

3. Automatic exhaust function as starting up the machine

4. Outlet and inlet temperature display

5. Forced cooling

6. Remote switch function

7. System safety valve

8. By-pass pressure release loop for hot water

9. Electrical part omron, FUJI, Schneider, LG, TE original authentic

10. S.S.R. control

11. stainless steel integrated pipelines for less pipe resistance and rust

12. Isolated electric control box , to extend the life of appliances

13. Perfect safety protection , fault display, easy repair and maintenance without professionals



Specifications

Model	Unit	ATCO-2005-TC	ATCO-2010-TC	ATCO-2020-TC	ATCO-2030-TC	ATCDO-2005-TC	ATCDO-2010-TC
Control range	℃	60℃-200℃
Temp.control accuracy	℃	PID±0.1℃ or ±1℃
Power supply		AC 3P+PE 380V 50Hz  (6M )
Heat transfer medium		conduction oil
Cooling method		Indirect cooling
Heating capacity	KW	6	9	12	18	6+6	9+9
Pump power	HP	0.5	1	2	3	0.5+0.5	1+1
Max pump flow	L/min	42	56	200	250	42+42	56+56
System pressure	kg/cm2	2	2	2	2.2	2	2
Cooling water supply	kg/cm2	1	1	1	1	1	1
Oil reserve	Liter	9	9	20	30	18	18
Power supply	KW	6.5	10	14	20.5	13	20
Cooling water pipe	INCH	1/2	1/2	1/2	1/2	1/2	1/2
Circulation oil pipe	INCH	3/8×2	3/8×4	3/8×4	3/8×4	(3/8×4)×2	(3/8×4)×2
Size (L×W×H)	CM	66×29×710	66×29×710	78×33×78	111×44×112	80×35×84	80×35×84
Weight	kg	70	80	105	110	140	150
