Высокотемпературный mosi2 нагревательный элемент 1850C Печи MoSi2 стержневые
- Категория: Лабораторное нагревательное оборудование >>>
- Поставщик: Zhengzhou,Mingxin,Electric,Heating,Material,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-16-2025 | 11.4 $* | 11.39 $* |
| Jul-16-2025 | 9.83 $* | 9.18 $* |
| Jun-16-2025 | 11.36 $* | 11.47 $* |
| May-16-2025 | 11.32 $* | 11.95 $* |
| Apr-16-2025 | 9.53 $* | 9.56 $* |
| Mar-16-2025 | 11.59 $* | 11.59 $* |
| Feb-16-2025 | 11.2 $* | 11.27 $* |
| Jan-16-2025 | 11.12 $* | 11.61 $* |
Характеристики
High temperature mosi2 heating element 1850C MoSi2 rod heaters

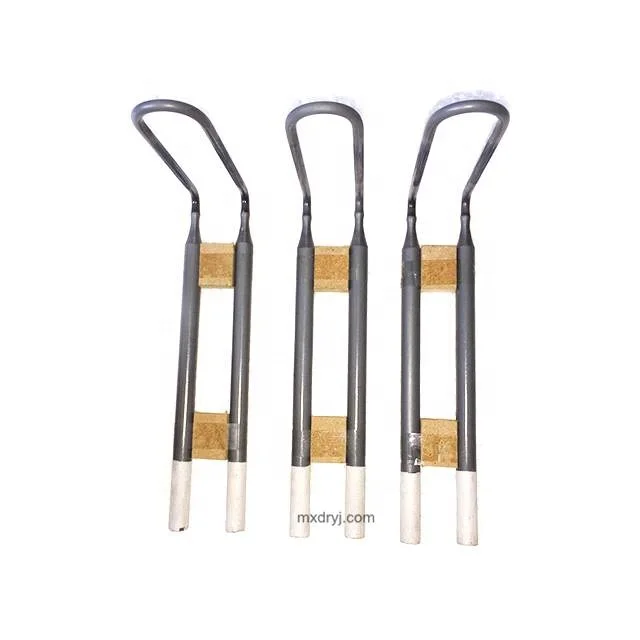

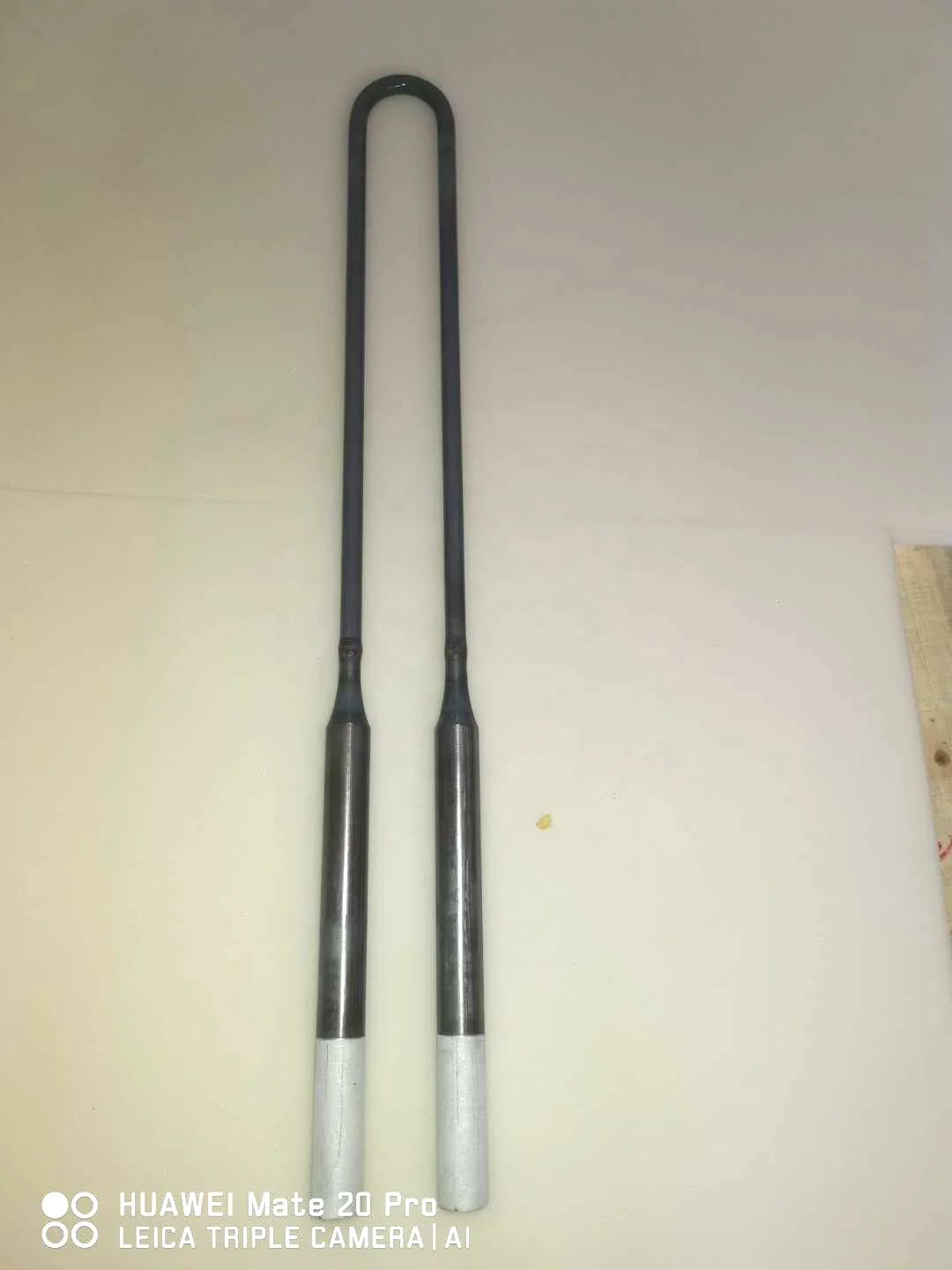

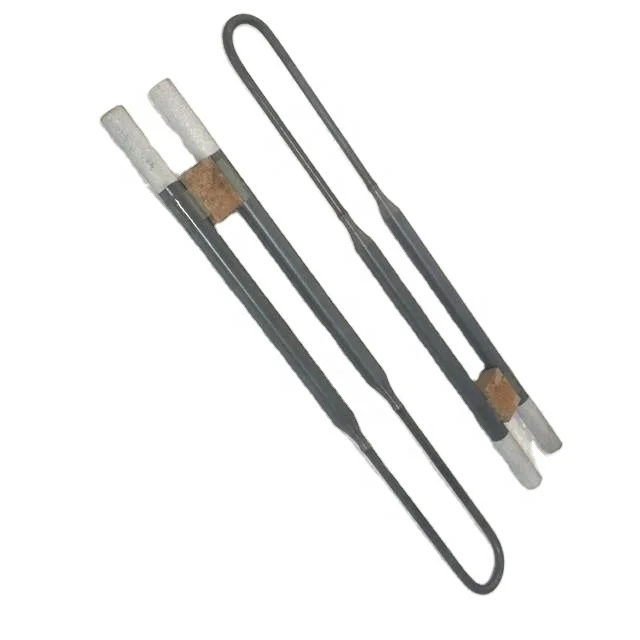

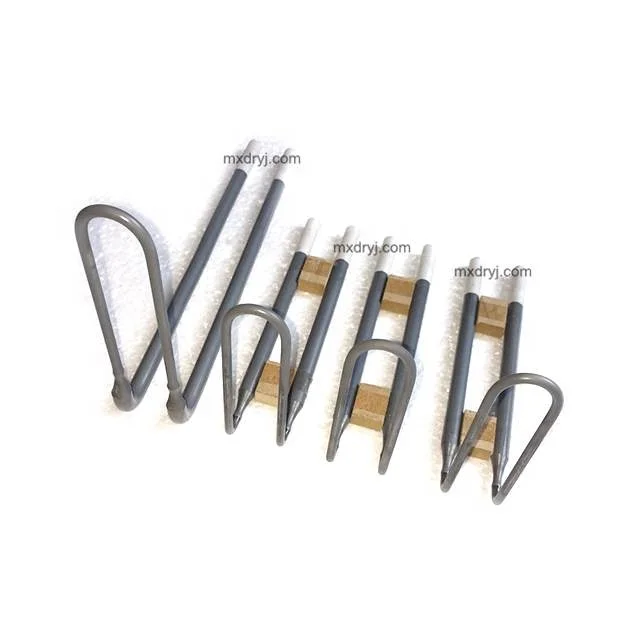

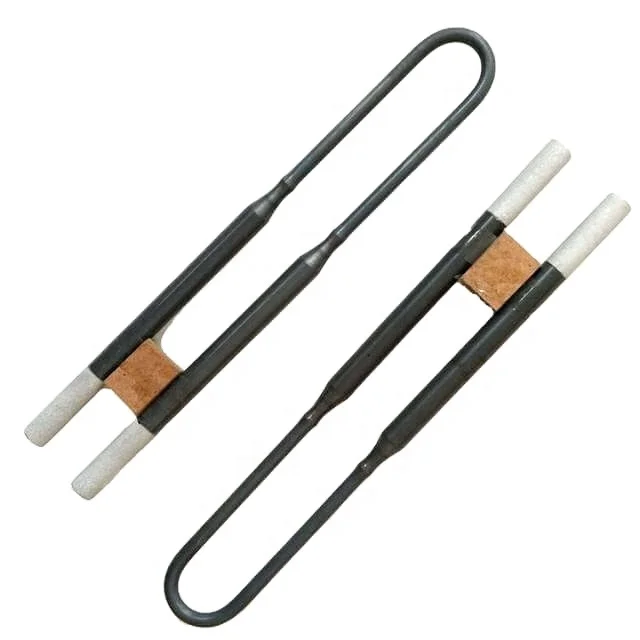

True photos for mosi2
Products Description
Mosi2 heating element is a special product combined metal and ceramics. So it has the characteristics of silicon and molybdenum. Max. temp up to 1750℃.
Its main biggest advantage is anti-oxidation under high temperature. A layer surface called SIO2 will come out and longer its life.
And the second benefit is that it will have no pollution on the sintered material.
When you enquiry, please tell us the following data
D1: Diameter of Hot Zone(mm)
D2: Diameter of Cold Zone(mm)
Le: Length of Hot Zone(mm)
Lu: Length of Cold Zone(mm)
A: Shank Spacing(mm)
D1: Diameter of Hot Zone(mm)
D2: Diameter of Cold Zone(mm)
Le: Length of Hot Zone(mm)
Lu: Length of Cold Zone(mm)
A: Shank Spacing(mm)
Physical properties | ||||||||
Volume Density | Bend Strength | 15-25kg/c㎡ | Water Absortion | Hot Extensiblity | ||||
5.5-5.6g/cm³ | 15-25kg/c㎡ | 7.4% | 1.2% | 4% | ||||
Atmosphere | Max. element temperature | ||
Mingxin MX1700 | Mingxin MX1800 | ||
Air | 1700℃ | 1800℃ | |
Nitrogen | 1600℃ | 1700℃ | |
Argon, Helium | 1600℃ | 1700℃ | |
Hydrogen | 1100-1450℃ | 1100-1450℃ | |
N2/H2 95/5% | 1250-1600℃ | 1250-1600℃ | |
General applications | Heat treatment furnace,Forging,Sintering, Glass melting Refing Radiant tubes | Laboratory furnaces Testing equipment High temperature sintering production furnace | |
Recommend surface load | ||||||||||
Furnace Temperature (℃) | 1400 | 1500 | 1600 | 1650 | 1700 | |||||
Surface load of Hot zone(w/c㎡) | ＜18 | ＜15 | ＜12 | ＜10 | ＜8 | |||||

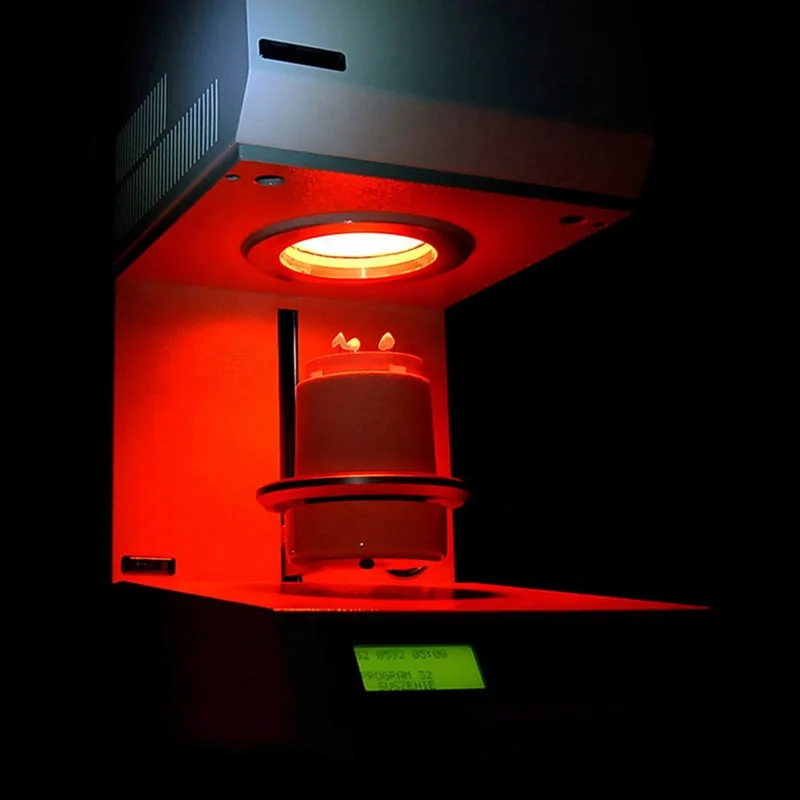

Application
Our Advantages
Company Profile
Zhengzhou Mingxin Electric Heating Material Co.,Ltd. is located in Songshan Scenic Area,the world cultural heritage site in the hinterland of Central Plains, 10 kilometers south from Shaolin Temple, the holy land of Zen. The company is engaged in the production, development and sales of molybdenum disilicide, silicon carbide electric heating element and tungsten molybdenum material.
We are devoted to the research and development of high-temperature materials and related technologies and products, and has accumulated rich manufacturing experience and strong technical force. We have advanced manufacturing technology and equipment, a complete quality assurance system of ISO:9001 and scientific management mode, and we provide high quality products and services for customers in domestic and foreign markets. Our products have been sold all over the country and exported to more than ten countries and regions, such as the United States, Germany, Britain, Japan, India, Eastern Europe, Middle East,Southeast Asia and so on. At present, our high-temperature electric heating element have more than 60% of the domestic market share, exports are growing rapidly, and the company is in the process of continuous development and expansion.
We are devoted to the research and development of high-temperature materials and related technologies and products, and has accumulated rich manufacturing experience and strong technical force. We have advanced manufacturing technology and equipment, a complete quality assurance system of ISO:9001 and scientific management mode, and we provide high quality products and services for customers in domestic and foreign markets. Our products have been sold all over the country and exported to more than ten countries and regions, such as the United States, Germany, Britain, Japan, India, Eastern Europe, Middle East,Southeast Asia and so on. At present, our high-temperature electric heating element have more than 60% of the domestic market share, exports are growing rapidly, and the company is in the process of continuous development and expansion.
Product packaging
1. Why the price is so competitive?
You are ordering to the direct factory.
2. Where is your factory located? How can I visit it?
Our factory is located in the 10km southeast of the world-known ancient temple-Shaolin temple with beautiful environment, wonderful scenery and convenient transportation.
(Detailed address: Sanlizhuang High&New Tec. Zone, Dengfeng, Henan 452483, China)
We can arrange car to pick up you if you call us in advance.
3. Which payment do you accept?
A: TT and L/C.
4. How can I get some samples?
We are honored to offer you one sample for free after talk. But you should pay for sample freight.
5. What do your factory do on quality control?
As for Quality, without compromise, we has QC for every batch.
Any question, please don’t hesitate to contact me online, by phone or email.
You are ordering to the direct factory.
2. Where is your factory located? How can I visit it?
Our factory is located in the 10km southeast of the world-known ancient temple-Shaolin temple with beautiful environment, wonderful scenery and convenient transportation.
(Detailed address: Sanlizhuang High&New Tec. Zone, Dengfeng, Henan 452483, China)
We can arrange car to pick up you if you call us in advance.
3. Which payment do you accept?
A: TT and L/C.
4. How can I get some samples?
We are honored to offer you one sample for free after talk. But you should pay for sample freight.
5. What do your factory do on quality control?
As for Quality, without compromise, we has QC for every batch.
Any question, please don’t hesitate to contact me online, by phone or email.
Following is Business Card of our sales manager.
