M18 Магнитный пикап дизельный генератор часть двигателя работает Трансмиссия об/мин сигнал Ом переключатель латунный датчик
- Категория: Sensors >>>
- Поставщик: Fuan,Shaluo,Electronic,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-15-2025 | 6.62 $* | 6.50 $* |
| Jul-15-2025 | 5.28 $* | 5.11 $* |
| Jun-15-2025 | 6.63 $* | 6.79 $* |
| May-15-2025 | 6.52 $* | 6.84 $* |
| Apr-15-2025 | 5.91 $* | 5.22 $* |
| Mar-15-2025 | 6.53 $* | 6.80 $* |
| Feb-15-2025 | 6.87 $* | 6.7 $* |
| Jan-15-2025 | 6.40 $* | 6.27 $* |
Характеристики
Product Description

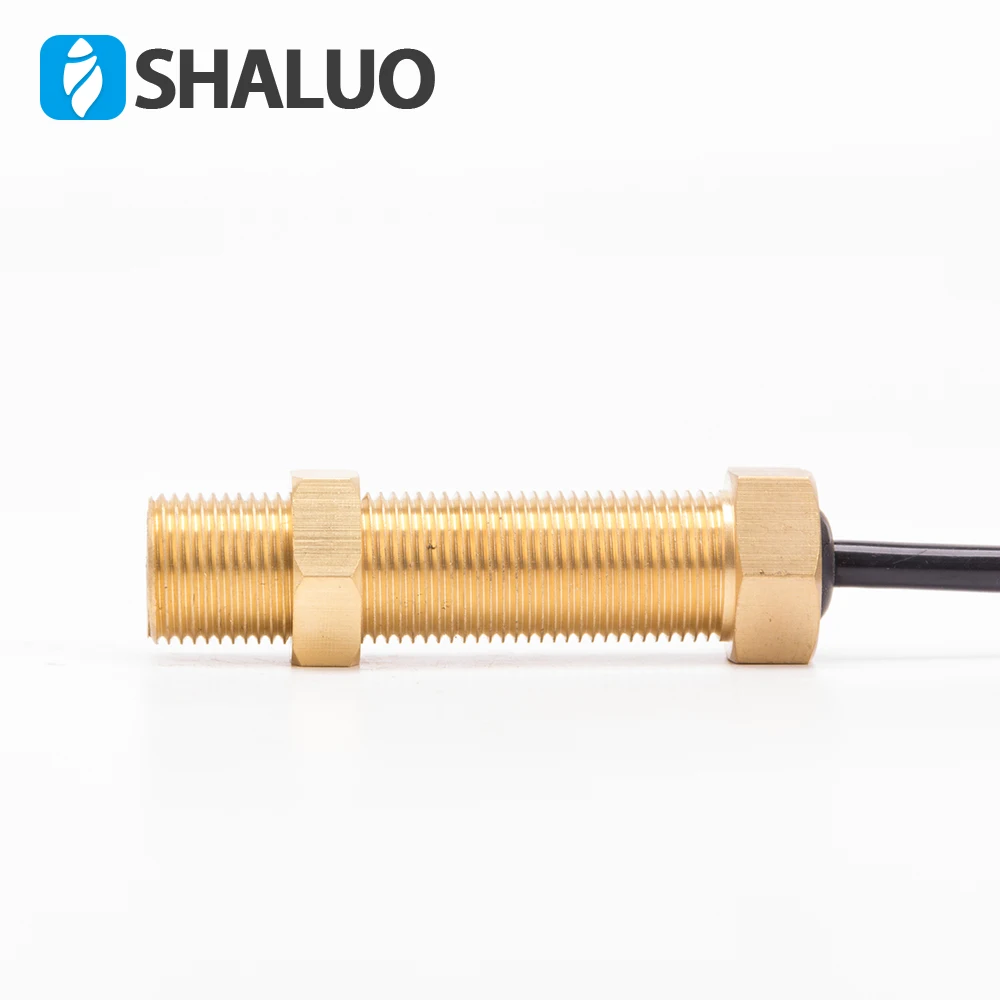

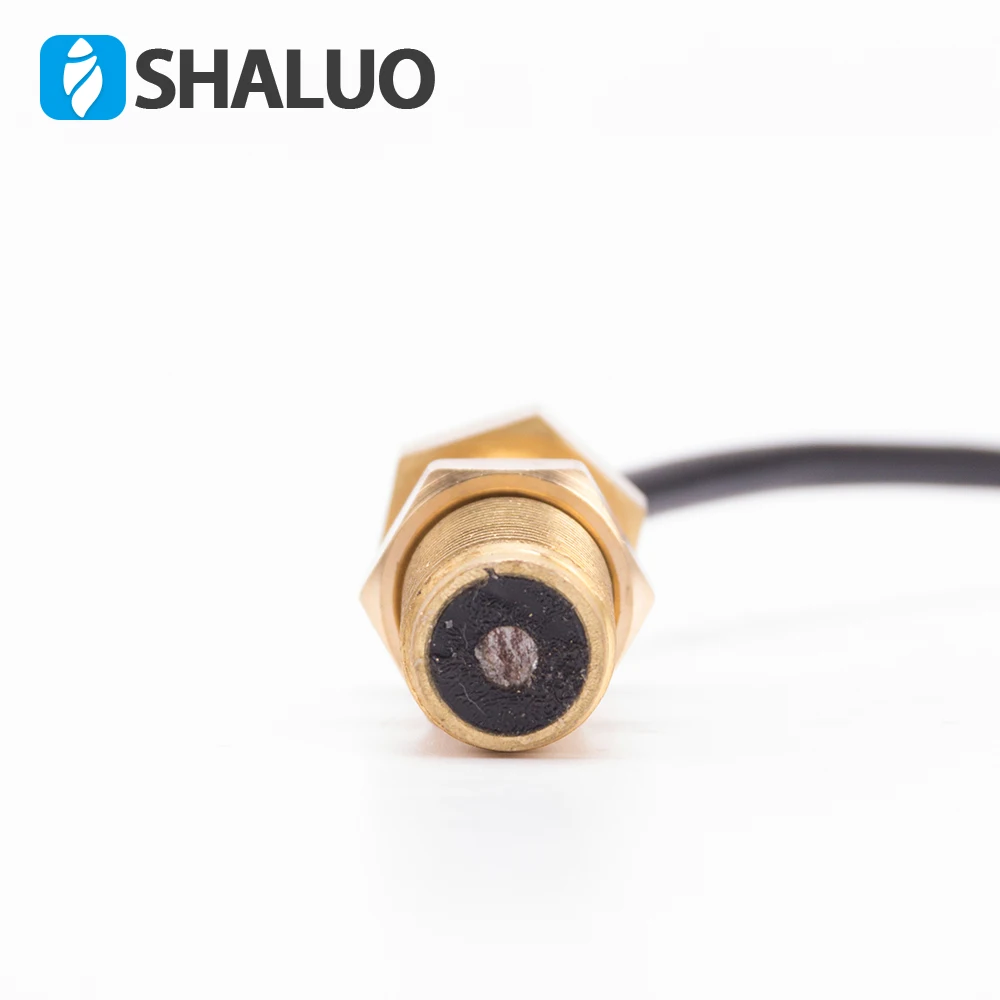

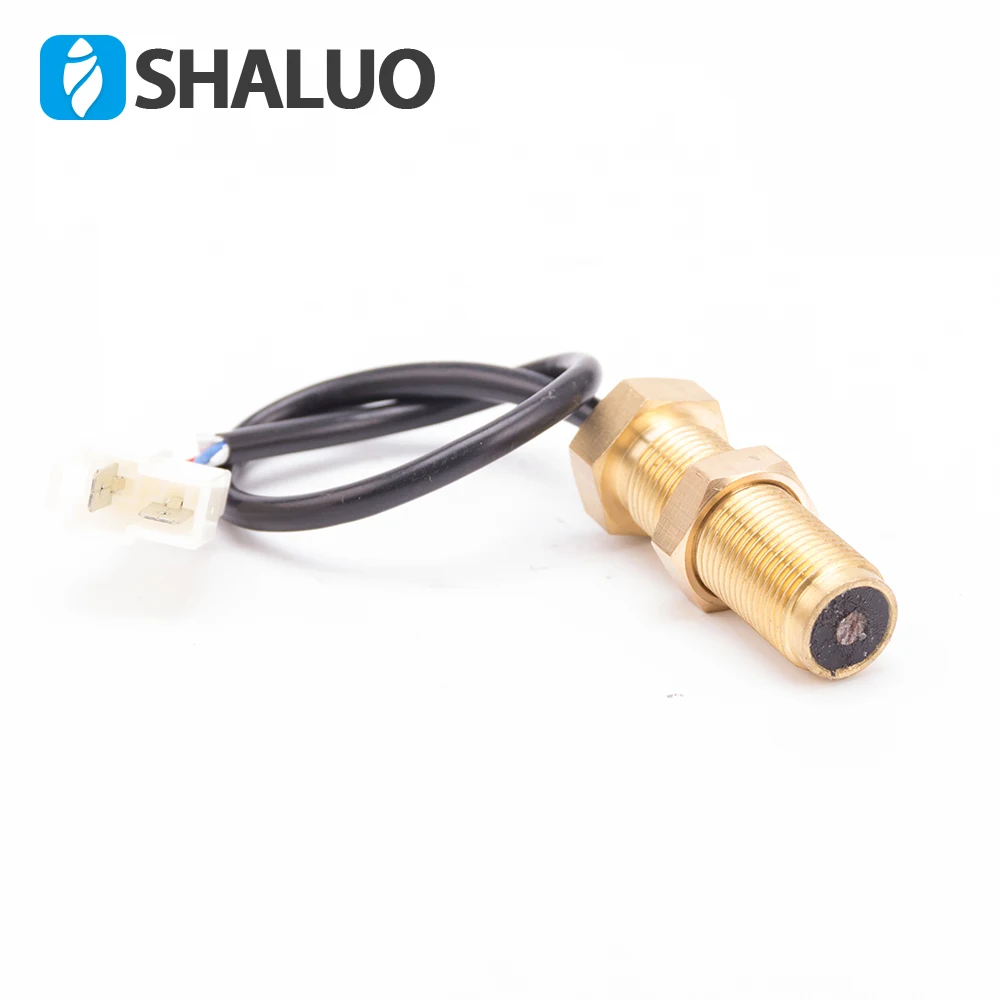

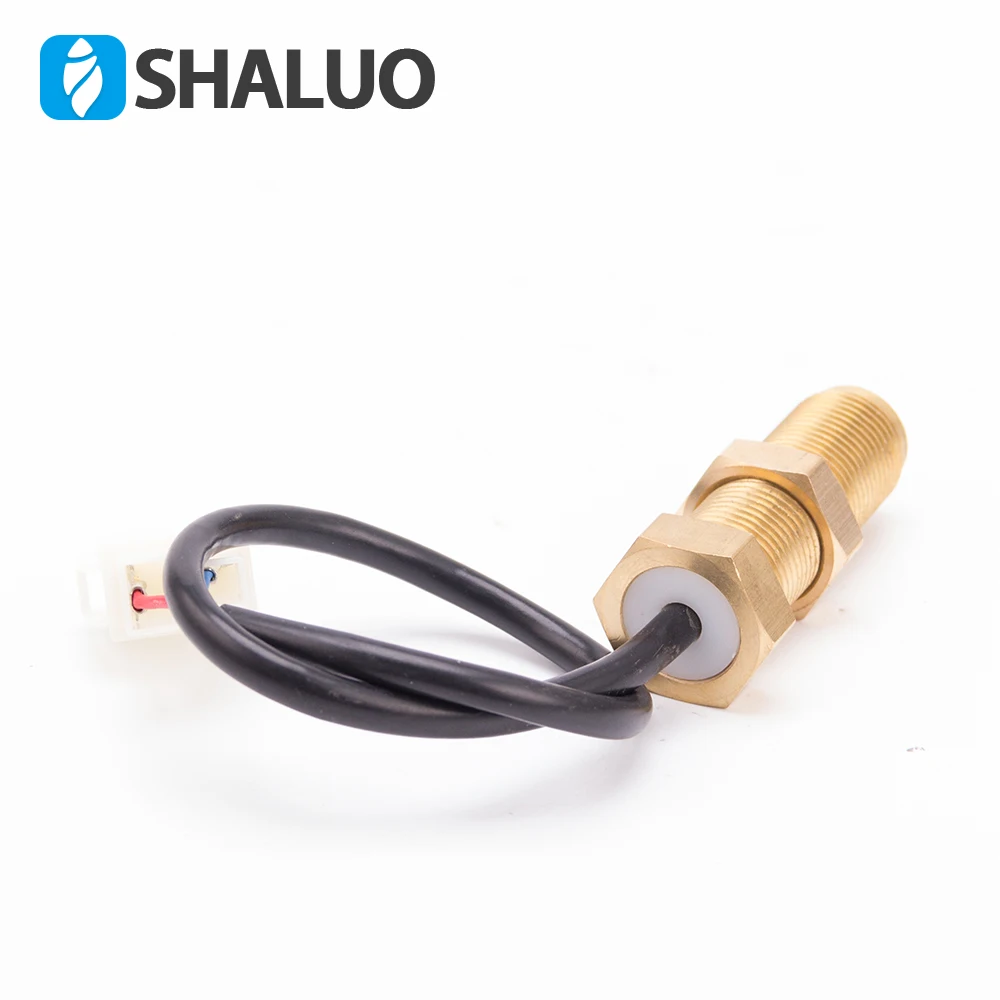

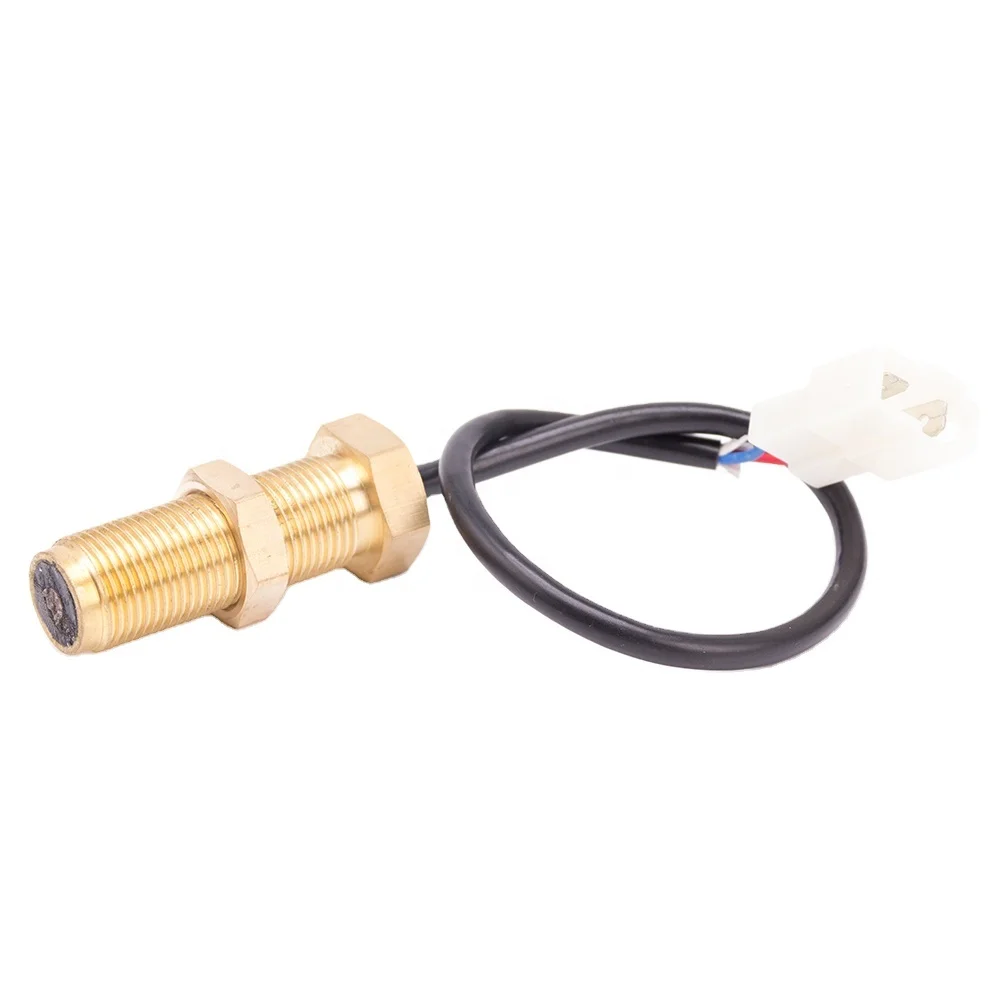

M18 Engine speed sensor.magnetic speed sensor M18 screw size copper material
this speed sensor is for all kinds Diesel generator set.but please make sure the screw size is correct.
This product is a magnetic speed sensor, which is installed next to the engine's flywheel, the engine rotation speed sensor senses
the AC signal, proportional to its frequency and engine speed. Speed sensor and supporting the use of the tachometer to measure
engine speed. This product has a simple structure, easy installation, stable quality, reliable performance.
The main performance
Ambient temperature: -30 ~ 120 degree
Maximum sense voltage: 50V AC

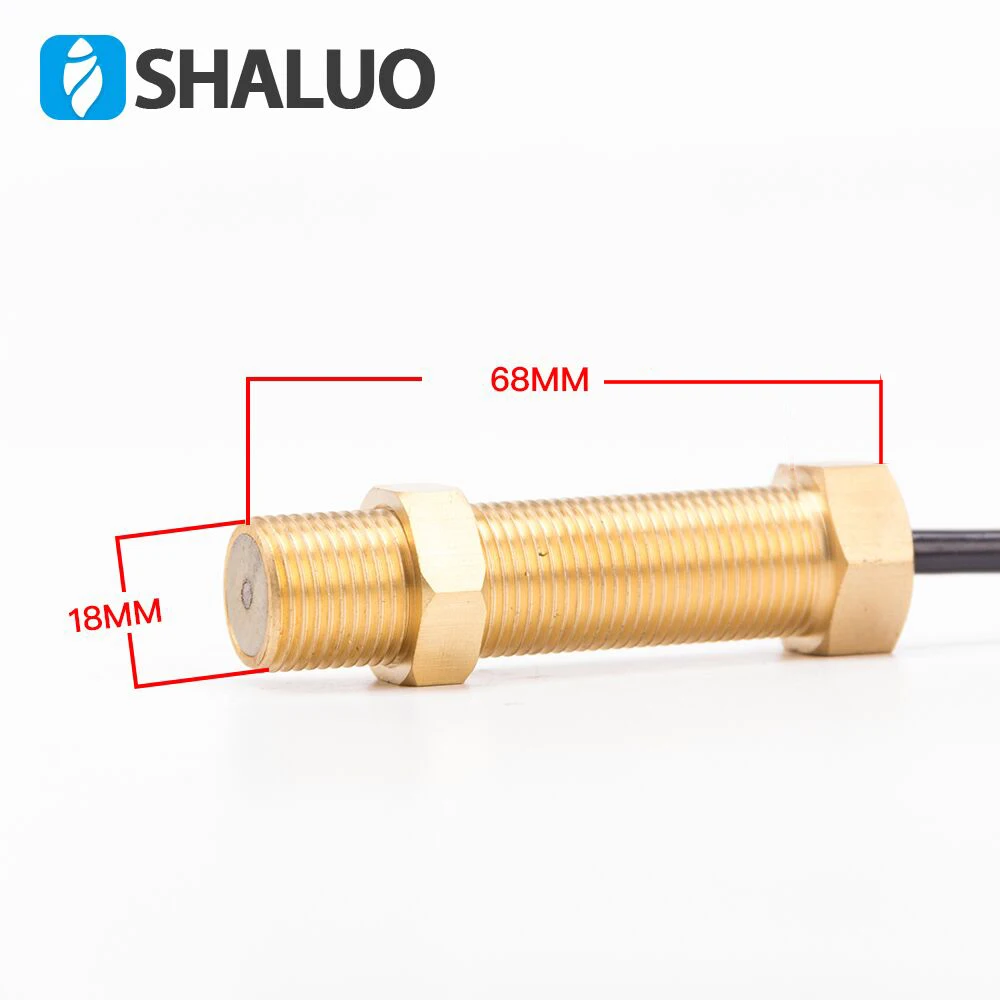

Mounting thread: M18-1.5 × 68mm
Precautions
1 The products use a wrench to tighten the threaded engine, maximum tightening torque of 49N * m
2 proximity sensor nose to the top surface of the gear is 1mm
3 has two output terminals of the sensor, the sensor should be between the tachometer output and reliable connection with shielded
cable to ensure smooth transmission.
This product is a magnetic speed sensor, which is installed next to the engine's flywheel, the engine rotation speed sensor senses
the AC signal, proportional to its frequency and engine speed. Speed sensor and supporting the use of the tachometer to measure
engine speed. This product has a simple structure, easy installation, stable quality, reliable performance.
The main performance
Ambient temperature: -30 ~ 120 degree
Maximum sense voltage: 50V AC
Mounting thread: M18-1.5 × 68mm
Precautions
1 The products use a wrench to tighten the threaded engine, maximum tightening torque of 49N * m
2 proximity sensor nose to the top surface of the gear is 1mm
3 has two output terminals of the sensor, the sensor should be between the tachometer output and reliable connection with shielded
cable to ensure smooth transmission.
