Китайский поставщик Diosna высокоскоростной Миксер
- Категория: Mixing Equipment >>>
- Поставщик: Permix,Tec,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 5058.78 $* | 5311.32 $* |
| Aug-18-2025 | 5015.37 $* | 5266.39 $* |
| Jul-18-2025 | 4208.32 $* | 4418.91 $* |
| Jun-18-2025 | 4930.68 $* | 5177.59 $* |
| May-18-2025 | 4293.10 $* | 4508.50 $* |
| Apr-18-2025 | 4845.92 $* | 5087.40 $* |
| Mar-18-2025 | 4803.6 $* | 5043.95 $* |
| Feb-18-2025 | 4760.92 $* | 4998.28 $* |
| Jan-18-2025 | 4718.77 $* | 4954.38 $* |
Характеристики
Products Description
PerMix Advantages & Services: | ||||||||
● PerMix machines are designed and manufactured as “tailor-made” ones to meet our customers’ individual requirement. | ||||||||
● Since 1954, PerMix has been building our know-how in mixing and processing with our design team located in both Israel and China. | ||||||||
● PerMix has been setting up a global network of agents and representatives to serve our worldwide customers locally and on time. | ||||||||
● PerMix has a lot of experience to sub-contract mixers for well-known equipment suppliers in Europe and USA, and we build the machines to fulfil the highest standard. | ||||||||
● PerMix has its workshop located in Shanghai area, China; where there is a complete and endless production capability at a reasonable price. | ||||||||
● PerMix mixers price is competitive compared with the quality of the same level. | ||||||||
● PerMix offers a comprehensive range of industrial mixing equipment in the market. | ||||||||
● Applications of PerMix industrial mixers cover wherever there is a need for mixing, including but not limited to chemicals, food, cosmetics, rubber, plastics, pharmaceuticals. | ||||||||
INTRODUCTION:

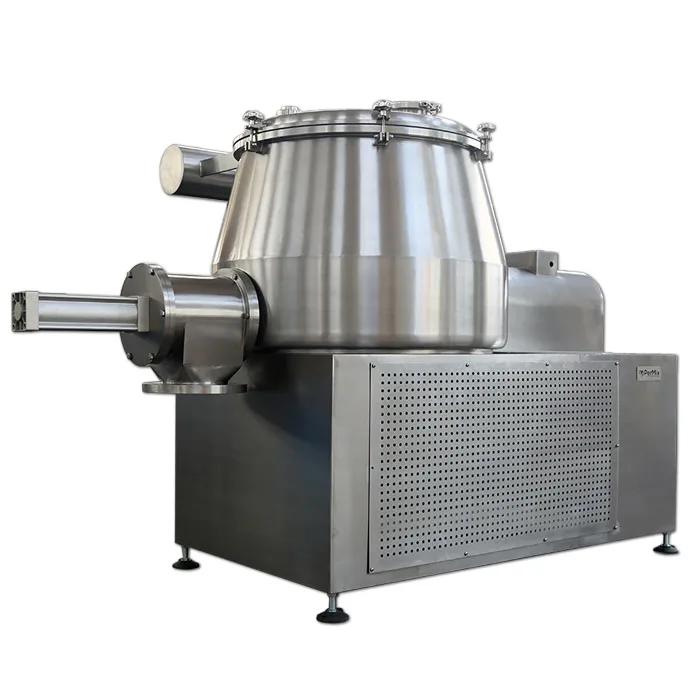

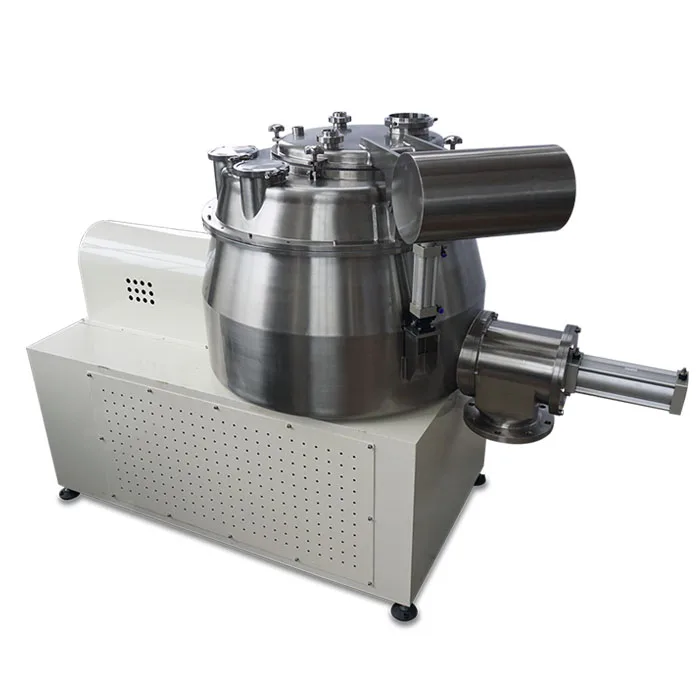

The PerMix PDI series High Speed Mixer, also called Mixer Granulator, Wet Granulator, or High Shear Mixer Granulator, is an efficient and versatile blending machine for mixing of dry powders, or granulating with the addition of liquid binder, within a very short time and with excellent cleaning abilities. It is able to give perfect result for mixing due to the innovative design of a central Impeller type mixer with a side vertical Chopper.
BASIC CONSTRUCTION:
The PerMix PDI series Rapid Mixer Granulator consists of two electrical motors, one reduction gear, coupling, and shafts with the two agitators. The shaft is sealed with special sealing, sometimes with air purge, in a way that there is limited contact between the material and the seal. Materials are loaded from top side, and the discharge is located at the bottom side. Due to the consistent modular design, the system can be configured individually and easily adapted to the constructional circumstances and specific requirements.
HOW IT WORKS:
In a PerMix PDI series Rapid Mixer Granulator, the powders are set in a multidimensional shear flow state and it needs only short mixing time until they are thoroughly mixed.
In case that granulation is required, the spraying system sprays the binder solution into the bowl to agglutinate with the materials and under the combined action of the impeller and chopper, uniform and porous granules are produced. After finishing the mixing or granulation process, powders/granules are discharged through the side discharge with no "dead zone" valve.
In case that granulation is required, the spraying system sprays the binder solution into the bowl to agglutinate with the materials and under the combined action of the impeller and chopper, uniform and porous granules are produced. After finishing the mixing or granulation process, powders/granules are discharged through the side discharge with no "dead zone" valve.
FEATURES & OPTIONS:
a.Impellers Design
Y-shaped rotor blade with special aerodynamic profile - this key element with the various product-optimized chopper designs are the result of many years of successful development.
b.Construction Material & Finish
We are able to offer our PDI Mixers with contact part to be built in SS304, S316/316L, Titanium, Duplex stainless steel, Hastelloy, etc. Standard of internal and external finish can be adapted to the customer's needs. For abrasive materials we offer hardened Stainless Steel as the contact part.
c.Feeding & Discharging
A variety of feeding & discharging methods can be selected by the customers.
d.Drive System
Drive system by geared motor, cycloidal reducer, worm reducer, belt or chain transmission, etc.
e.Heating/Cooling Jacket
Jacketed trough for heating/cooling operation
f.Vacuum Drying & Deaerating
The PDI mixer can be designed for vacuum drying & deaerating or for inner pressure working for special applications.
g.Spray Nozzle
Liquid can be added into the powder by spray nozzles on the top.
h.Mixer Lid with Counter-weight

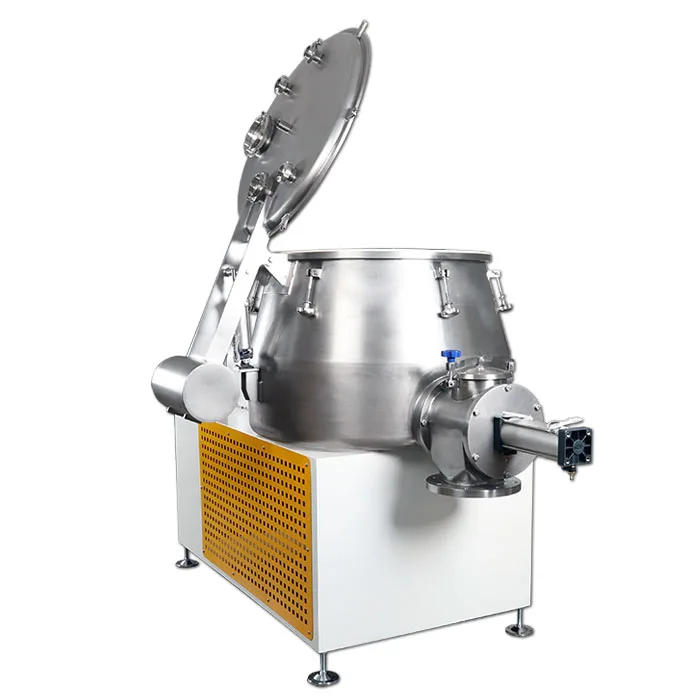

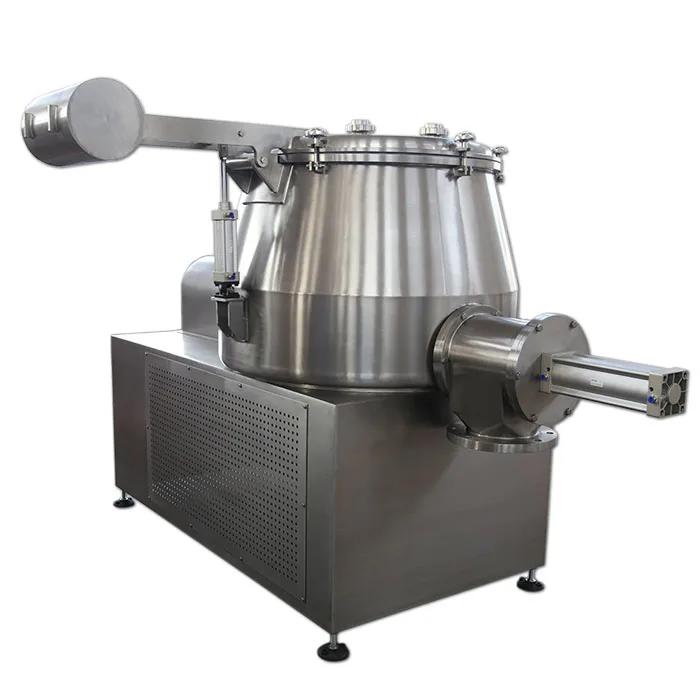

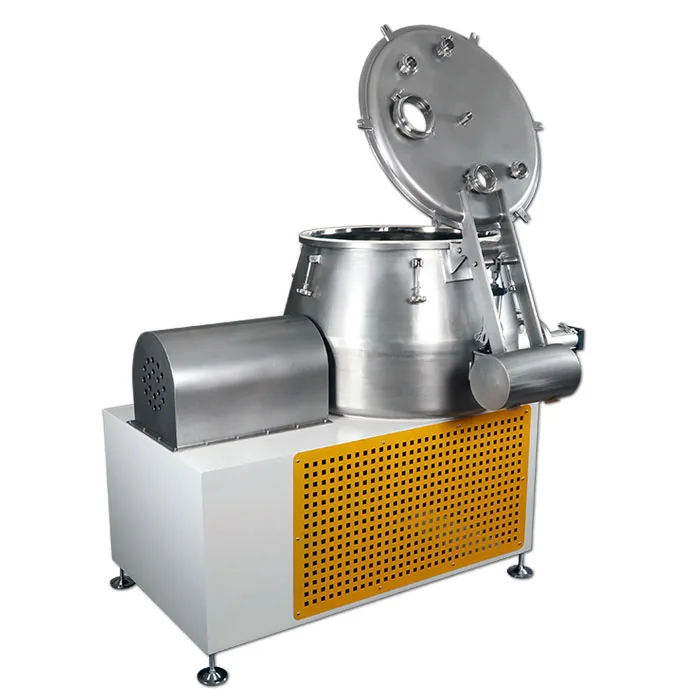

PerMix PDI Mixer is equipped with a cover with counter-weight for easy opening and closing to save labors.
Y-shaped rotor blade with special aerodynamic profile - this key element with the various product-optimized chopper designs are the result of many years of successful development.
b.Construction Material & Finish
We are able to offer our PDI Mixers with contact part to be built in SS304, S316/316L, Titanium, Duplex stainless steel, Hastelloy, etc. Standard of internal and external finish can be adapted to the customer's needs. For abrasive materials we offer hardened Stainless Steel as the contact part.
c.Feeding & Discharging
A variety of feeding & discharging methods can be selected by the customers.
d.Drive System
Drive system by geared motor, cycloidal reducer, worm reducer, belt or chain transmission, etc.
e.Heating/Cooling Jacket
Jacketed trough for heating/cooling operation
f.Vacuum Drying & Deaerating
The PDI mixer can be designed for vacuum drying & deaerating or for inner pressure working for special applications.
g.Spray Nozzle
Liquid can be added into the powder by spray nozzles on the top.
h.Mixer Lid with Counter-weight
PerMix PDI Mixer is equipped with a cover with counter-weight for easy opening and closing to save labors.
SPECIFICATION:
Model | Total Volume, [Liter] | Operation Volume, [Liter] | Impeller Power, [kW] | Impeller Speed, [rpm] | Chopper Power, [kW] | Chopper Speed, [rpm] |
PDI-10 | 10 | 6 | 2.2 | 381 | 1.1 | 1,500 |
PDI-50 | 50 | 30 | 4 | 288 | 1.1 | 1,500 |
PDI-100 | 100 | 60 | 5.5 | 277 | 1.5 | 1,500 |
PDI-200 | 200 | 120 | 7.5 | 193 | 3 | 1,500 |
PDI-300 | 300 | 180 | 11 | 176 | 4 | 1,500 |
PDI-400 | 400 | 240 | 15 | 176 | 5.5 | 1,500 |
PDI-600 | 600 | 360 | 22 | 149 | 5.5 | 1,500 |
PDI-800 | 800 | 480 | 30 | 124 | 7.5 | 1,500 |
PDI-1000 | 1,000 | 600 | 37 | 116 | 11 | 1,500 |
PDI-1500 | 1,500 | 900 | 55 | 99 | 18.5 | 1,500 |
1. All specifications are as accurate as is reasonably possible, but they are not binding.
2. Customized sizes are available against request.
3. PerMix reserves the right to modify the design without notice.
2. Customized sizes are available against request.
3. PerMix reserves the right to modify the design without notice.
APPLICATIONS:
- Food industry
Batters, Doughs for pastries, Flavours, Instant meals, Spice and herb mixtures, Sugar based confectionery tablets
- Chemical industry
Coloring of plastics, Master batches, Powder mixing with liquid addition, Powder paints
- Pharmaceutical industry
Granulate mixtures, Powder mixtures, Wet granulations
- Cosmetics industry
Ceramic dental mixtures, Eye shadows, Face powders
Batters, Doughs for pastries, Flavours, Instant meals, Spice and herb mixtures, Sugar based confectionery tablets
- Chemical industry
Coloring of plastics, Master batches, Powder mixing with liquid addition, Powder paints
- Pharmaceutical industry
Granulate mixtures, Powder mixtures, Wet granulations
- Cosmetics industry
Ceramic dental mixtures, Eye shadows, Face powders
Product Details
More Products
Our Advantage
Company Information
Our Customers
Packaging & Shipping
FAQ
Q: What is your price level compared with European suppliers and local Chinese suppliers?
A: Depending on the machine type and size, our price level is 30%-60% less than the European suppliers and 5-15% higher than the big local suppliers.
Q: Are you able to provide tailor-made design and production for the mixers?
A: Yes, in fact more than half of our mixers are tailor made, which is one of our strong points.
Q: Are you able to design and produce other processing equipment?
A: We are open to discuss about it.
Q: Can you provide machines to OEM customers, meaning to label their brands on the machines.
A: Yes we are doing it a lot. We have several OEM partners in the USA.
Q: Do you have agent network out of China?
A: Yes we do have agents but only in some countries, for example in USA, Germany, Poland, Spain, Denmark, Turkey, Argentina, etc.We are still looking for more agents because we believe to work with agents is the best way to do business.
Q: What is your delivery lead time of the mixing equipment.
A: Depending on the size and level of customization, but usually it is from 6-14 weeks.
Q: How do you pack and ship the mixing machines?
A: For machines don't require full container loading, we will pack them in wooden case. For FCL (full container loading) shipment,we will just wrap the machines in plastic films and fix them in the container. The shipment can be either by air or by sea.
A: Depending on the machine type and size, our price level is 30%-60% less than the European suppliers and 5-15% higher than the big local suppliers.
Q: Are you able to provide tailor-made design and production for the mixers?
A: Yes, in fact more than half of our mixers are tailor made, which is one of our strong points.
Q: Are you able to design and produce other processing equipment?
A: We are open to discuss about it.
Q: Can you provide machines to OEM customers, meaning to label their brands on the machines.
A: Yes we are doing it a lot. We have several OEM partners in the USA.
Q: Do you have agent network out of China?
A: Yes we do have agents but only in some countries, for example in USA, Germany, Poland, Spain, Denmark, Turkey, Argentina, etc.We are still looking for more agents because we believe to work with agents is the best way to do business.
Q: What is your delivery lead time of the mixing equipment.
A: Depending on the size and level of customization, but usually it is from 6-14 weeks.
Q: How do you pack and ship the mixing machines?
A: For machines don't require full container loading, we will pack them in wooden case. For FCL (full container loading) shipment,we will just wrap the machines in plastic films and fix them in the container. The shipment can be either by air or by sea.
