Направленный активный считыватель радиочастотной идентификации на большие расстояния 200 м 2 45 ГГц с бесплатным SDK для решения высокоскоростного синхронизации
- Категория: Access Control Card Reader >>>
- Поставщик: Shenzhen,Sanray,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 119.86 $* | 125.24 $* |
| Aug-19-2025 | 118.5 $* | 124.94 $* |
| Jul-19-2025 | 99.61 $* | 104.45 $* |
| Jun-19-2025 | 116.92 $* | 122.59 $* |
| May-19-2025 | 101.18 $* | 106.7 $* |
| Apr-19-2025 | 114.81 $* | 120.58 $* |
| Mar-19-2025 | 113.56 $* | 119.35 $* |
| Feb-19-2025 | 112.54 $* | 118.53 $* |
| Jan-19-2025 | 111.89 $* | 117.82 $* |
Характеристики
Long Distance 200M 2.45ghz Directional Active RFID Reader with Free SDK for
High Speed Sport Timing Solution
Product Description
Model No: SR-RFID3421
Frequency:2.4GHz~2.5GHz ISM(customizable)
Small size, easy to install
Excellent anti-collision performance
Multiple Interface
Key features of directional active long range rfid reader F3421
Small size, easy to install
Long distance identification, strong receiving sensitivity
Excellent anti-collision performance
Little RF Power (No more than 1dBm, transmitting power ≤2mw), which is suitable for human carry and environment friendly
Multiple communication interfaces, also can be customized
Self-development communication protocol and can customize and expand as your requirement
Compatible to other tag protocol and improve the performance of system application
Technology specifications of directional active long range rfid reader F3421 | |
Operating frequency | 2.4GHz~2.5GHz ISM |
Identify direction | Directional |
Antenna | 15dBi build-in antenna |
RF power range | -18.0dBm~0.0dBm( adjusted by 32 grade) |
Receiving sensitivity | -90.0dBm |
Operating mode | FHSS or fixed frequency(set by software) |
Modulation | GFSK |
Reading range | 0~200m adjustable RSSI reader can be adjusted less than 10m |
Anti-collision | Up to 1000 tags read simultaneously |
Buffer capacity | 2000 tags data |
Communication speed | 25Kbps, 1Mbps, 2Mbps(adjustable) |
Communication interface | RS-232, S-485, Ethernet, Wiegand26/34/42/50 |
Input and output | 1 triggering input, 1 relay output |
Optional function | 2 relays, CAN, RSSI, ID match function, Offline function, Time function |
Power supply | AC input: 100~240V, 50/60Hz 1.2A DC output: 5V/1A |
Product size | 225mm*225mm*100mm |
Packing size | 450mm*300mm*140mm |
Gross weight | 2.78kg |
Net weight | 1.82kg |
Working temperature | -20°C~+70°C(-4~+158 degree F) |
Storage temperature | -40°C~+85°C (-40~+185 degree F) |
Accessories | Power adapter, Power cable, RS-232 cable, Mounting bracket |
Working status indication | Buzzer |
Typical Applications of directional active long range rfid reader F3421
Intelligent transportation management
Asset identification, tracking and checking management
Intelligent management in traffic police, patrolman etc
Position moniter management for baby, prisoner, olders psychotic etc.
Electronic ticket, access control, time attendance, school management etc.

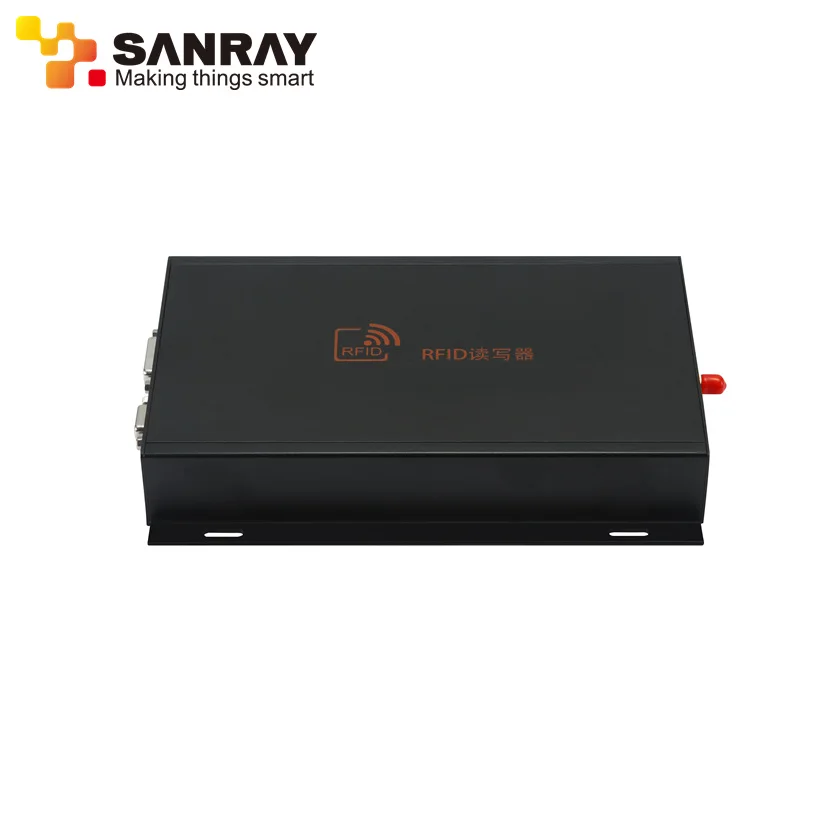

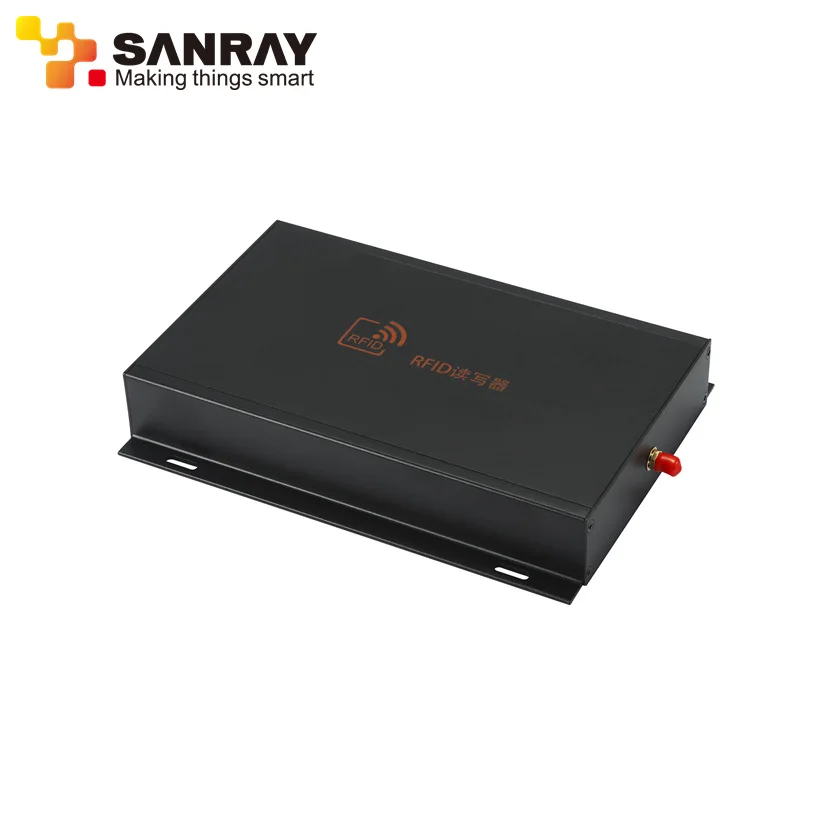

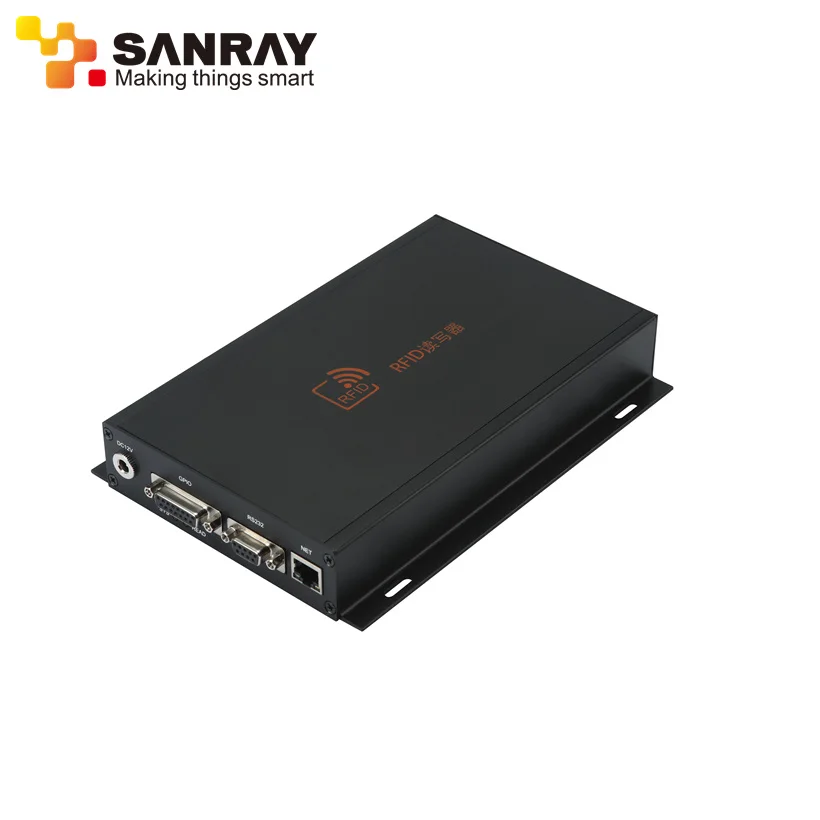

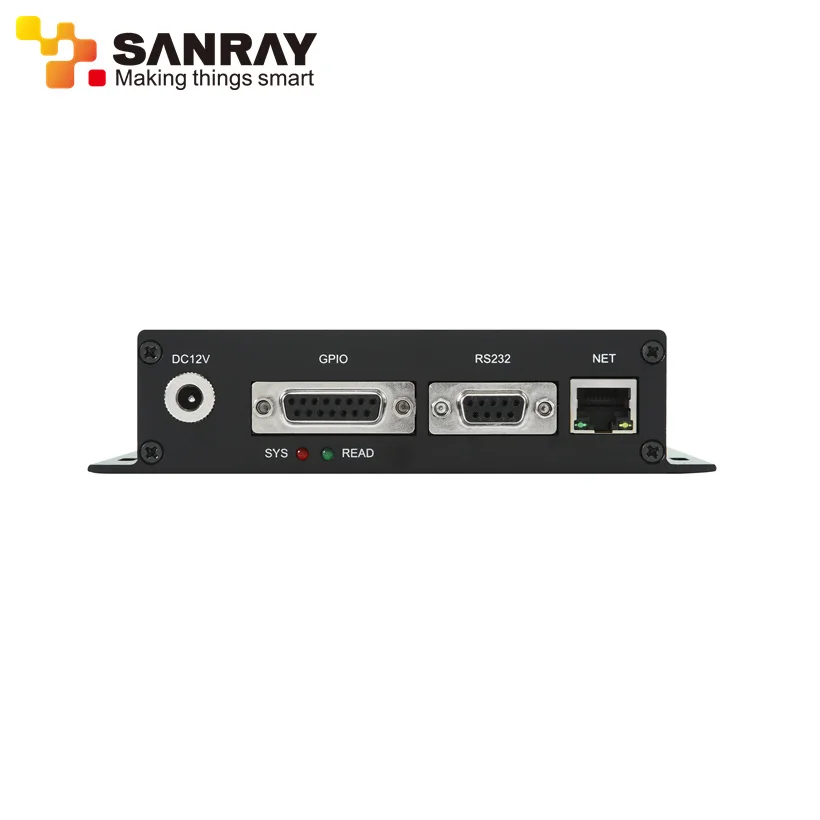

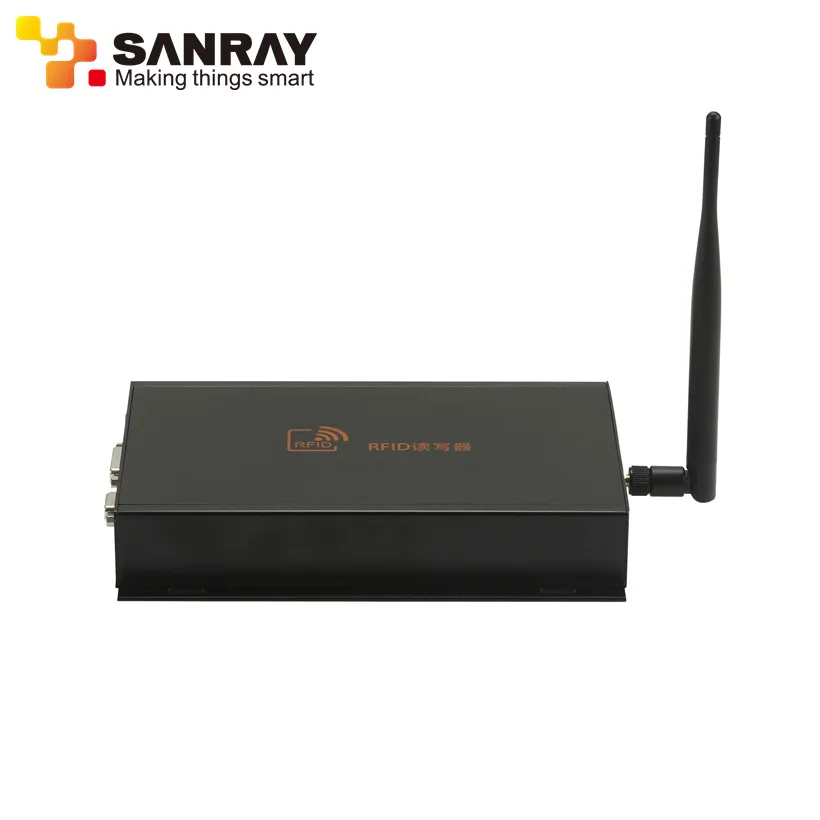

Overview of directional active long range rfid reader F3421
Packaging & Shipping
Package of directional active long range rfid reader F3421
Other products
We also have different kinds of UHF RFID devices, such as uhf rfid reader modules, fixed passtive uhf rfid readers, uhf rfid handheld readers,uhf rfid antennas, Alien inlays, uhf rfid anti metal tags.2.4G active readers and tags, etc.. All devices will come with free SDK and demo (rfid development kit). If anything meet your demand,Pls feel free to contact us for datasheet, catalogue or price. Hope we can be of assistance and provide you our best products and solutions.
Applications
Company Information
Customer Visiting
FAQ
FAQ
Q1. Can I have a sample order for reader ?
A: NO , you need buy sample
Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than
Q3. Do you have any MOQ limit for reader order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for reader?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on reader product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 1 years warranty to our products.
What we can supply
We are committed to providing the highest level of these serial RFID products below,
UHF RFID Module/ Desktop Reader / Four Port Fixed Reader / Integrated Reader / Handheld Reader / Antenna / Gate / 2.45GHz Active Reader/Tags etc.
We are the manufactuer,welcome OEM and ODM.
Why us
*Strict QC department to ensure quality and to get your trust.
*Factory sales directly with professional sales team.
*Best price High quality and favorable service.
*Express service for some urgent delivery orders to meet customer request.
*Complete RFID solutions.
*Testing samples of all models will be available upon your request.
Main applications of our uhf rfid devices
* Access control, convention registeration
* Intelligent parking management.
* Logistics & Digital warehouse management.
* Industrial production process control system.
* Attendance system
* Students management
* Auto-identifying and tracking of important person or objects
* Tracking, orientation and checking people in coal mine,etc.
