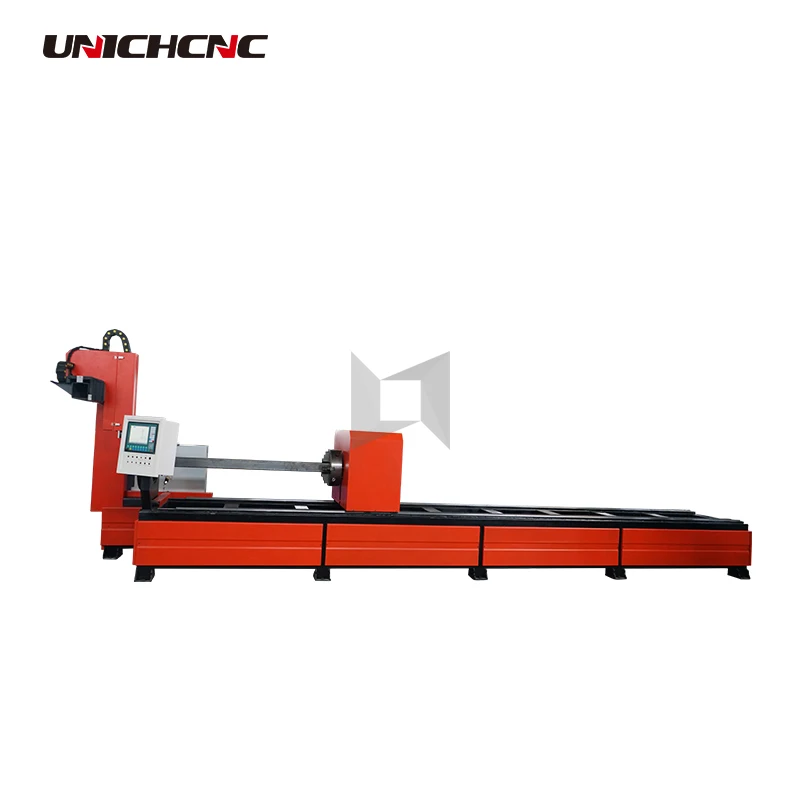

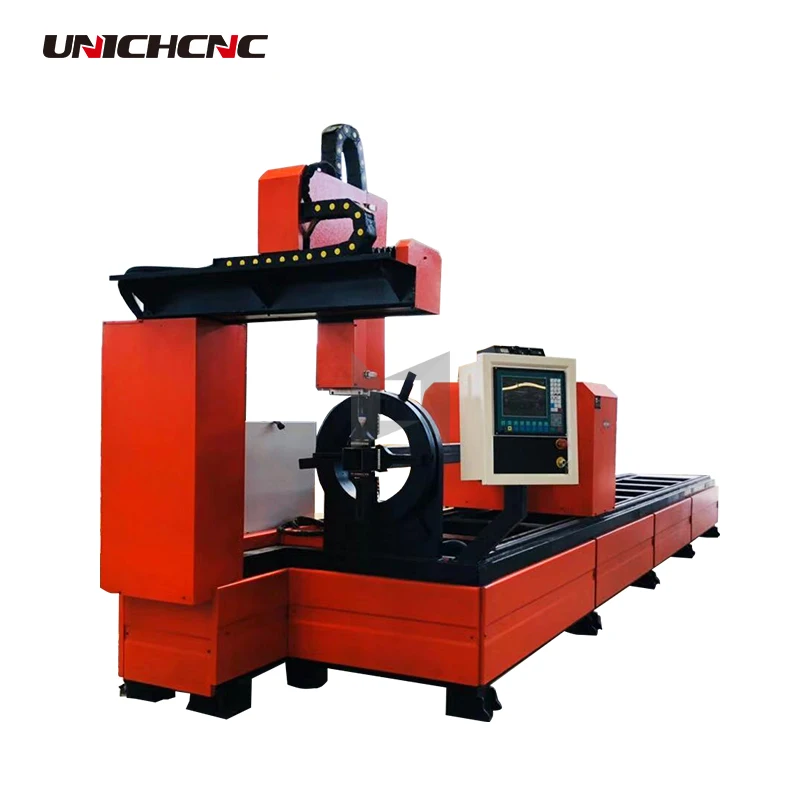

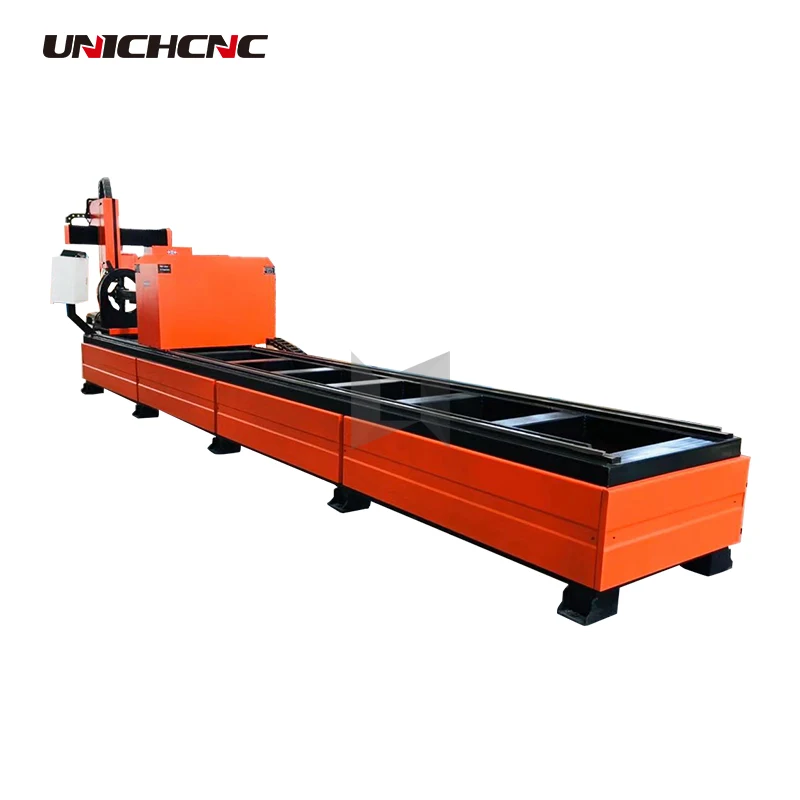

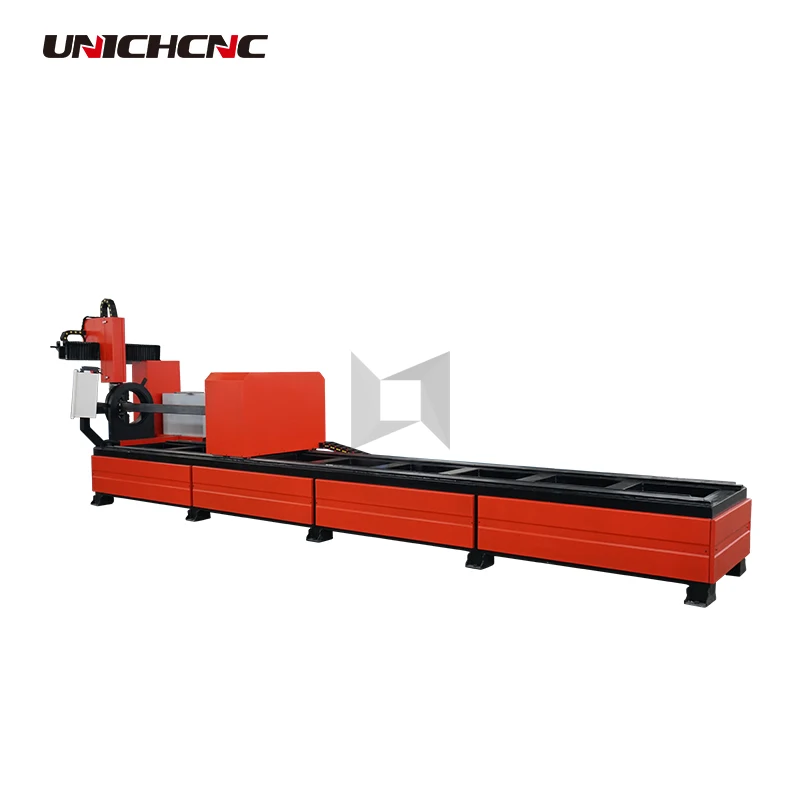

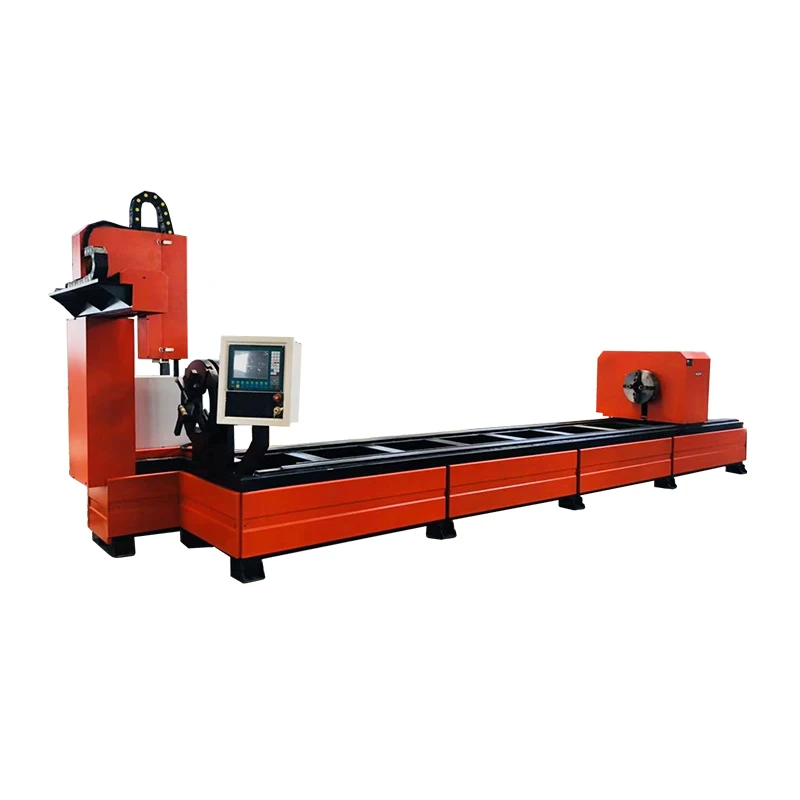

China Portable 2000*3000mm Steel Pipe Tube Cutter/CNC Plasma Cutting Machine with Rotary Axis 200mm





Applicable Materials:

To cut all metals, including but not limited to aluminium sheet, iron sheet, galvanized (steel) sheet,mild steel,titanium sheet.stainless steel, iron etc.           Applicable industry:

Advertising industry: Advertising signs, logo making, decorative products, production of advertising and a variety of metal materials.
Mold Industry: Engraving metal molds made of copper, aluminum,iron and so on.
Metal industry: For steel, Carbon Steel, Stainless steel, alloy steel, spring steel, copper plate, aluminium plate,gold,silver,Titanium and other metal plate and tube.

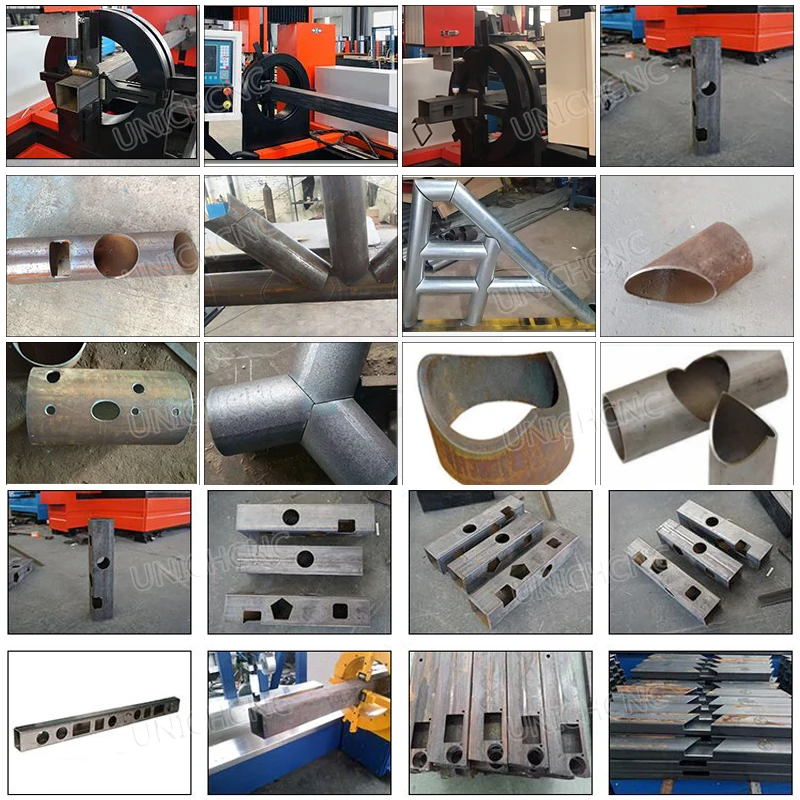

1. This machine is used for metal square&round tube cutting. Good man-machine control panel makes operation more convenient and simple, can cut kinds of complex shapes' metal sheet.

2. The liner rails are imported with high precision, good guide. Rack gear is manufactured by professional factory. Its surface is carbonizing and quenching.
3. LCD operate panel can prompt kinds of operating ways, so operator can operate it easily after simple training.

4. Driving system is servo or stepper drive, you can choose China LEADSHINE , Japan Panasonic /YASKAWA servo motor or stepper motor to make sure whole machine can run with smoothly in a wider speed range, short acceleration time.
5. Torch height controller can adjust the best cutting distance automatically, to confirm working piece high precision cutting.



No.	Description	LXP6020 (Length 3000 is Optional. Diameter 300mm is optional)
1	Working Size	200(Diameter)*6000mm(Length)
2	Z Axis Clearance	150mm (200 And Higher Is Optional)
3	Table Type	Chuck rotary
4	Transmission System	Rack Pinion And Hiwin Linear Rails For X/Y
5	Driving System	Servo motor( YASKAWA/PANASONIC ,also according to your needs and budget.)
6	Max. Cutting Speed	12000mm/Min(different configuration and different material and thickness speed is different)
7	Max. Travelling Speed	30000mm/Min(different configuration speed is different)
8	Working Voltage	380V/3ph(220V/3ph is optional)
9	Plasma Generator	Huayuan China and USA power as your requirements
10	Arc Mode	Jiaoda fangling
11	Output Current	63/100/120A/160A/200A China (45/65/85/105/125/200A USA)
12	Max. Cutting  Thickness	6/15/18/20/30mm (This is approximate,It also according to power and kinds metal)
13	Operating System	JiaoDa fangling FX430A controller (Professional for tube cutting)
14	Working Material	Steel, Aluminum, Galvanized Sheet, Titanium Plate,   Platinum Plate and almost all of the metal square tube/Circle tube

A1:2 years quality guaranty, the machine with main parts(excluding the consumables) shall be   changed free of charge(some parts will be maintained) when if any problem during the warranty period.



Q2:2 I don’t know which one is suitable for me ?

A2:Please tell me your

1) Max work size:choose most suitable model.

2) Materials and Cutting thickness::choose most suitable power.



Q3:Payment terms?

A3:Alibaba trade assurance/TT/West Union/Payple/LC/Cash and so on.



Q4:Do you have CE document and other documents for customs clearance?

A4:Yes,we have Original. At first we will show you and And after shipment we will give you      CE/Packing list/Commercial Invoice/Sales contract for customs clearance.



Q5:I don’t know how to use after i receive Or i have problem during use,how to do?

A5:

1) We have detailed user manual with pictures and CD,you can learn step by step.And our user   manual update every month for your easy learning if there is any update on machine.

2) If have any problem during use,you need our technician to judge

The problem elsewhere will be solved by us. We can provide team viewer/Whatsapp/Email/Phone/Skype with cam till all of your problems finished.We can also provide Door service if you need.



Q6:Delivery time

A5:General configuration:7 days. Customized:10-25 working days.
