Высококачественный композитный лечебный автоклав с управлением

Высококачественный композитный лечебный автоклав с управлением

Категория: Сосуды высокого давления >>>
Поставщик: Taian,Strength,Equipments,Co.,Ltd.

Цена:5 000,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-16-2025	5950.15 $*	6248.75 $*
Aug-16-2025	5900.18 $*	6195.63 $*
Jul-16-2025	4950.83 $*	5198.87 $*
Jun-16-2025	5800.69 $*	6090.5 $*
May-16-2025	5050.20 $*	5303.98 $*
Apr-16-2025	5700.13 $*	5985.92 $*
Mar-16-2025	5650.14 $*	5933.68 $*
Feb-16-2025	5600.25 $*	5880.3 $*
Jan-16-2025	5550.71 $*	5828.3 $*

Характеристики

Product Description

Composite autoclave (also called industrial autoclave for carbon fiber, composite autoclave) is the pressure vessel specially designed and manufactured to fabricate composite material, carbon fiber autoclave is one of the our hot sale industrial autoclave products. Carbon fiber autoclave (also called a composition material or composite) is made from two or more constituent materials with significantly different physical or chemical properties that produce a material with characteristics different from the individual components when combined. Carbon fiber autoclave is one of the effective and most applicable techniques for composite production. In the composite manufacturing process, the assembly of a two-sided mold set that forms both surface of the panel is placed into the industrial autoclave which provides both required elevated pressure and elevated temperature.

Specifications of Composite Autoclave
Effective Diameter (mm)	600-6,000
Effective Length (mm)	800-300,000
Maximum Working Pressure (Mpa)	0.2-10
Maximum Working Temperature (℃)	100-500
Temperature Control Accuracy (℃)	±0.5-±3.0
Tank Temperature Uniformity (℃)	1.0-3.0
Pressure Control Accuracy (Mpa)	±0.01
Vacuum Limit (Kpa)	≤2
✳Remark: Other specifications can be customized according to specific requirements.

Features of Composite Autoclave

①Turn key solution for large, high productive units to lab autoclaves.

②Integrated system design with over 20 years of industrial experiences.
③Professional modular manufacturing.
④Computer control system specifically for composite autoclave use.
⑤Automatic control of over pressure or temperature protection, door safety interlock.
⑥High quality, energy saving.
⑦Customized installation to satisfy your demands.
⑧Safe operation, over pressure and temperature protection, door safe interlock.
⑨Advanced composite curing and bonding process.
⑩Reliable and efficient operation.
⑪Custom designs to suit your needs.
⑫Easy to operate, longer service life.

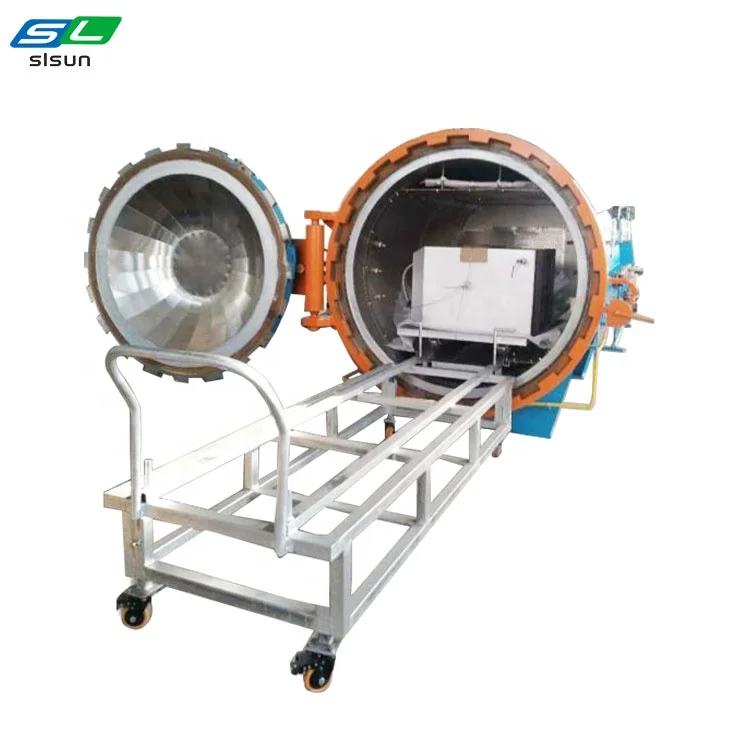

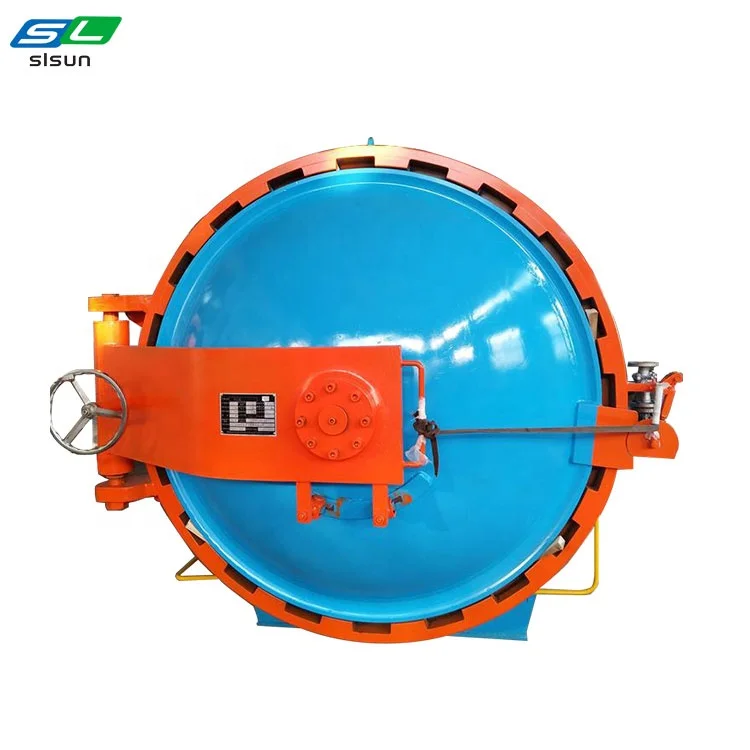

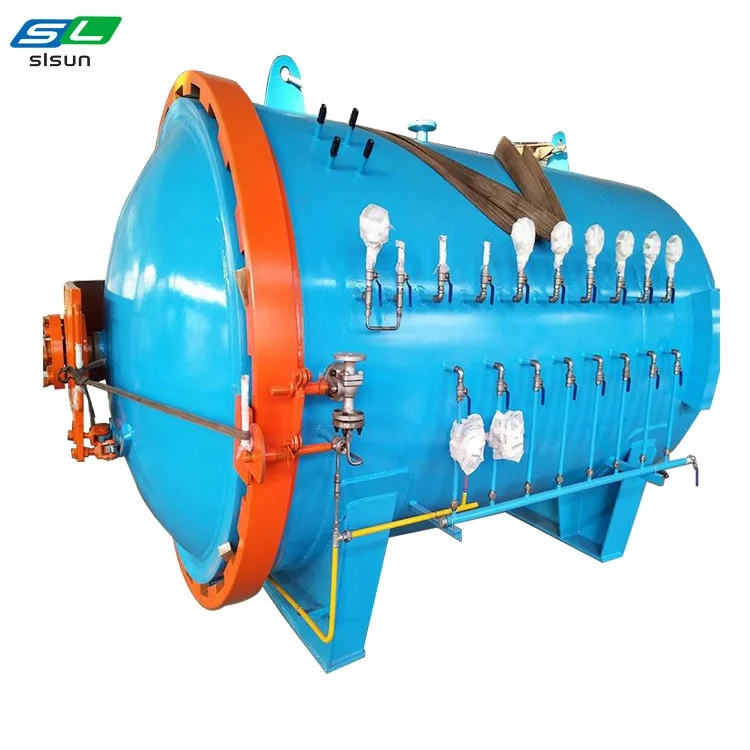

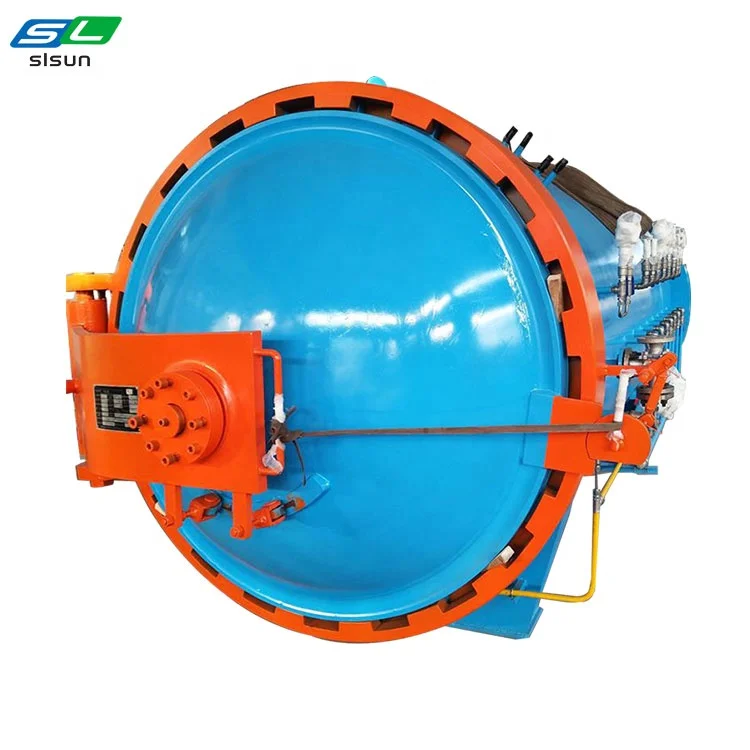

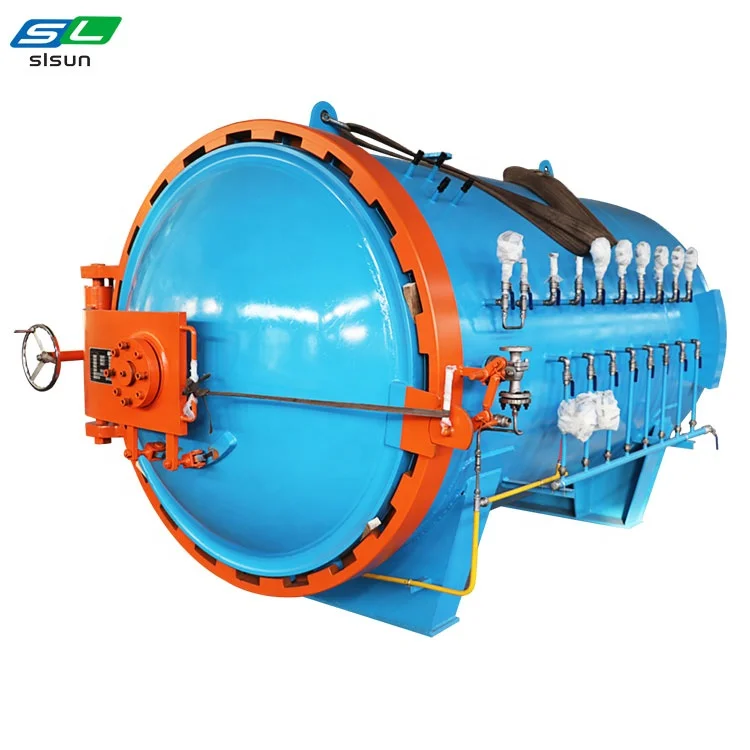

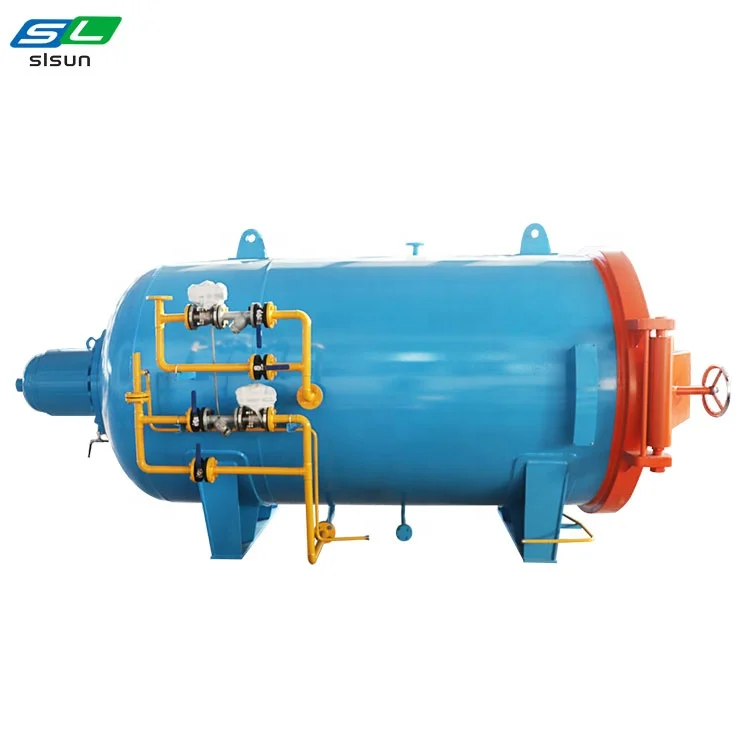

Product Display

Certifications

Machining process

Detailed Images

Interior thermal insulation

Internal sheet metal: Insulation liner, stailess steel 304.

Mineral wool insulation: 100mm. Ceramic aluminum silicate ceramic folding cotton.

Motor& fans air flow

Fan Motor: 11KW, 415V, 3PH – 50 Hz

Motor mounting: Capsule with water cooling

Motor jacket cooling system

Flow‐switch indication to PC

Heating control

Electric heating via inconel (Stailess steel ) tubular heaters

Heaters mounted back at end of autoclave which moving wheels for easy system maintenance.

Two linear regulator for heating power , each unite guarantee heating work efficient and energy saving.

Cooling system

Proportional cooling valve for main cooling control. Computer controlled.

Air spray and Mist water valves for trim cooling control. Computer controlled.

Carbon fiber industrial autoclave (DN3000*6200mm) exported to Malaysia.

Carbon fiber industrial autoclave exported to Jiangsu Province.

Our Company

Taian STRENGTH Equipments Co., Ltd is the professional pressure vessel designer, manufacturer and exporter dedicated in supplying finest quality industrial autoclave, storage tank and dish head products and solutions to worldwide customer over 20 years. We have over 80 talented research and development experts, 2 million square meters manufacturing factory and more than 50 sets large-scale manufacturing machines. Our annual industrial autoclave and storage tank output can reach over 300 sets, dished head output can reach over 3000 sets.
STRENGTH Equipments is not only manufacturing high quality industrial autoclaves, storage tanks and dished heads but also providing custom product design, fabrication and after-sale service. ODM, OEM are also available. If you have any questions or inquiries, please fill and submit the following form, we will reply as soon as possible.

The company covers an area of 70,000 square meters and is equipped with more than 50 sets of large-scale advanced production equipment, such as 8m, 6m, 5m CNC lathes, 6m×8m welding crosses, Lincoln welders, 7m diameter bell-type treatment furnaces, 5m×12m Cover-type heat treatment furnace, 6m×20m radiographic inspection room, 5000T and 10000T head press, 400T and 550T cranes, etc.
