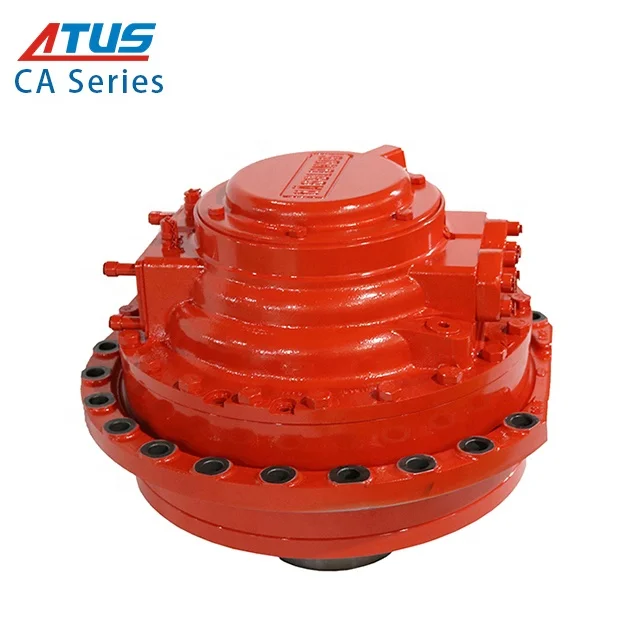

CA210 160 Radial Piston Hydraulic

Категория: Гидравлические насосы >>>
Поставщик: Shenzhen,Aotuoshi,Hydraulic,Machinery,Co.,Ltd.

Цена:600,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-16-2025	714.6 $*	750.64 $*
Aug-16-2025	708.46 $*	743.81 $*
Jul-16-2025	594.45 $*	624.15 $*
Jun-16-2025	696.26 $*	731.33 $*
May-16-2025	606.46 $*	636.31 $*
Apr-16-2025	684.58 $*	718.51 $*
Mar-16-2025	678.91 $*	712.94 $*
Feb-16-2025	672.18 $*	706.18 $*
Jan-16-2025	666.32 $*	699.77 $*

Характеристики

Product Description

Type	Radial piston hydraulic motor
Brand	ATUS
Material	cast iron
Performance	corrosion resistance
Displacement	CA 50 20 to CA 210
Warranty	1 Year

Direction for use

使用说明

The cylinder block is mounted in fixed roller bearings in the housing. An even number of pistons are radially located in bores
inside the cylinder block. and the valve plate directs the incoming and outgoing oil to and from the working pistons. Each piston
is working against a cam roller.

Description of application effect
使用效果描述

When the hydraulic pressure is acting on the pistons, the cam rollers are pushed against the slope on the cam ring that rigidly connected to the housing, thereby producing a torque. The cam rollers transfer the reaction force to the piston which are guided in the rotating cylinder block. Rotation therefore occurs, and the torque available is proportional to the pressure in the system.

Detailed Images

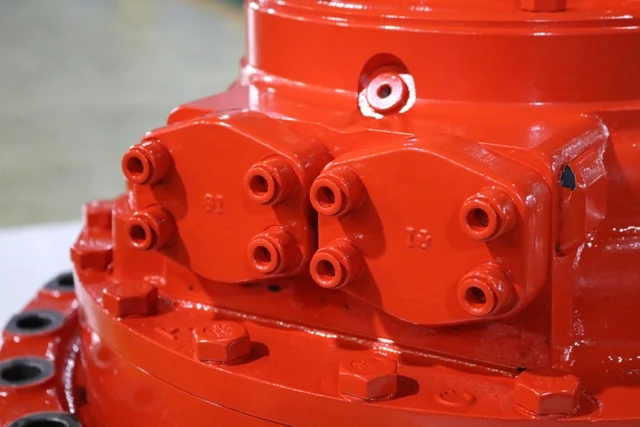

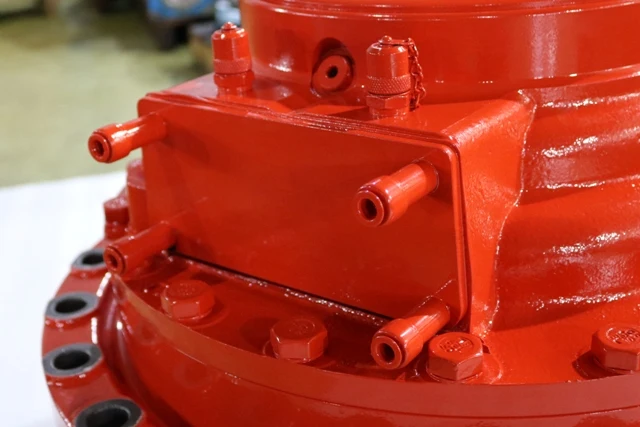

Oil main lines are connected to ports A and C in the connection block and drain lines to ports D1, D2, D3 or D4 in the motor housing.

The motor is connected to the shaft of the driven machine through the hollow shaft of the cylinder block. The torque is transmitted by using a mechanical shaft coupling or alternatively by splines.

Size Information

Technical Data

Name	Displacement	Torque	Rated Speed	Max. Speed	Max. Pressure	Max. Torque
CA 210	13200	210	85	115	350	/
CB 1120	70400	1120	20	27	350	370 KNM

Related Products

Packing&Shipping

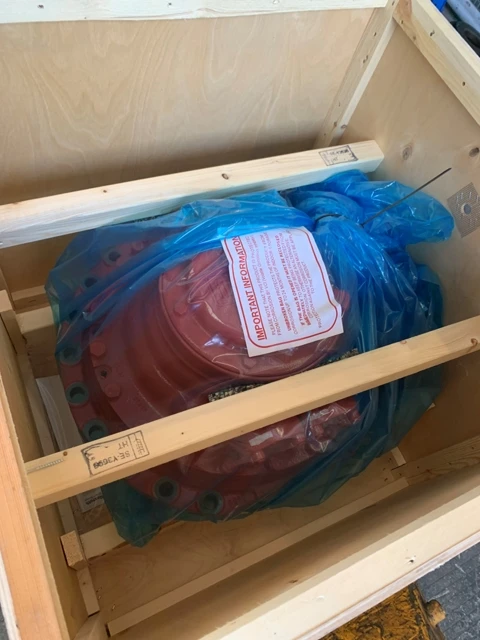

Wooden Case packing for pumps and motors, pack spare parts one by one by oil paper. Delivery by DHL, UPS, FedEx, etc.

After Sales Service

Quality Assurance

We guarantee ATUS hydraulic pumps and motors quality for 12 months, we will maintenance quality problems for free in the warranty and provide technical support in the whole production life.

Company Introduction

Shenzhen Aotuoshi Hydraulic Machinery Co.,Ltd work in hydraulic pumps and hydraulic motors for many years, with professional R&D, manufacturing, projects management and after-sale team, we can provide full range of hydraulic pumps and motors products.

We owns all intellectual property of ATUS hydraulic pumps and motors, our products were widely used in iron metallurgy, ceramic resistant materials, railway shield, forging machine tools, water conservancy and hydropower, petrochemical and engineering machinery and other industries.

Introduced ATUSPVXS, ATUSPVH, ATUSPV, ATUSPAVC, ATUSKMF, ATUSA4V(S)O, ATUSA10V(S)O series and other plunger pumps and hydraulic motors.

Our ATUS products features high reliability, long life, high pressure, heavy load, large displacement and low noise. The vicariously sales brands are: Rexroth, Denison, Vickers, Eaton, Parkers, Hagglunds, Nachi, Yuken, Kawasaki, Tokimeot, Sauer-danfoss, Danvers, Yeoshe, Linde, Daikin, Sumitomo, Eckerle, Voith, Hawe, Bonfiglioli, Brevini, UCHIDA, Komatsu, etc.

Shenzhen Aotuoshi Hydraulic Machinery company with high quality products, good reputation, quality service, our products were sold to domestic market, Malaysia, India, Southeast Asia, Australia and other countries. Established long business cooperation with customers.

Our Services & Strength

Shenzhen Aotuoshi hydraulic machinery company has rich experience providing a full range of hydraulic pump and hydraulic motor products. with higher capacity of professional R&D, manufacturing, after-sale and repairing.

FAQ

Q: What is our main application?

A: 1. Manufacture hydraulic pumps and motors, Reducers. We are factory.
2. Hydraulic spare parts and maintenance.
3. Construction Machinery.
4. Brand pumps&motors replacement.
5. Hydraulic System.
Q: What is the payment terms?
A: Full order: 50% as deposit (50% down payment), the 50% balance payment before shipment.
Small order or sample order: 100% full payment in advance.
Q: Can I mark my own brand on the pumps?
A: Yes, all products accept mark your brand and code.
Q: What is our mainly international market?
A: Eastern Asia 5%, Western Europe 10%, Northern Europe 5%, Southern Europe 10%, South Asia 10%, Domestic Market 60%.
Q: How long production quality guarantee?
A: We provide 12 months quality guarantee for all our hydraulic pumps and motors.
