Горячая Распродажа! Система распыления запахов hvac с сенсорным ЖК-экраном и
- Категория: Air Purifiers >>>
- Поставщик: Guangzhou,Tang,Mei,Environmental,Protection,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.38 $* | 0.79 $* |
| Aug-19-2025 | 0.2 $* | 0.75 $* |
| Jul-19-2025 | 0.80 $* | 0.99 $* |
| Jun-19-2025 | 0.19 $* | 0.19 $* |
| May-19-2025 | 0.29 $* | 0.5 $* |
| Apr-19-2025 | 0.29 $* | 0.5 $* |
| Mar-19-2025 | 0.7 $* | 0.50 $* |
| Feb-19-2025 | 0.0 $* | 0.11 $* |
| Jan-19-2025 | 0.52 $* | 0.74 $* |
Характеристики
500ml HVAC and land standing air conditioner aroma diffuser machine system for medium area 3000 cubic meter, with LCD screen and touch button and wifi app setting. It can use disinfectant alcohol instead of essential oils to antibacterial, antivirus. There are WIFI model and no wifi model, $5/unit difference.
Product Description
Model No. | 3000AF |
Voltage | DC12V |
Power | 12.5W |
Noise | <35dba |
Weight | 5.5KG |

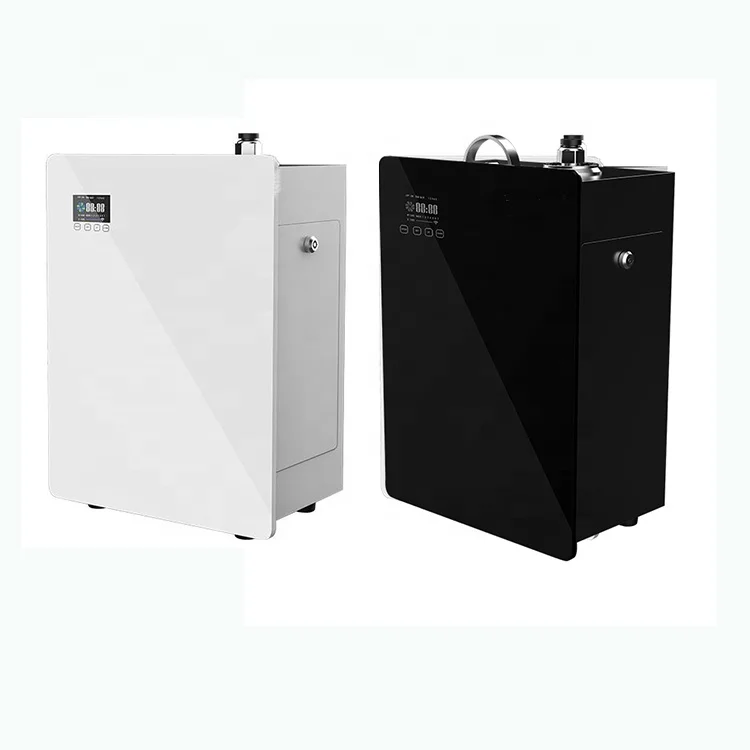

Color | black, white ( customized) |
Material | Metal, tempered glass |
Oil capacity | 500ml |
Oil bottle material | aluminium alloy |
Oil consumption | 4.5ml/h±5% (continuous working status) |
Product size | W242*D145*H359MM |
Installation | HVAC, Land stand |
Fan | Built-in fan |
Time set | Touch button + WiFi App |
Battery | Button memory battery |
Packing | 4 units per carton |
Features:
1. LCD touch screen,WIFI control for option.
2. High precision aluminum alloy atomization head.
3. High quality pump with long life.
4. Intelligent microcomputer control, internally installed protection device.
5. 5 Cvcle frequency settings.Set work time from Monday to Sunday. Intelligent 24 hours working time setting.
6. Built-in filter cotton and mute cotton,excellent mute effect .
7. Built-in intelligent microcomputer,with the function of power cut memory.
8. With built-in fan, when pump stops working the fan continues to work 5 seconds for better fragrance diffusion.
9. Working with HAVC, also blow straight with conversion head
10. The color and logo can be customized.
2. High precision aluminum alloy atomization head.
3. High quality pump with long life.
4. Intelligent microcomputer control, internally installed protection device.
5. 5 Cvcle frequency settings.Set work time from Monday to Sunday. Intelligent 24 hours working time setting.
6. Built-in filter cotton and mute cotton,excellent mute effect .
7. Built-in intelligent microcomputer,with the function of power cut memory.
8. With built-in fan, when pump stops working the fan continues to work 5 seconds for better fragrance diffusion.
9. Working with HAVC, also blow straight with conversion head
10. The color and logo can be customized.
Touch Button Features:
Short press: Local time and working time setting.
Long press:
MODE: WIFI matching
SET: Built-in fan open or close
UP: device testing function
DOWN: device lock or unlock.
IOT Intelligent Control, Perfect Combination of Fragrance and Technology
Tonemy leads the fragrance industry to a new height, our R&D team successively combine WIFI+APP smart system, 5G smart system, Bluetooth+IOT smart with fragrance diffuser machine nearly a year, realize multi-channel remote IOT control of fragrance diffusion device, thereby reducing equipment maintenance costs, improving fragrance efficiency, using science to mining fragrance business secrets.
Tonemy leads the fragrance industry to a new height, our R&D team successively combine WIFI+APP smart system, 5G smart system, Bluetooth+IOT smart with fragrance diffuser machine nearly a year, realize multi-channel remote IOT control of fragrance diffusion device, thereby reducing equipment maintenance costs, improving fragrance efficiency, using science to mining fragrance business secrets.
Products Introduction:
Advanced physical atomization technology is adopted to convert the liquid aroma oil into aroma scent, and the aroma scent is rapidly delivered to the air through the sub-stream , it can maximum improve the aroma coverage efficiency and fragrance concentration .The equipment is built-in the air fan and it can be used for external settings directly or connecting the central air-conditioner.
It is easy to replace the essential oil,customers can replace the fragrance flavor according to new themes and seasons. The intelligent valve controller can adjust fragrance concentration in the different environment to meet customer requirements.Concentration settings and internal 24hours/1 week timer of ensure system can adjust fragrance concentration for different sites,encryption program on control panel can lock the equipment operating system,make it more safe.
Installation Instructions
Technical advantage
We successfully achieved on our dispense system,to spread the essential oil fragrance evenly to every corner by the advance Nanometer decomposition technology ,the large area fragrance diffusion has been successfully realized, thus upgrading the smelling mission,achieving the result of Olfactory marketing .
We mastered the most advanced oil atomization technology in the world:Second fluid cyclone and cooling atomization technology, micropore air atomization technology, This technology was applied to Aviation and aerospace fields at the earliest time ,and then a rocket scientist from Lockheed Martin corporation applied it in fluid and high viscosity liquid atomization.
Traditional dispense facilities adopt plastic material atomization head which can be corroded by essential oil and easily cracked, these products non-environmental friendly.While we utilize aluminum alloy atomization head which is strong and anti-corrosion ,can effectively solve these problems .
We mastered the most advanced oil atomization technology in the world:Second fluid cyclone and cooling atomization technology, micropore air atomization technology, This technology was applied to Aviation and aerospace fields at the earliest time ,and then a rocket scientist from Lockheed Martin corporation applied it in fluid and high viscosity liquid atomization.
Traditional dispense facilities adopt plastic material atomization head which can be corroded by essential oil and easily cracked, these products non-environmental friendly.While we utilize aluminum alloy atomization head which is strong and anti-corrosion ,can effectively solve these problems .
Application
Hotel Lobby; Company; Exhibition hall；Library; Shopping mall; Auto 4S shop; Commercial Building; Cinema; Airport...
Diffuser Essential Oils
We provide perfume, floral, woody, ocean... scents of essential oil for diffusers, suitable use at house, bathroom, hotel, office, shopping mall, bar, spa, commerical building etc.
There are hot sale scents of Love of Life, Tonemy White Tea, Venice Love, Gardenia lily, Ritz-Carlton, Holiday Crown,Vanilla Macaron, Dune Rose etc.
Also we have developed new oils to antibacterial and antivirus, they are Eucalyptus oil, Lemongrass oil, Tea tree oil, Bergamot oil.
Recommend Products
Our Company
TONEMY under GUANGZHOU TANGMEI ENVIRONMENTAL PROTECTION TECHNOLOGY COM.,LTD ,is one of the first batch of registered legal enterprises committing to the development and production of fragrance system, aiming at promoting and improving the level of space mission.After a long-term accumulation and development, it has now become a leading brand in this industry.
TONEMY has established 9 branches in Guangzhou,Shenzhen ,HK, Changsha,Changde, Sanya,Nanchang, and Kunming , We timely and effectively provide the most scientific fragrance marketing programs and the most professional services.
In 2015 ,TONEMY entered business relationship with the world's top essential oil suppliers and set up professional aroma oil R&D center in UK,HK and GUANGZHOU, with advanced equipment and original import of essential oil from British and French ,it built a top smelling space for more customers .
In 2016, TONEMY firstly launched the oil series for vehicle interior decomposition ,and it was highly recognized by a large number of businessmen and vehicle owners . Now TONEMY is officially launching in Chinese market this exclusive product which can scientifically and effectively decompose the peculiar smell inside of the car.
We are focus on products quality, have certificate of ISO9001, ISO 14000, ISO 18000, CE, ROHS, SASO, also SGS security testings,with factory in Baiyun District, with almost 100 staff total. We provide different cooperation method to our clients all over the world, such as OEM, ODM, distributor.
Now our factory developed new aroma diffuser machines such as central air conditioner, fresh
air unit grafting type, internal setting of dispense system，straight blowing system.
Our aroma diffuser machines and essential oil are export to North America, South America, Europe, Mid East Asia such as USA,Canada, Uk, UAE, Singapore etc.
Certifications
Packing & Delivery
Packing
All of our items are unique packing in hard paper ,with a full set of internal allocation ,including instruction manual,power cord,atomizing core,stainless steel adapter,Essential oil bottle in 1000ML ,PVC link pipe and so on . For the carton packing ,we can do according to customer's requirements.
Delivery
We always have stock, sample orders are warmly welcomed!
We can ship the order within 48 hours after payment if the quantity is less than 50 sets. If the quantity is more than 100 sets,the production time is 15 days- 1 month.
We can ship by Air Express (such as DHL,FEDEX ,TNT ), by air cargo, by sea, depends on our clients demand. Also we can send them to our clients forwarder agent for delivery.
We can ship the order within 48 hours after payment if the quantity is less than 50 sets. If the quantity is more than 100 sets,the production time is 15 days- 1 month.
We can ship by Air Express (such as DHL,FEDEX ,TNT ), by air cargo, by sea, depends on our clients demand. Also we can send them to our clients forwarder agent for delivery.
FAQ
Q1. why choose the product of your company?
Our company's equipments adopt the Japanese import air pump,the spray head adopts the atomized spray nozzle,The new machine adopts
anti-corrosive steel and toughened glass,with the advantage of the beautiful appearance, long service life,high amount of
atomization and wide coverage.
Q2.How to maintain the atomized head parts ?
A New atomized head part will be attached for replacement.
If the atomized head part is blocked,you can place the new one and put the old one in the alcohol to decompose the dirt.It’s
better for the atomized parts be replaced once a month.
Q3 How long for warranty period ?
All our products are 1 year guaranteed .You can contact with us in case any parts are damaged ,we’ll work out the resolution at
our soonest.
Q4. Is your essential oil harmful to health ?
No ,all our essential oils are refined and extracted in strict accordance with the standards of the fragrance association , and we
passed the ROHS (International Environmental Directives) and REACH (163 tests on human hazardous substances).
Q5: Is it possible to buy samples to test before a MOQ order ?
Of course you can.
Q6. Is your essential oil able to be refilled? Is it harmful to people?
Yes, the essential oil can be refilled. But only PURE Essential oil can be used,water can not be add into the machine. It is not
harmful to people.
Q7. Is your Electric Scent Diffuser able to set work ?
Yes, you can set working intervals and stop intervals, like 30 seconds on and 30 seconds off from 9 am to 6 pm everyday.
Q8. How to clean the machine?
1. Take out the bottle.
2. Fill the alcohol with the bottle and clean it.
3. Refill the fresh alcohol and install it to the machine, open the power to work.
4. After 10 minutes and it is finished cleaning, turn off.5. Put the essential oil bottle inside the machine, close it well.
