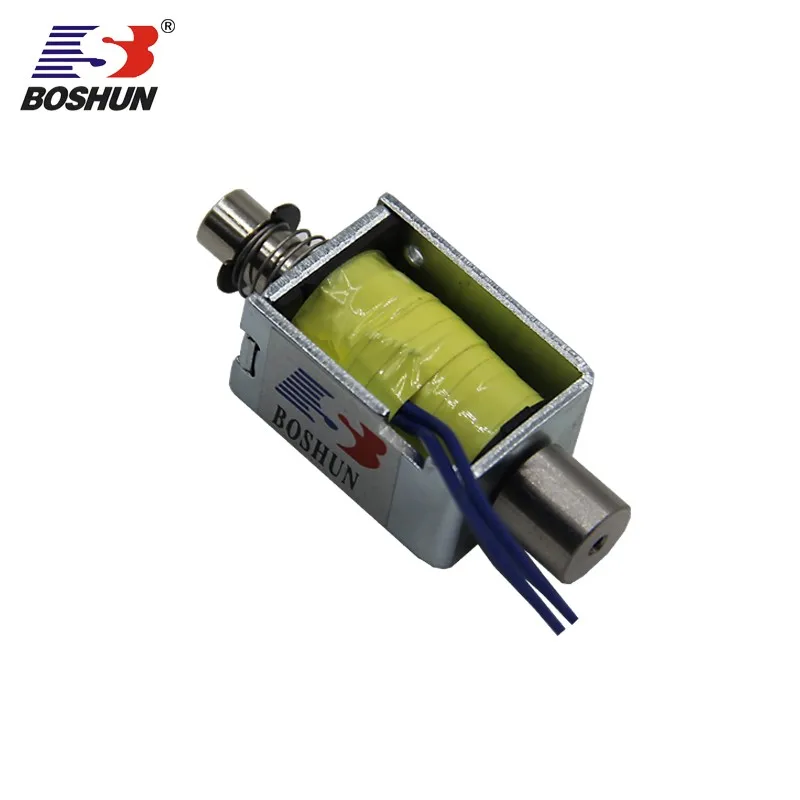

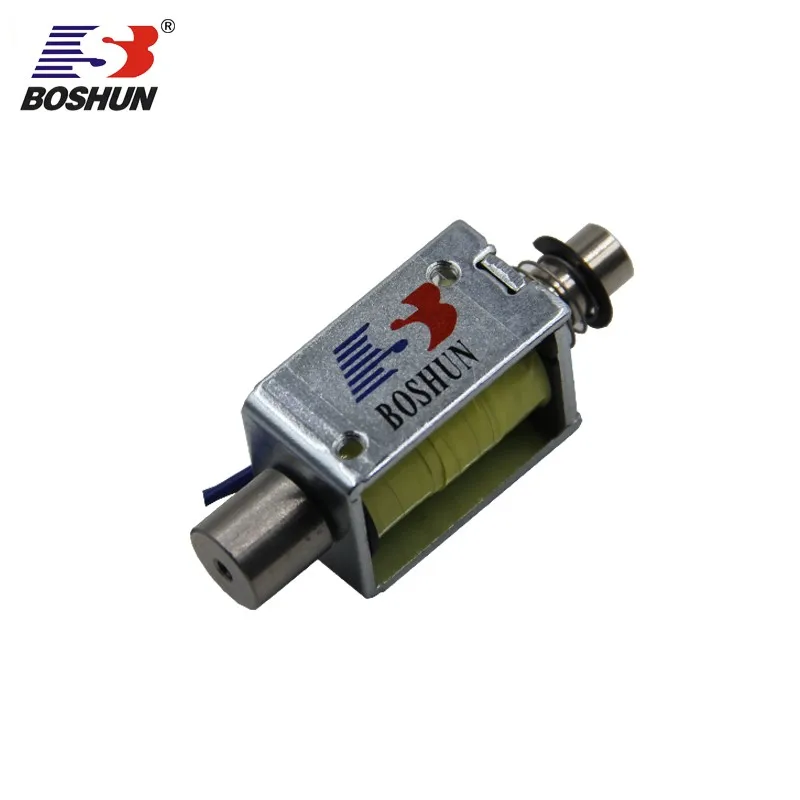

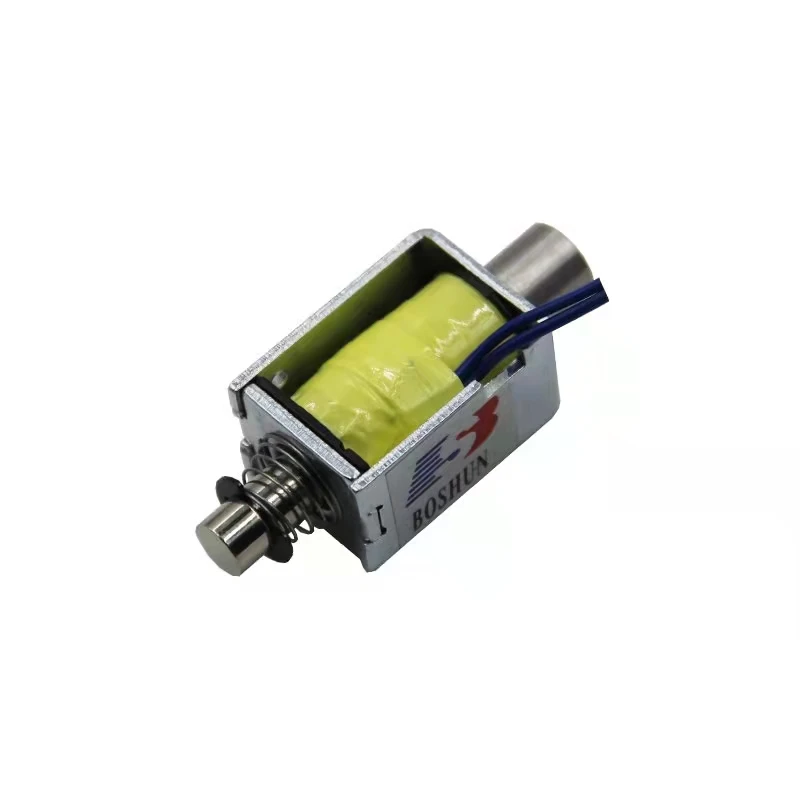

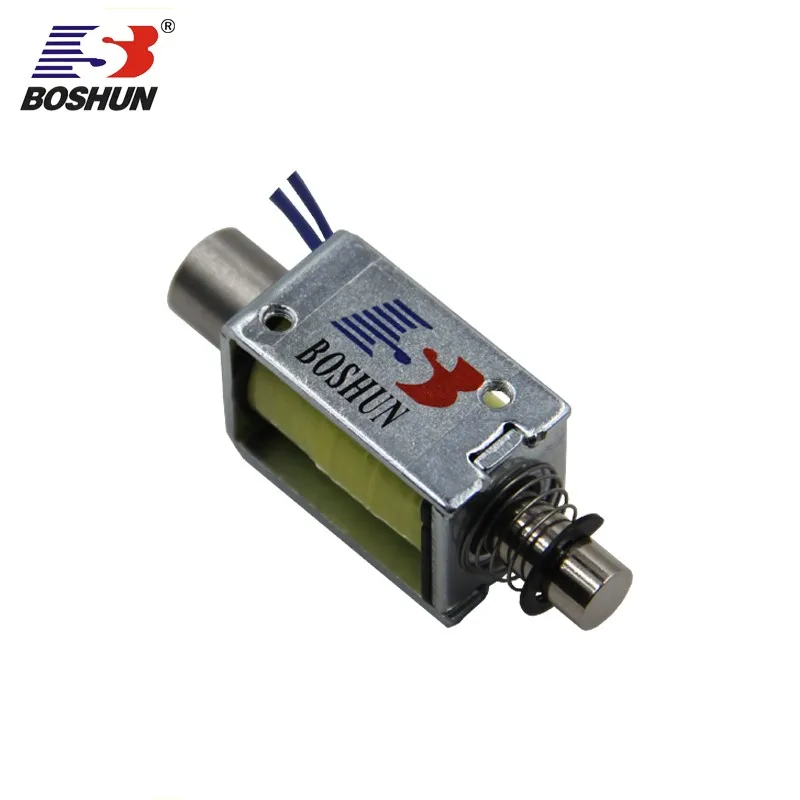

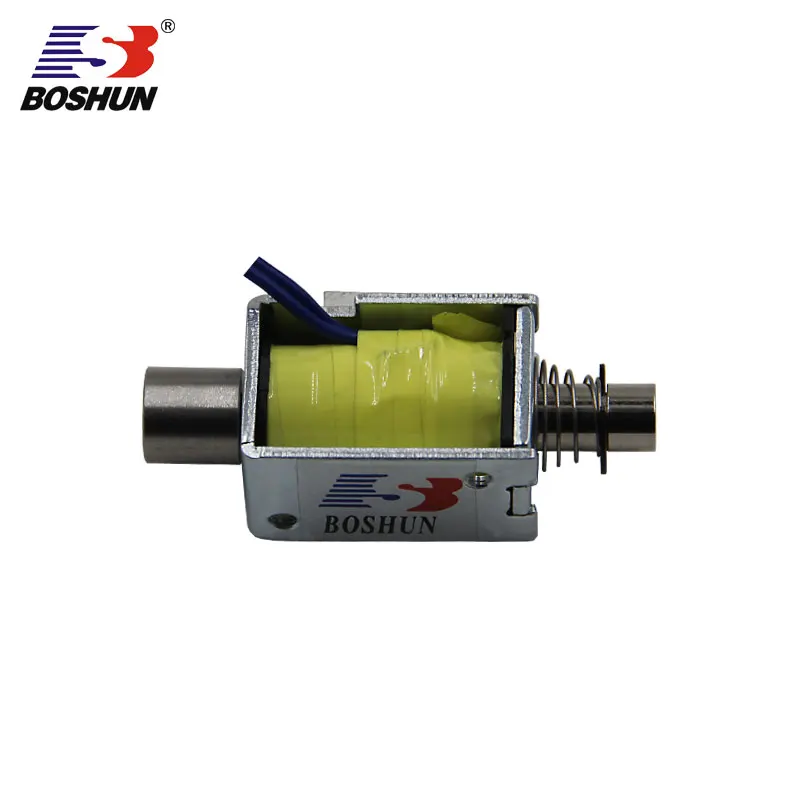

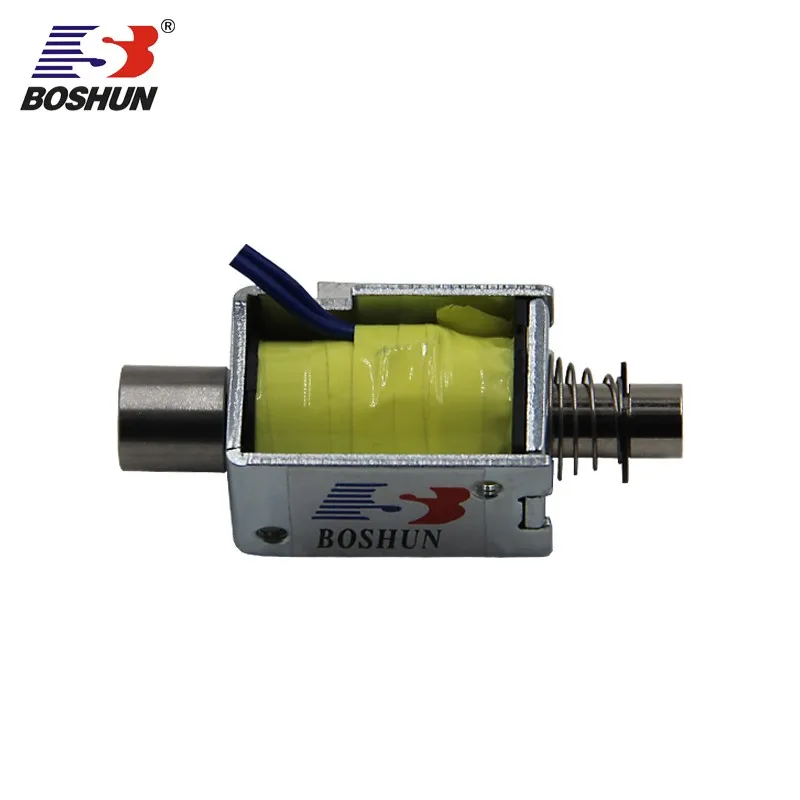

BS-0730-95 отпечатков пальцев соленоид рамы DC18V двухтактный Тип редукционный
- Категория: >>>
- Поставщик: Dongguan,Boshun,Industry,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.61 $* | 0.85 $* |
| Aug-16-2025 | 0.62 $* | 0.2 $* |
| Jul-16-2025 | 0.53 $* | 0.58 $* |
| Jun-16-2025 | 0.94 $* | 0.32 $* |
| May-16-2025 | 0.35 $* | 0.4 $* |
| Apr-16-2025 | 0.13 $* | 0.17 $* |
| Mar-16-2025 | 0.67 $* | 0.4 $* |
| Feb-16-2025 | 0.6 $* | 0.74 $* |
| Jan-16-2025 | 0.38 $* | 0.93 $* |
Характеристики
Product Description
| Product parameters: | |
| 1.Name model (P / N): | BS-0730S-95 push-pull type solenoid |
| 2. Standard test conditions: | |
| 2.1 Ambient temperature: | -5°C~+45°C,5%~95%RH |
| 2.2 Relative humidity: | 20°C~+85°C,5%~60%RH |
| 2.3 Rated voltage: | DC24V |
| 2.4 Power consumption (wattage): | 19.86W/48W (DC24V, R=29Ω±10%/R=12Ω±10%) |
| 2.5 OPERATION CYCLE: | pass: break = 25ms: 250ms (maximum power-on time 1 second power-on frequency ED 9%) |
| 3. Appearance (facies): | no damage, crack, rust, surface stain |
| 4. Electrical characteristics | |
| 4.1 Working voltage: | DC24V±5% |
| 4.2 Potence: | 18V power, 4mm stroke, power 500g or more |
| 4.3 Insulation resistance: | 500MΩ MIN, @500V DC |
| 4.4 High voltage: | DC700V 50/60Hz-1 sec, leakage current up to 1 mA (between coil and housing) |
| 5.0 Life (biometry): | : ≥ 500,000 times (DC24V, pass 25ms, break 250ms seconds once, load ) |
Fingerprint frame solenoid BS-0730-95 push-pull type solenoid product drawing :
Possible modifications include: modification of the force stroke characteristic, modifications of armature and plunger or custom-designed mounting-holes. Possible modifications also include individual solenoid designs for special operating voltages or specific duty cycles, as well as individual connection technologies, such as custom-made cable strands or terminals.
Application
View more
BS-0730 Size(width*height*length) 14*16*30
| BS-0731 Size(width*height*length) 16*20.5*30.7
| BS-0741 Size(width*height*length) 20*25*41.5
| BS-0826 Size(width*height*length) 22*25*41.5
|
BS-0837 Size(width*height*length) 20*26*37
| BS-0940 Size(width*height*length) 19.8*15*41.7
| BS-0946 Size(width*height*length) 19*23*45.9
| BS-1037 Size(width*height*length) 26*20*37
|
BS-1039 Size(width*height*length) 26*20*39
| BS-1040 Size(width*height*length) 24*29*40
| BS-1041 Size(width*height*length) 29*24*40
| BS-1230 Size(width*height*length) 22*32*30
|
