Китайский винтовой воздушный компрессор с ременным приводом
- Категория: General Industrial Equipment >>>
- Поставщик: Shanghai,Screw,Compressor,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.29 $* | 0.37 $* |
| Aug-16-2025 | 0.58 $* | 0.33 $* |
| Jul-16-2025 | 0.48 $* | 0.98 $* |
| Jun-16-2025 | 0.5 $* | 0.3 $* |
| May-16-2025 | 0.90 $* | 0.53 $* |
| Apr-16-2025 | 0.73 $* | 0.9 $* |
| Mar-16-2025 | 0.73 $* | 0.84 $* |
| Feb-16-2025 | 0.66 $* | 0.28 $* |
| Jan-16-2025 | 0.71 $* | 0.79 $* |
Характеристики
Product Description
Product Technical Description

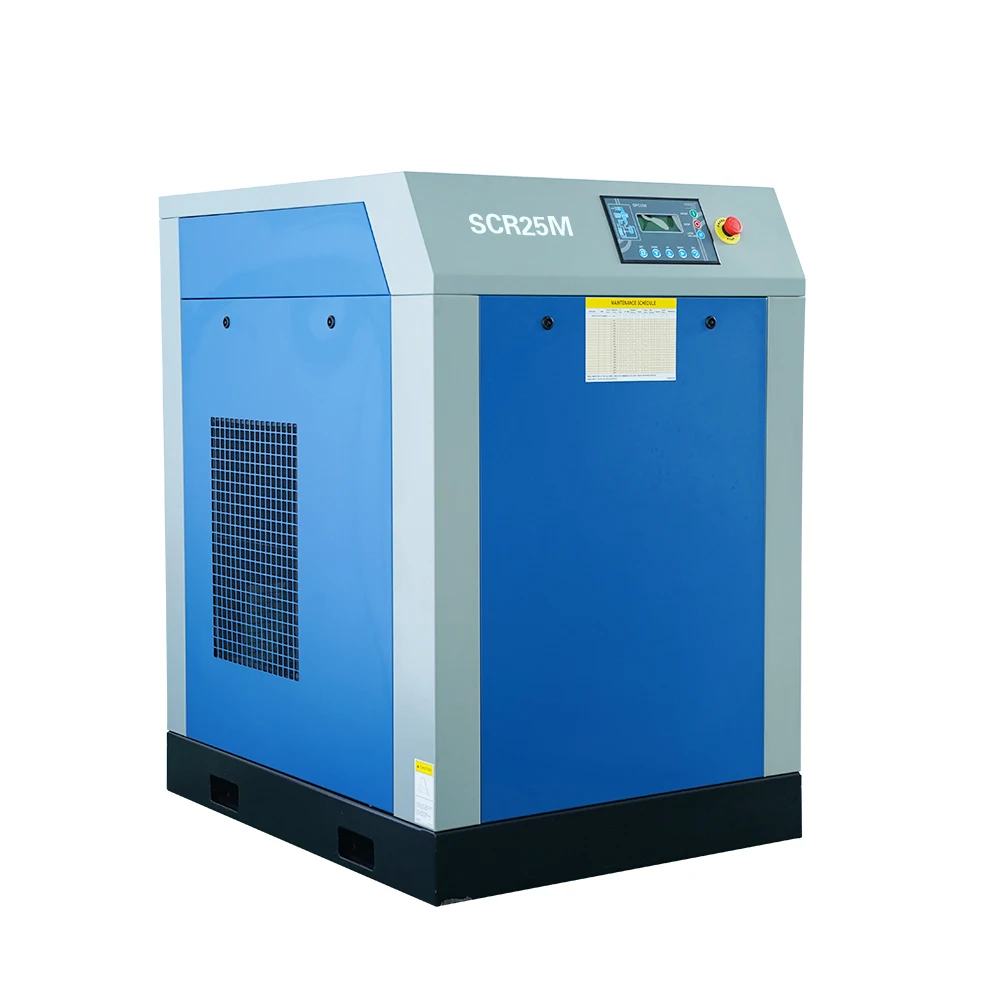

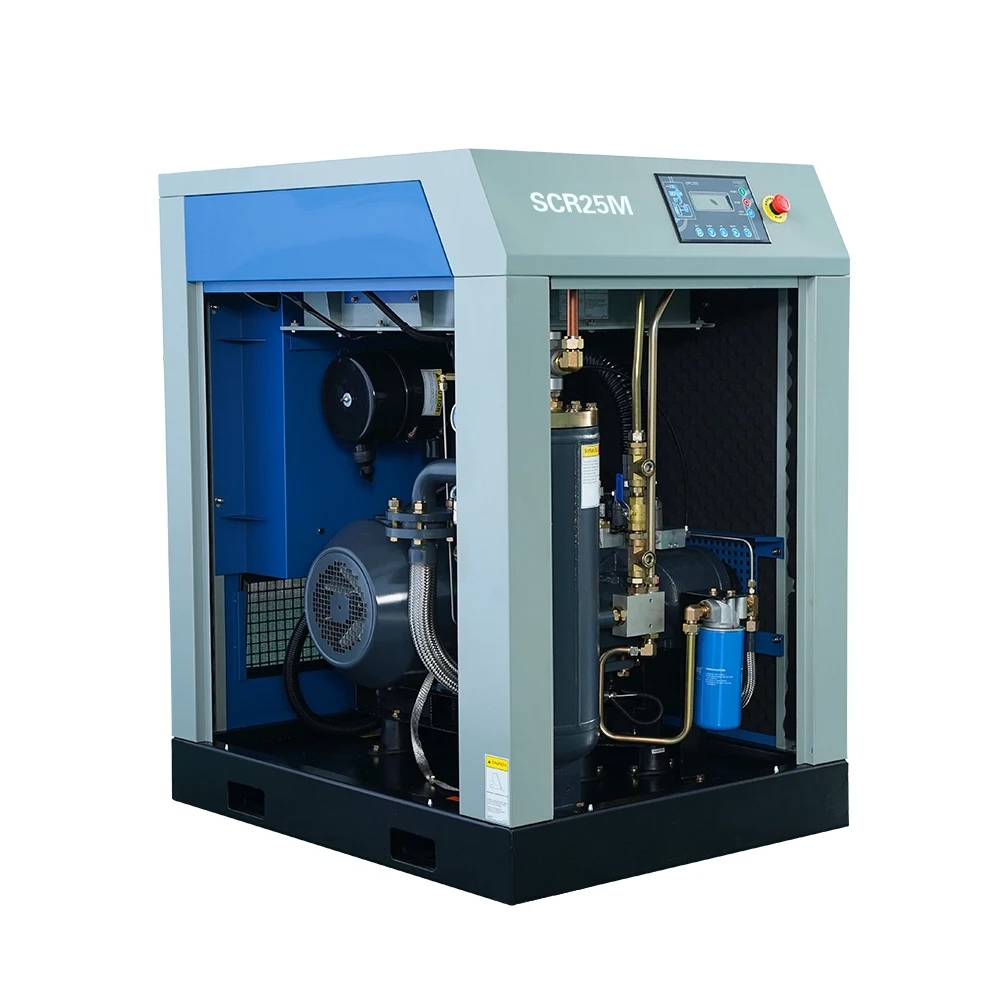

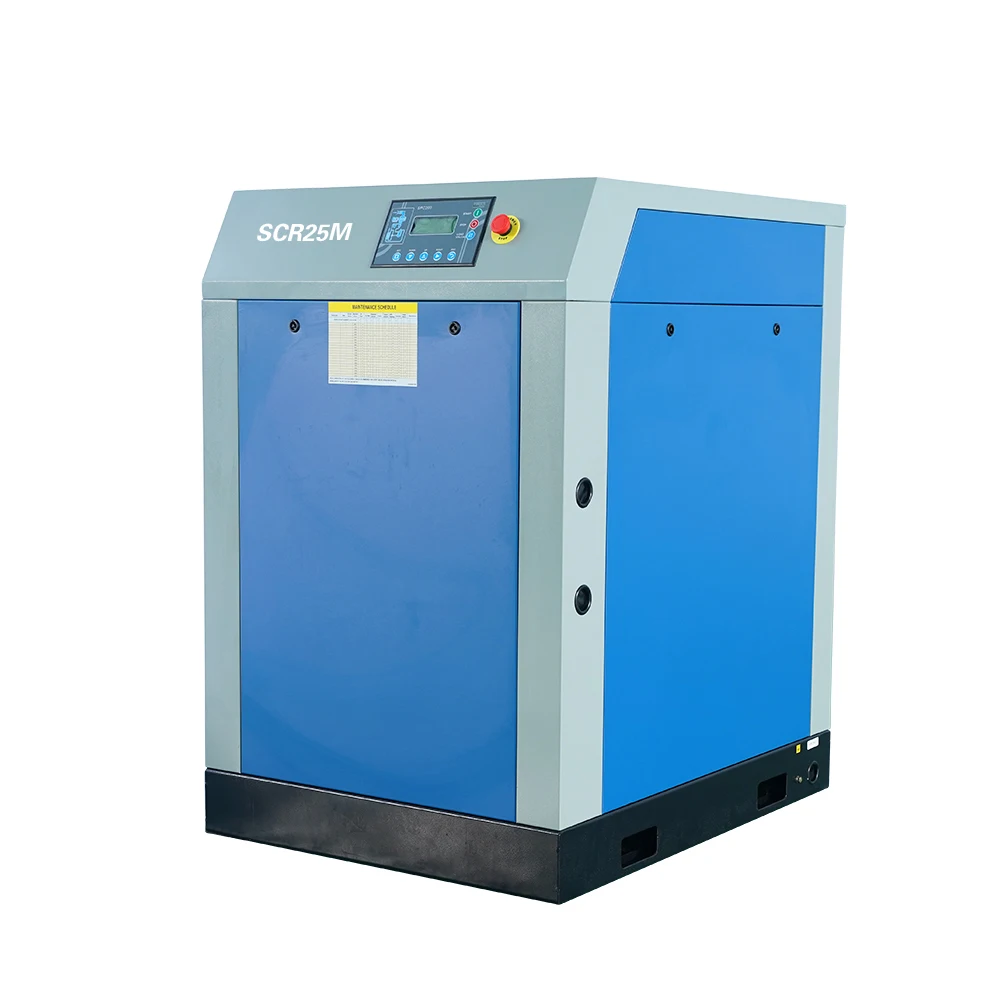

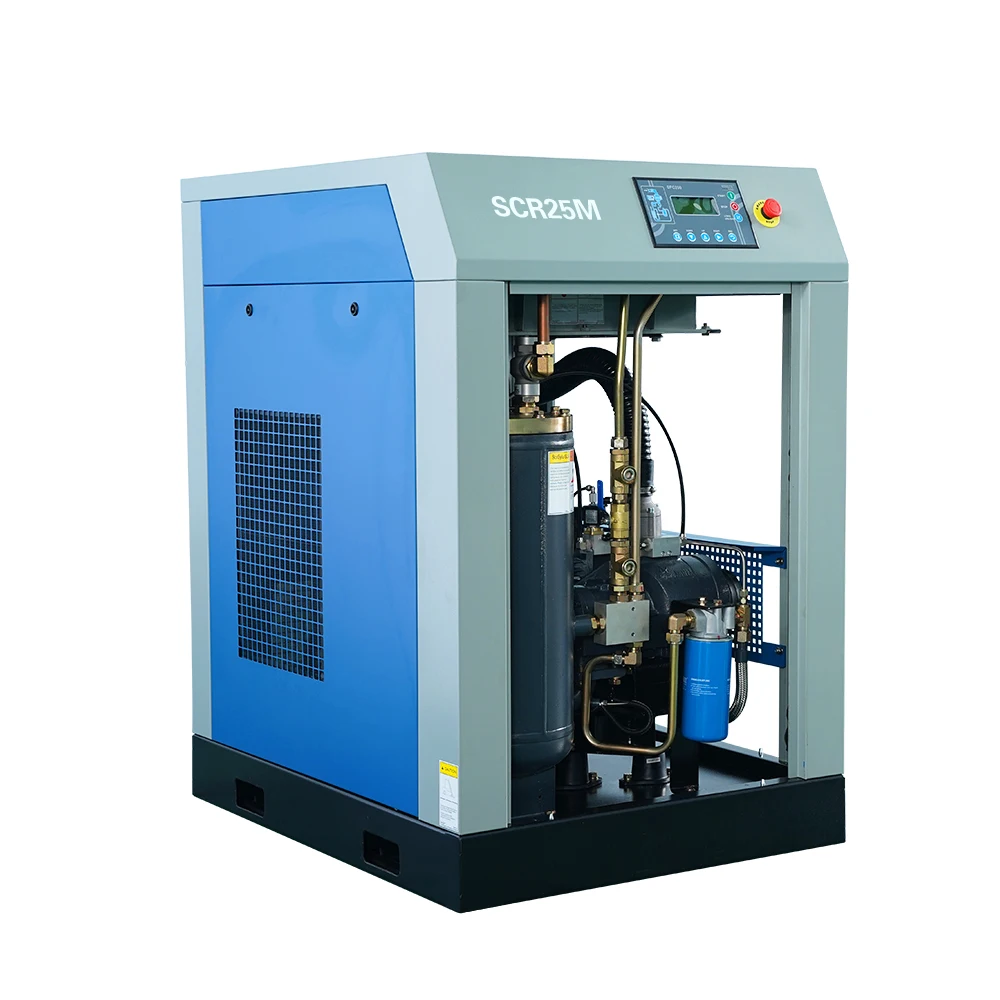

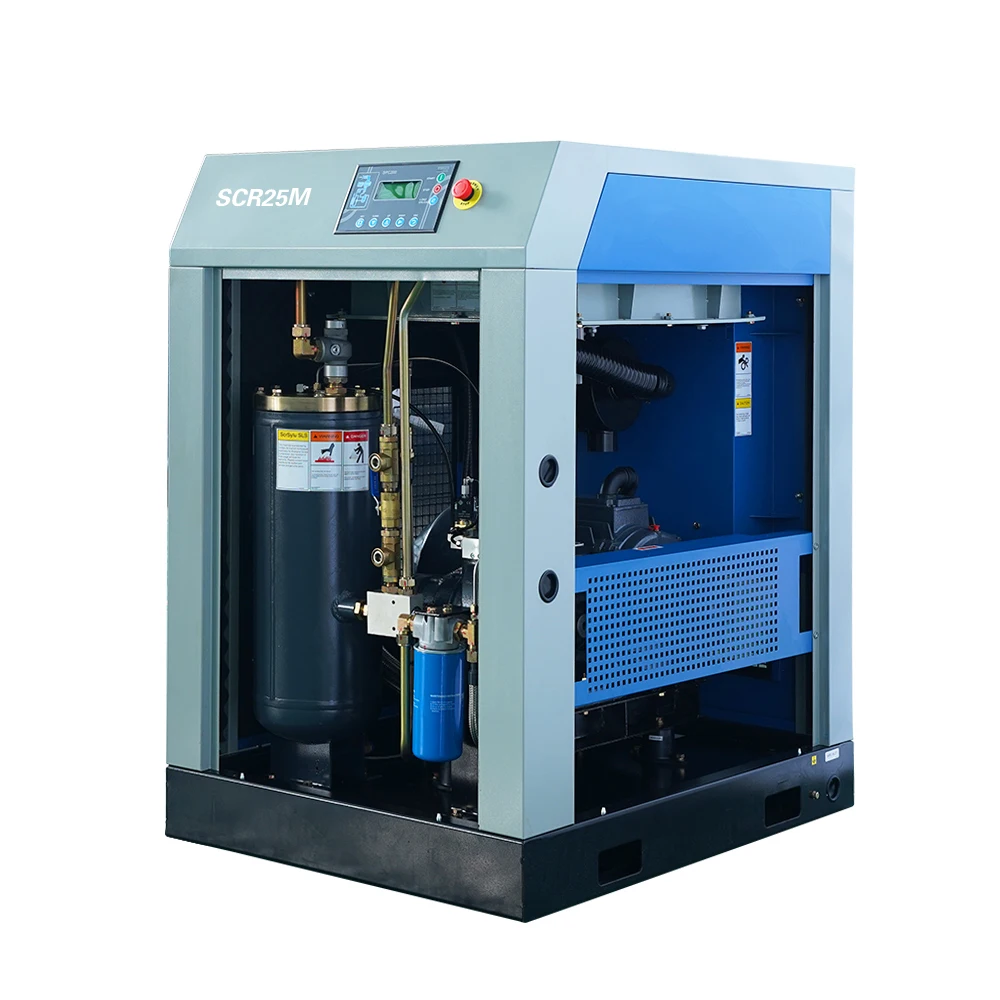

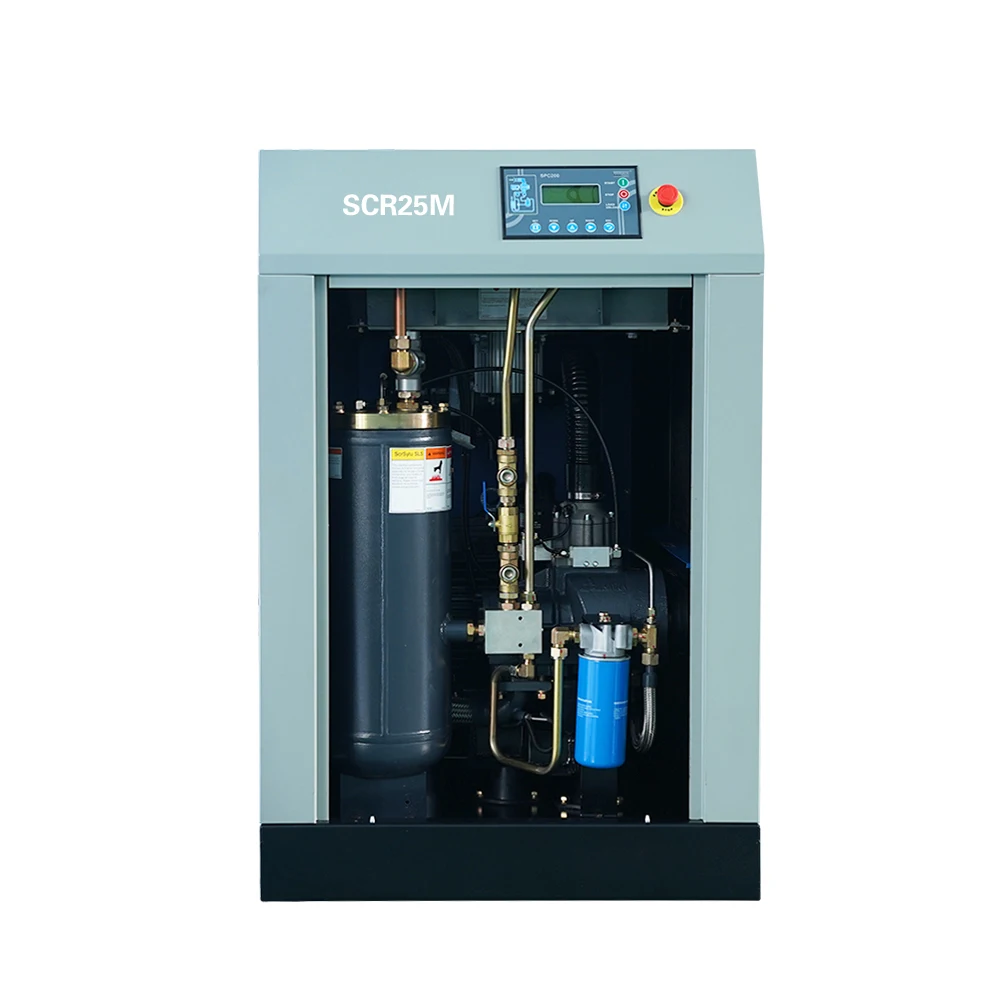

| Model : | Oil Injected Screw Air Compressor Belt Driven (M series) |
| Type: | Oil Injected Belt Driven Screw Air Compressor |
| Voltage: | 380V/50HZ/3P, 220V/60HZ/3P, 400V/50HZ/3P, 415V/50HZ/3P or Customer′s Requirements |
| Working Pressure: | 7~12.5 bar |
| Installed Motor Power: | 4KW~75KW |
| Capacity: | 0.58~13.3m3/min |
| Color: | Blue |
| Driven Method: | Belt Driven |
| Air End: | Original Ally-win Air End from Germany |
| Trademark: | SCR |
| Transport Package: | Standard Wooden Packing |
| Available Certificate: | CE, ISO, UL, ASME, GHOST |
| Origin: | Shanghai, China |
| application: | Casting , Metal , Plastic , Rubber |
Product Features
1. Sino-Japan technology cooperation, high reliability.
2. Big airend with low rpm for better performance an long life span.
3. High reliability components imported original from Germany, Swiss etc.
4. CE level protection design and manufacturing
5. Oversize cooler suitable for tropical area.
6. More than 10,000.00 units running around the world since 10years ago.
7. Intelligent PLC control.
8. Easy to do maintenance and service.
1.Automatic interlock control and operations management
Intelligent microcomputer controller, combined with pressure, temperature, current, signal, alarm with 12 important indicators and 13 comprehensive security protection measures with Chinese and English display optional and maintenance time limit remind. The RS485 communication interface can realize several machines joint control. Concise and comprehensive to keep the customer informed of the machines’ situation in time.
2.Safe and zero leakage connection
SCR have abandoned the traditional low cost hydraulic hose design. SCR use High-rigid pipes and flexible joint connection, avoiding bursts typically caused by ageing . Fluorine rubber type 0-ring offers a flexible seal preventing leakage.
3.heavy duty air filter with prefilter
A European imported air filter offers High efficiency and a low pressure drop.
4.Siemens brand electrical components
5.American brand high efficiency transmission system
 |
1.Germany OPT belt
2.Safety protection for belt transmission
3.siemens core control componments
4.Intrlligent PLC control
|
| Model | SCR25M-8 | SCR25M-10 | SCR25M-12.5 | |
| Capacity/Pressure(m3/min,/BAR) | 3.05/8 | 2.7/10 | 2.4/12.5 | |
| TEFC Motor | Power(KW) | 18.5KW(25H.P) | ||
| Speed(r/min) | 2938 | |||
| Starting way | Star-Delta | |||
| Volt(V) | 380/400/415(220) | |||
| Motor safety grade | IP54 | |||
| Motor isolation grade | F | |||
| Electrical Supply | 380(400,415)V/50Hz/3Phase, 220V/60HZ/3P | |||
| Outlet Temperature(ºC) | ≤ Environment Temperature+10ºC | |||
| Driven way | Belt Driven | |||
| Noise level at 1 meter | 73±3dB(A) | |||
| Cooling method | Air cooling | |||
| Oil content | ≤3 ppm | |||
| Outlet Connection | Rc 1" | |||
| Dimension | Length(mm) | 900 | ||
| Width(mm) | 1150 | |||
| Height(mm) | 1350 | |||
| Weight(KG) | 530 | |||
Product Categories
Advantages
 | Professional online consultant to solve your question about compressor system. |
| Free site design consultant, and energy saving solution to help you save operation cost. | |
| Negotiable technican available to service machinery overseas. | |
| Online professional after-service until solve the problem. | |
1 year warranty after commissioning or 16months against shipping date, (except maintenance consumables). | |
| A sufficient number of spare parts are available, make sure the good after service. |
Application
About SCR
1989 Start Sells of Screw Compressor
2008 Establish Shanghai Globe Screw Compressor Technology focus on airend technology through technology cooperation with Germany.
2010 Get UL certificate, start to sell in US.
2015 Promotion of oil cooling PM compressor, two stage compressor. Export oil free compressor to UK, US etc. Export to more than 55countries around the world.
2018 Jan, 1st, Joint Venture with Japan Anest Iwata to have better future development.
|  |
2002 Establish SCR factory in Jinshan Area.
2009 Attend Germany Hannover Mess, Get CE certificate, start to sell in Europen market.
2013 Export low pressure compressor.
2016 EPM, Low pressure PM compressor be published.
|
FAQ
1 What trade terms do we provide? What kind of settlement currency do we offer? |
Trade term :CIF ,CFR ,FOB,Ex-Works |
2 How long is our delivery? |
Our standard delivery time is 30-40 days after confirmation order & receiving recipets for standard compressors, for the other non standard requirement will be discussed case by case. |
3 What is the voltage of the compressor? |
The available voltage include 380V/50HZ/3Phase, 400V/50HZ/3P, 415V/50HZ/3P, 220V/60HZ/3P, 380V/60HZ/3P, 440V/60HZ/3P. At the same time we provide other voltage according to customer requirement. |
4 Can our compressor run in high temperature environment? What is the working temperature range for our machine? |
Yes ,our machine would run in high temperature environment ,until now our products have been sold to many countries which would meet high temperature in summer ,such like Iraq, Saudi Arabia, Egypt, Algeria, etc. |
5 What’s the min. Order requirement ? |
Min. Order requirement is 1PCS. |
