Резервуар для брожения пивоварения из нержавеющей стали 100
- Категория: Beverage & Wine Processing Machinery >>>
- Поставщик: Shandong,Innovative,&,Craft,Brewing,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 0.1 $* | 0.90 $* |
| Aug-15-2025 | 0.38 $* | 0.92 $* |
| Jul-15-2025 | 0.19 $* | 0.22 $* |
| Jun-15-2025 | 0.60 $* | 0.73 $* |
| May-15-2025 | 0.74 $* | 0.31 $* |
| Apr-15-2025 | 0.4 $* | 0.59 $* |
| Mar-15-2025 | 0.44 $* | 0.67 $* |
| Feb-15-2025 | 0.68 $* | 0.26 $* |
| Jan-15-2025 | 0.5 $* | 0.8 $* |
Характеристики
100L Stainless Steel Draft Beer Brewing Fermentation Tank Equipment
Brewery tanks are containers for beer production. In the brewery tanks, water, grains, hops, and yeast are brewed to make delicious beer. The principle of brewing beer is very simple, but regardless of the scale of the brewing, the brewing process needs to be summarized in practice. Micet Craft provides customized and designed beer fermentation tanks, bright tanks, and other brewery tanks required by the brewery from 100L to 5000HL.
Product Parameters
Product Specifications | 1HL-300HL |
Fermentation Space | 20-30% upper fermentation space |
Polyurethane Insulation Thickness | 60~120mm |
Shape | Butterfly top/cylinder/60° and 70° conical bottom (can be customized as required) |
Jacket Position | One or more side/bottom |
Welding Method | TIG welding process |
Inside The Tank | Mirror-polished |
Fermentation Tank Configuration
Fermentation System | Fermentation tank | -Pressure:3 Bar -Inner:3mm; outer:2mm; with insulation -Cooling jackets |
Accessories | Yeast Saving Tank | |
Cooling System | Glycol water tank | -Inner:3mm; outer:2mm |
Accessories | Chiller; Glycol water pump; Pipes & Valves | |
CIP System | Acid tank, Caustic tank, Trolley | -Pump; Pipes & Valves-Accessories of the CIP System |

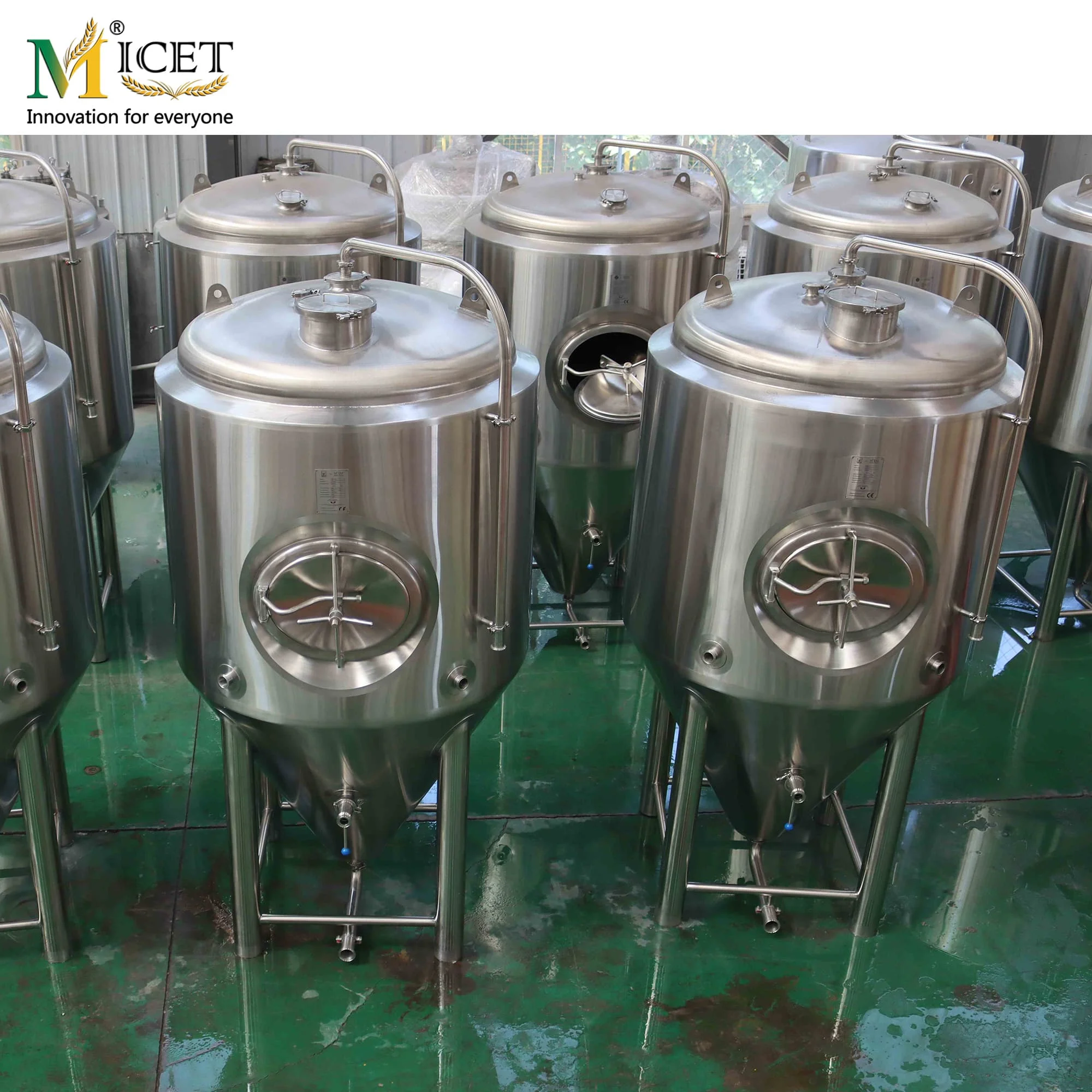

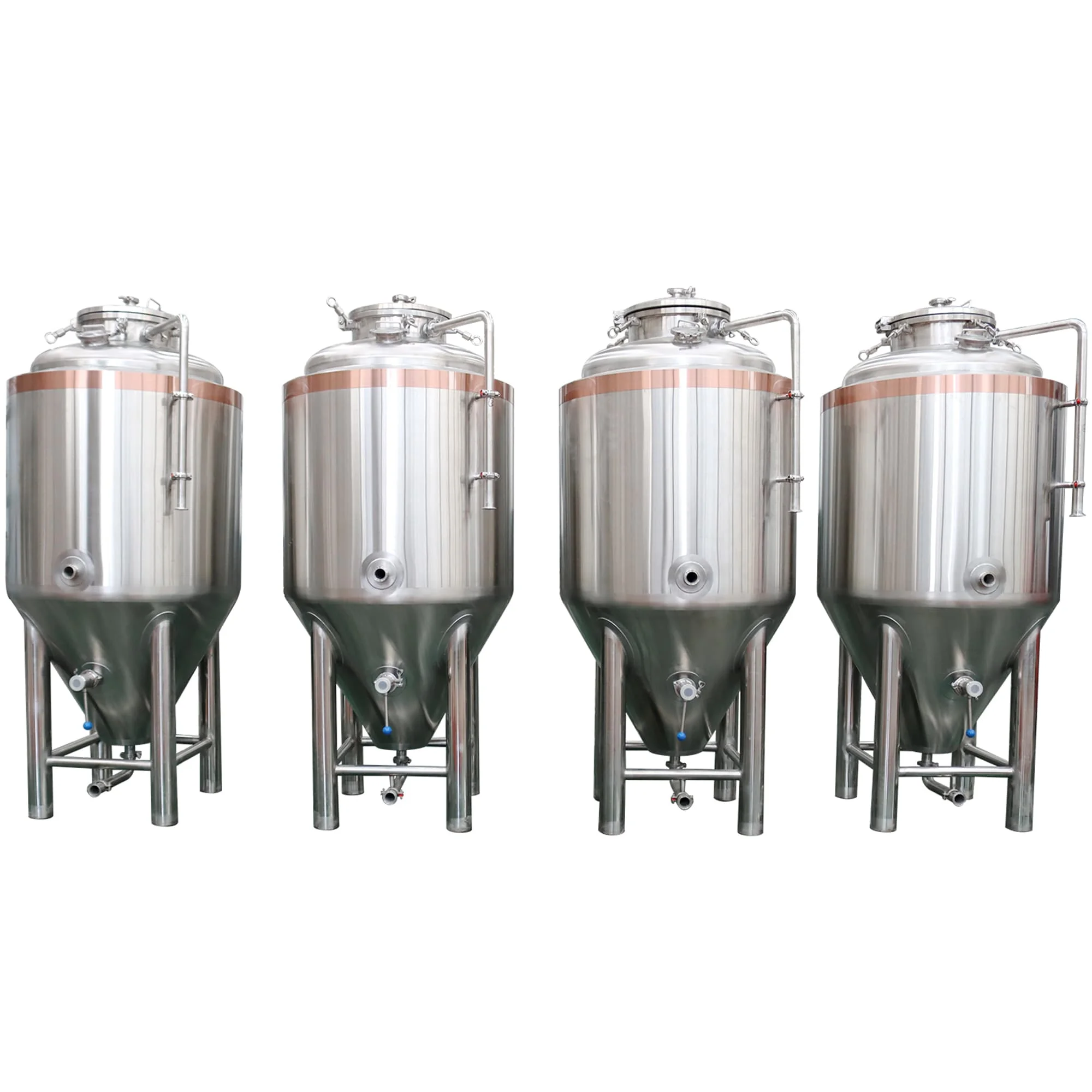

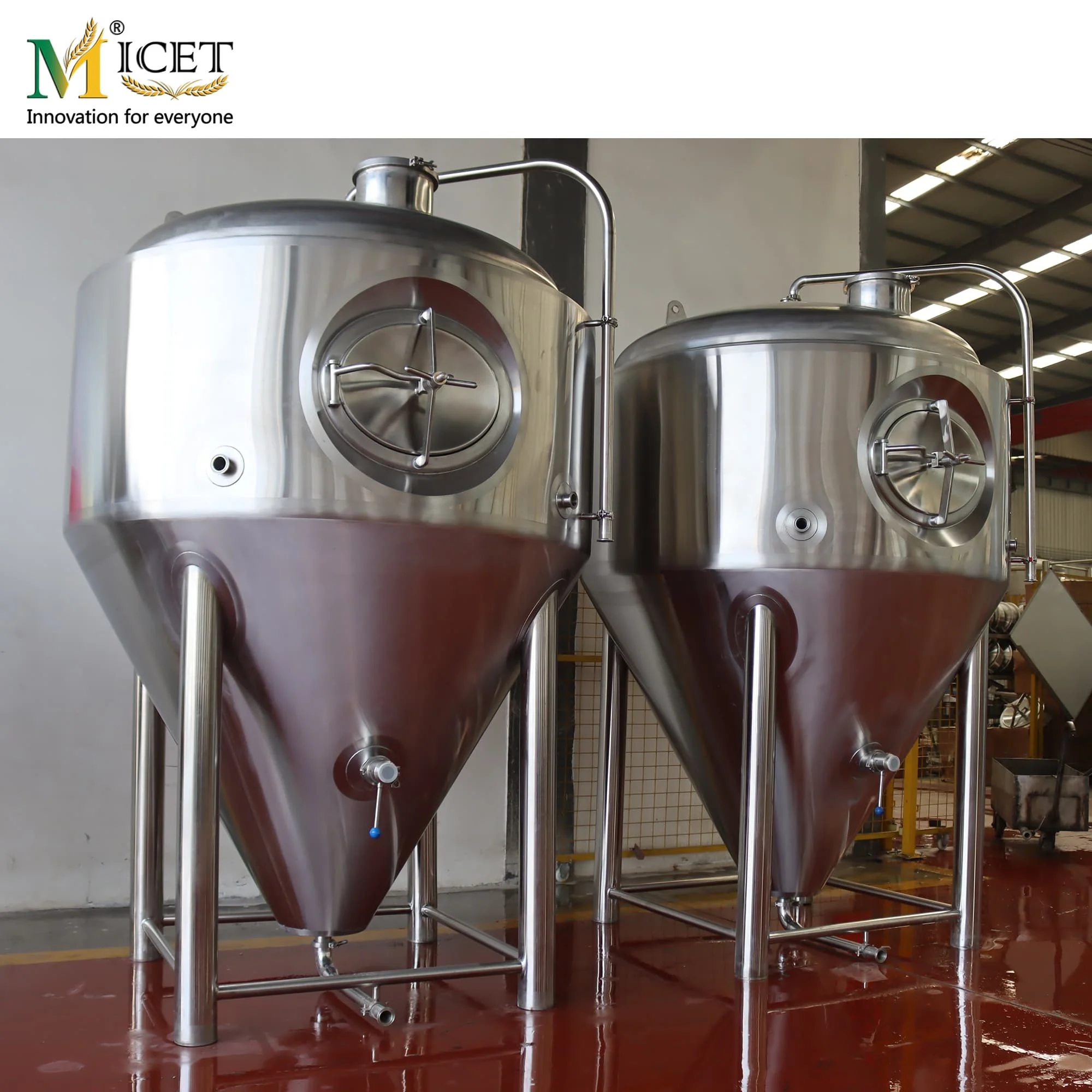

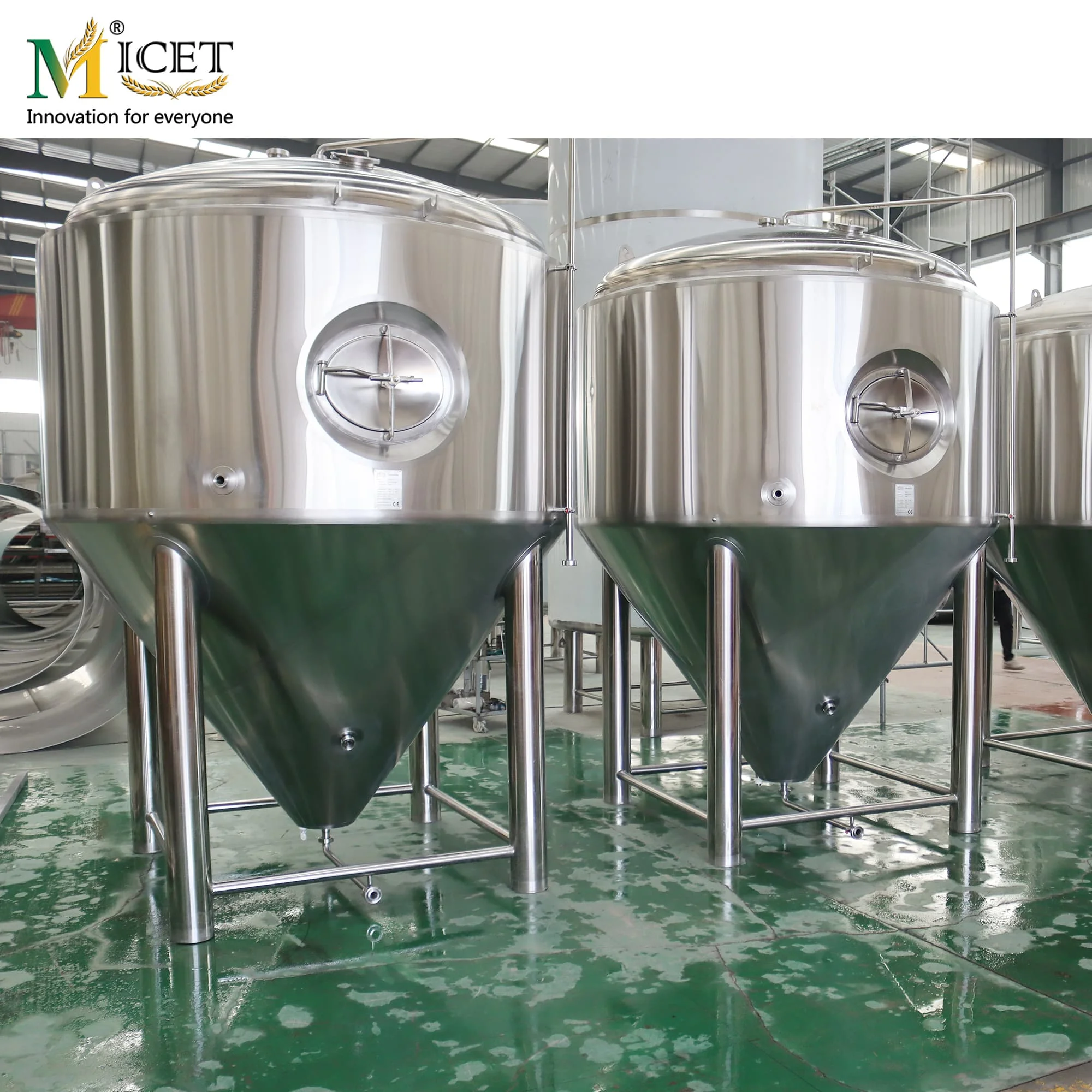

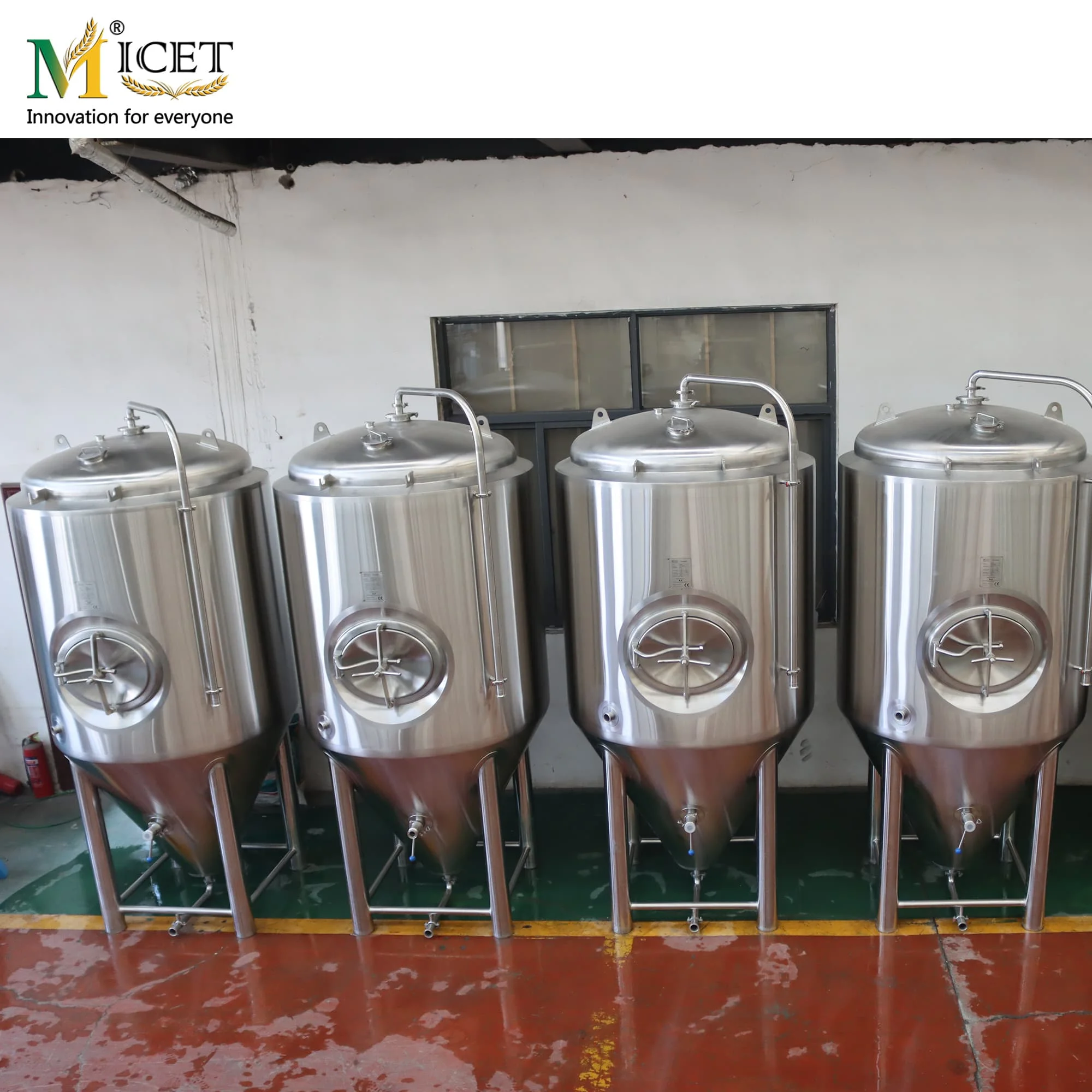

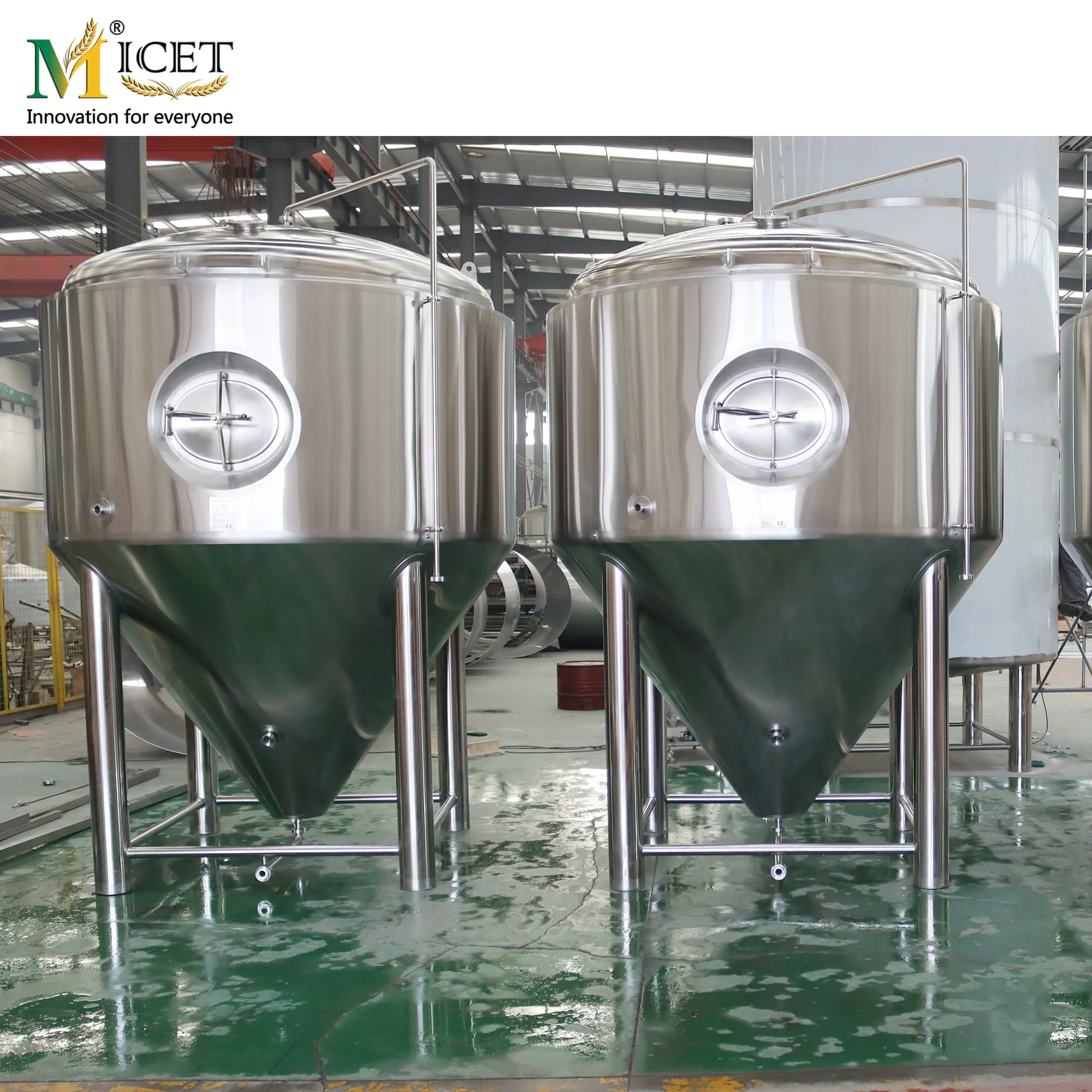

Product Show
Product Advantages
1.The fermentation tank is equipped with lifting ears, which is convenient for hoisting equipment in place.
2.With a rotating elbow and racking tam for beer delivery, it is convenient and flexible to deliver beer.
3.An elliptical guard plate is added at the junction of the outriggers and the lower cone refrigerant inlet pipe and the lower cone outsourcing to ensure more precise machining accuracy.
4.All tanks are equipped with adjusting bolts to ensure the tanks are aligned and leveled.
5.The clamp is installed at the connection between the material port and the bottom of the tank, which can be rotated at will, which is convenient for customers to operate.
6.Outsourcing of the bottom of the Bright tank is made of finished products to ensure that the tank body has a beautiful appearance, strong and durable.
7.All bright tanks are equipped with carbon stones for CO2.
8.Uses a shadowless manway, which is easy to clean. The top manhole can be designed according to the customer’s fermentation process and brewing beer.
9.The headspace is large, the total volume does not include the volume of the top head.
10.The cooling jackets are designed on both top of the cone and the bottom of the cylinder, and the cooling area is large enough.
11.Equipped with a safety device, positive and negative pressure opening function.
12.The 60-degree cone angle is convenient for yeast excretion.
13.The fermentation tank is equipped with a special ladder for easy operation.
Why Choose Us
1.Professional technical support, when you consult, our engineers will sort out your requirements.
2.Make full use of your brewery area and rank safety and stability when designing.
3.Meet your needs for brewing production and expansion.
4.Customize the design of the brewery according to your budget, and you will receive the layout and price that best suits you.
5.Provide the most complete production control and superior service. You can receive the highest quality beer equipment.
6.Before the equipment leaves the factory, many tests will be carried out. You will receive detailed information about the various tests of the brewhouse equipment.
Strict quality control system
Our factory has a strict quality control system. Each of the shipments of our order will have 5 inspection steps from materials checking, production process, jacket pressure testing, equipment packing, and loading, finished product leaking testing, etc. When there are any problems, it’s easier to keep a record and solve the issues quickly. Every one of our tanks will have a data plate with the pressure testing record and serial numbers to track.
Perfect packing and shipping
The shipping department will work out the checking list and pack them in a wooden box, you will receive a checking list with everything we shipped. All tank ports with a plastic cover to prevent dust; Tanks on cradle must be secured with bolts. The cradle and tanks will be fixed inside the container by bolts and steel wires. After shipping, we will have the completed loading pictures and checking list with all parts pictures provided.
High-efficiency after-service
We have a standard and perfect after-sales service process. Firstly our goal is to make sure the quality in advance to save after-sale time, meanwhile, if any issues happen, we use the fastest efficiency to solve for customers, no matter sending replacement or repair cost. We have a special after-sale group responsible for this after-sale work online, solves issues, and sends things clients need directly.
About Micet
Shandong micet brewing equipment Co., Ltd
Micet is a national high-tech enterprise that represents the higher honor of scientific and technological strength. Micet has firstly proposed the concept of intelligent equipment, innovate and research from the intelligent control HMI, etc. Micet is on its way to being a global bench-marking company, our superb craftsmanship and innovative capabilities have attracted customers to cooperate all over the world. With excellent product quality and a perfect after-sales service system, Micet has confirmed more than 10 distributors all over the world, including Canada, USA, UK, France, Georgia, Netherlands, Italy, Romania, South Africa, India, Argentina, Chile, etc.
FAQ
How does MICET do quality control?
MICET will have at least 4 times inspections for each order, including materials come inspection, production process control, finished production inspection, and full line testing and inspection before shipping to ensure the final product will meet the client's requirements.
How long is the delivery time?
1. The manufacturing time is 40 working days and will be enforced as soon as receiving the deposit.
2. The technical files (layout, drawings, etc) confirmation time shall not be included in the manufacturing time.
What is your payment term?
1. T/T transfer, 40% advance payment for start production, after paid 60% balance payment for shipping.
2. Paypal or trade assurance is available.
What is your warranty term?
Main machine guarantee for three years we'll provide free repairing. If anywhere goes wrong during. During this period accessories and electronic components will have a one-year free warranty. Anything is broken during the warranty. The replacements will be sent immediately and get within. Provide daily maintenance and technical services.
Our service
Technical Support
Micet local distributor will provide technical support, site survey, brewery R&PID process, brewery space layout design in 3D plant and CAD drawing;
Micet will provide full service including the whole brewing flow chart diagram, tanks assembling drawing, the floor plan blueprint, the electrical diagram.
Professional Brewery Projects Solution
From different customer production requirements, brewing characteristics, budget, and space, Micet technical engineers will provide professional proposal solutions, layout, and brewery equipment design accordingly. Micet salesperson is very experienced and understands clearly about different country brewing methods.
