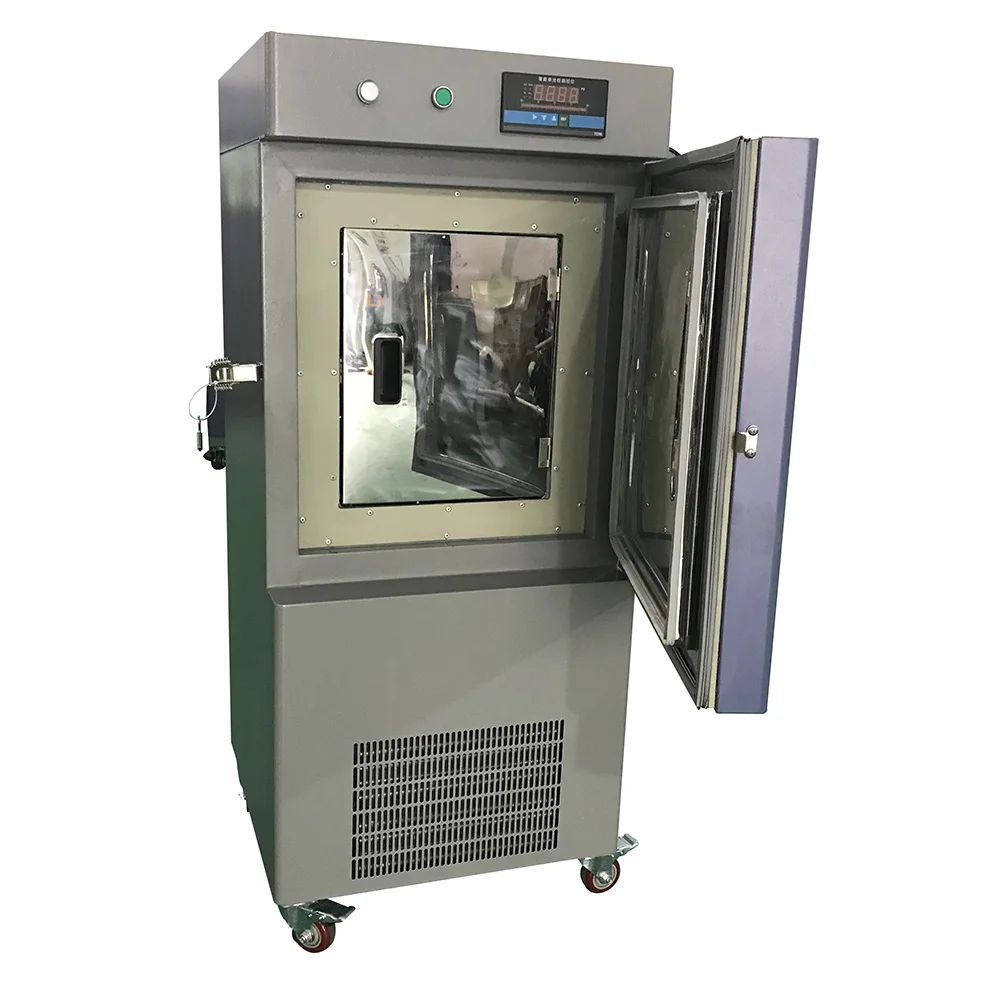

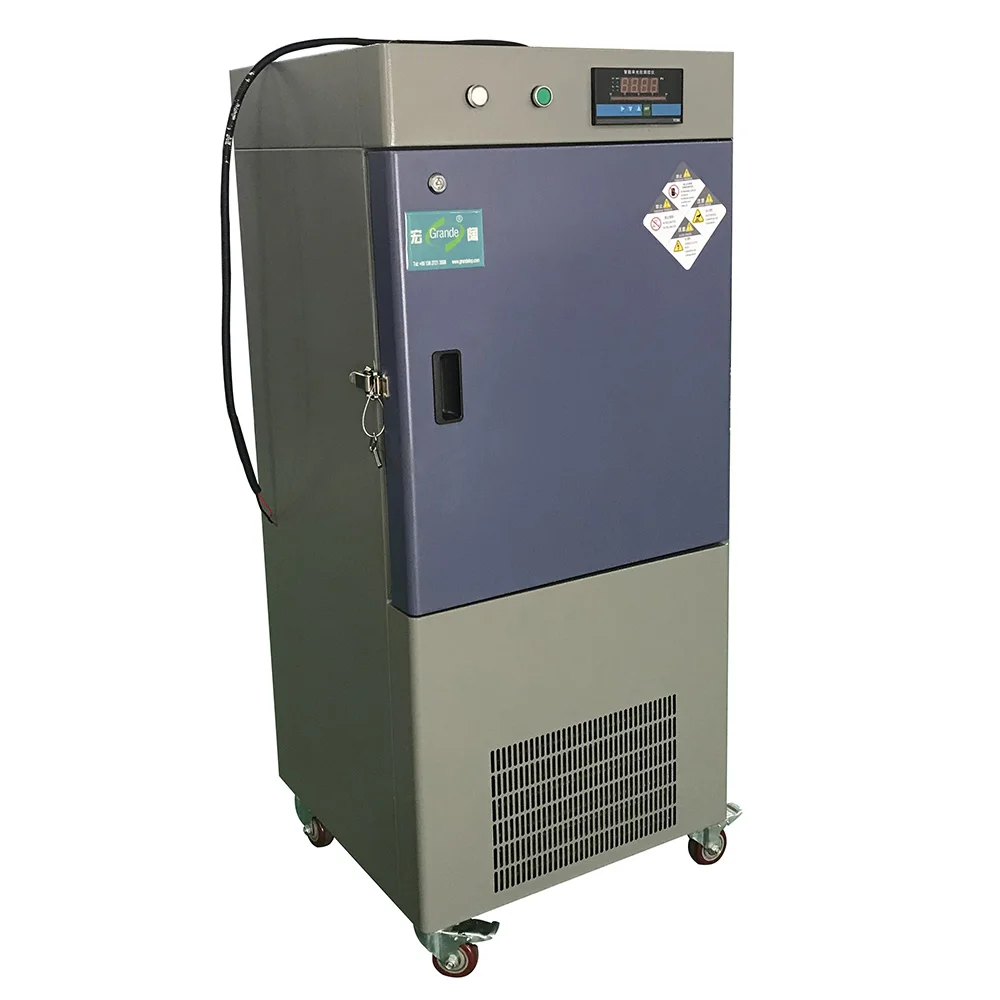

Mini Medical Cryogenic Equipment Ultra Cold Room Low Temperature Test Chamber Freezer

Gande is to provide the  -188℃ Cryogenic freezer,-150℃ Cryogenic freezer,-135℃ Cryogenic storage tank,-86℃ Ultra freezer,-60℃ Tuna freezer,-50℃ Ultra freezer,-40℃ Ultra freezer,-25℃ Freezer,-18℃ Cold Storage Room,Light-Resistant Cold Closet,Medical refrigerator,Ultra Cold Storage Freezer and Ultra Low Temperature Refrigerator

Grande -86℃ Ultra Low Temperature Freezer is ideal for long term preservation of virus,germ,

vaccine,biological tissue and organs,special food,medicines,reagents etc.

Material

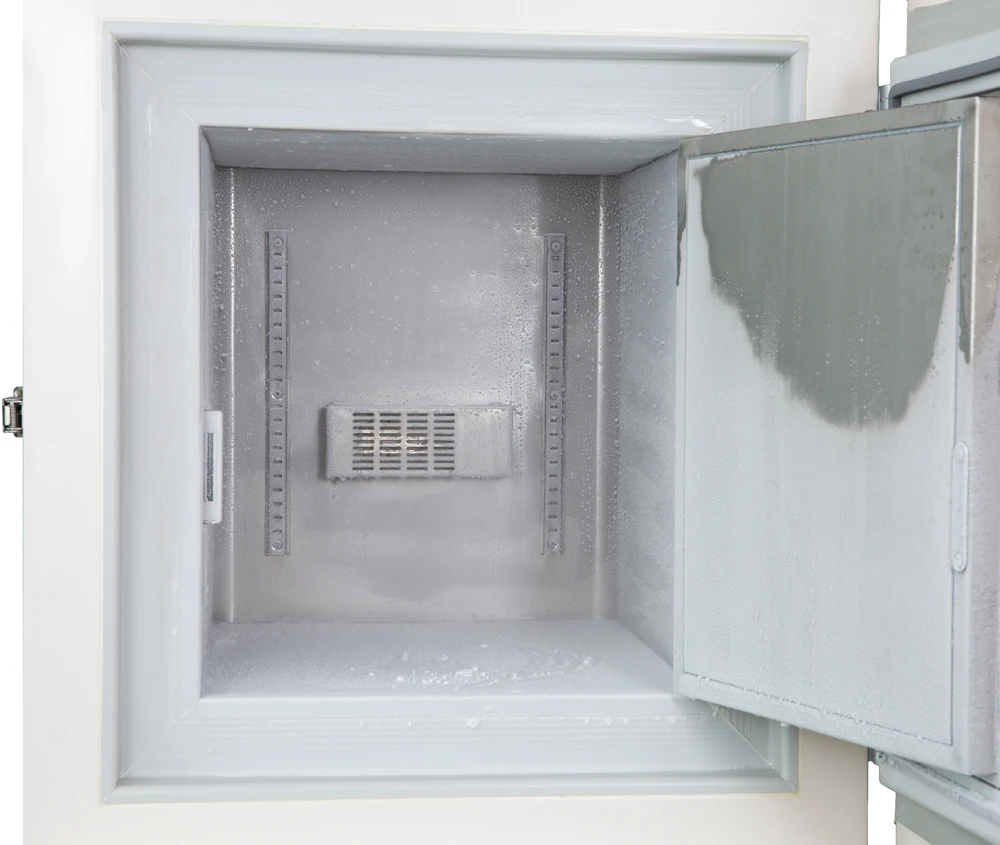

Outer with color sprayed steel;inner with SUS304;insulation with PU whole foam,CFC free,efficient environmental friendly;2 inner SUS doors and 3 SUS shelves

Cooling System

Optimized two-cascade system,more stable cooling system;all the parts could be replaced,convenient for maintenance,the device could work under 43℃ high temperature

Used Temp rite Oil separator,Bitzer or Tecumseh compressor,friendly refrigerant

Control System
Micro sensor based temperature control,digital temperature display

LCD touch screen for clear observation and easy programming

Three months temperature and alarm records could be read via the USB port

Optional monitoring module and exclusive software to realized remote monitoring equipment safety

Safety

High/Low temperature alarm,Power failure alarm for hours, Voltage abnormal alarm.Sensor error alarm.Low battery alarm,Automatic clean-filter alarm,High ambient temperature alarm,Door ajar alarm
Alarm style:audible and visible alarm,remote alarm

Backup battery for alarm hours when power off

Battery life reminder function to prompt the user before the battery needs to be replaced

Keyboard lockable,password protection prevent set parameter randomly

Power failure protect;the device will be attacked by the high current when all devices restart same time.The start relay function will start the device in safe time interval

Features

Removable condenser cover,convenient for maintenance

Place for installing chart temperature recorder

Safety lock design,prevent abnormal door status

Removable inner doors

Adjustable SUS shelves

Professional two testing holes

Four Casters,convenient for moving

Optional Frozen racks

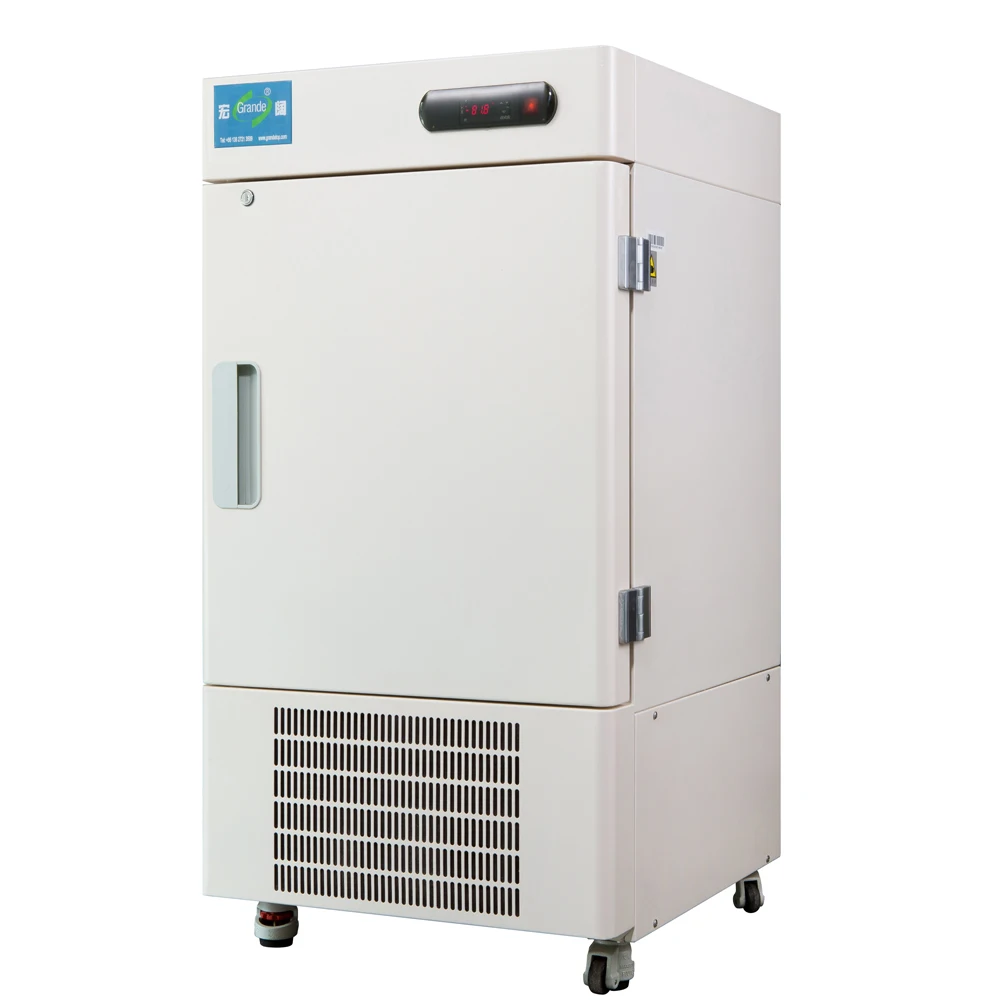

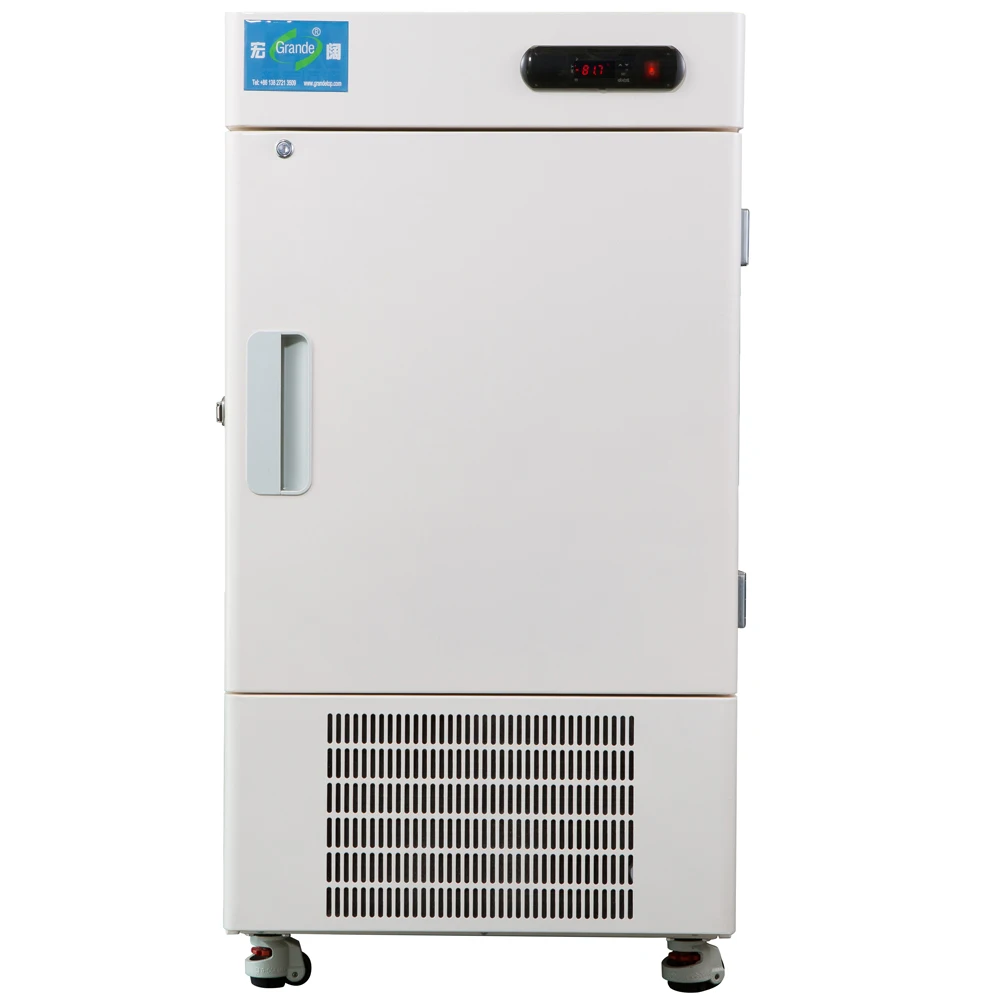

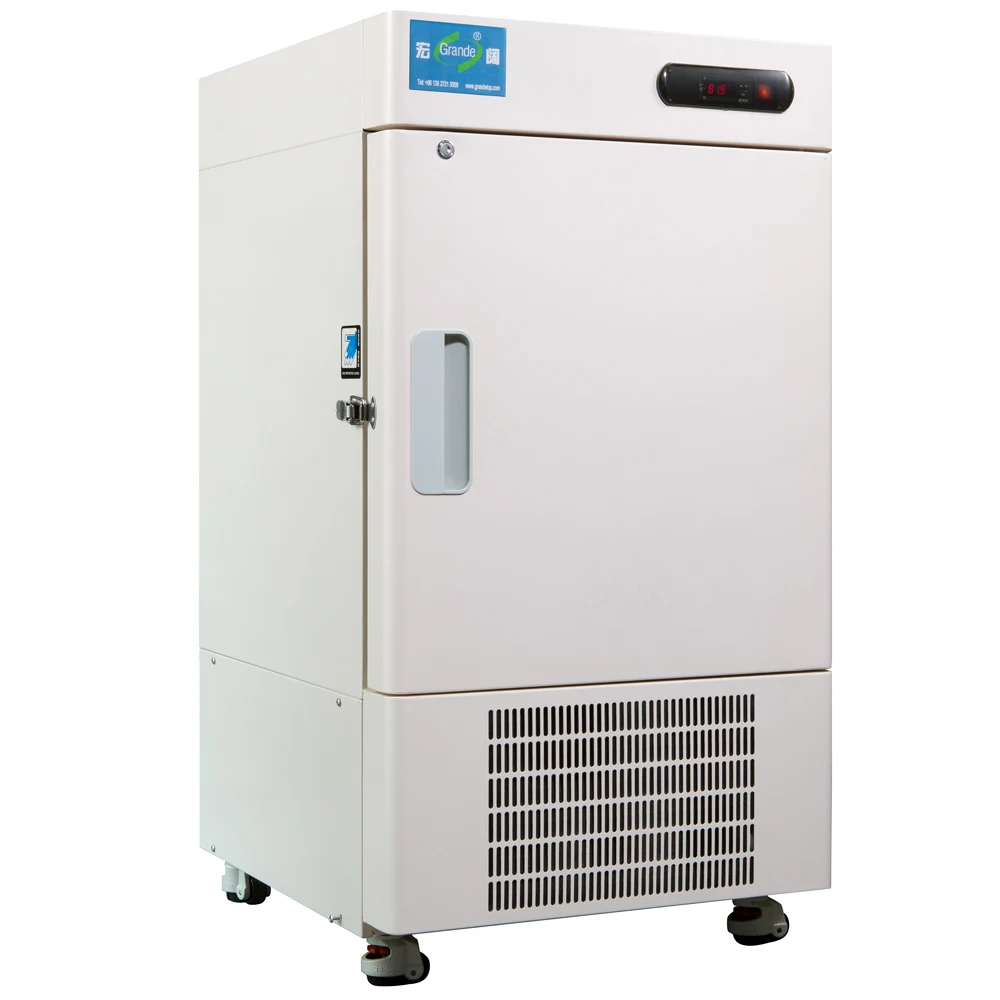

Vertical -86 Degree Ultra Low Temperature Freezer Laboratory Freezer Deep Freezer

Pls. check Here To Get More Discount!

Technology Parameter:



Model	GFR-86V50	GFR-86V188E	GFR-86V340II	GFR-86V340E
Cabient Type	Vertical	Vertical	Vertical	Vertical
Inner Door	1	3	2	2
Cooling system	Direct cooling	Direct cooling	Direct cooling	Direct cooling
Defrost	Manual	Manual	Manual	Manual
Refrigerant	HFC	Mixed refrigerant	HFC	Mixed refrigerant
Ambient Temperature	10~32℃	10~32℃	10~43℃	10~32℃
Temperature Range	-40~-86℃	-40~-86℃	-60~-86℃	-40~-86℃
Controller	Manual	Manual	Manual	Manual
Digital Display (LCD/LED)	Digital Display	Digital Display	Digital Display	Digital Display
Voltage(V/Hz)	187-242 V,50Hz~60Hz	187-242 V,50Hz~60Hz	187-242 V,50Hz~60Hz	187-242 V,50Hz~60Hz
Power(W)	450W	600W	1350W	1650W
Capacity	50	188	340	340
Net/Gross Weight(kg)	75/95	145/180	190/220	175/205
Outer Sizes (W*D*H)mm	540*620*1115	830*810*1607.5	845*1072*1907	855*1006*1920
Alarms	High/Low temperature alarms Power Failure                                                                                 Voltage abnormal Sensor error Automatic clean-filter alarm Controller error Low battery alarm High ambient temperature Door ajar Alarm
Accessories	Foot,Caster Testing hole,diameter USB port, Alarm port Temperature recorder(Optional)
Certificate	CE,ISO
Customized service	Welcome to Non-standard,Special requirements,OEM/ODM orders.
The technical information will be subjected to change without notice
