Промышленная машина для наполнения управления 4 3 дюймов hmi встроенный программируемый plc автоматический
- Категория: ПЛК >>>
- Поставщик: Shenzhen,Coolmay,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 124.51 $* | 130.71 $* |
| Aug-17-2025 | 123.59 $* | 129.52 $* |
| Jul-17-2025 | 103.95 $* | 108.81 $* |
| Jun-17-2025 | 121.71 $* | 127.32 $* |
| May-17-2025 | 105.30 $* | 110.86 $* |
| Apr-17-2025 | 119.20 $* | 125.14 $* |
| Mar-17-2025 | 118.29 $* | 124.64 $* |
| Feb-17-2025 | 116.89 $* | 122.76 $* |
| Jan-17-2025 | 115.15 $* | 121.42 $* |
Характеристики

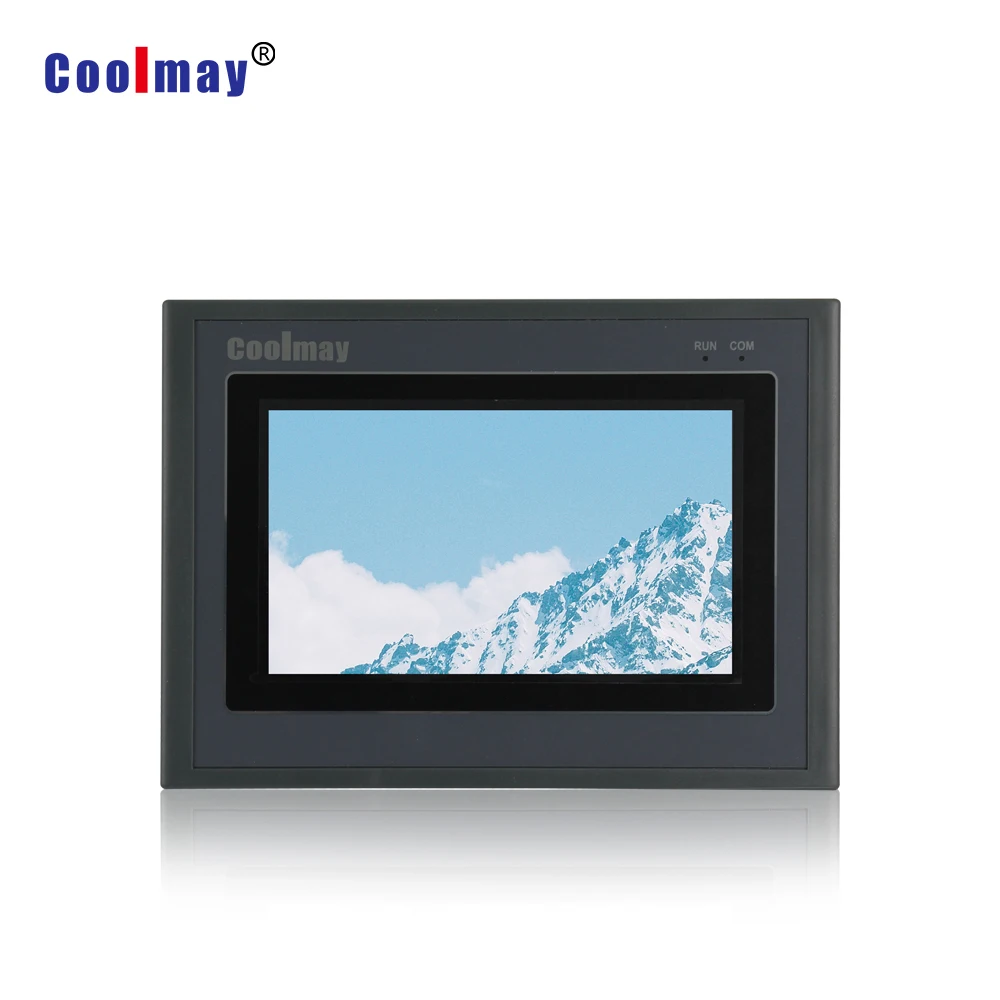

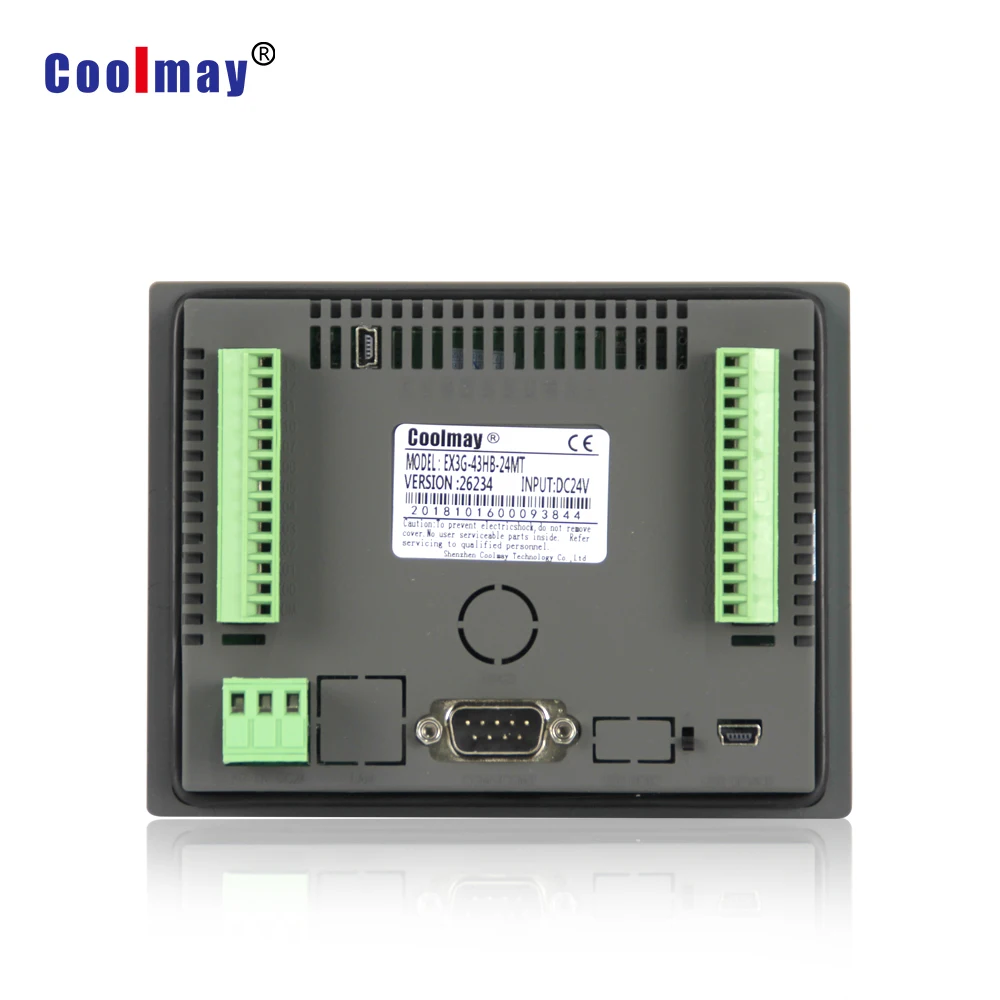

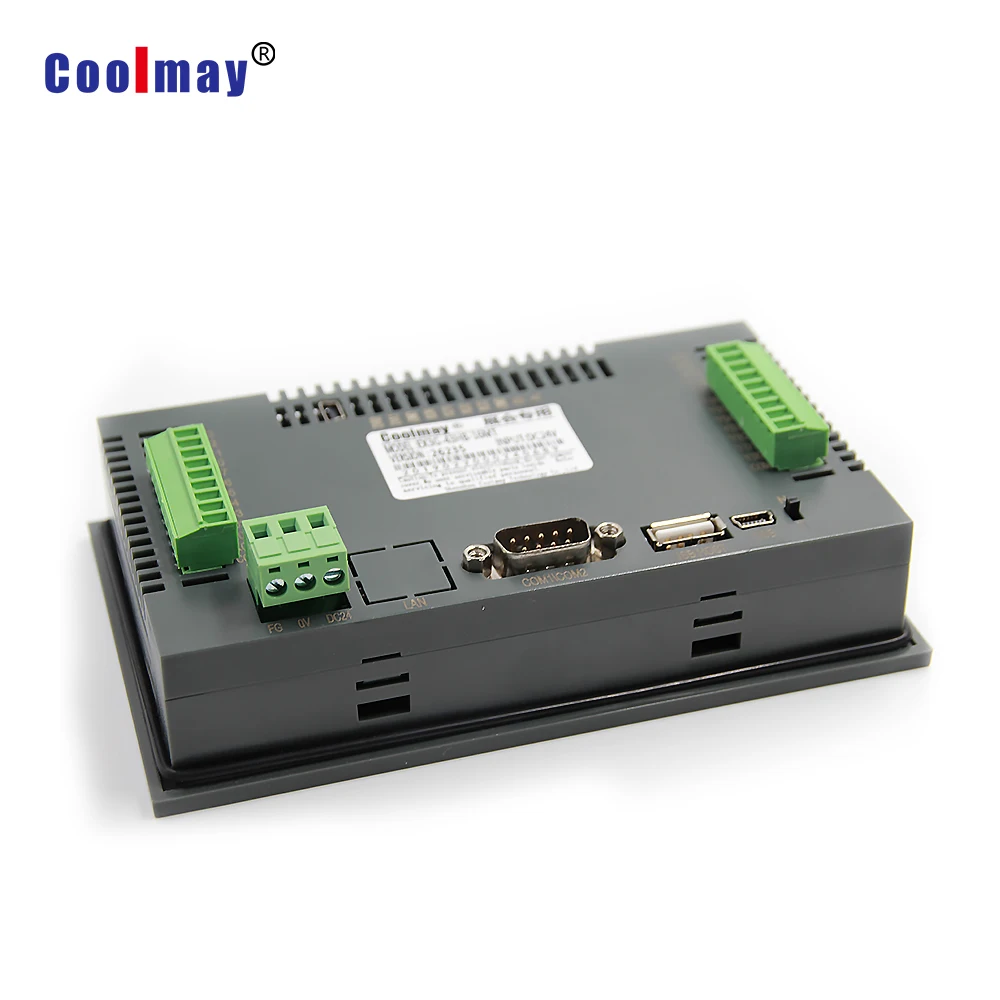

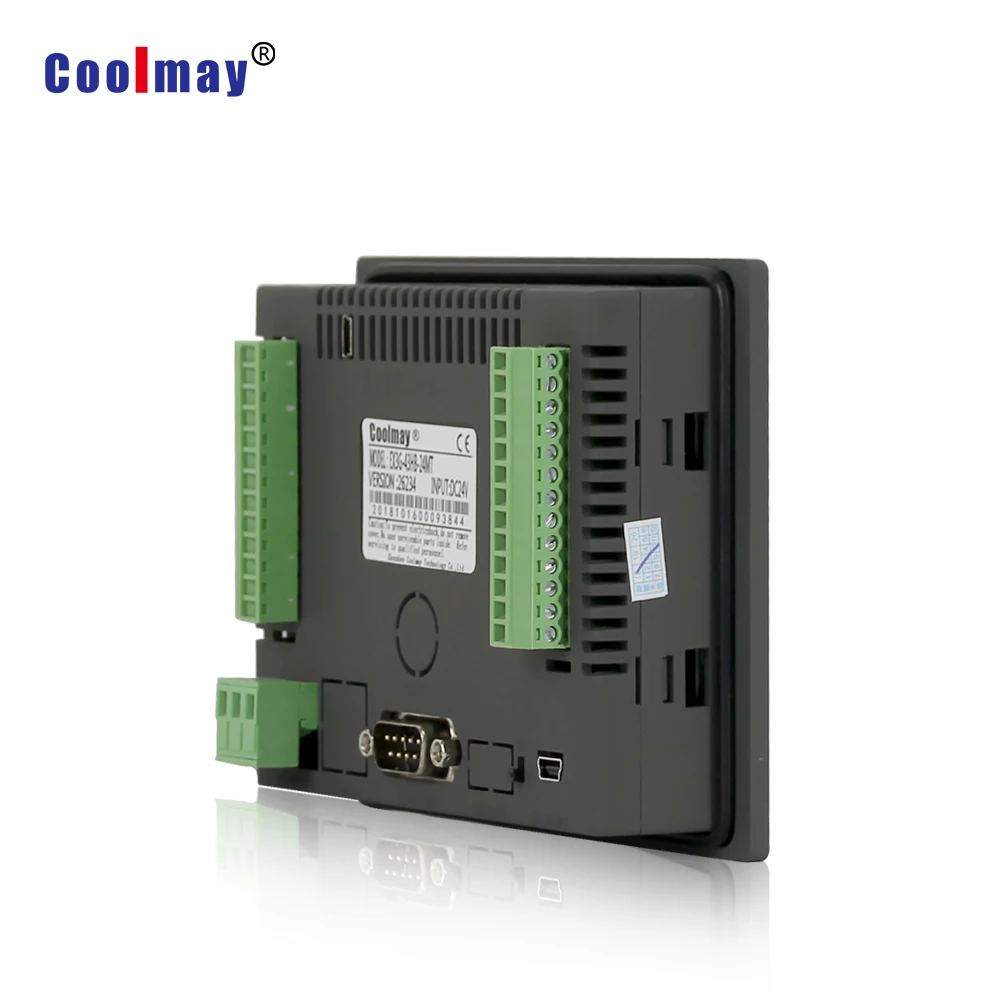

Industrial injection molding machine control 4.3 inch hmi integrated programmable plc automatic controller
Product Description
EX3G Series Advantages
- Compatible with FX3G/FX3U/FX3S
- Highly integrated DI/ DO/ AI/ AO/ COM/ USB/ CAN/ Ethernet port
- Max 30DI/ 30DO
- Max 16AI/ 8AO
- Support PID/ PWM function
- Support customized PNP input
- Support high speed functions
Parameters
| Model | EX3G-43HB-24M | EX3G-43(50) KH-24M | EX3G-70KH | EX3G-100HA |
| Dimension | 134*102*30mm | 150*93*32mm | 226*163*35.6mm | 275*194*36mm |
| Cutout size | 119*93mm | 143*86mm | 218*153mm | 261*180mm |
| Power Consumption | 4-6W | 4-6W/5-7W | 6-7W | 6-8W |
| Features | Support interrupt, linear arc interpolation, PID auto-tuning. 32K program capacity, 32K retentive register | |||
| HMI | ||||
| Display | 60K colors touch panel | 60K colors touch panel; can be portrait display | 60K colors touch panel | |
| Display size | 97*56mm | 97*56/108*65mm | 154*87mm | 222*133mm |
| Resolution | 480*272 | 43KH:480*272 | 70KH:800*480 | 1024*600 |
| (pixels) | 50KH:800*480 | |||
| RAM | 32MB | 64MB | 128MB | |
| ROM | 128MB | |||
| Operation system | Null | WINCE 5.0 | WINCE 7.0 | |
| CPU | ARM9 216MHz | ARM9 400MHz | CORTEX A8 720MHz-1GHz | |
| Default COM port | 1 touch panel download port | 1 touch panel download port,1 USB 2.0 port | ||
| Optional | 1 RS232 port | 1 RS232 port | 1 RS485 or 1RS232 port | |
| Ethernet port (can not coexist with PLC Ethernet port) | ||||
| Software | CoolMayHMI HMI programming software | |||
| PLC | ||||
| I/O level | Input: Passive NPN, public terminal isolated | |||
| Transistor output: Low level NPN, COM connect to negative; | ||||
| Relay output: Normally open dry contact | ||||
| I/O | 12DI/12DO | 12DI/12DO or 20DI/18DO or 24DI/20DO | ||
| DO type | Relay(MR) or MOS(MT) | Relay(MR) or transistor(MT) or mixed(MRT) | ||
| (Relay output: max load 5A/ MOS output: max load 2A) | (Relay output: max load 5A/ transistor output: max load 500mA) | |||
| High-speed counting | Single phase 6 channel 10KHz or 3 AB 10KHz or 2 ABZ+1 AB 10KHz | Single phase 6 channel 60KHz, or 2 AB 60KHz + 1 AB 10KHz, | ||
| or 2 ABZ 60KHz + 1 AB phase 10 KHz | ||||
| High-speed pulse | 8 channel 10KHz | 8 channels,Y0-Y3 is 100KHz, Y4-Y7 is 10KHz. | ||
| High-speed counting + high-speed pulse < 480KHz | ||||
| Default COM port | 1 Mini type B USB port, 1 Rs232 port | 1 Mini type B USB port, 1 Rs232 port | ||
| Optional | 2 RS485 ports | 1 Rs485 or 2 Rs485 (one is changed from the default Rs232), | ||
| CAN (2.0A/B), Ethernet port (can not coexist with HMI Ethernet port), | ||||
| WIFI (will occupy the default Rs232) | ||||
| Analog I/O | 4AI/2AO | 16AI/8AO | ||
| (optional) | ||||
| AI type (optional) | Type E/K/S/T/J thermocouple/ | Type E/K/S/T/J thermocouple/ | ||
| PT100/ PT1000/ NTC10K/ NTC50K/ NTC100K/ | PT100/ PT1000/ NTC10K/ NTC50K/ NTC100K/ | |||
| 0~10V/ 0~5V/ 0~20mA/ 4~20mA/ mixed | 0~10V/ 0~5V/ -5V~5V/ -10V~10V/ 0~20mA/ 4~20mA/ mixed | |||
| AO type (optional) | 0~10V /0~5V/ 0~20mA/ 4~20mA/ mixed/ | |||
| -5~5V/ -10~10V (2DA for 1 minus temperature) | ||||
| Software | Compatible with Mitsubishi GX Developer8.86 and WORKS 2 | |||
| Suggested models: EX3G-43HB/43KH/50KH/-24MT/24MR(-4AD2DA-485P/232H) | ||||
| EX3G-70KH-24MR/44MT/MRT(-16AD8DA-485P/232H) | ||||
| EX3G-100HA-24MR/44MT/44MRT(-5AD2DA-485P/232H) | ||||
| Detailed info. refer to:EX3G HMI/PLC all in one programming manual EX3G HMI/PLC all in one user manual CoolmayHMI user manual | ||||
Product Specs
Applications
Coolmay PLCs are widely used in different automation industries. Their multiple functions, excellent performance, easy installation, etc.. offers customers more conveniences.
Packaging & Shipping
- Packaging
The products will be under testing for 1-3 days and packed with carton box .
- Shipping
By courier, door to door
For samples, the package will be delivered by DHL/UPS/FedEx/EMS express. Usually it will take 3-7 days to your location.
Post service
If you are not hurry but need economical delivery, we can go with packet channel. The delivery time depends on your location.
Air shipping or by sea
If bulk order, the packages will be delivered by air shipping or by ship.
Company Information
All of our products are passed CE Certificate with low voltage and IEC Test.
Our Services
Coolmay develops and manufactures HMI, PLC, HMI+PLC all-in-one, modules with Coolmay own brand. We offer services anytime when you need help.
Your products will be strickly tested before shipping.
Maintenance and service
- Your products will be 18-month warranty excluding artificial damage.
- You would receive unlimited support via video, phone or email.
- OEM/ODM is supported, MOQ is 200 sets. More modules or functions can be customized as per your requirements.
