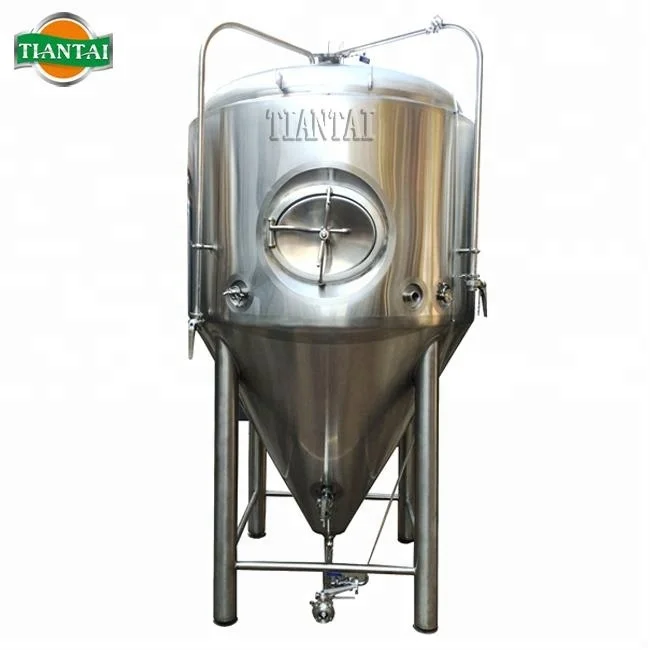

Двойная оболочка из нержавеющей стали с покрытием гликоля 3500L 35HL

Function:

Wort Fermentation or maturation

Tank Capacity:

3500L (+25% Headspace minimum)

Dimension:

Φ1760x3795mm (Customize)

Interior Shell:

SUS304 full welded; TH=3mm

Exterior Shell:

SUS304 full welded; TH=2mm

Welding

100% TIG welding with pure argon gas shield

Interior Finish:

Sanitary 2B finish, Pickled and Passivated;

(8K Mirror finish optional)

Exterior Finish:

Oil brushed finish(2B, 8K Mirror finish optional)

Polishing

Interior full polished to 0.2~0.4 μm without dead corner

Insulation:

TH=80mm with low thermal conductivity PU

Cooling:

35% Glycol liquid -5℃

Cooling Jacket:

Dimple plate on bottom and side wall, welded without over burning

Jacket test

by water and gas, 5bar/75psi for 1hour, 3.5bar/52psi for 48 hours

Jacket Working Pressure:

< 2bar/30psi

Tank leakage test

by water and gas, 4bar/60psi for 1hour, 2.5bar/37.5psi for 48 hours

Tank Working Pressure:

2bar/30psi

Dished Top:

Dished top full polished

Conical bottom:

60° cone (customize)

Manway:

Sanitary top mounted manhole with pressured door

CIP Ball:

Top mounted double clamp 360° rotary CIP spraying ball and port, 1pcs

CIP arm:

with four-way connection and butterfly valve

CO2 blow-off arm:

with butterfly valve (Removable)

Mechanical safe valve PVRV:

2bar/30psi on top (1bar/15psi available)

Sampling Valve:

Full sanitary sampling valve with EPDM seal

Hydraulic shock pressure gauge:

on CIP arm (Diaphragm type for optional)

Rotating racking arm:

Horizontal mounted at cone with butterfly valve

Discharge arm:

With butterfly valve, Removable and easy to clean

Thermowell :

Sanitary welded thermowell for high accuracy temperature sensor 1pcs

Dry hopping port:

4'' with solid end cap (Hops pitching tank for optional)

Glycol water port:

In/out port on side wall and cone,

Thick wall pipe thread (Top or bottom design available)

Legs:

4pcs completely SUS304 legs with braces,

heavy duty foot pad with up-down and slop adjustable

Accessories:

Complete valves, fittings and all parts, Tri clamp/DIN Union available

Special request

Pressure adjustable bunging valve 0.2-2.2bar ;

Sanitary level tube and valves ;

Carbonation port with stone;
