Характеристики
Title goes here.
Aluminum alloy Electric full hydraulic portable core drilling machine Multifunctional geological exploration drilling rig
Product Description
Frontier Man-portable Drill Rig
F600E / F600D / F800D
F600E / F600D / F800D
1.Germany, Italy, The United States Imported Accessories
2.Professionally Used for Rock Stone 600-1200 Meters Core Driling, Light And High Efficient
Drilling Depth (BTW, NTW, HTW) 1200m,800m, 600m,550m, 220m
Feed Stroke 1.8 m
Lifting Force 110 KN
Power Head Maximum Speed 1200 rpm
Maximum Torque 900 Nm
Engine Power 3x33 KW / 3000 rpm
Fuel Tank Capacity 45 L
Winch Rope Capacity 800 m
Drill Rod Holder Through Hole Capacity HQ (HTW)
Drill Rod Holder Clamping Force 18,000 KG
Mud Pump Model AM1029
Mud Pump Flow And Pressure 80 Lpm, 75 bar
Feed Stroke 1.8 m
Lifting Force 110 KN
Power Head Maximum Speed 1200 rpm
Maximum Torque 900 Nm
Engine Power 3x33 KW / 3000 rpm
Fuel Tank Capacity 45 L
Winch Rope Capacity 800 m
Drill Rod Holder Through Hole Capacity HQ (HTW)
Drill Rod Holder Clamping Force 18,000 KG
Mud Pump Model AM1029
Mud Pump Flow And Pressure 80 Lpm, 75 bar
OVERVIEW: Offers a full range of man-portable drilling rigs – the Frontier series.
Frontier drills are modular design and made of high-strength aluminum fabrications, ensuring high
standards of toughness while greatly reducing the weight of rig. The max component weighs
160Kg/180Kg (F600/F800), which is convenient for worksite mobilization by manpower.
The drill’s compact structure makes sure that it can be assembled within a 4mx4m platform and
dismantled easily in the field. With optimized engineering, the Frontier drills can be disassembled
in 45 minutes and re-positioned in a half shift.
The Frontier drills adopt energy-saving and noise-reduction techniques. It is not only allows the
operator to feel comfortable, but also reduces the interference on the surrounding environment.
Frontier drills can be easily transported by manpower and no roads will be needed.
As footprint trace is limited and restoration of the environment is relatively simple, the influence on
the natural environment is very small.
When road-access is limited, the drills can be handled along the small trails by manpower. This
gives the Frontier drills outstanding advantages in a variety of complex terrain conditions.
FEATURES:
Frontier drills are modular design and made of high-strength aluminum fabrications, ensuring high
standards of toughness while greatly reducing the weight of rig. The max component weighs
160Kg/180Kg (F600/F800), which is convenient for worksite mobilization by manpower.
The drill’s compact structure makes sure that it can be assembled within a 4mx4m platform and
dismantled easily in the field. With optimized engineering, the Frontier drills can be disassembled
in 45 minutes and re-positioned in a half shift.
The Frontier drills adopt energy-saving and noise-reduction techniques. It is not only allows the
operator to feel comfortable, but also reduces the interference on the surrounding environment.
Frontier drills can be easily transported by manpower and no roads will be needed.
As footprint trace is limited and restoration of the environment is relatively simple, the influence on
the natural environment is very small.
When road-access is limited, the drills can be handled along the small trails by manpower. This
gives the Frontier drills outstanding advantages in a variety of complex terrain conditions.
FEATURES:
The drill head is compact, top-drive and lightweight design. With the use of high and low speed
hydraulic motors, the head is suitable for variable drilling conditions and reliable to deal with
different torque need.
hydraulic motors, the head is suitable for variable drilling conditions and reliable to deal with
different torque need.
The control panel compact design consisting of all the power and hydraulic control systems
and operation devices. All power pack control is centralized on the panel with no need to go
and operate each individual engine remote from the operator.
and operation devices. All power pack control is centralized on the panel with no need to go
and operate each individual engine remote from the operator.
The integrated hydraulic control valve group utilizes modern technology of hydraulic power
distribution and fine controlling of drilling and supportive functions. It also eliminates risks of
parts failure while improves efficiency of power utilization.
distribution and fine controlling of drilling and supportive functions. It also eliminates risks of
parts failure while improves efficiency of power utilization.
With a unique design in the industry, the head carriage enjoys a feature to realize real-time
adjustment on the gap between the feed frame and the wearing plates, anytime when need,
allowing constant feeding stability. Change of the small-sized wearing plates is extremely easy
from outside of the carriage with no need to touch the major parts of the component.
adjustment on the gap between the feed frame and the wearing plates, anytime when need,
allowing constant feeding stability. Change of the small-sized wearing plates is extremely easy
from outside of the carriage with no need to touch the major parts of the component.
The new HD (heavy duty) Rod holder is dual-direction hydraulic drive, fast clamping response,
lightweight and flexible for operation.
lightweight and flexible for operation.
The new HD (heavy duty) Water swivel is compact design and coaxial jet style, offering high
wear resistant and smooth operation.
wear resistant and smooth operation.
With customized TW series of thin-wall drill rods, the Frontier drills can give full
performance to the advantages offering increased drilling efficiency, larger core diameters, and
higher recovery rate.
performance to the advantages offering increased drilling efficiency, larger core diameters, and
higher recovery rate.
Manpower Portability
High productivity
Environment Friendly
Aluminum alloy Electric full hydraulic portable core drilling machine Multifunctional geological exploration drilling rig

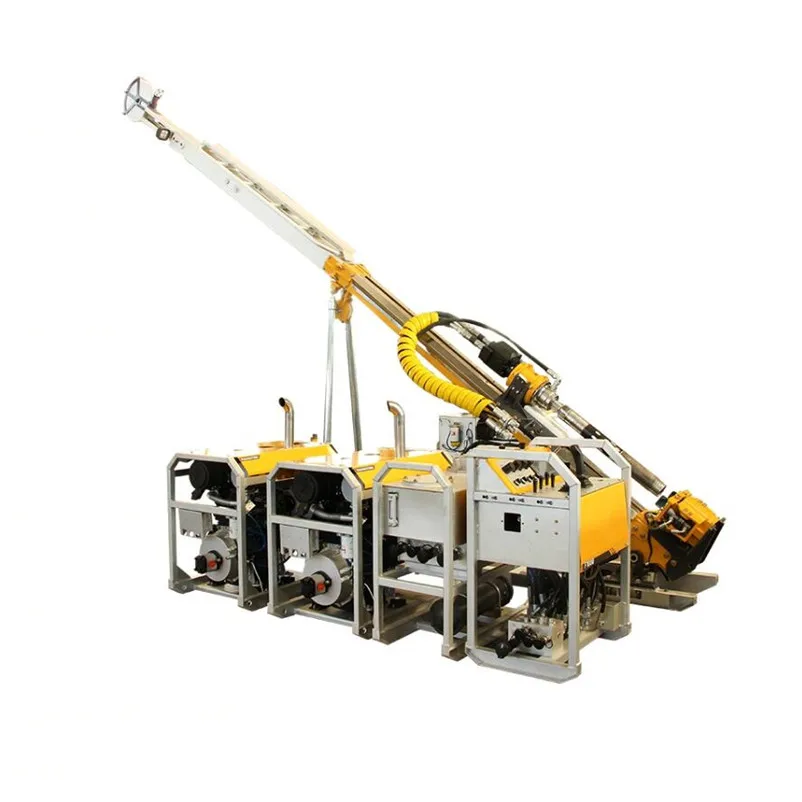

Detailed Images
Aluminum alloy Electric full hydraulic portable core drilling machine Multifunctional geological exploration drilling rig
Warranty Two Years
Aluminum alloy Electric full hydraulic portable core drilling machine Multifunctional geological exploration drilling rig

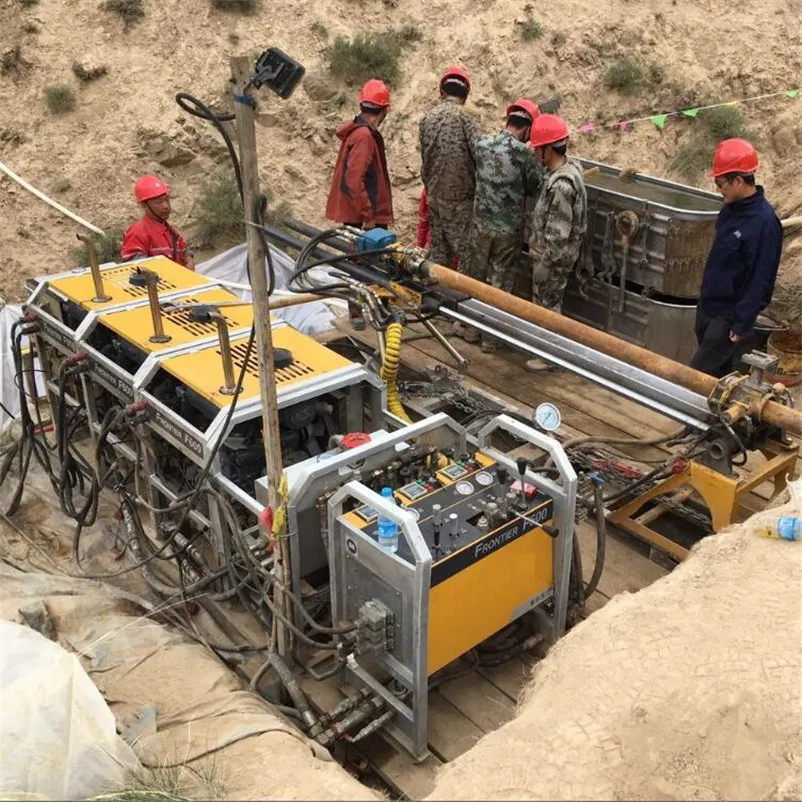

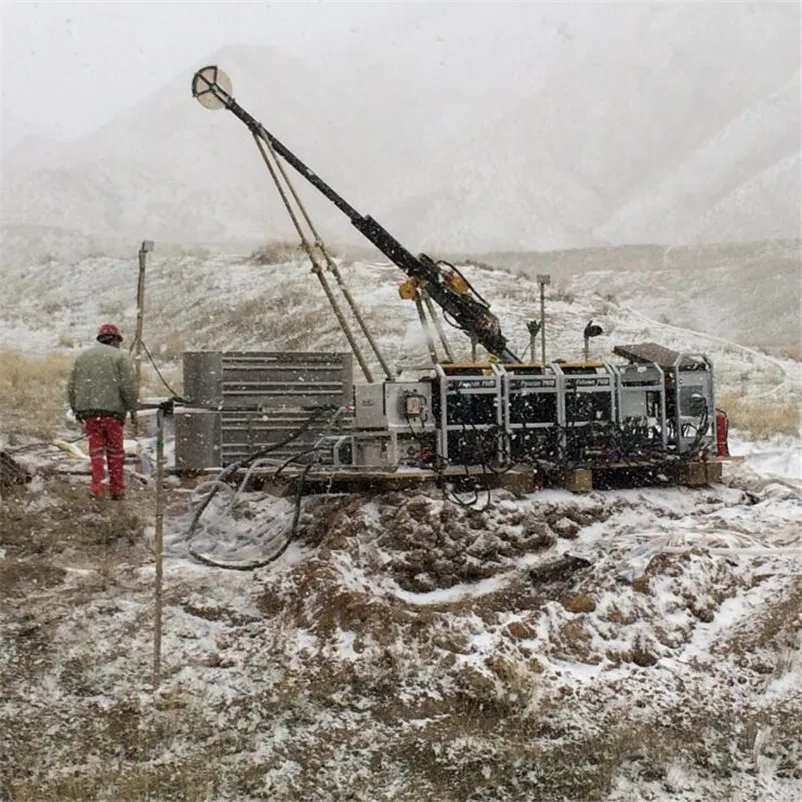

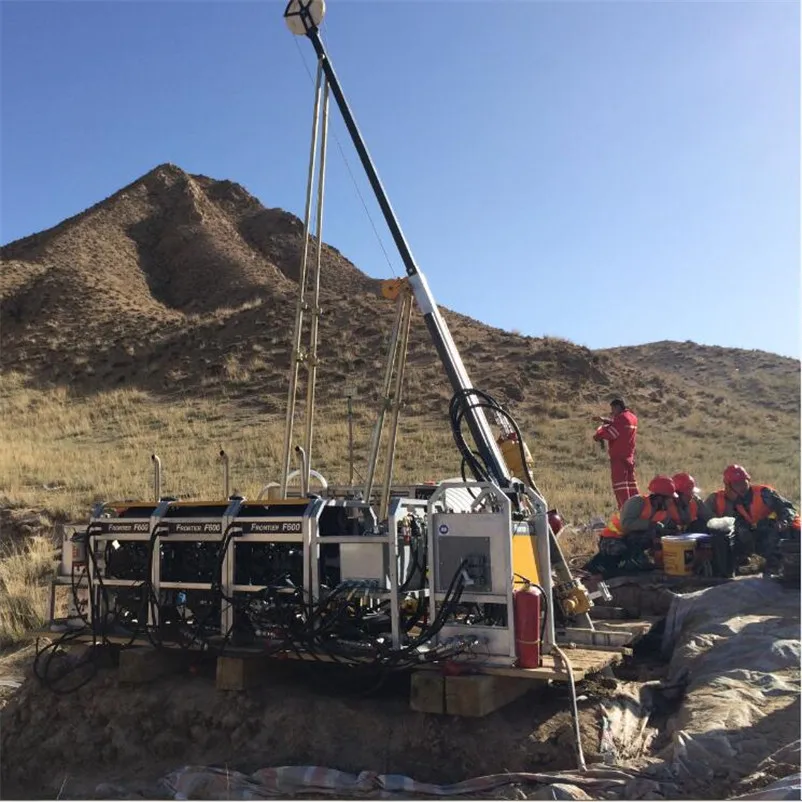

Construcation Site
Aluminum alloy Electric full hydraulic portable core drilling machine Multifunctional geological exploration drilling rig
Aluminum alloy Electric full hydraulic portable core drilling machine Multifunctional geological exploration drilling rig
Certification
Aluminum alloy Electric full hydraulic portable core drilling machine Multifunctional geological exploration drilling rig
Aluminum alloy Electric full hydraulic portable core drilling machine Multifunctional geological exploration drilling rig
Company Introduction
Our Services & Strength
Aluminum alloy Electric full hydraulic portable core drilling machine Multifunctional geological exploration drilling rig
Exhibition
Aluminum alloy Electric full hydraulic portable core drilling machine Multifunctional geological exploration drilling rig
Aluminum alloy Electric full hydraulic portable core drilling machine Multifunctional geological exploration drilling rig
