Tenet Одноконтурный детектор транспортного средства pd132 для системы управления парковкой Автомобильный

Tenet Одноконтурный детектор транспортного средства pd132 для системы управления парковкой Автомобильный

Категория: Turnstile >>>
Поставщик: Shenzhen,Tenet,loT,Technology,Co.,Ltd.

Цена:15,00 $ - 28,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Aug-17-2025	19.16 $*	19.4 $*
Jul-17-2025	15.73 $*	15.30 $*
Jun-17-2025	19.80 $*	19.24 $*
May-17-2025	19.47 $*	19.17 $*
Apr-17-2025	15.95 $*	15.78 $*
Mar-17-2025	18.96 $*	18.28 $*
Feb-17-2025	18.53 $*	18.67 $*
Jan-17-2025	18.47 $*	18.57 $*

Характеристики

Product Description

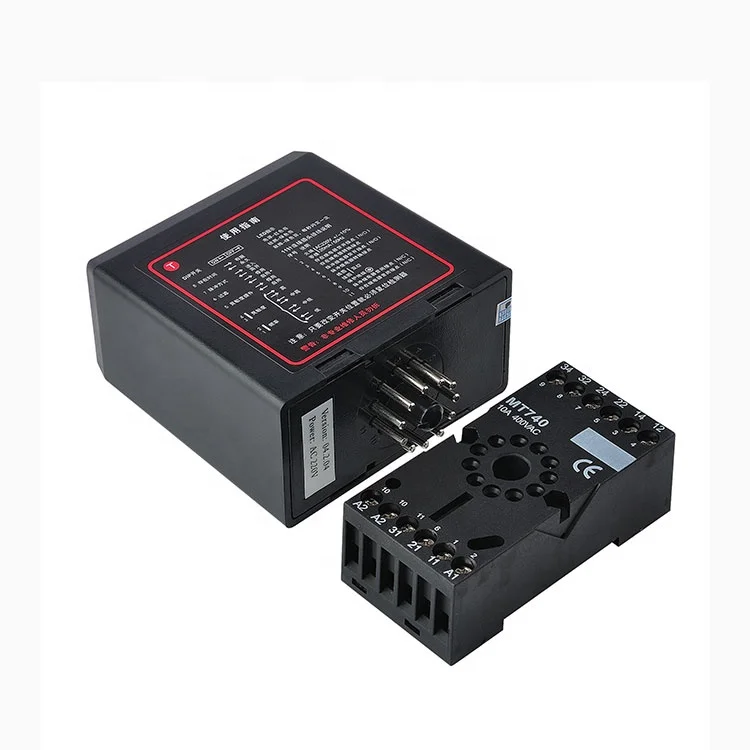

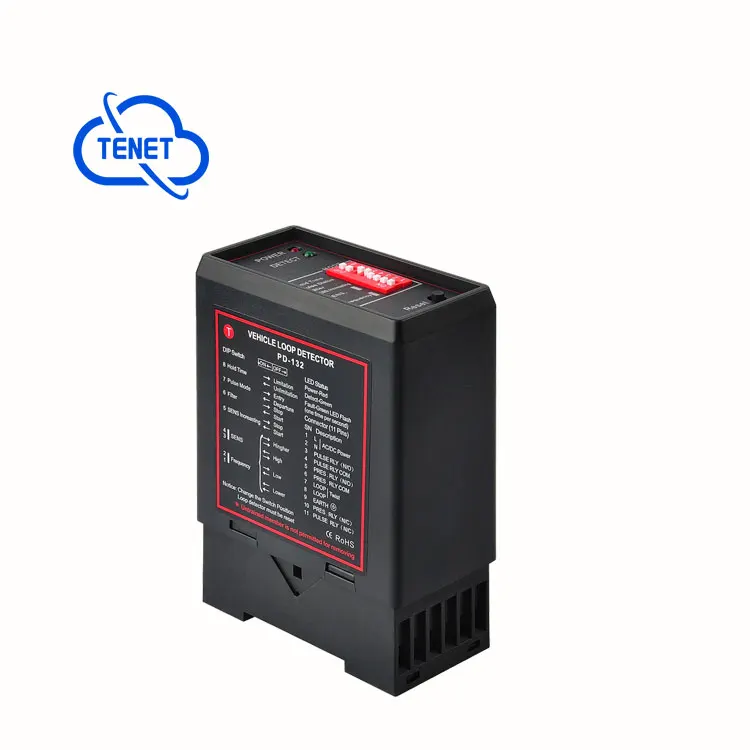

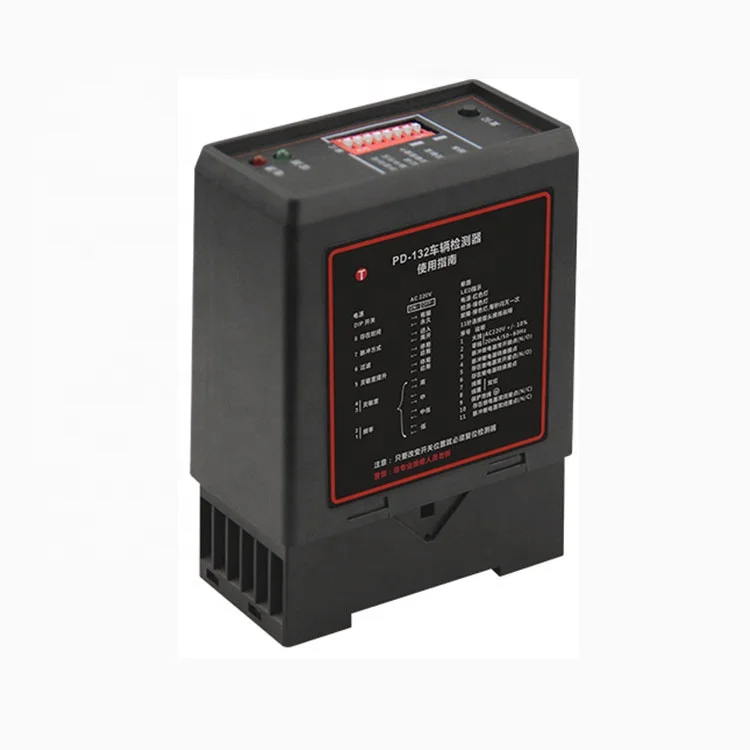

Tenet Single Vehicle loop Detector for Parking Management System car detector sensor

PD132 loop detector used for wherever vehicles have to be detected,Monitoring and safe-guarding access ways or for counting vehicles.

Output signal can be used for controlling door and gate drive mechanisms, operating barriers, controlling traffic light systems or activating card dispensers in parking lots.
Uses advanced microprocessor technology and can work in diverse environments.

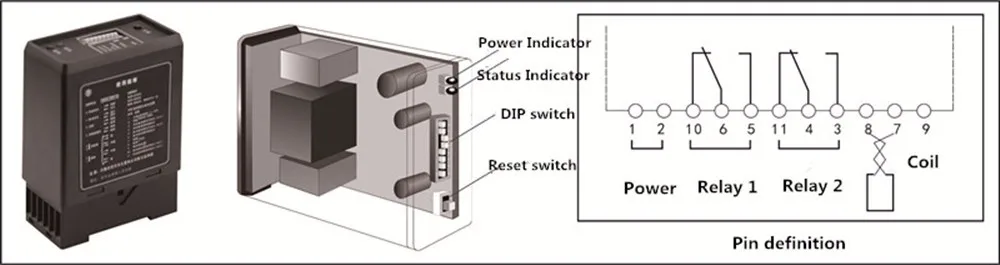

Has two way output relays: one is unlimited output when loop is permanently covered and while the other is multiple mode that can be set by users.

SPECIFICATIONS FOR PD-132 LOOP DETECTOR
Voltage tolerance	AC	+10% / -15%
Voltage tolerance		DC	±15%
Supply voltage	230V AC , 115V AC, 24V DC/AC, 12V DC/AC ( See the label on the detector)
Power Consumption	4.5VA\t
Output relays	240V/5A
Operating temperature	-20°C to +65°C
Storage temperature	-40°C to +85°C
Size of Housing:	78x40x108 mm (L x W x H)
Frequency range:	20 kHz to 170 kHz

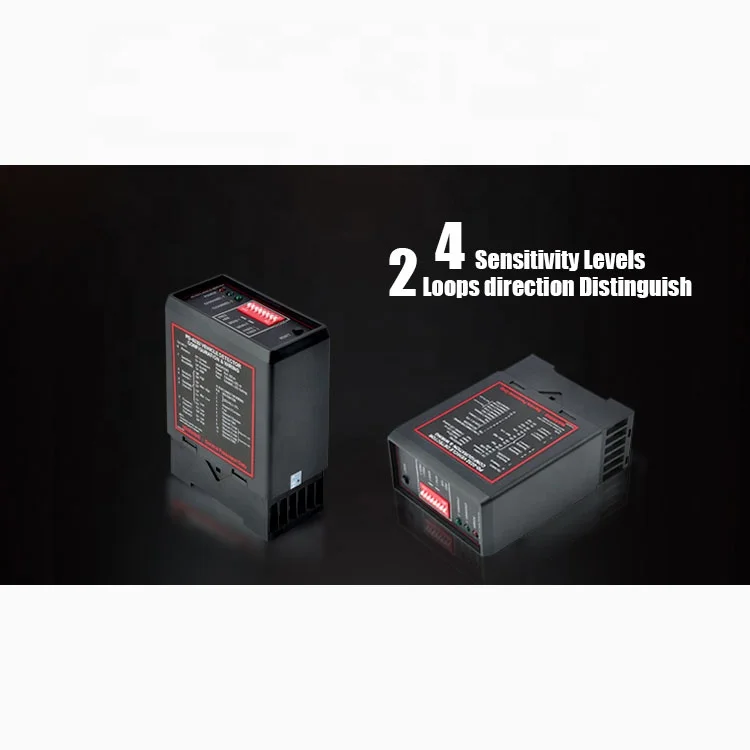

Sensitivity	Adjustable in 4 increments
Loop connection wiring	\tMaximum length 20 meters, twisted at least 20 times per meter
