Прямая поставка с завода ручная маркировочная

1.  Product features:
1). Man-machine interface: embedded ARM9 industrial control platform, full-screen touch,
2). Display system: 7-inch true color touch screen (industrial grade), software embedded control system.
3). Drive Control Card: ARM+STM 32 Dual Bit Processor
4). Stepper motor driver: Fully digital drive, no noise operation, extremely smooth marking effect, automatic semi-flow,

Stepper motor: Sanyo Denki JAPAN, or high quality domestic motor (features: low noise, large torque, low heat)
5). Transmission mechanism /Guide Rail: Taiwan Hiwin (characteristics: high precision, low operating noise, closed type)
7). Print pin: The whole piece made-in- Japan, is the high quality composite material.

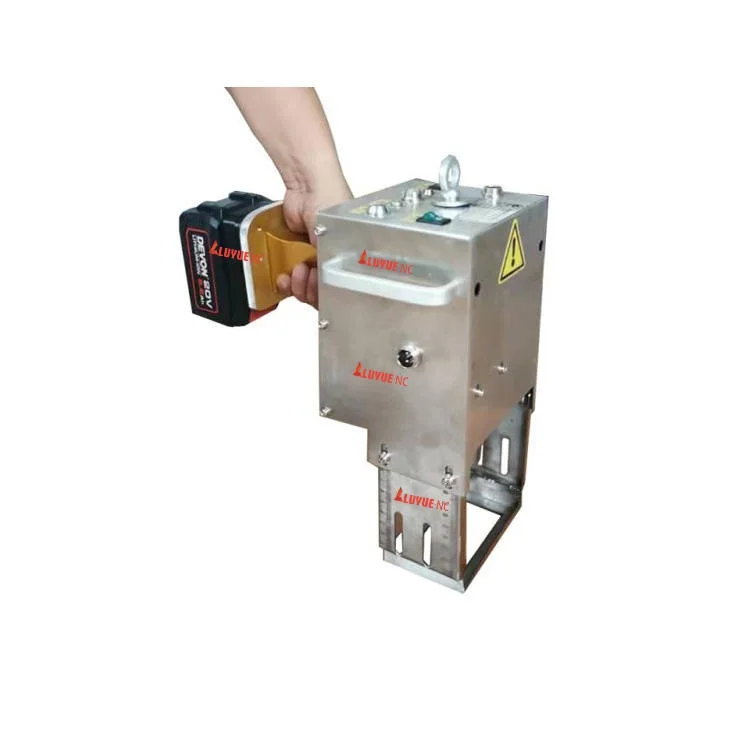

8). Suitable for mobile coding, the integrated design is more convenient.
9). Software versions in English and Chinese version.

2. Parameters:
1). Marking range: 90mm × 30mm
2). Marking depth: 0.01-2mm
3). Driving voltage: DC24V
4). Power supply mode: single exchange 110-240V global universal
5). Print content: Any Chinese and English characters and numbers. Graphics
6). Print effect: clear and beautiful
7). Any graphic that containing in the CAD

8)The machine supports reading data directly from the U disk

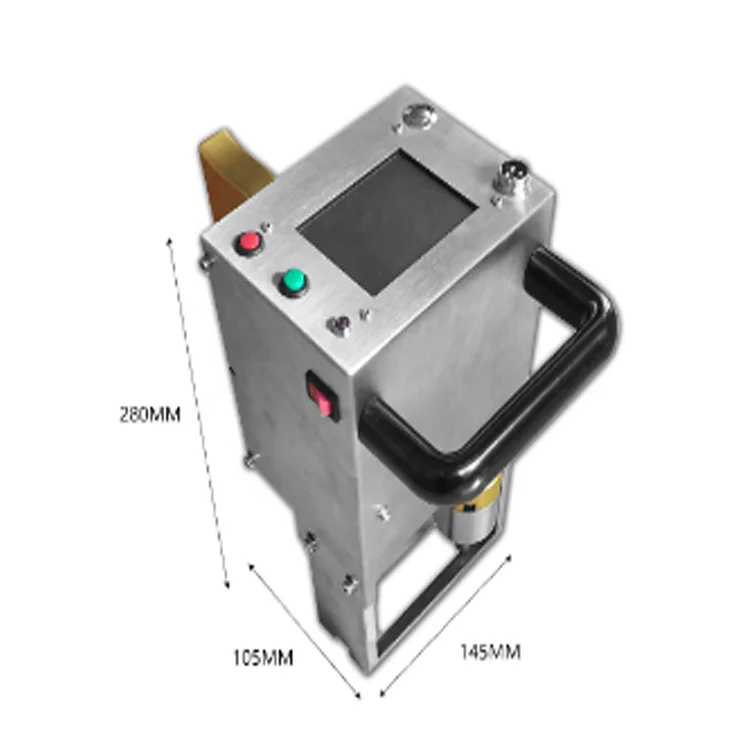

9). Machine weight: 4.5kgs,  Dimention: 28cm *14.5cm*10.5cm

3. Product advantages:
1). The whole machine adopts imported industrial grade components with high marking precision and long service life.
2). The controllor adopts industrial control system, which has strong anti-interference ability and strong environmental adaptability.
3). The marking head adopts double-rail structure, which has long service life and good impact resistance.
4). standard Windows design style, with a good man-machine dialogue function, easy for the operator to quickly grasp.
5). can directly observe the marking effect on the screen, making debugging more convenient and free, can track the mark on the screen.
6). application range: a variety of shapes, materials.
7). working hours: can work continuously > 24 hours.

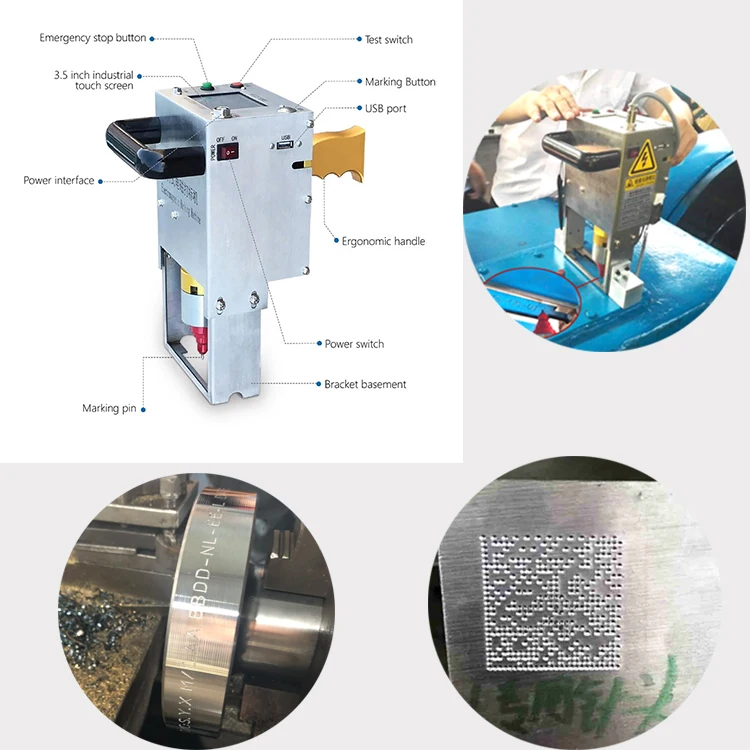

Samples

by Aluminum foil box

1. All our machines are subject to comprehensive inspection and testing by the quality inspection department before shipment.

2. Lifelong technical maintenance for free and spare parts supply.

3. Free training.24 hours technical support.

4. We will provide you with "instruction manual", "operation manual" and "training video".

5. We will also provide online face-to-face training, through our special software, our engineers can control the machine computers and machines, step by step to show you.

Q: Can I get some discount if I order more ?

A: Yes,The more you order,the more you save.

Q:How to choose suitable model?

A:Please provide a photo of the product you used before or advise us your needs, we will give suggestion .

Q:Why choose your company?

A:We are a professional Industrial Solutions company in China. We’re more familiar with customer’s marking or engraving applications. So we’re in a position to recommend a more suitable model and provide free professional technology.

Q: Do you have the manual of machine.

A: Yes,we can provide manual,CD software and video to help you operate the machine expertly.
