Introduction Of Self-unloading Permanent Magnet Iron Remover For Belt Conveyor Price

RCYD series permanent magnet self-unloading iron remover is composed of high-performance permanent magnet core, iron-dissipating belt, geared motor, frame, roller and other parts, and is used with various conveyors. Used to automatically remove 0.1-25 kg of ferromagnetic material from non-magnetic materials. The internal magnetic circuit adopts computer simulation design and perfect double magnetic pole structure to ensure the long-term operation of the whole machine in a harsh environment without trouble.

RCYD series permanent magnet self-unloading iron remover is widely used in garbage recycling, home appliance recycling, coal mines, docks, thermal power generation, cement, building materials and other industries. 007

Parameter Of Self-unloading Permanent Magnet Iron Remover For Belt Conveyor Price

Model Parameter Project	Adapt Bandwidth mm	Rated Hang high h=mm	Material Thickness ≤mm	Magnetic Field Strength ≥mT	Drive Power ≤KW	Weight Kg	Dimensions
							A	B	C	E	D
RCYD(C)-5	500	150	80	60	1.5	750	1900	735	935	753	950
RCYD(C)-6	600	175	120	60	1.5	920	2050	780	1030	753	1100
RCYD(C)-6.5	650	200	150	70	2.2	1200	2165	780	1080	888	1200
RCYD(C)-8	800	250	200	70	2.2	1400	2350	786	1280	1088	1300
RCYD(C)-10	1000	300	250	70	3.0	2120	2660	920	1550	1335	1400
RCYD(C)-12	1200	350	300	70	4.0	3350	2900	970	1720	1515	1550

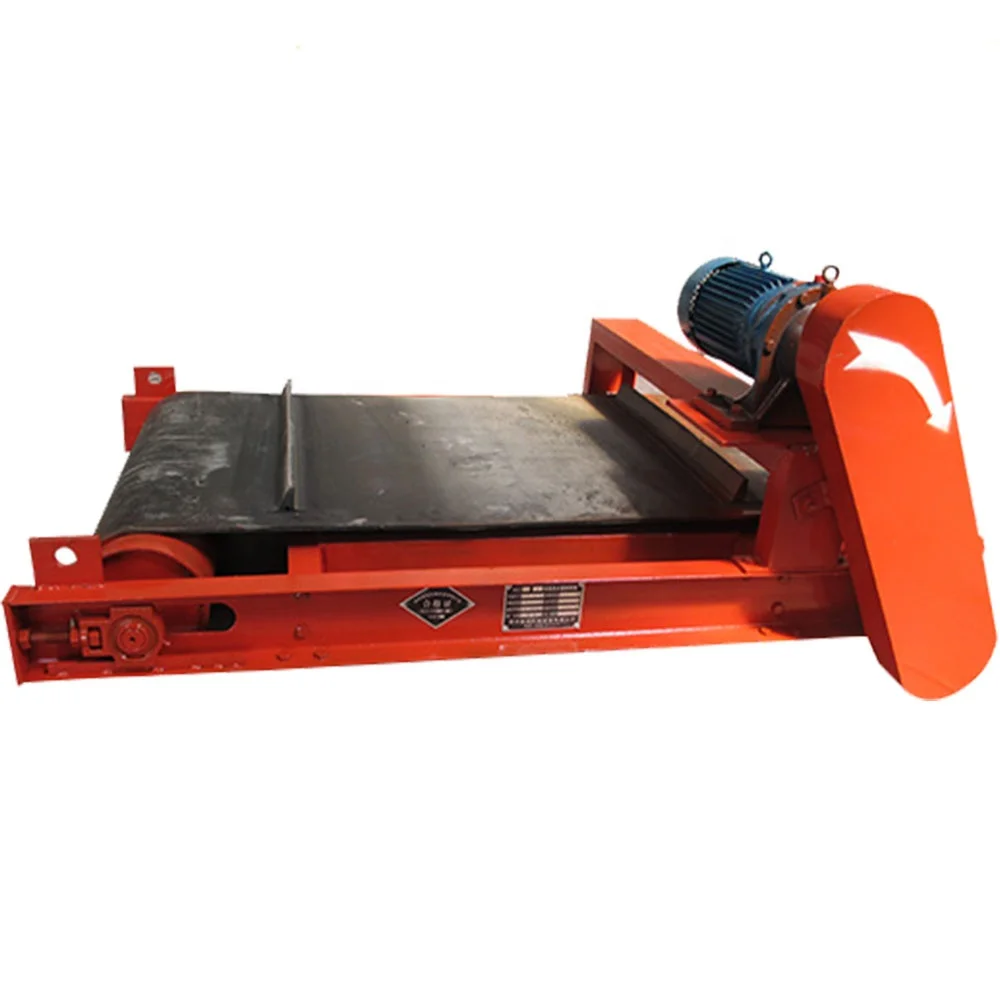

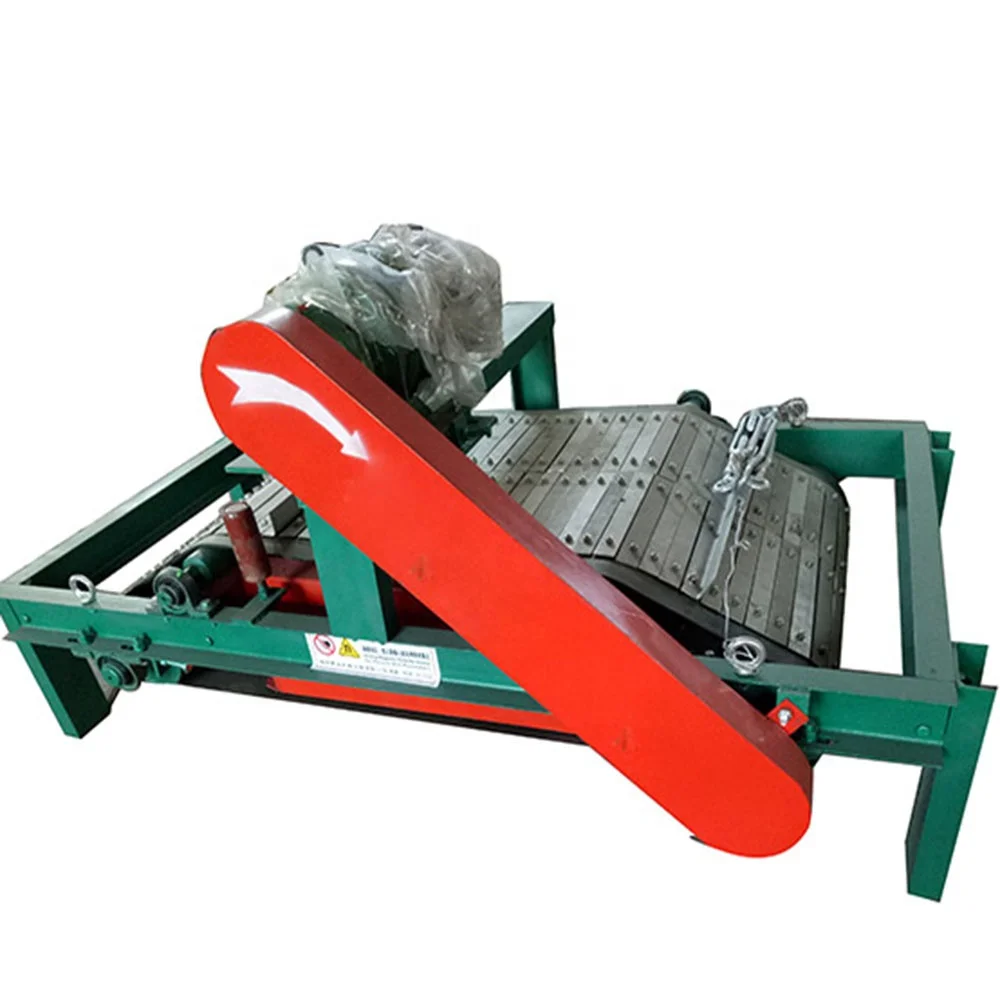

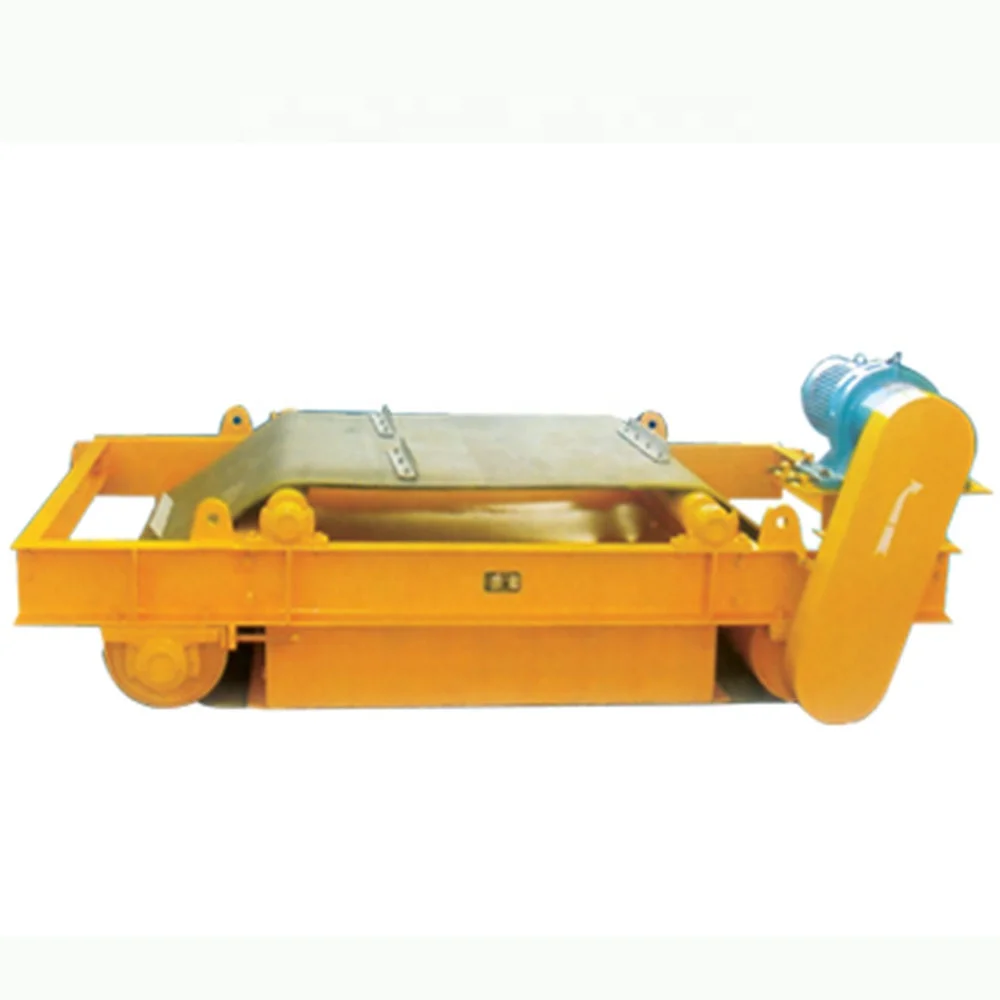

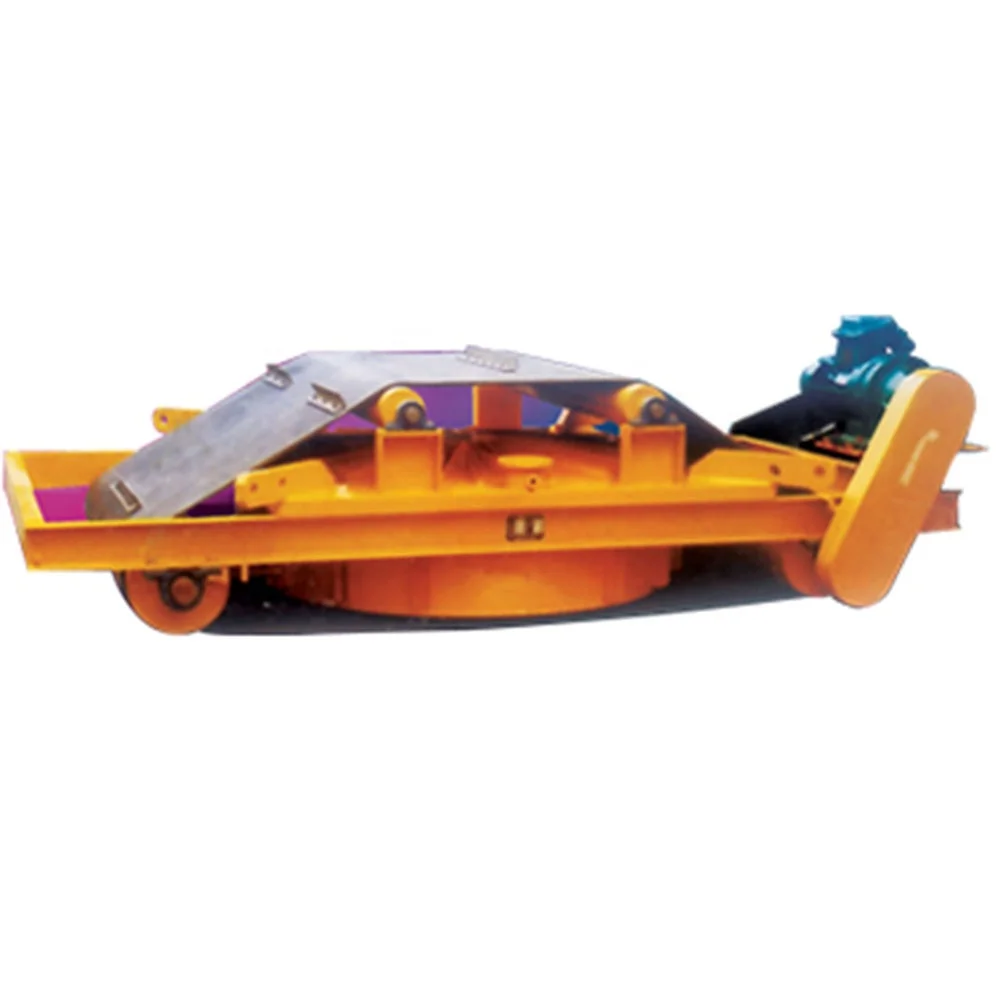

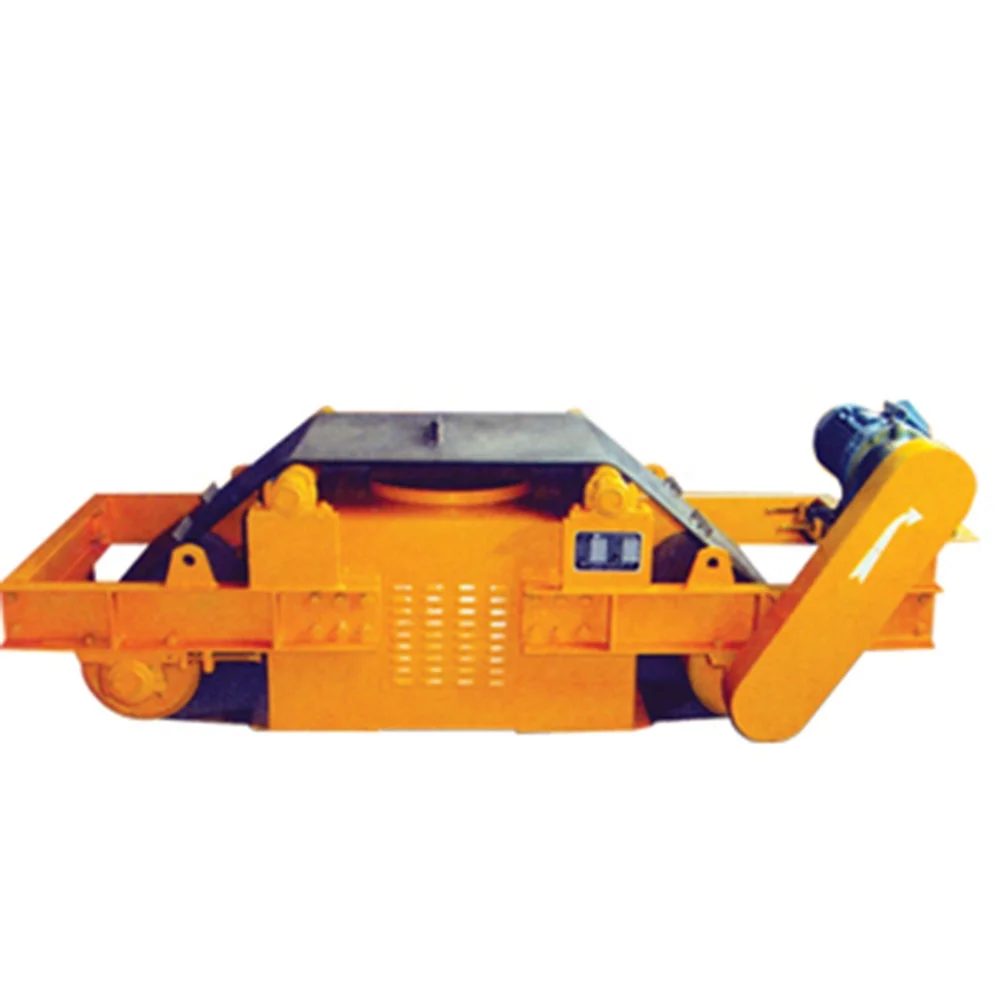

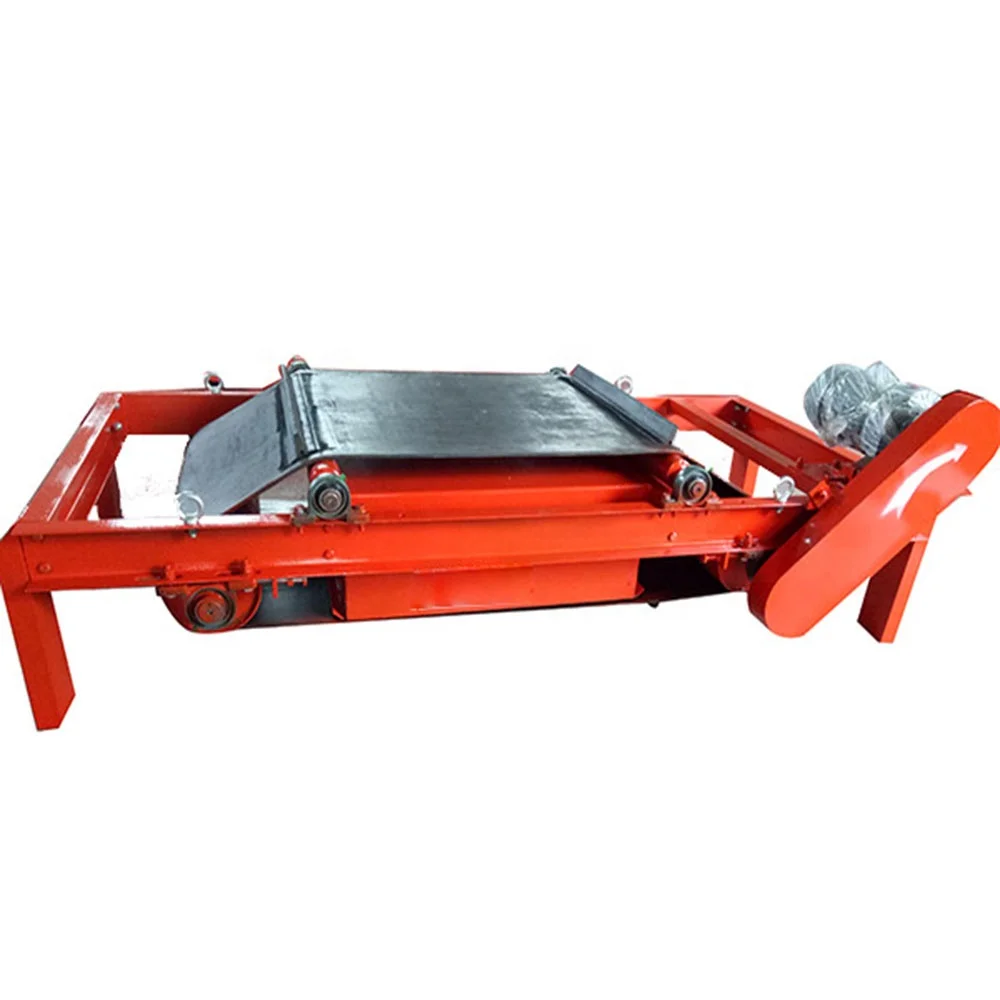

Photoes Of Self-unloading Permanent Magnet Iron Remover For Belt Conveyor Price
