Бренд BYFO гидравлическая круглая машина для производства
- Категория: Станок для резки канавок >>>
- Поставщик: Nanjing,Byfo,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 19992.25 $* | 20992.57 $* |
| Aug-17-2025 | 19824.66 $* | 20815.33 $* |
| Jul-17-2025 | 16632.56 $* | 17464.25 $* |
| Jun-17-2025 | 19488.33 $* | 20462.78 $* |
| May-17-2025 | 16968.76 $* | 17816.7 $* |
| Apr-17-2025 | 19152.36 $* | 20110.52 $* |
| Mar-17-2025 | 18984.26 $* | 19933.41 $* |
| Feb-17-2025 | 18816.91 $* | 19757.2 $* |
| Jan-17-2025 | 18648.42 $* | 19580.40 $* |
Характеристики

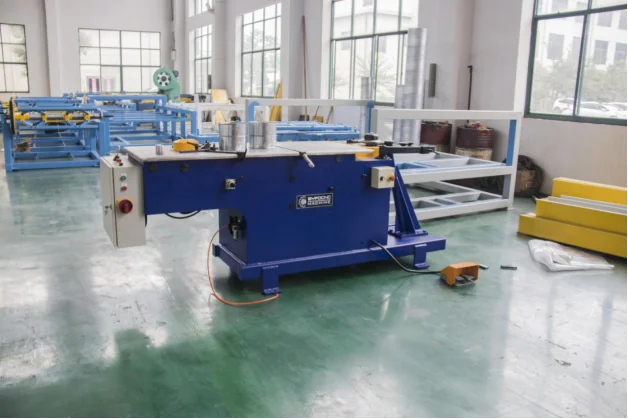

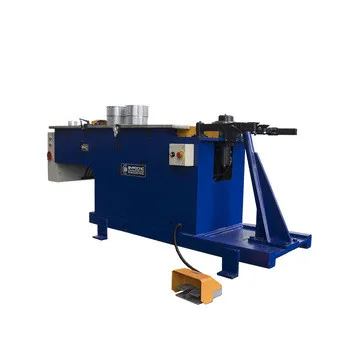

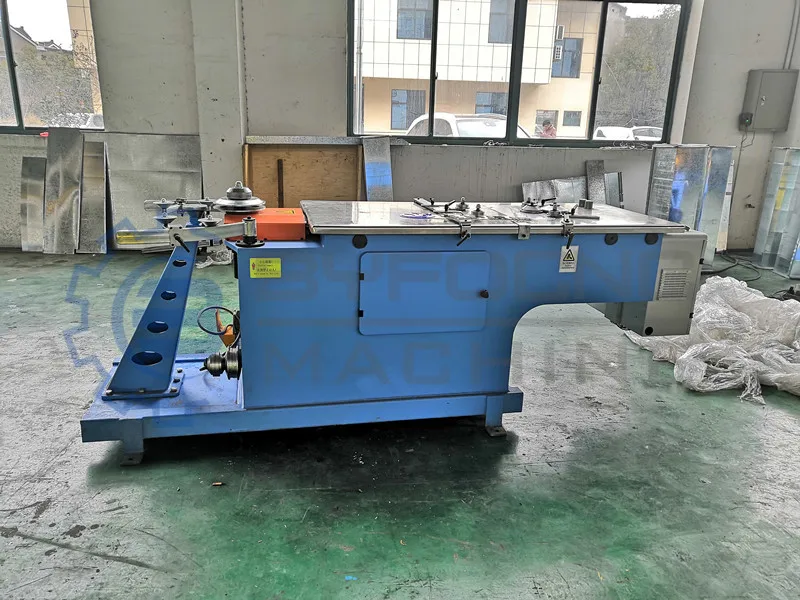

BYFO brand hydraulic round duct gorelocker elbow maker machine
Horizontal duct elbow making machine, also called round elbow locker machine.
Byfo Elbow Maker is the special equipment for both connecting lock and seaming when processing on metal plate round pipe and round elbow.

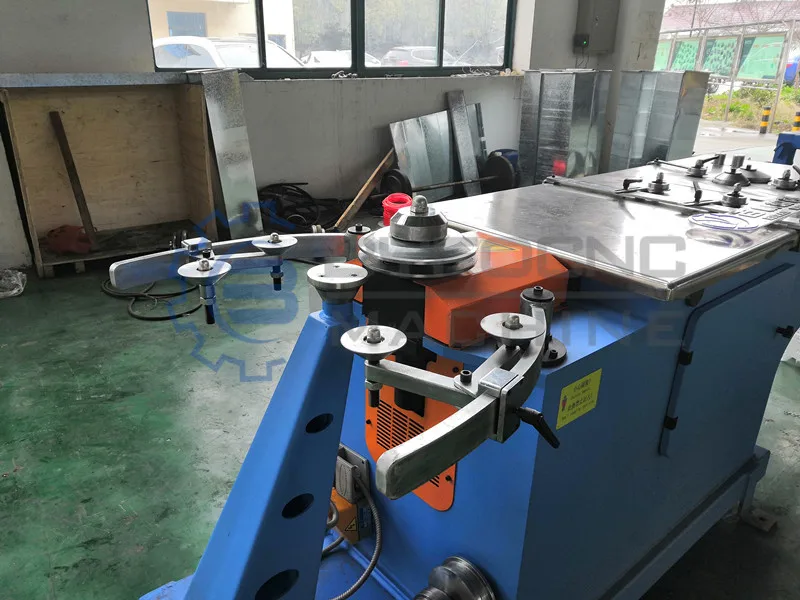

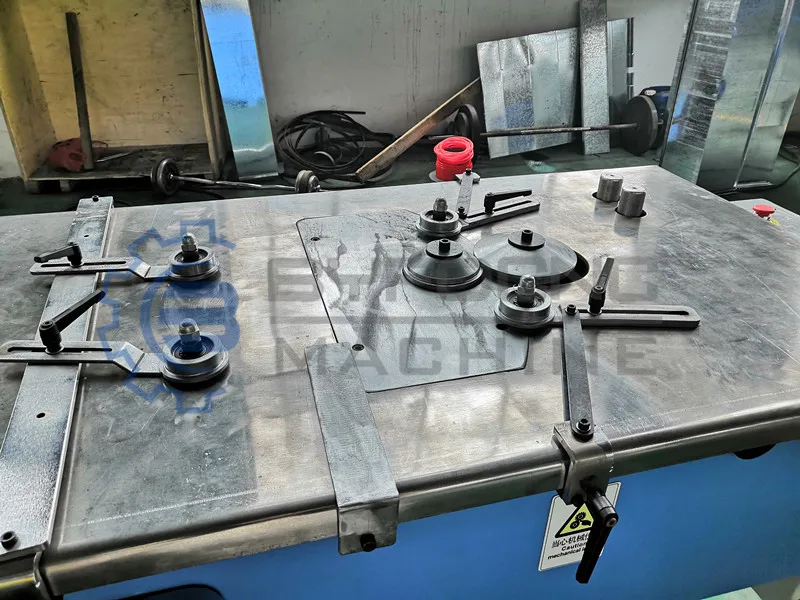

By adjusting the position of pointer on the hand wheel, two locks:
will be formed separately at the mouth of the round pipe then connect the mouth of the pipe for two locks on the other set of the roller to form an elbow:
Featured with durable structure, high performance and efficiency and easy-operation, this machine can form accurate dimension and right angle, this type of lock is more air-tight with better seam.
Good quality forming and seaming are achieved by one machine and space is saved.
Main Technical Parameters:
Type | BFWT-1000 | BFWT-1000C | BFWT-1500 |
Max. thickness | 1.2mm | 2.0mm | 2.0mm |
Dia. range | 150-1000mm | 150-1000mm | 150-1500mm |
Forming speed | 7r/min | 7r/min | 7r/min |
Motor power | 1.5kwx2 | 2.2kwx2 | 2.2kwx2 |
Weight | 556kg | 556kg | 610kg |
Dimension | 2100x820x890mm | 2100x820x890mm | 2400x820x890mm |
YOUTUBE
https://www.youtube.com/watch?v=P7bpRpW65HU
