Управляемая сеть L2 24 порта 1000 Мбит/с Poe Ethernet коммутатор с 2 гигабитными сетями SFP из оптического волокна по заводской
- Категория: >>>
- Поставщик: Shenzhen,Sunsoont,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.38 $* | 0.75 $* |
| Aug-19-2025 | 0.86 $* | 0.18 $* |
| Jul-19-2025 | 0.35 $* | 0.73 $* |
| Jun-19-2025 | 0.18 $* | 0.67 $* |
| May-19-2025 | 0.48 $* | 0.33 $* |
| Apr-19-2025 | 0.77 $* | 0.30 $* |
| Mar-19-2025 | 0.44 $* | 0.84 $* |
| Feb-19-2025 | 0.40 $* | 0.22 $* |
| Jan-19-2025 | 0.72 $* | 0.28 $* |
Характеристики
L2 Managed Network 24 port 1000Mbps Poe Ethernet Switch with 2 Gigabit Optical Fiber SFP Cages
Product Description
SunSoont SST-P24ET-M400 32 ports Gigabit-managed POE switch is a green energy-saving POE switch independently developed by SunSoont. It adopts high-quality and high-speed network IC and the most stable POE chip. The POE port meets the 802.3af or 802.3at standard. This model can provide seamless connection for 10/100/1000M Ethernet, and the POE power port can automatically detect and power the powered devices that comply with the IEEE802.3af or IEEE802.3at standards. The non-POE devices are forcibly powered and only transmit data.
This series of POE switches with 24*10/100/1000M POE ports + 4 Gigabit SFP/TP Combo ports + 1 Console port.
Specifications
L2 Managed Network 24 port 1000Mbps Poe Ethernet Switch with 2 Gigabit Optical Fiber SFP Cages:
General Performance Indicator | |
Product Name | 32 Port Gigabit Managed POE Switch |
Product Model | SST-P24ET-M |
Interface | 24*10/100/1000M POE ports + 4 Gigabit SFP/TP Combo ports, 1 Console port |
Network Protocols | IEEE 802.3 IEEE 802.3u IEEE 802.3ab/ad/az/af/at IEEE 802.3x IEEE 802.1q IEEE 802.1p,QoS IGMP Snooping |
PoE Parameters
| PoE Standard: IEEE802.3at (30W) and IEEE802.3af (15.4w) |
| PoE compatibility: IEEE 802.3af/at adaptive | |
| POE port output: DC48-55V | |
| Power Pin Assignment: Power over spare pairs 1/2(+) and 3/6 (-) | |
Network Transmission Medium | 10BASE-T: Cat3, 4, 5 UTP (≤ 100 m) 100BASE-TX: UTP (≤100 m) above Cat5 |
Optical | Multimode fiber: 1310nm, 2Km Single mode fiber: 1310nm, 20/40km; 1550nm, 60/80/100/120km |
The LED indicator | SYS, PWR, Link (lines 2, 4) / Act (lines 1, 3) |
Power Supply | Machine input voltage: AC90-264V; Output DC52V 7.69A Total power: 400W |
Physical Dimension | Product size (L×W×H): 445mm× 285mm× 45mm Package size (L × W × H): 500mm × 350mm × 90mm Product weight: 3.2kg Package weight: 4.0 kg |
Working Environment | Operating Temperature:-20° ~ 55 ° C; Storage Temperature: -40 ° ~ 85 ° C; Operating Humidity: 10% ~ 95%, non-condensing Working height: up to 10,000 feet (3,000 meters) Storage height: up to 10,000 feet (3,000 meters) |
Certification | CE, FCC,ROHS,3C |
| MTBF: | 100,000 hours |
Package Contents | 1. Switch: 1 set 2. Instruction manual: 1 3. Certificate of conformity: 1 4. Warranty card: 1 5. AC power cord 1 6. A pair of hanging ears |
Warranty | 3 years |
| Technical Indicators | |
Bandwidth | 56Gbps (non-blocking) |
Packet Forwarding rate | 41.6Mpps |
Processor | RTL8382M |
Flash Capacity | 16M |
Memory Capacity | 1024M(1G) |
MAC | 8K |
Management Function Details:
Product Avantages
L2 Managed Network 24 port 1000Mbps Poe Ethernet Switch with 2 Gigabit Optical Fiber SFP Cages:
1. Can transfer data for network surveillance cameras
2. 24x 1000Mbps auto-sensing POE ports, 4x 10/100/1000M Combo ports, 1 Console
3. Support IEEE802.3/IEEE802.3i/IEEE802.3uIEEE802.3ab/IEEE802.3z, IEEE802.3af/at, store-and-forward
4. Compatible with IEEE802.3at (30W) and IEEE802.3af (15.4w)
5. Ethernet port supports 10/100/1000M adaptive and POE functions
6. Panel indicator monitoring the status and help failure analysis
7. Fanless design, natural cooling, 1U rack mount
8. Support 802.1x port authentication, support AAA authentication, support TACACS+ authentication
9. Support WEB, TELNET, CLI, SSH, SNMP, RMON management
10. Support POE power management
11. Support port lightning protection Surge: General Mode 6KV, Differential Mode 4KV, ESD 15KV.

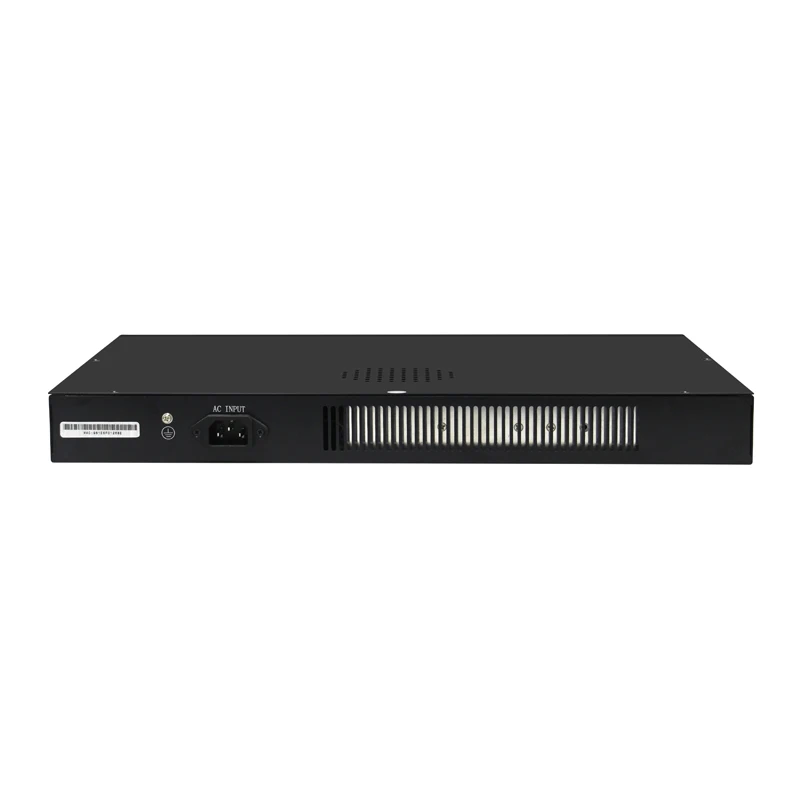

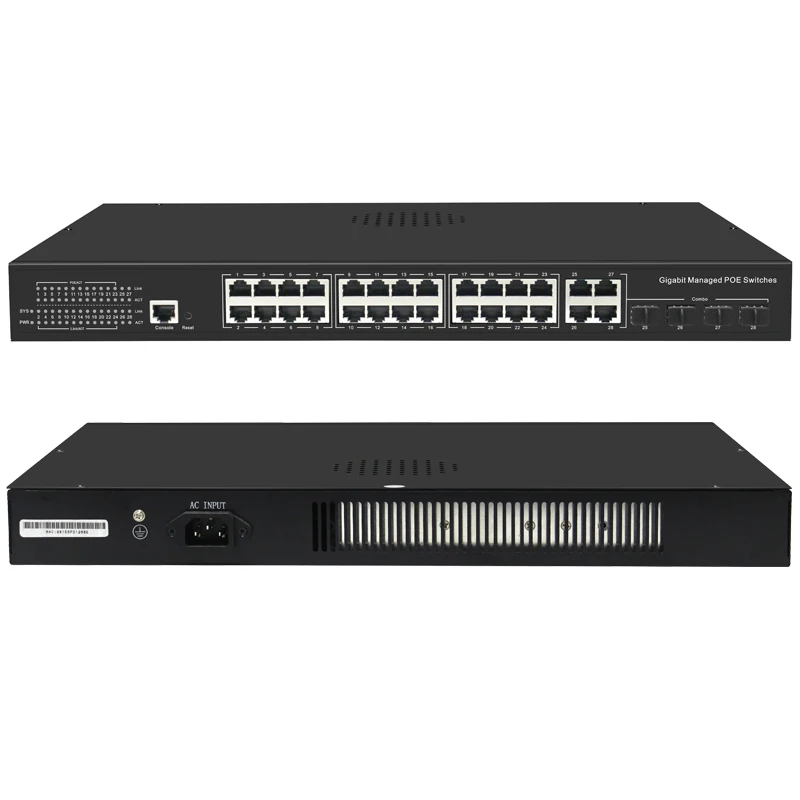

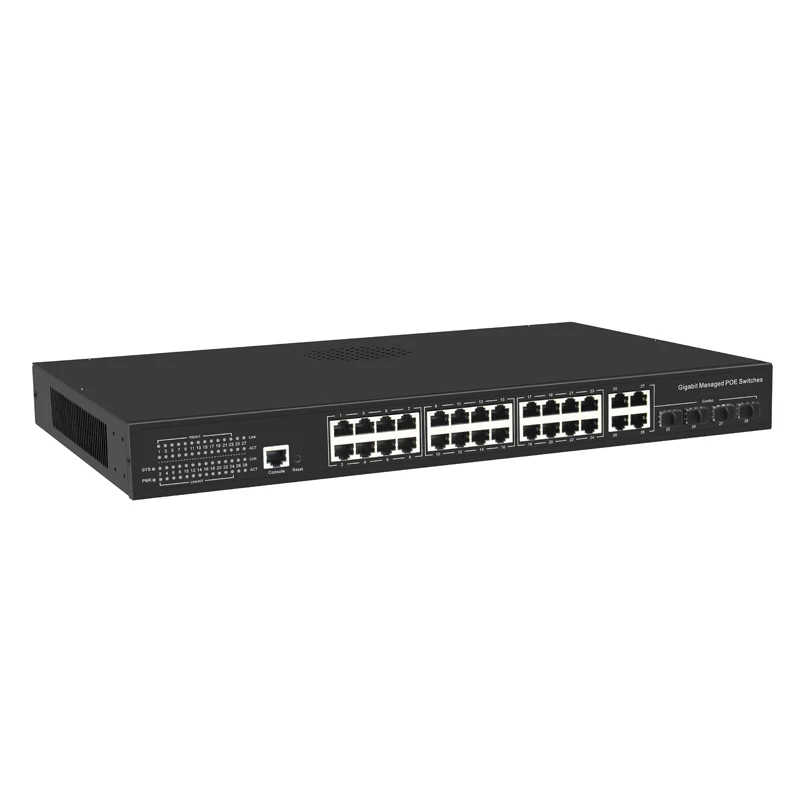

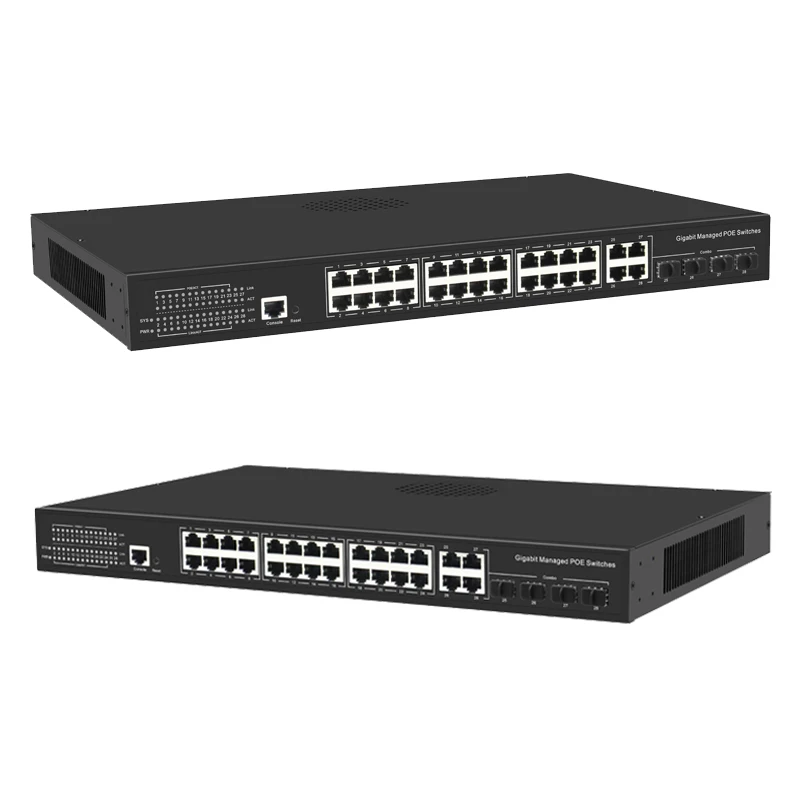

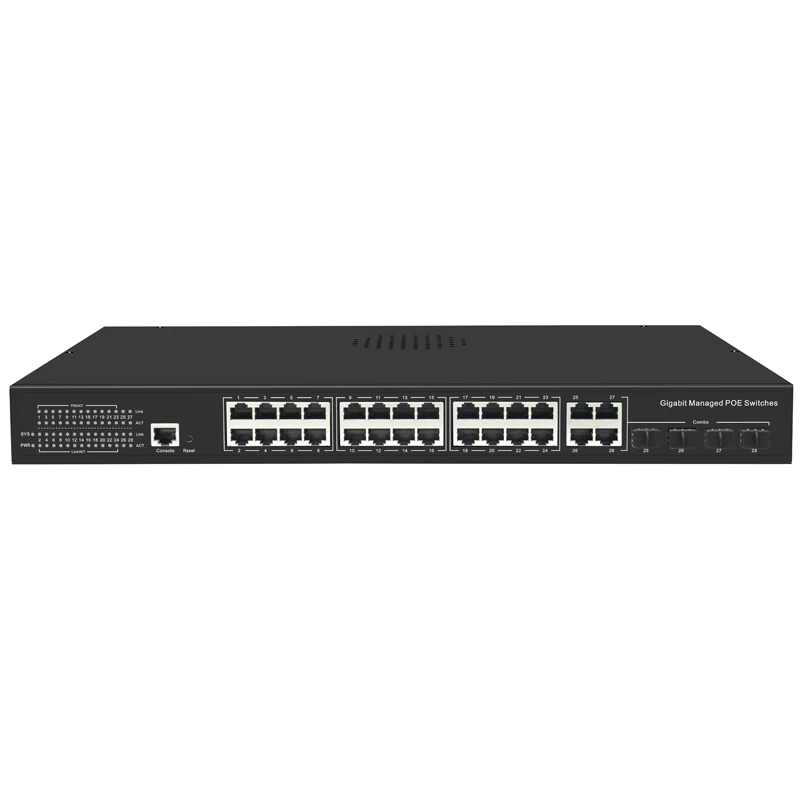

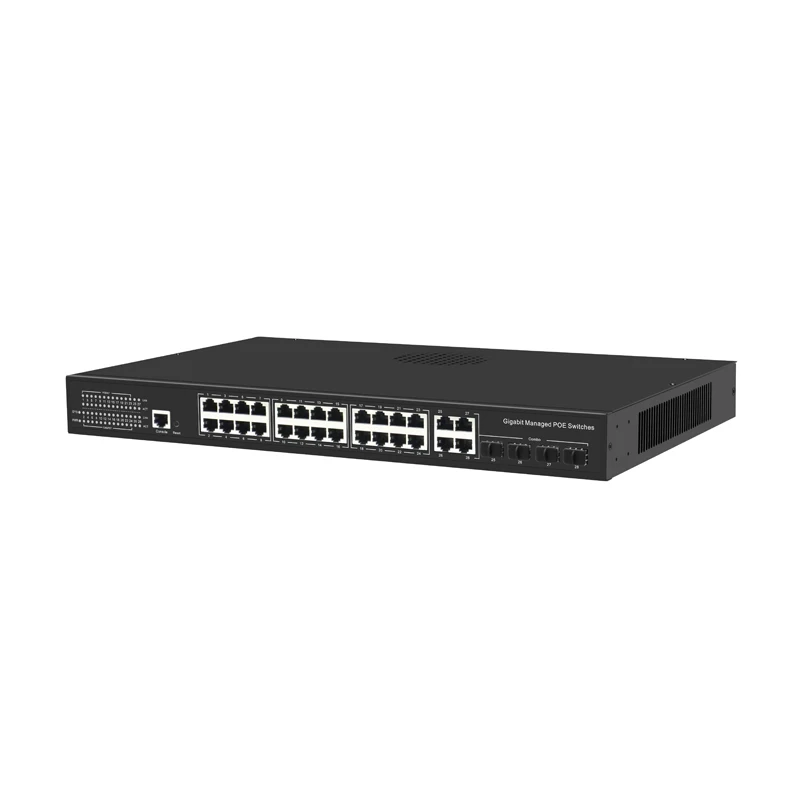

Detailed Images
Product Application
Managed POE Switch Main Applications:
1.HD monitor transmission and power supply
2.Wireless AP layout transmission and power supply
3.Network telephone transmission , intelligent house and home system
4.Intelligent transportation supervisory system (ITS)
5. High-speed Way supervisory/Tele-Communication System
6. Security protection system, TV medical treatment
7. Long-distance Muti-media Schooling, Campus monitoring
8. Long-distance broadcast television transmission system
9. High-building Security Protection, Military Tele-Com projects
Packaging & Shipping
Company Information
Shenzhen Sunsoont Technology Co,. Ltd. established in 2016, is a professional manufacturer engaged in the research, development, production, sale and service of fiber optic equipments and network devices. We are located near to Shenzhen Subway Line 11 Qiaotou station. Dedicated to strict quality controlling and thoughtful customer service, our experienced staff members are always available to discuss your requirements and ensure full customer satisfaction. In recent years, our company has introduced a series of advanced equipment including Laser automatic coupling machine\\Eye diagram instrument\\Oscilloscope. In addition, we have obtained CE, RoHS, FCC, TUV certificates. our products are exported to many countries, such as, Russia, India, Israel, Thailand, Ukraine, Brazil, Indonesia, Korea, Frence,Colombia, South Africa, and so on. We also welcome OEM and ODM orders. Whether selecting a current product from our catalog or seeking engineering assistance for your application, you can talk to our customer service center about your sourcing requirements. Hope we could offer the best products and services to you!
FAQ
1. What is your MOQ, Can I have a small sample order?
Yes, we welcome sample order to test and check quality.
2. What is your payment terms?
Trade assurance ,T/T, West Union, Paypal, Credit card or Cash.
3. What is your warranty time
We promise 3 years’ warranty for all products shipped from us.
4. What is the lead time?
For usual products. We keep stock, could ship 1-3 days after payment, as to big quantity and special products, will provide the lead time after confirming with our production dept.
5. Could I use our own logo and label?
Yes, we could provide OEM service and make the products with your own label.
Welcome your inquiry, and welcome to visit our factory.
For more information, please feel free to contact us, we will reply you in 8 hours.
Thanks for your attention!
