Характеристики
Product Description
The roller extrusion granulator can produce compound fertilizers of various concentrations and types (including organic fertilizer, inorganic fertilizer, biological fertilizer, magnetic fertilizer, etc.). It is matched with the corresponding equipment to form a small production line, which can form a continuous and mechanized production of a certain capacity.
Equipment introduction：
1.Double shaft power output, each shaft through coupling to drive its roller to do synchronous work in opposite direction, granule
forming is better and the strength is higher.
2.The design of contraposition adjustment of ball socket is simple and convenient for the client to adjust by themselves. Provide
the drawing of roller adjustment and operation steps.
3. All machines before leave the factory, had carried out the test and trial production by professional workers.
forming is better and the strength is higher.
2.The design of contraposition adjustment of ball socket is simple and convenient for the client to adjust by themselves. Provide
the drawing of roller adjustment and operation steps.
3. All machines before leave the factory, had carried out the test and trial production by professional workers.
The roller was forged and processed from special materials into roughcast, and machined by numerical lathe and milling machine to
be finished rollers.
The roller with the features of rusty resistance, acid and alkali resistance, long service life, not easy to crack
be finished rollers.
The roller with the features of rusty resistance, acid and alkali resistance, long service life, not easy to crack

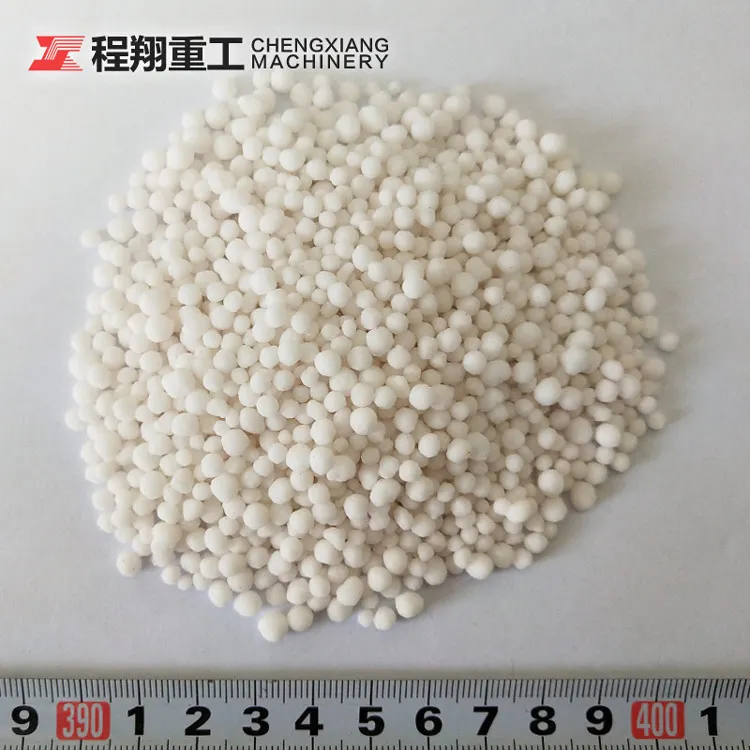

Finished granule

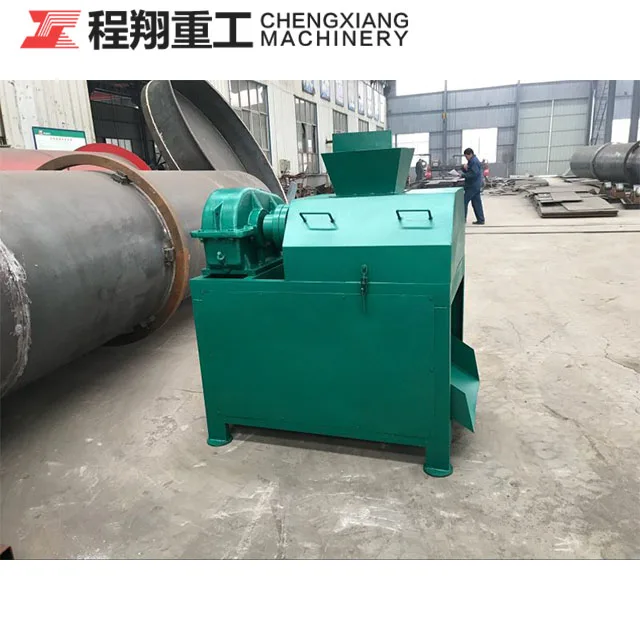

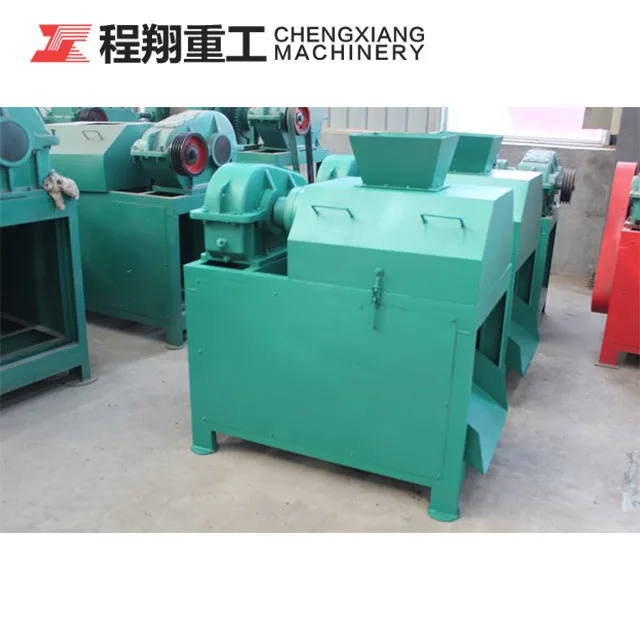

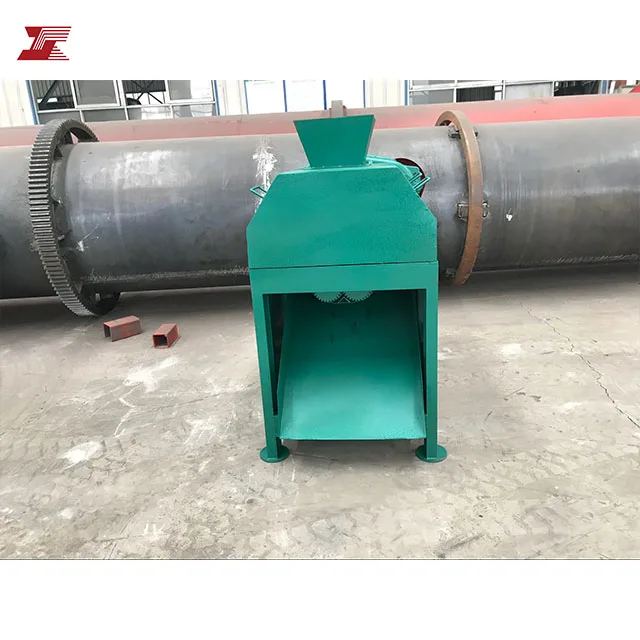

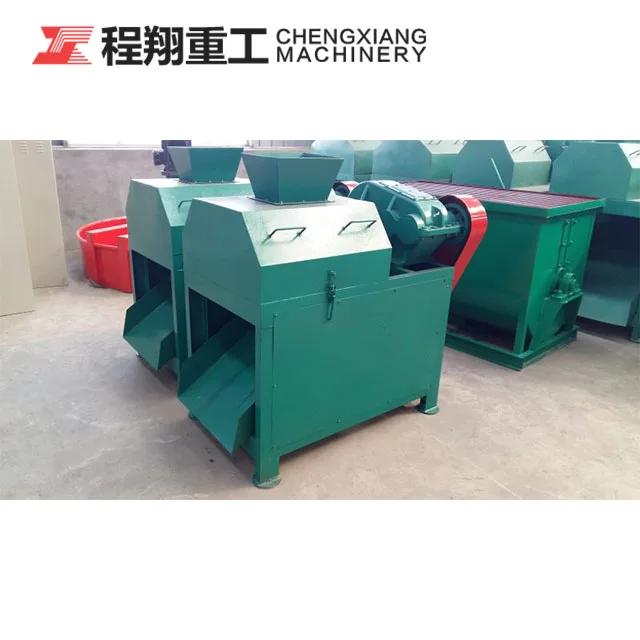

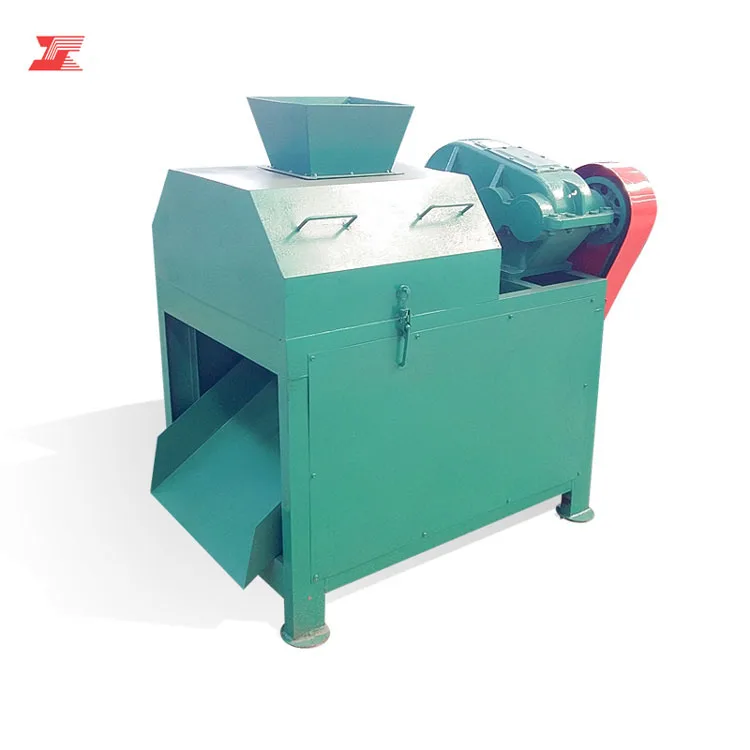

Details Images
Working flow:
input ( If blocked, use chain crusher to deal with ) ---- granulation - screening (select the right sieving hole
diameter)----finished granules---- the next process (optional equipment: 1, screening machine: the size of the granules will be
more accurate. 2, coating machine: make the appearance of the granules more good. 3, weighing and package: facilitate the sale and
transportation of products.
diameter)----finished granules---- the next process (optional equipment: 1, screening machine: the size of the granules will be
more accurate. 2, coating machine: make the appearance of the granules more good. 3, weighing and package: facilitate the sale and
transportation of products.
Our Advantages
Before service: according to clients we can recommend suitable machines
After service: we have engineer can be dispatched to your country and if you have any other questionos we will reply u ASAP.
Product Paramenters
Model Number | DZJ-Ⅰ1.0 | DZJ-Ⅰ2.0 | DZJ-Ⅱ2.0 | DZJ-Ⅰ4.0 |
Output (t/h) | 1~1.5 | 1.5~2 | 1.5~2.5 | 3~4 |
Power Rate | 15KW | 18.5KW | 22KW | 30KW |
Roller Specification | Φ150x220 | Φ150X300 | Φ150X300 | Φ186X300 |
Grain Size Of Input | 0.5mm | 0.5mm | 0.5mm | 0.5mm |
Diameter Of Finished Product | Φ2.5~Φ10 | Φ2.5~Φ10 | Φ2.5~Φ20 | Φ2.5~Φ30 |
Model Number Of Speed Reducer | ZQH350 | ZQH400 | Special Use | ZQH400 |
Material Moisture | 5%~15% | 5%~15% | 5%~15% | 5%~15% |
Product packaging
packaging :
wood box or arrage packingw work as per export standard
Shipping: All machines will be sent by sea, if you need other kind of transportation, please inform us in advance. Before and
after shipping, we will take photos of machines and send photos to client.
after shipping, we will take photos of machines and send photos to client.
Why Choose Us
1.Founded in 1995, owns professional design, R&D, inspection and excellent after-sale service team.
2.Our production equipment had realized numerical control and intelligence.
3.We can provide all production line machines 3D and CAD drawings.
4.We can advise full production line equipment according to raw materials and output demand, special equipment can provide
customized service.
5.We can arrange technician to guide installation, training workers on site.
2.Our production equipment had realized numerical control and intelligence.
3.We can provide all production line machines 3D and CAD drawings.
4.We can advise full production line equipment according to raw materials and output demand, special equipment can provide
customized service.
5.We can arrange technician to guide installation, training workers on site.
