Характеристики
Best Sale 200L Craft Beer Micro Brewery Brewing System
Brewing the best beer requires brewhouse equipment provided by Micet Craft. We use brand new designs to manufacture equipment. It allows the device to work in a smaller space. The unique design allows you to complete the mashing and boiling work in a system. The fermentation work needs to carried out in the fermentation tank. Our brewhouse equipment 100% TIG welding process. Also, each tank will polish, this can make the tank more beautiful.
Product Parameters
Effective volume | 1BBL | 2BBL | 3BBL | 5BBL | 7BBL | 10BBL | 15BBL | ||||||
Total volume | 1.25BBL | 2.5BBL | 3.75BBL | 6.25BBL | 8.75BBL | 12.5BBL | 18.75BBL | ||||||
Size(mm) | 740*1800 | 820*1900 | 960*2100 | 1160*2500 | 1260*2500 | 1460*2600 | 1700*3000 | ||||||
Material | SUS304/SUS316/red Copper | ||||||||||||
Heating method | Electric/Steam/Direct Fire Heating | ||||||||||||
Control system | PLC Simens or PID Schneider/ABB brand | ||||||||||||
Heating area | 0.2㎡ | 0.35㎡ | 0.5㎡ | 1.7㎡ | 2㎡ | 2.7㎡ | 3.2㎡ | ||||||
Power | 15-70Kw Depends On The Size | ||||||||||||
Voltage | 3 Phase/380(220, 415,480…)v/50(60)Hz; Single Phase/220(110, 240…)v/50(60)Hz | ||||||||||||
Brewing batch | 6-12 Brew/Week | ||||||||||||
Work pressure | Inner Jacket 0.4MPa; Cooling Jacket 0.5Mpa | ||||||||||||
Design pressure | Inner Jacket 0.2MPa; Cooling Jacket 0.3Mpa | ||||||||||||

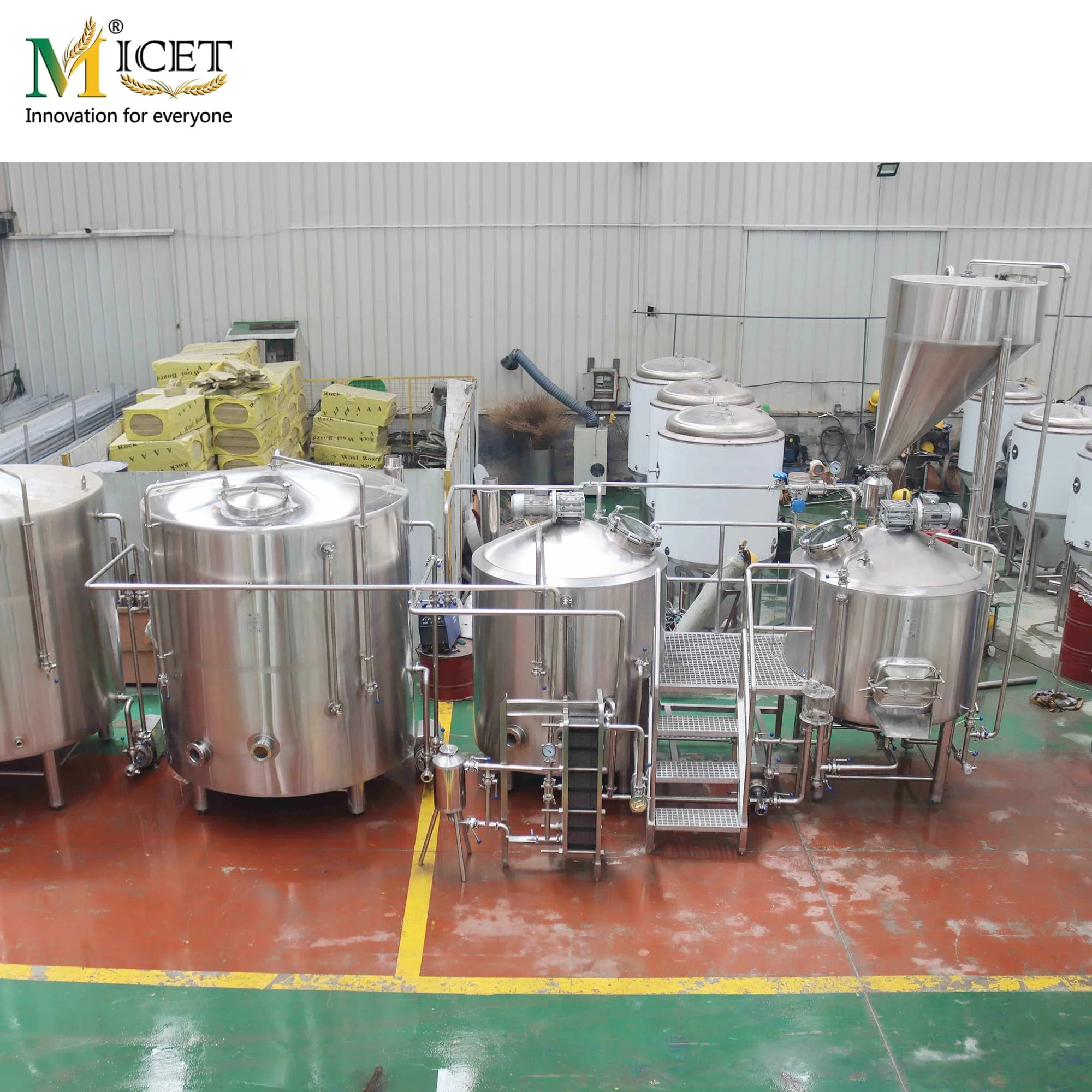

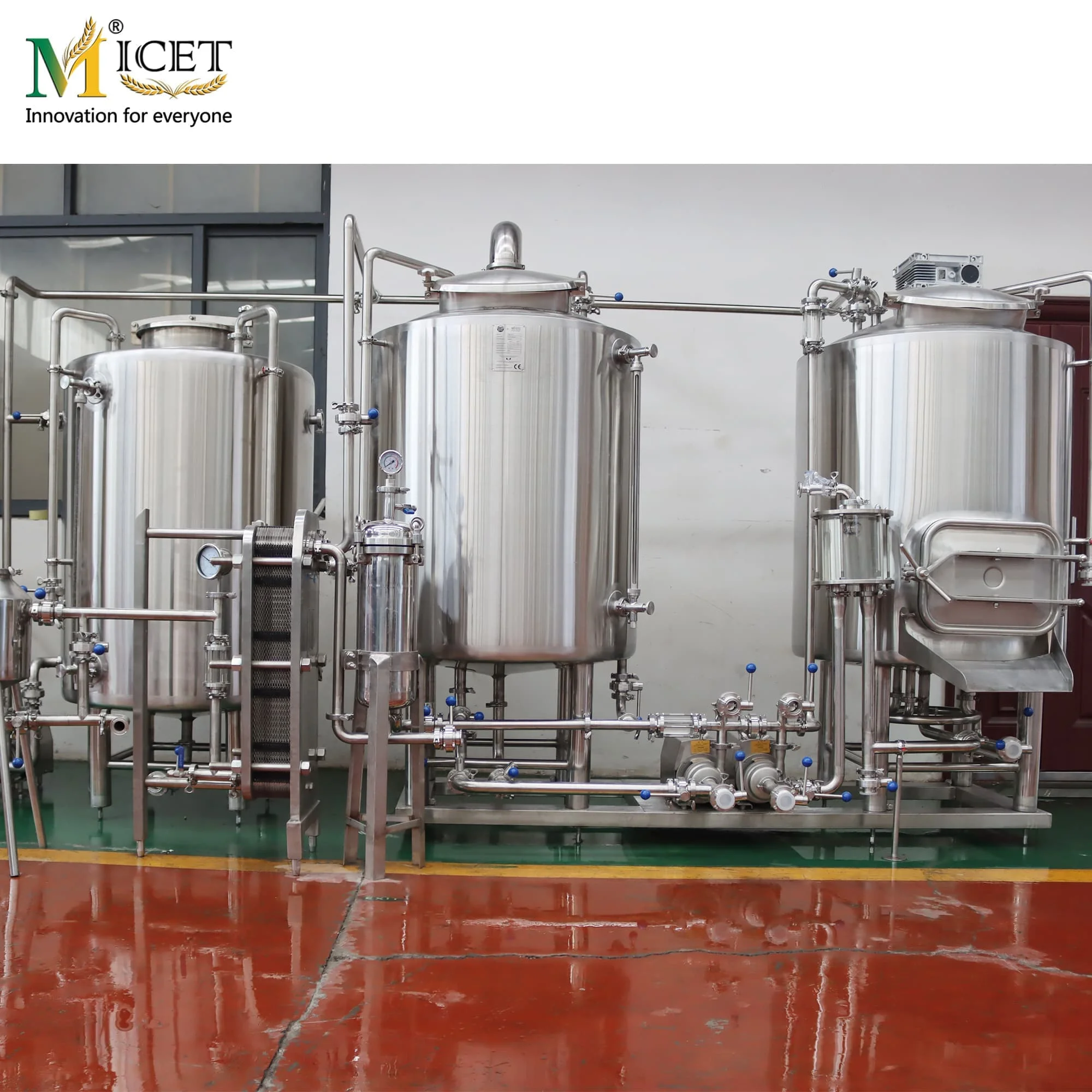

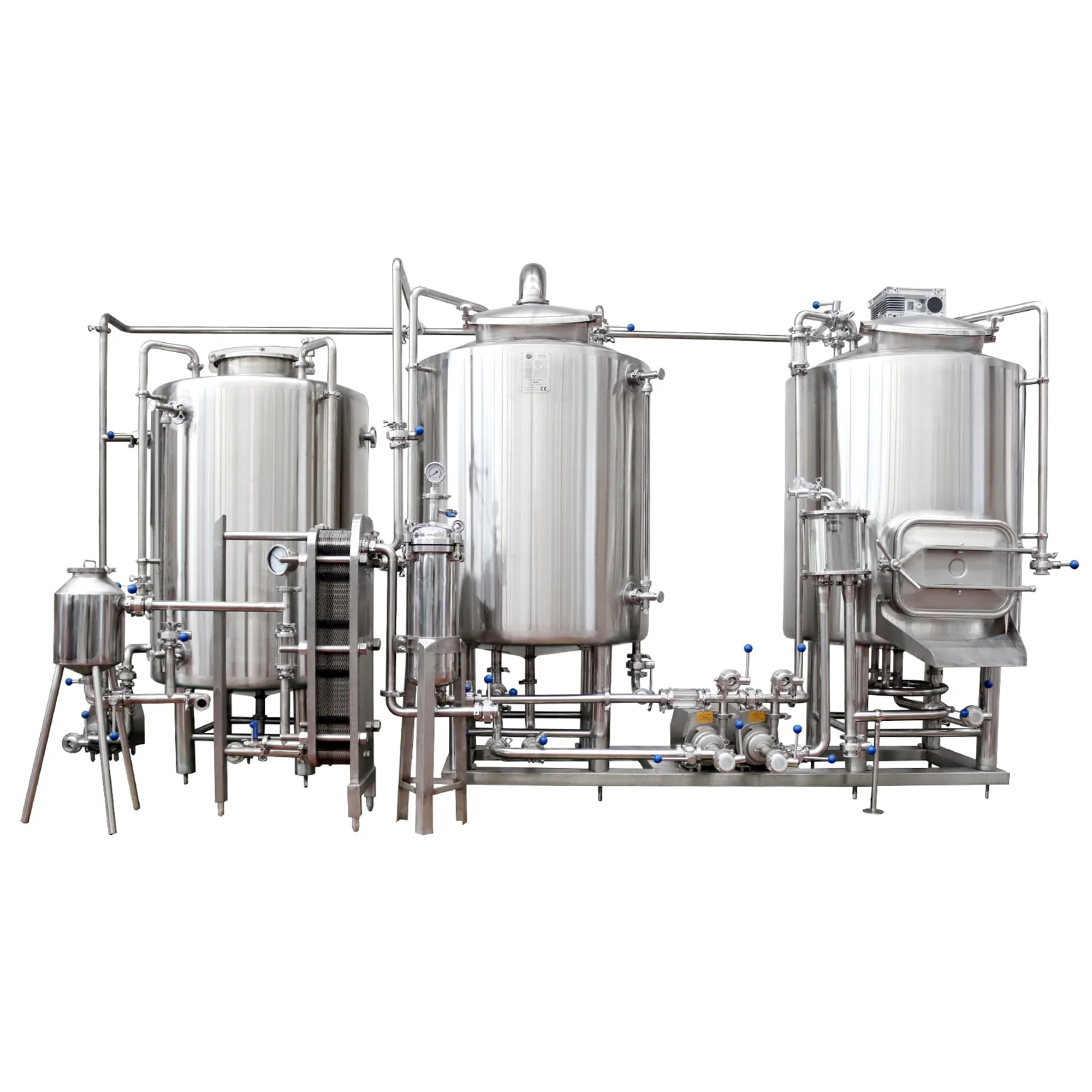

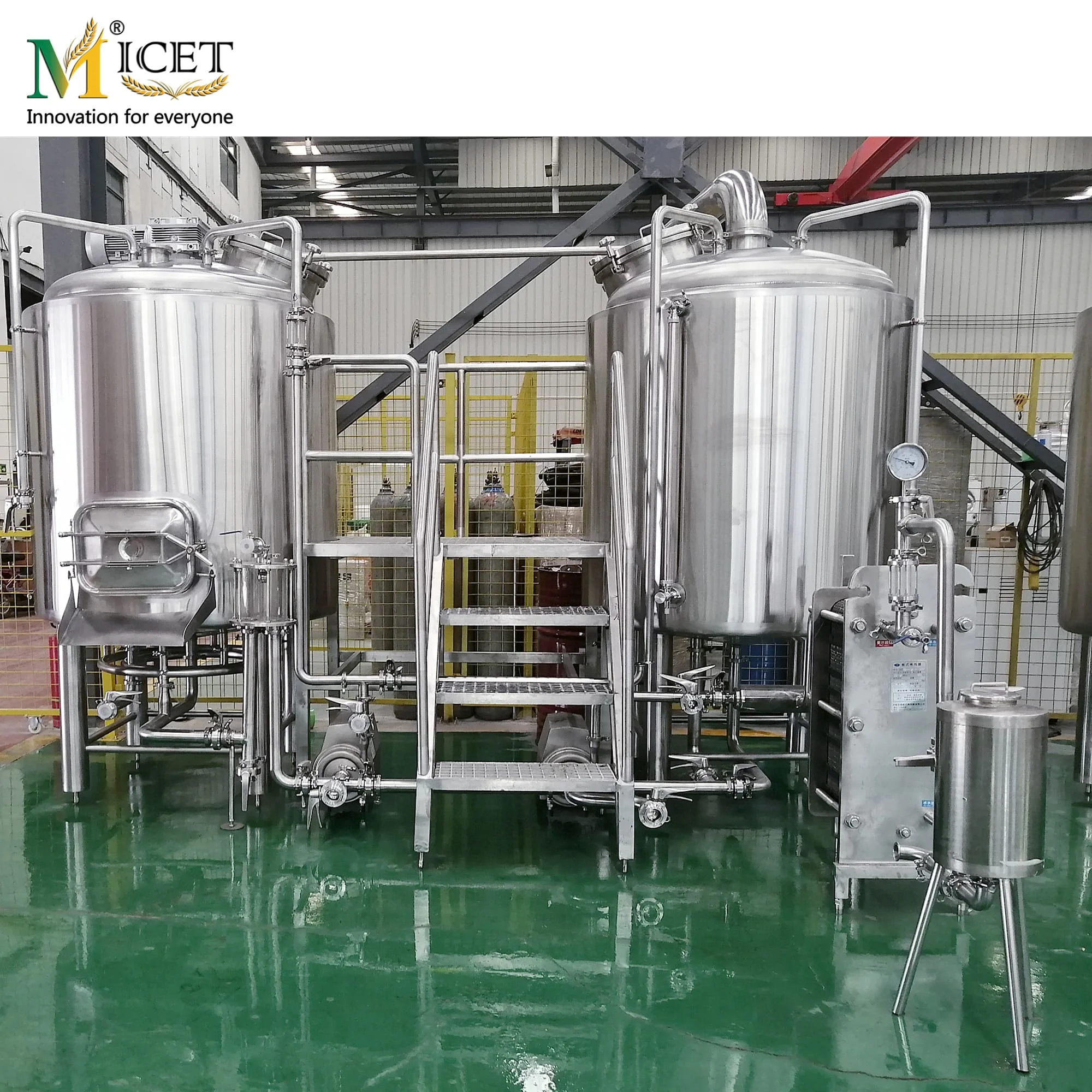

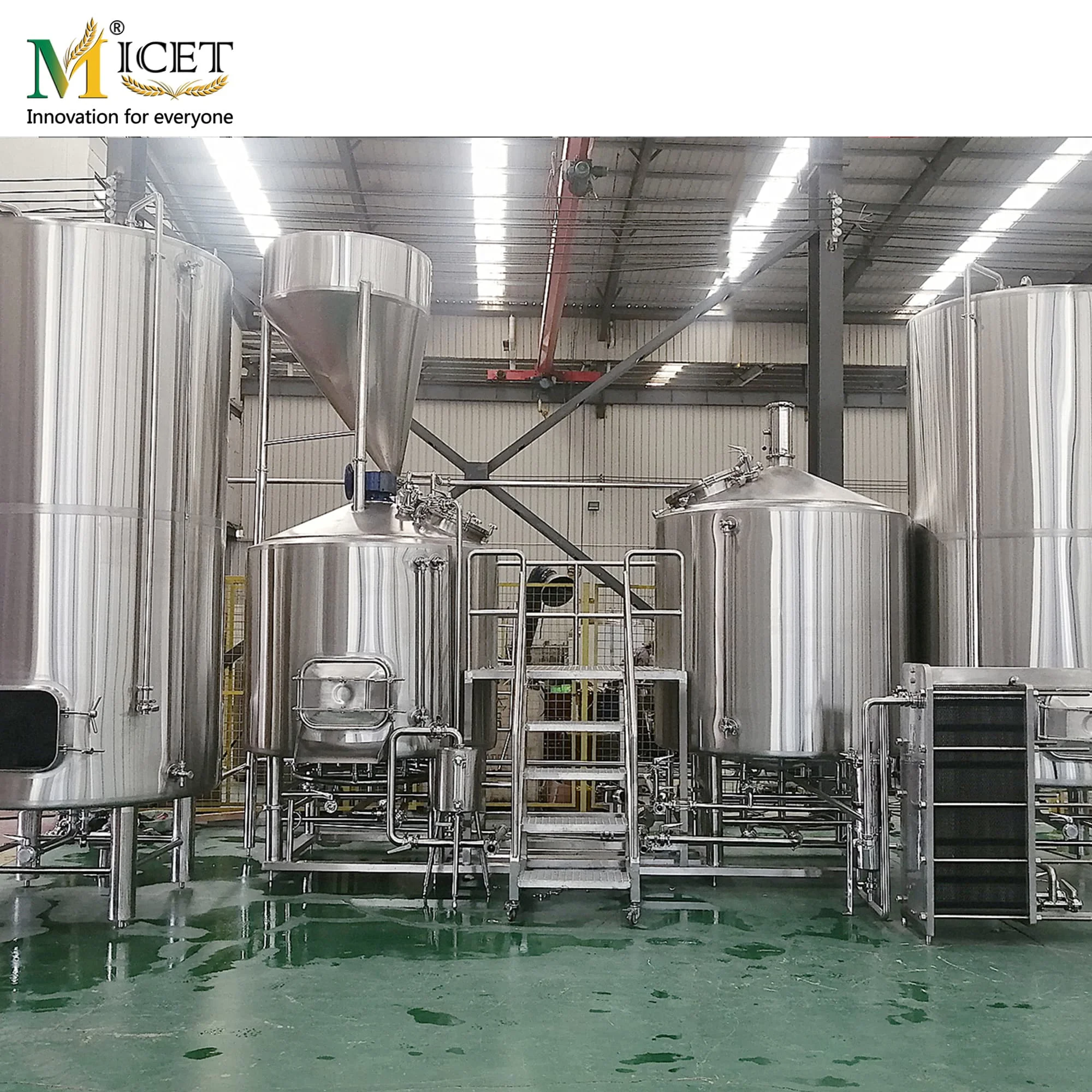

Product Show
Brewhouse Standard Configuration
* 2, 3, or 4 vessel systems available
* All piping is TRC fitted, including every elbow, tee, and curve in the system; allows for a 100% sanitary system
* Constructed of 304 or 316 stainless steel
* All pumps in the brewhouse include 100% stainless steel pumps AND motors
* Rake System have both non-lifting and hydraulic lifting optional
* Floor mounted, vessel or ceiling mounted grist cases available
* Flat bottom or conical bottom lauter tun
Brewhouse Optional Configuration
* Automation systems
* Complete Grain Mill System
* Various Stainless Steel Finishes
* Fermentation tank
* Bright tank
* Our standard beer brewing system comes with a 2B mill finish; other finishes are available including:
Polished/Brushed/Mirror finish/Pickling passivation
Copper Clad and/Copper accented
Product Advantages
1.The Mash tank is equipped with a clamped level gauge for easy observation. All the lauter tun use milled sieve plates, which have higher filtration accuracy and better effect.
2.The grains outdoor of lauter tun is equipped with a dustpan, which is convenient for grains out and cleaning. The drain outlet is separated from the discharge outlet, which is convenient for customers to discharge directly.
3.According to the customer’s brewing process, the mash system can not only meet the feeding in the boiling kettle but also meet
the feeding in the lauter tun.
the feeding in the lauter tun.
4.Our mash system can realize both natural filtration and pumping filtration. The lauter tun stirring motor is equipped with a frequency converter, which can realize the step-less speed regulation. The rake motor can also be designed up and down to lift the rake.
5.To avoid too much water vapor in the mashing area, the kettle is equipped with an indoor exhaust device or outdoor exhaust device depends on customer needs.
6.Equipping with a special inline hop filter to make the wort clearer before fermenting.
7.The pump motor uses ABB or JLEM American brand, long service life, and low sound.
8.The mash tun is equipped with a grist hydrator to ensure uniform malt moistening.
9.The brewhouse piping design is equipped with a cold and hot water mixing device, thermometer, and flow meter, which can evenly mix the cold and hot water before mashing.
10.The bottom of lauter tun is equipped with a wort collection loop and an under-the-flush device.
11.Equipping with wort balance tank to check the clarity of wort and protect the sieve plate.
12.Equipping with sparge arm and double CIP cleaning loop on top of the tank.
13.Milling sieve plate, wedge-shaped gap 0.7mm, 4mm thickness, can be disassembled and cleaned, and the bottom is supported and fixed.
14.The HLT was designed with a return port, CIP cleaning port, and water inlet, which can realize the recovery and utilization of hot water between the heat exchanger.
15.The working platform adopts water leakage and a non-slip design. 16.Brewhouse manways always use full glass manway.
6.Equipping with a special inline hop filter to make the wort clearer before fermenting.
7.The pump motor uses ABB or JLEM American brand, long service life, and low sound.
8.The mash tun is equipped with a grist hydrator to ensure uniform malt moistening.
9.The brewhouse piping design is equipped with a cold and hot water mixing device, thermometer, and flow meter, which can evenly mix the cold and hot water before mashing.
10.The bottom of lauter tun is equipped with a wort collection loop and an under-the-flush device.
11.Equipping with wort balance tank to check the clarity of wort and protect the sieve plate.
12.Equipping with sparge arm and double CIP cleaning loop on top of the tank.
13.Milling sieve plate, wedge-shaped gap 0.7mm, 4mm thickness, can be disassembled and cleaned, and the bottom is supported and fixed.
14.The HLT was designed with a return port, CIP cleaning port, and water inlet, which can realize the recovery and utilization of hot water between the heat exchanger.
15.The working platform adopts water leakage and a non-slip design. 16.Brewhouse manways always use full glass manway.
Why Choose Us
1.Professional technical support, when you consult, our engineers will sort out your requirements.
2.Make full use of your brewery area and rank safety and stability when designing.
3.Meet your needs for brewing production and expansion.
4.Customize the design of the brewery according to your budget, and you will receive the layout and price that best suits you.
5.Provide the most complete production control and superior service. You can receive the highest quality beer equipment.
6.Before the equipment leaves the factory, many tests will be carried out. You will receive detailed information about the various tests of the brewhouse equipment.
Strict quality control system
Our factory has a strict quality control system. Each of the shipments of our order will have 5 inspection steps from materials checking, production process, jacket pressure testing, equipment packing, and loading, finished product leaking testing, etc. When there are any problems, it’s easier to keep a record and solve the issues quickly. Every one of our tanks will have a data plate with the pressure testing record and serial numbers to track.
Perfect packing and shipping
The shipping department will work out the checking list and pack them in a wooden box, you will receive a checking list with everything we shipped. All tank ports with a plastic cover to prevent dust; Tanks on cradle must be secured with bolts. The cradle and tanks will be fixed inside the container by bolts and steel wires. After shipping, we will have the completed loading pictures and checking list with all parts pictures provided.
High-efficiency after-service
We have a standard and perfect after-sales service process. Firstly our goal is to make sure the quality in advance to save after-sale time, meanwhile, if any issues happen, we use the fastest efficiency to solve for customers, no matter sending replacement or repair cost. We have a special after-sale group responsible for this after-sale work online, solves issues, and sends things clients need directly.
About Micet
Shandong micet brewing equipment Co., Ltd
Micet is a national high-tech enterprise that represents the higher honor of scientific and technological strength. Micet has firstly proposed the concept of intelligent equipment, innovate and research from the intelligent control HMI, etc. Micet is on its way to being a global bench-marking company, our superb craftsmanship and innovative capabilities have attracted customers to cooperate all over the world. With excellent product quality and a perfect after-sales service system, Micet has confirmed more than 10 distributors all over the world, including Canada, USA, UK, France, Georgia, Netherlands, Italy, Romania, South Africa, India, Argentina, Chile, etc.
FAQ
How does MICET do quality control?
MICET will have at least 4 times inspections for each order, including materials come inspection, production process control, finished production inspection, and full line testing and inspection before shipping to ensure the final product will meet the client's requirements.
How to choose brewhouse equipment?
Brewhouse system selection for purchasing beer equipment there are about basically four types including 2 vessel brewhouse, 3 vessel brewhouse, and 4 vessel brewhouse. The combination type can be chosen depending on the client's budget, space size, local brewing process. We will also recommend according to old clients' experiences and different country brewing features.
How long is the delivery time?
1. The manufacturing time is 40 working days and will be enforced as soon as receiving the deposit.
2. The technical files (layout, drawings, etc) confirmation time shall not be included in the manufacturing time.
What is your payment term?
1. T/T transfer, 40% advance payment for start production, after paid 60% balance payment for shipping
2. Paypal or trade assurance is available.
What is your warranty term?
Main machine guarantee for three years we'll provide free repairing. If anywhere goes wrong during. During this period accessories and electronic components will have a one-year free warranty. Anything is broken during the warranty. The replacements will be sent immediately and get within. Provide daily maintenance and technical services.
Our Service
Technical Support
Micet local distributor will provide technical support, site survey, brewery R&PID process, brewery space layout design in 3D plant and CAD drawing;
Micet will provide full service including the whole brewing flow chart diagram, tanks assembling drawing, the floor plan blueprint, the electrical diagram.
Professional Brewery Projects Solution
From different customer production requirements, brewing characteristics, budget, and space, Micet technical engineers will provide professional proposal solutions, layout, and brewery equipment design accordingly. Micet salesperson is very experienced and understands clearly about different country brewing methods.
