Products Description
Introduction of Rotor Recycling Machine

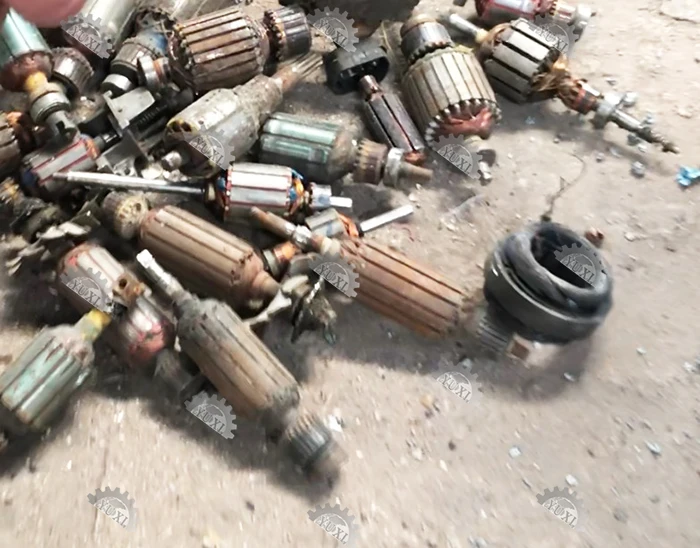

The machine can handle the waste motor rotor, after processing the machine, you can get pure copper, iron, aluminum.
Configuration Line

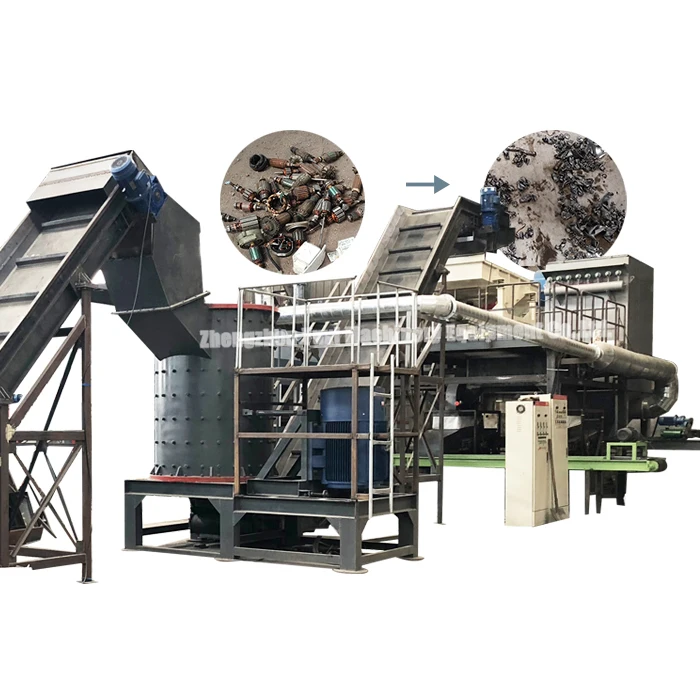

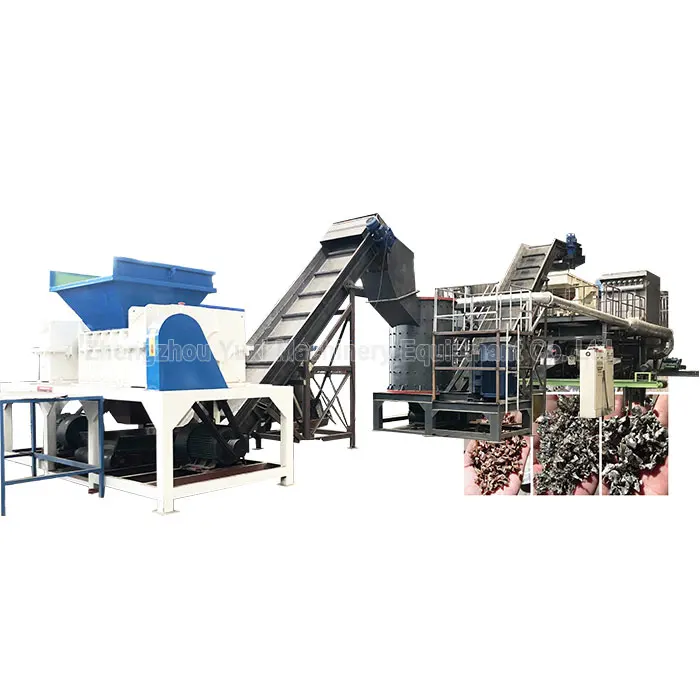

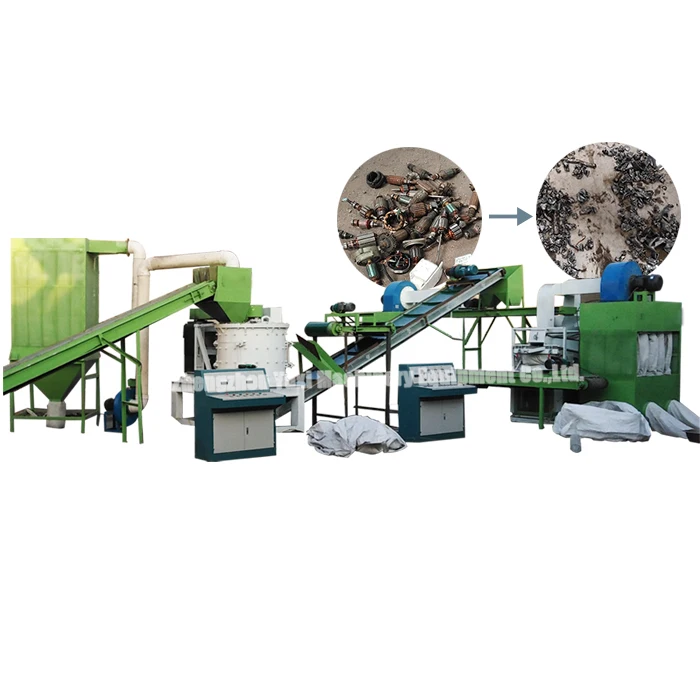

Scrap rotor recycling production line including metal crusher,conveyor belt, magnetic separator, gravity sorter, dust removal device, etc.
NO. | Machine Name | Function | Quantity |
1 | Belt Conveyor | Conveyor raw material to the vertical hammer crusher | 2 |
2 | Vertical Hammer Crusher | Control the size of the finished product by the speed of the machine and the density of the hammer | 1 |
3 | Dust Collector | Dust collection and removal | 1 |
4 | Magnetic Separator | Sorted iron | 1 |
5 | Magnetic Separator | Separating copper and aluminum | 1 |
Working Process
Working Principle
The motor drives the rotor to rotate at high speed in the crushing chamber.
The material is fed into the machine from the upper feed port, and is crushed by the impact, impact, shearing and grinding of the high-speed moving hammer.
The material can be made more scattered by increasing the number of hammers broken by the hammer.
The more the number of hammers, the smaller the finished material size.
The broken finished product is top to bottom, which will not cause the material to be filled, which can ensure the output capacity also easy for maintenance.
The material is fed into the machine from the upper feed port, and is crushed by the impact, impact, shearing and grinding of the high-speed moving hammer.
The material can be made more scattered by increasing the number of hammers broken by the hammer.
The more the number of hammers, the smaller the finished material size.
The broken finished product is top to bottom, which will not cause the material to be filled, which can ensure the output capacity also easy for maintenance.
Details Images
Crusher
It is mainly used for grinding and crushing used rotor
With coarse crushing, fine crushing, separation iron, copper and aluminum.
The crushing effect of the wire block is ideal.
The crushing effect of the wire block is ideal.
Gravity Separation
According to the different gravity between copper and aluminum,the machine is easy
to separate them.
to separate them.
Features
1. The crusher adopts vertical shaft design, which has the advantages of low noise, large torque and large crushing chamber.
2. Using airflow specific gravity sorting machine, sorting up to 97%
3. Using PCL control, feeding evenly.
2. Using airflow specific gravity sorting machine, sorting up to 97%
3. Using PCL control, feeding evenly.
Why Choose Us
Our Company
Zhengzhou Yuxi Machinery Equipment Co.,Ltd have been concentrating on developing and manufacturing many kinds of waste recycling machinery, include cable wire recycling machine, Printed circuit board (PCB) recycling machine, radiator recycling machine, waste tire and plastic recycling machine, etc. All the equipments adopt green technology which have no pollution to the environment.

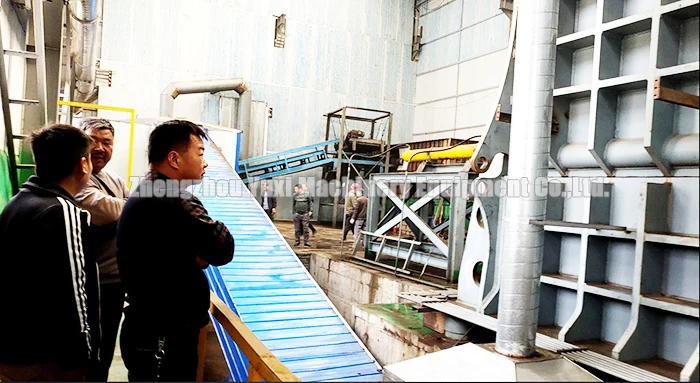

Customer
