Подставка для монитора с газовой пружиной регулируемая настольная подставка

Описание и отзывы

Трекер стоимости

Характеристики

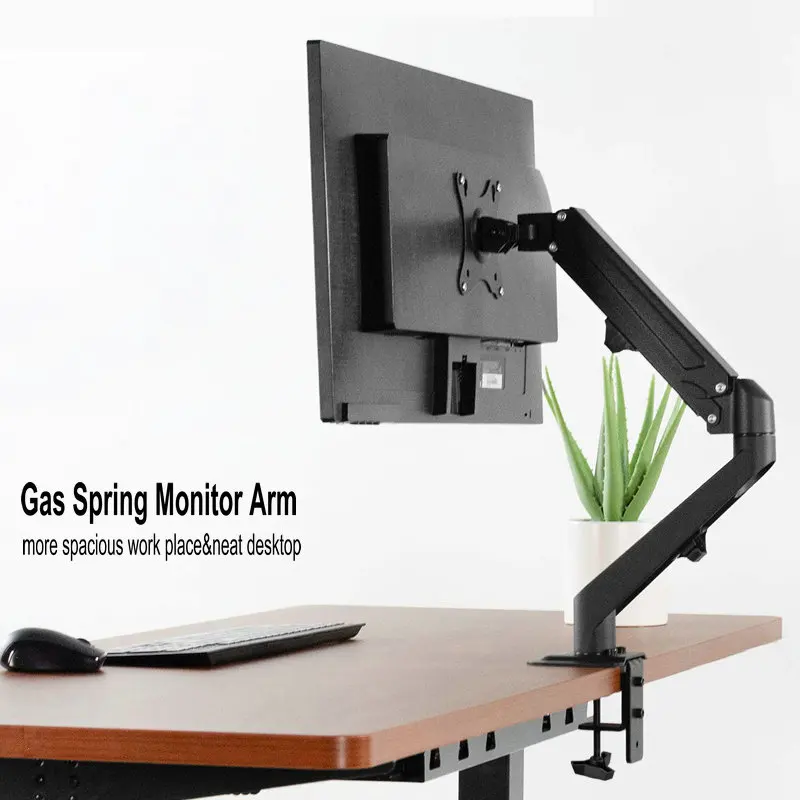

Yuanfan desk monitor mount utilizes gas spring hovering system to provide smooth and effortless adjustments. These arms help increase viewing comfort and reduce eye, back and neck strain. With them, you can easily share screens with coworkers, rotate displays to portrait orientation, reduce glare, save space and create the most comfortable setups for your needs.

NOTE: >>This monitor mount only fit monitors which own the following three specs at the same time:



1. Screen size: 17" to 27"
2. Weight capacity: 13.2 lbs / per arm
3. Must have VESA mounting holes and VESA pattern is 75x75 or 100x100mm.



>>If your monitors don't have VESA mounting holes, you need a non-VESA adapter (NOT included in the package);

>>If the VESA pattern of your monitors is 200x100 or 200x200, you need a VESA extension kit (NOT included in the package) .

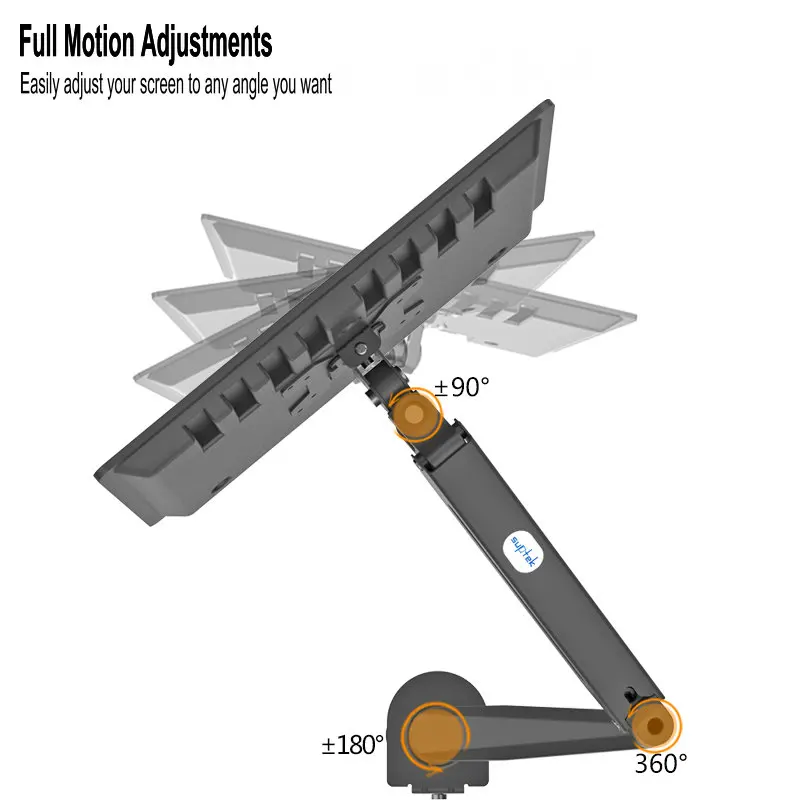

SCREEN TILT

The plate/screen can be tilted from -40° to +40°.

If needed, adjust the bolt on the side of the hinge behind the VESA plate to tighten the tilt angle support.



SCREEN SWIVEL

Yuanfan monitor mount provides smooth, precise, and stable viewing angle adjustment, the plate/monitor can be swiveled from -90° to +90° .

By swivel your monitor left and right, you can easily share your monitor with colleagues.



SCREEN ROTATION

Yuanfan single monitor stand features great flexibility with full adjustments 360° rotation.

Easy to set your monitor from landscape to portrait and get an optimal viewing angle and position for productive work!

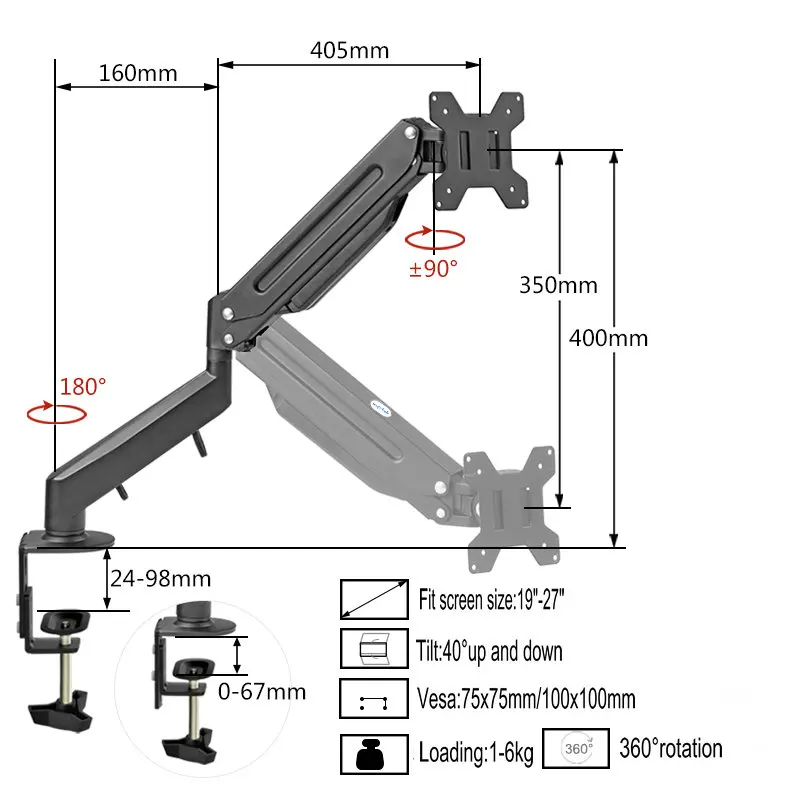

Specifications
Suggested Screen Sizes	17"-27"	Type	white box or gift box
Mounting Pattern	100 mm x 100 mm (max)	Qty / Carton	1pcs
Maximum Load	1-6kg	Carton Size	72x33.5x16cm
Profile	400mm	Carton Weight	5kgs
Tilt Range	90° up/down
Pan/Swivel Range	up to  180°



Integrated Cable Management



• Keep your wires clean and organized with detachable cable clips on the arms.
• The easily detachable integrated cable management system helps keep AV and power cords out of sight and organized.

Two methods installation

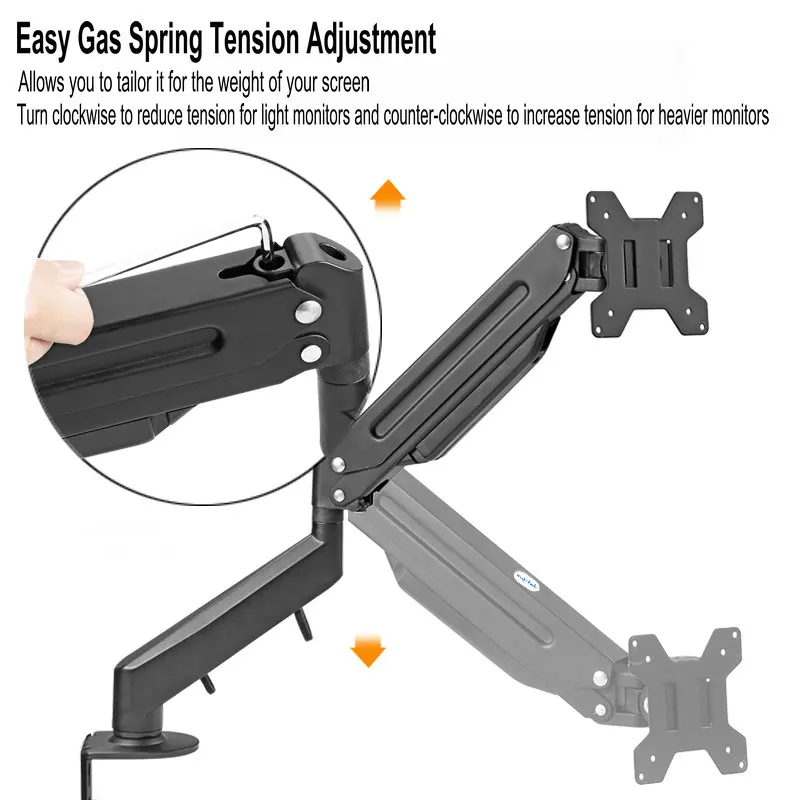

Gas Spring Adjustment



• Adjust the gas spring tension according to the weight of your monitor, the gas spring height adjustment range from 6.3" to 16.1".
• Turn clockwise to reduce tension for lighter monitors and counter-clockwise to increase tnesion for heavier monitors.
