World-Class Quality Rock Drilling Tools

As International drilling tools supplier for over 20 years, we've been addressing our customers ' expectation and offering solutions that focus on increasing productivity and stability. Today, in addition to offering a comprehensive range of products, we also help clients optimize drilling solutions. With LEANOMS, you are backed up by a global partner that is committed to providing the better drilling experience for you. Our complete solutions include a wide range of tools and services–aimed at improving your safety, productivity and competitiveness.

Products Description

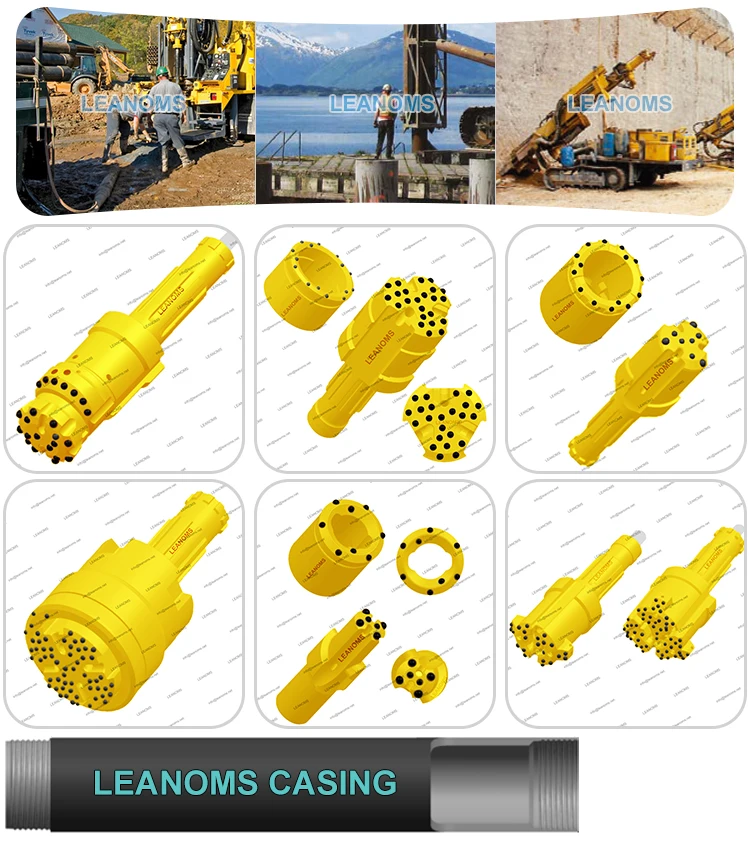

LEANOMS Symmetrix/Symmetric overburden drilling systems

Symmetrix is a patented system comprised of an ingeniously simple concentric method of drilling through over- burden with casing. Symmetrix drills straight holes, in any type of ground conditions, at any angle and to depths beyond 100 meters.

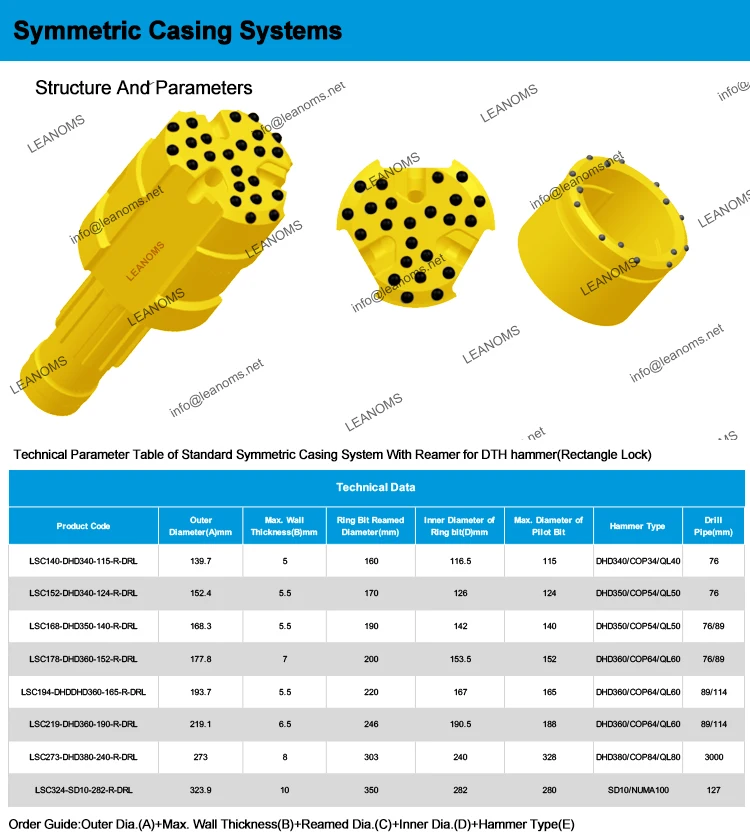

The Symmetrix system

The three main components of the system are made up of:

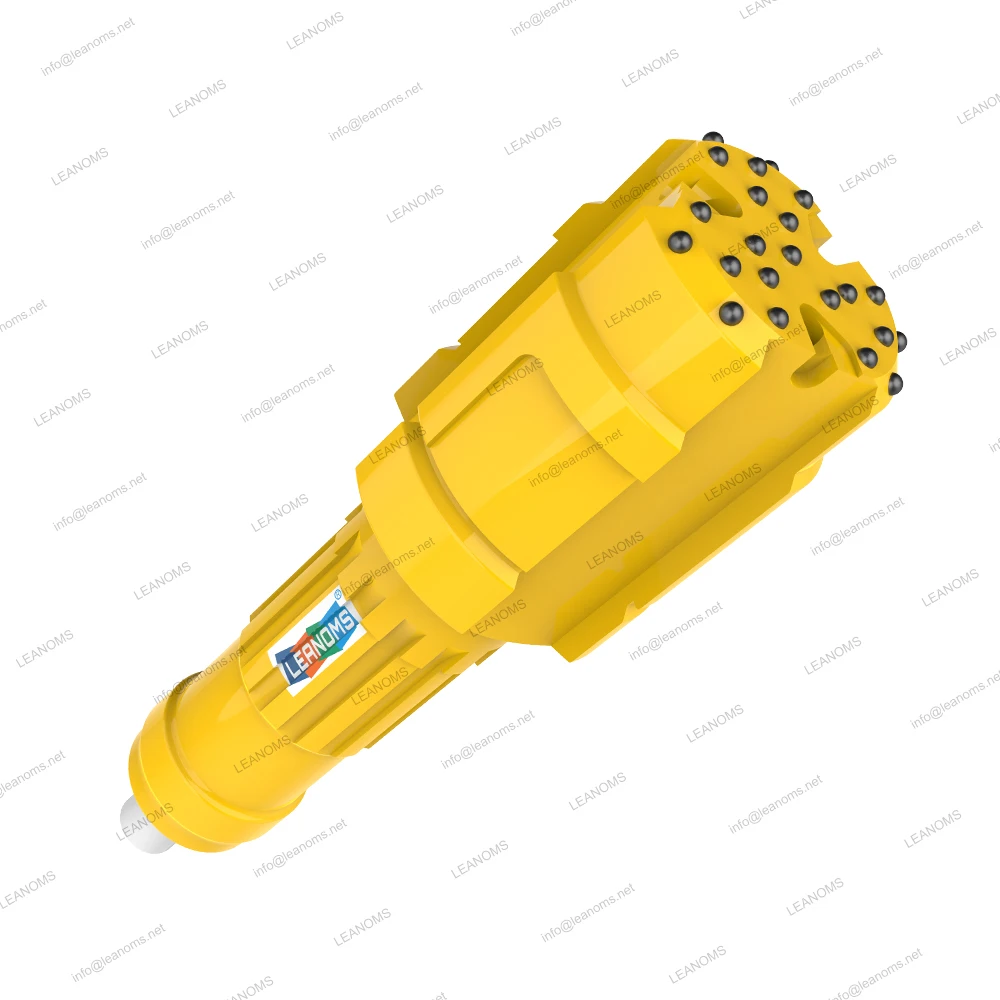

A pilot bit that drills away the center part of the hole and guides the drill string. The pilot bit is attached to any common DTH hammer shank or top hammer rod thread.
A casing shoe welded to the casing pipe which is pulled down by the impact of the hammer and pilot bit.

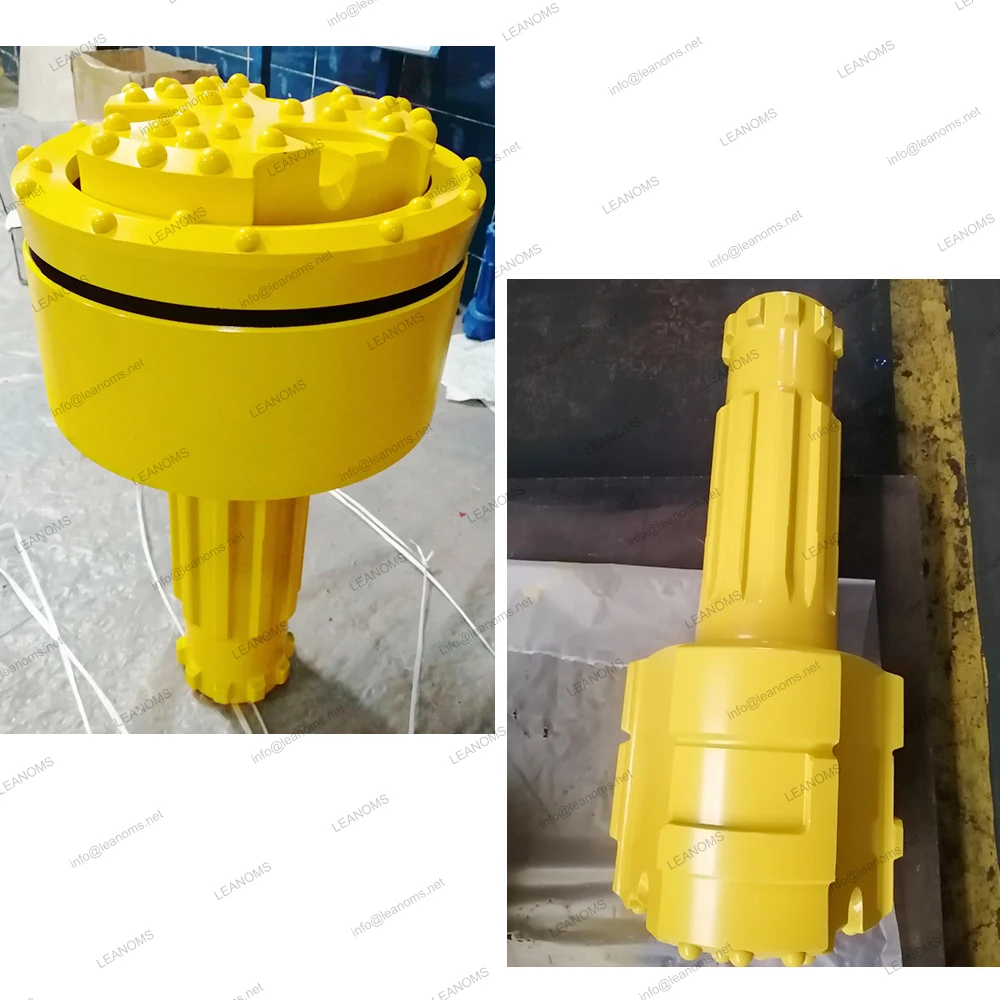

A symmetrical ring bit that is locked onto the pilot bit drills the void for the casing to advance down the hole. There are three different types of ring bit and cas- ing shoe assemblies;
■A solitary ring bit with no connection to the casing shoe.
■A welding ring that holds the ring bit and casing shoe together.
■A factory assembled ring bit set with integrated ring bit and casing shoe.

Permanent or retrievable casings

Permanent or retrievable casings

Pile types in foundation drilling
Foundation piles are generally divided in two different types, end bearing piles and skin friction piles.

End bearing piles

Installing end bearing piles

1.Casing is installed until bedrock

2.Drill string is pulled out from the hole

3.Reinforcement element is installed and concrete poured into the hole

Skin friction piles

Installing skin friction piles
1.Casing is installe.
2.Drill string is pulled out from the hole
3.Reinforcement element is installed and concrete poured in
Finally the casing is pulled out with ring bit set

Common system requirements

Large pass through inner Diameter

System with large pass through inner diameter
1.Casing is installed until bedrock
2.Drill string is pulled out from the hole
3.Drilling of the well continues with a DTH bit, which passes through the ring bit

Systems with drill-through pilot bit

System with drill-through pilot bit
1.Casing is installed until surface of bedrock
2.Drill through pilot bit is unlocked from ring bit and after that pilot bit drills a rock socket Drill string is pulled out from the
hole
3.Reinforcement element is installed and concrete poured into the hole

Special system designs--Symmetrix features

Each Symmetrix system is made from high quality al- loy steel, and has been precision machined to produce a perfect bit body, heat treated to the required hardness, and fitted with durable tungsten carbide buttons.

Application

All our products, which passed ISO9001 quality management system, are widely used in open pit mining, tunneling, quarrying,transportation construction,engineering, earth-rock excavation, water wells, pile foundation, and civil engineering project etc.We are one of the companies which have the most complete product lines, the most abundant species and the most widely usedproducts in drilling industry.

Company Profile

Company Profile

LEANOMS is a comprehensive company that integrates the design, manufacture, marketing and technical services of rock drilling tools. The products due to stable quality, excellent performance are being sold well all over China and exported to Europe, America, Middle East, Australia,Africa, Southeast Asia and other regions, more than 50 countries.

LEANOMS products range covers:
1.Down the hole(DTH) hammer and bit,
2.Drill pipe(drill rod)
3.Casing system
4.Tricone bit,PDC bit,Steel tooth bit
5.Top hammer rock drilling tools(thread button bit, drill rod, shank adapter)
6.Small hole drilling tools(tapered button bit, tapered drill rod, plug hole integral drill rod, integral drill rod),and other rock drilling tools that are widely used in mining, tunneling, quarrying, water well, anchoring,transportation construction, pile foundation, and civil engineering projects etc.

By using high-quality raw materials, utilizing advanced craft technologies and imposing strict quality inspection,all LEANOMSproducts quality are controlled under the same high-level. Each of our drilling products is designed for optimum performance in drilling applications on a price vs. performance basis. We offer high quality productive tools and service for all drilling applications.
