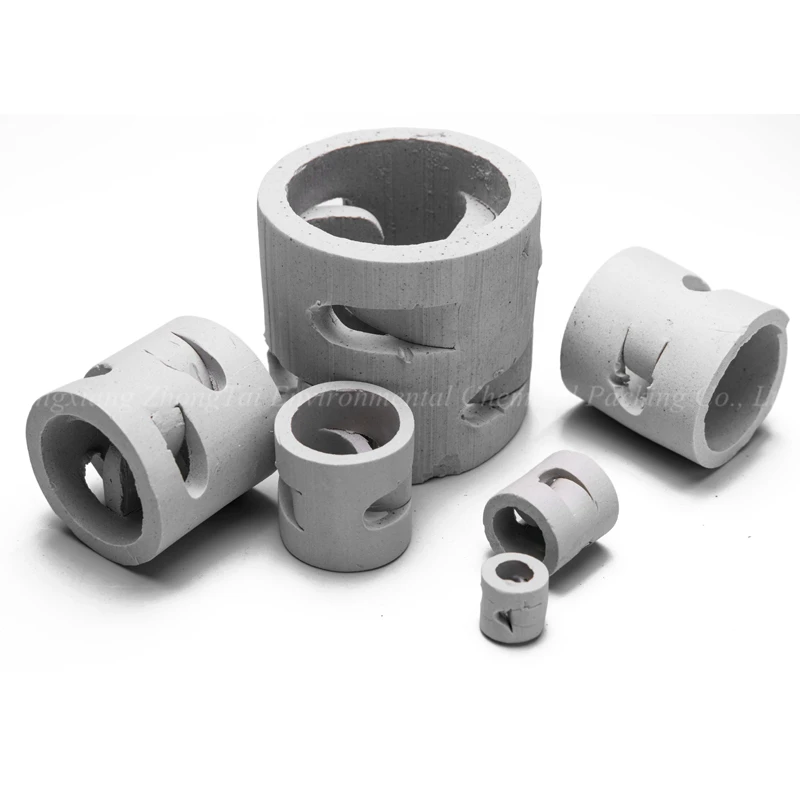

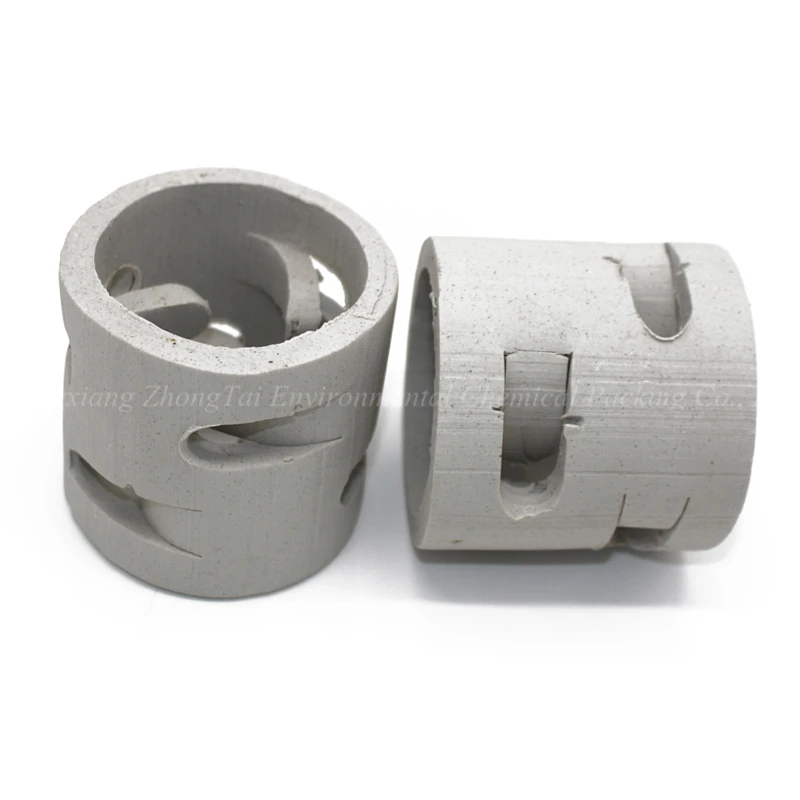

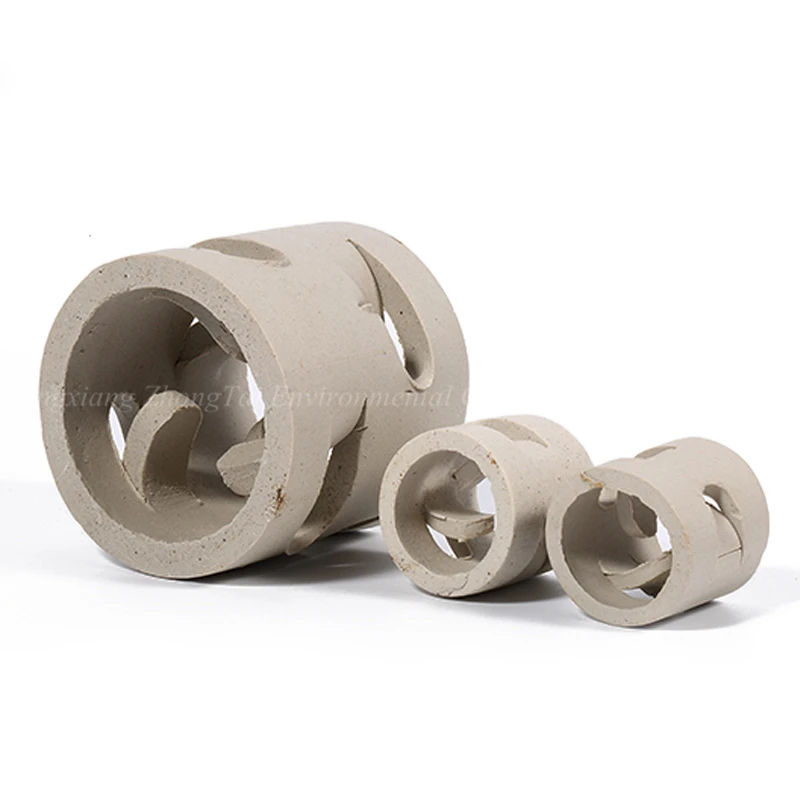

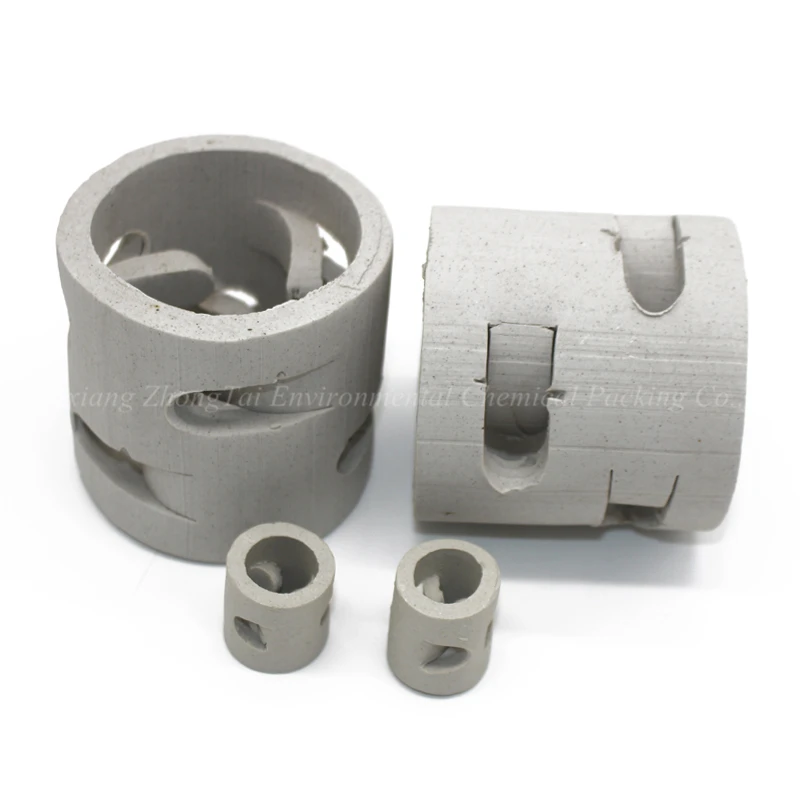

Products Introduction of Ceramic Pall Ring

Ceramic Pall Ring is improved from the ceramic Raschig Ring, Ceramic Pall Ring has add a design of open the holes for the weeks wall, this construction can improve the surface area and voidage, Ceramic Pall Ring makes porosity distributed even and improves the distribution of the fluid, greater capacity and lower pressure drop than ceramic rasching ring.

Ceramic Pall Ring with excellent acid resistance and heat resistance. They can resist to corrosion of various inorganic acids, organic acids and organic solvents except hydrofluoric acid, and can be used in high or low temperature conditions. Consequently their application ranges are very wide. Ceramic Pall Ring can be used in the drying columns, absorbing columns, cooling towers, scrubbing towers in chemical industry, metallurgy industry, coal gas industry, oxygen producing industry, etc.

Technical Specification of Ceramic Pall Ring

SiO2 + Al2O3	>92%	CaO	<1.0%
SiO2	>76%	MgO	<0.5%
Al2O3	>17%	K2O+Na2O	<3.5%
Fe2O3	<1.0%	Other	<1%

Physical & Chemical Properties of Ceramic Pall Ring

Water absorption	<0.5%	Moh's hardness	>6.5 scale
Porosity (%)	<1	Acid resistance	>99.6%
Specific gravity	2.3-2.40 g/cm3	Alkali resistance	>85%
Max operation temp	1200℃

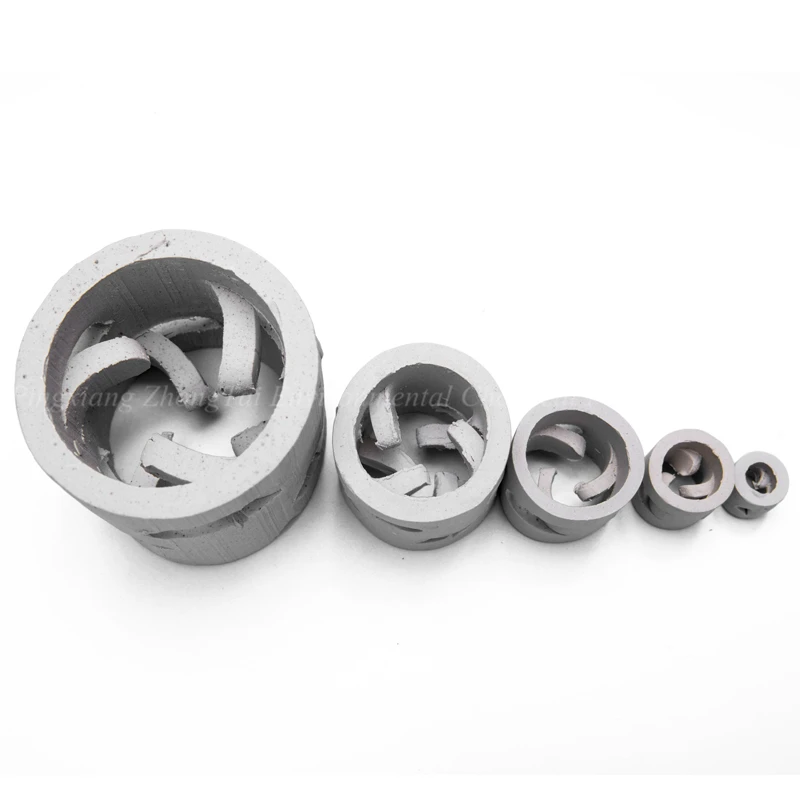

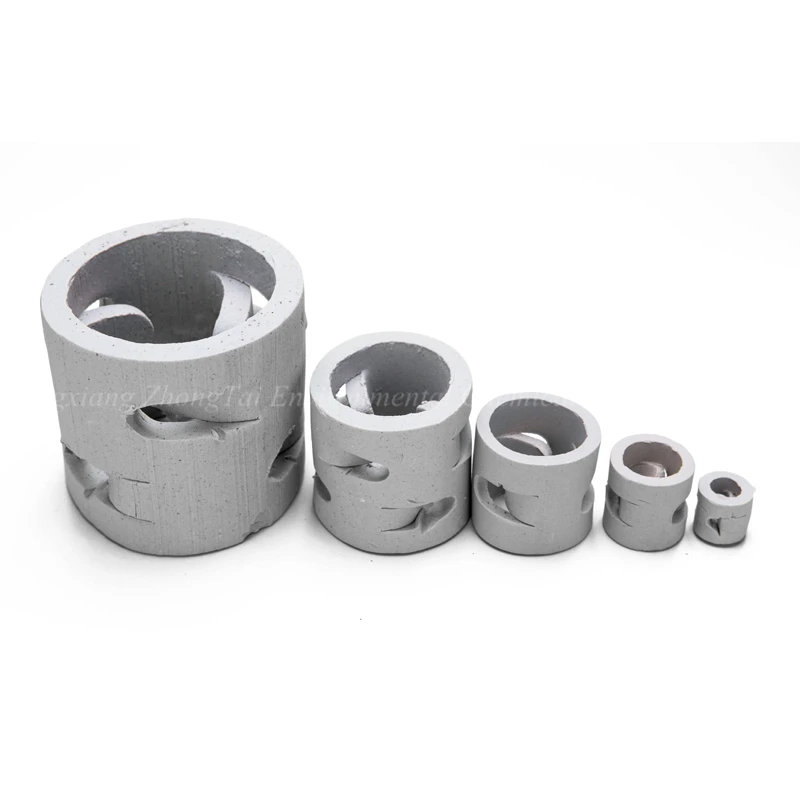

Dimension and Other Physical Properties

Sizes (mm)	Thickness (mm)	Surface area (m2/m3)	Free volume (%)	Number per m3	Bulk density (kg/m3)
25	3	210	73	53500	700
38	4	180	75	15000	650
50	5	130	78	6800	600
80	8	110	81	1950	550



Other size also can be provided by custom made
