Ротационный деревообрабатывающий станок с ЧПУ для гравировки диаметром 2000 мм прямой ATC 12
- Категория: Лазерные гравировальные машины >>>
- Поставщик: WEIFANG,NEW,HH,EBIZ,TECH,CORP
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 0.57 $* | 0.85 $* |
| Aug-15-2025 | 0.36 $* | 0.59 $* |
| Jul-15-2025 | 0.8 $* | 0.9 $* |
| Jun-15-2025 | 0.54 $* | 0.5 $* |
| May-15-2025 | 0.80 $* | 0.88 $* |
| Apr-15-2025 | 0.85 $* | 0.39 $* |
| Mar-15-2025 | 0.39 $* | 0.94 $* |
| Feb-15-2025 | 0.92 $* | 0.99 $* |
| Jan-15-2025 | 0.70 $* | 0.84 $* |
Характеристики

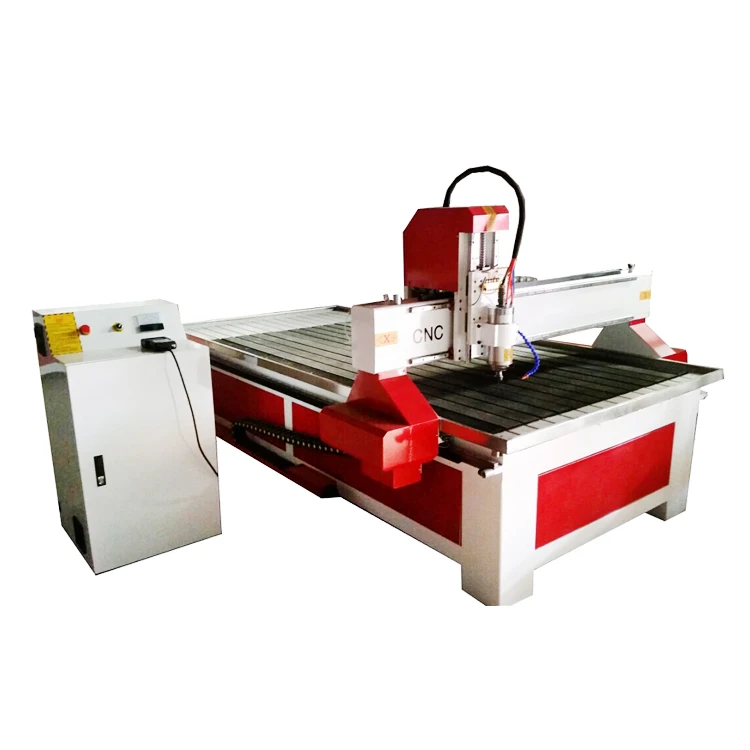

CNC ROUTER-1325
2000mm diameter rotary woodwork CNC engraving machine straight ATC with 12 holders
Main Features
1. Machine body design with high strength and double driving motors of Y axis, which have more
reasonable design, fast processing speed, easy-operated maintenance and low fault rate.
2. Advanced CNC processing system has powerful functions and humanized operation, as well as can
receive data through U disk or network.
3. Imported and high precise linear guide ways have features such as stable operation, high precision
and steady support, which prolong service life of machines.
4. Z axis adopts imported ball screw with industrial level can positioning accurately and make processing effects more perfect.
5. Energy-saving vacuum absorption table function and dust collectors can protect the environment.
6. Software has good compatibility. The machine can be compatible with various CAD/CAM design &
making software such as TYPE3, Artcam, JD, Artcut, UG, MasterCAM, PowerMill and so on.
reasonable design, fast processing speed, easy-operated maintenance and low fault rate.
2. Advanced CNC processing system has powerful functions and humanized operation, as well as can
receive data through U disk or network.
3. Imported and high precise linear guide ways have features such as stable operation, high precision
and steady support, which prolong service life of machines.
4. Z axis adopts imported ball screw with industrial level can positioning accurately and make processing effects more perfect.
5. Energy-saving vacuum absorption table function and dust collectors can protect the environment.
6. Software has good compatibility. The machine can be compatible with various CAD/CAM design &
making software such as TYPE3, Artcam, JD, Artcut, UG, MasterCAM, PowerMill and so on.
Technical Parameters
Model | HH-CR1325 |
XYZ Working area | 1300*2500*200mm |
Table Size | 1700X3300MMx600mm |
Working Materials | Wood,MDF,Acrylic,stone, iron,alum,copper,bamboo,jade,etc. |
Working Table | Vacuum T-slot table /Aluminum working table. |
Spindle Rotary Speed | 0~24000rpm |
Control System | NK260 Control |
Spindle | Original Italian HSD Spindle, Air Cooling |
Spindle Power | 9000w |
Inverter | Delta, Alpha,Fulin,Panasonic,Yaskawa,etc |
Working voltage | AC380V/220V |
Guide Rail | HIWIN, PMI, PDF,NSK ,etc |
Max: Traveling Speed | 24000mm/min |
Max. Working Speed | 16000mm/min |
Dust Collector | 5.5KW Dual bucket dust collector, 380V Voltage |
Detail images

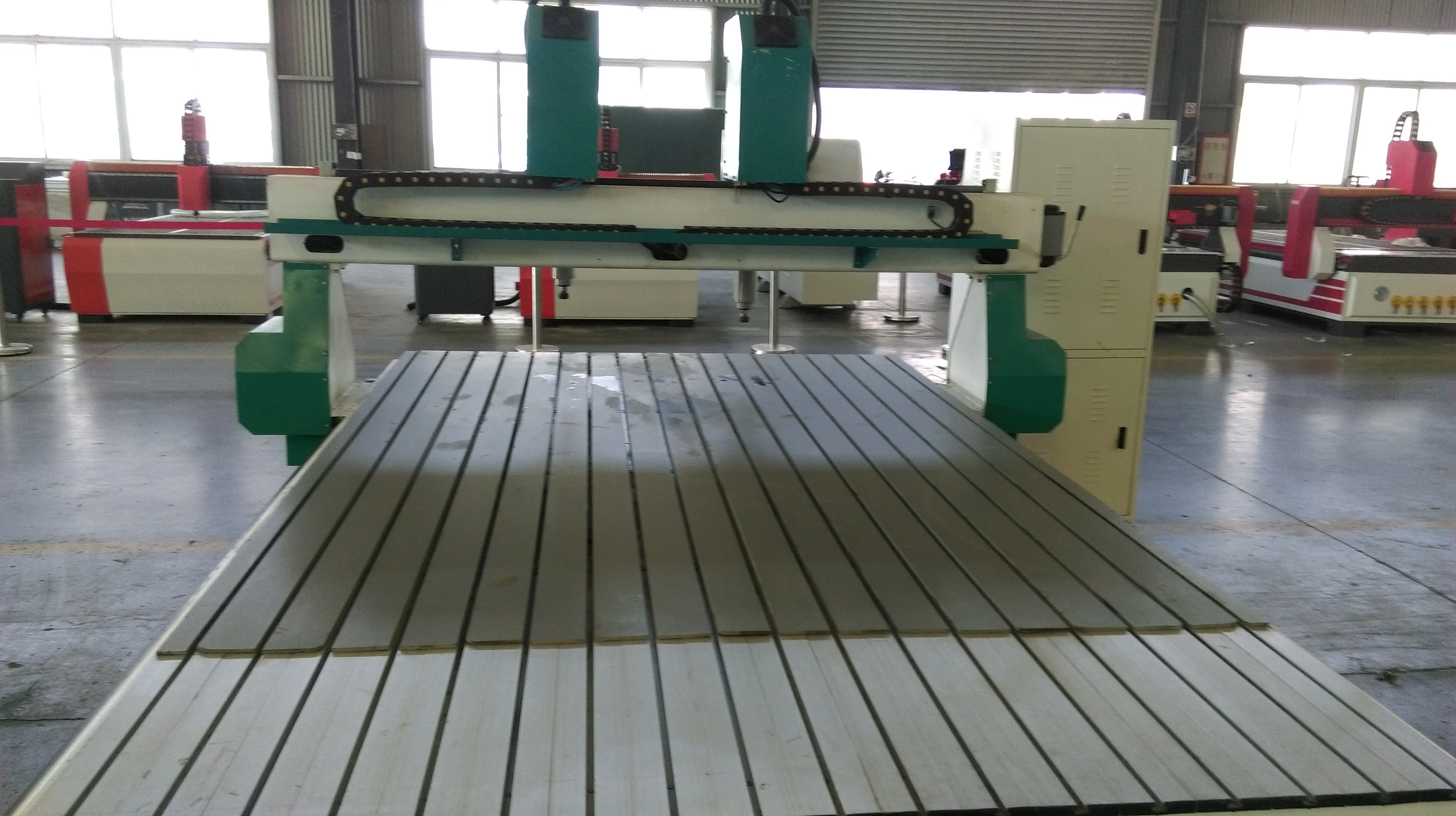

vacuum T-slot table
Aluminum working table

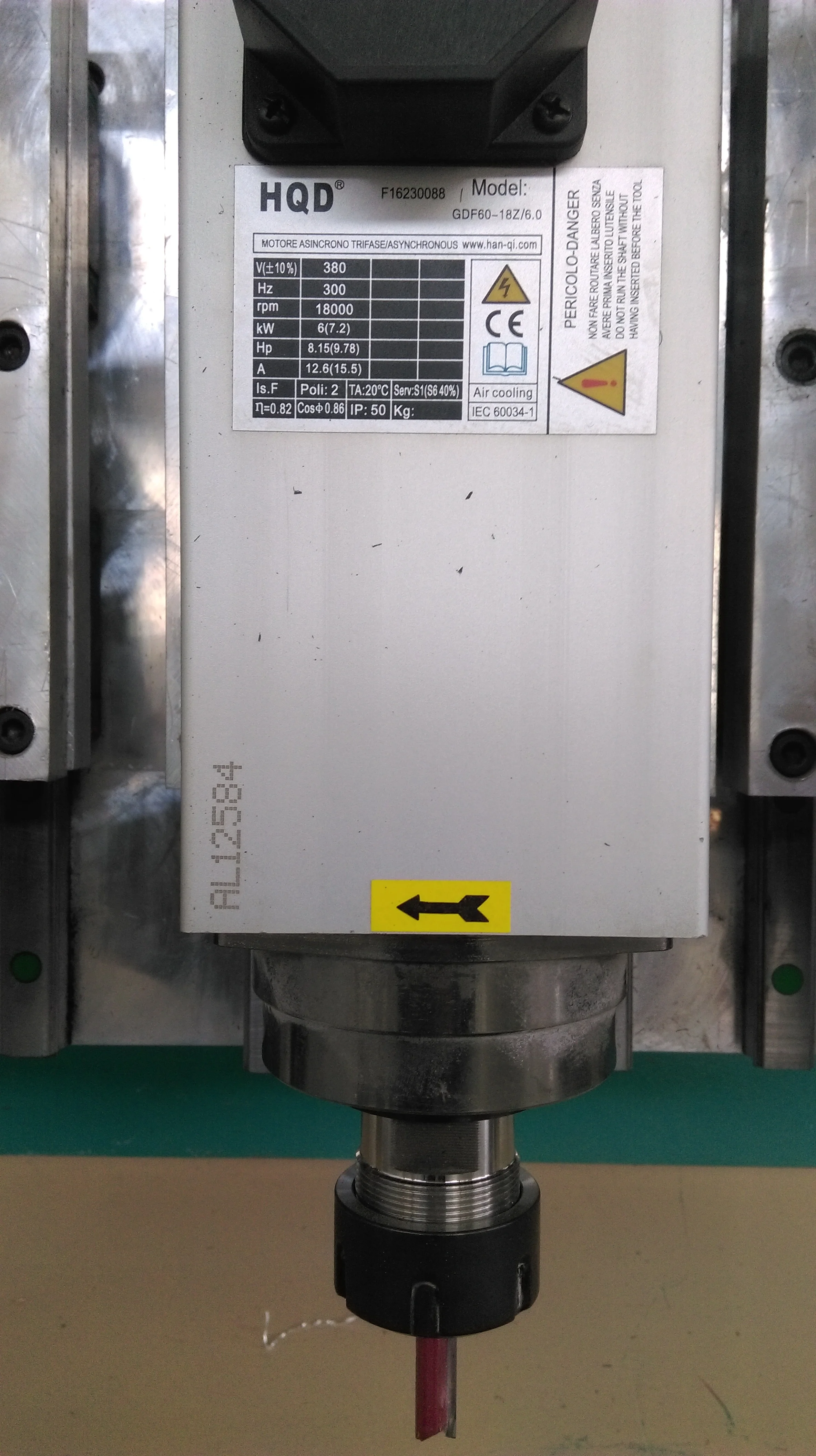

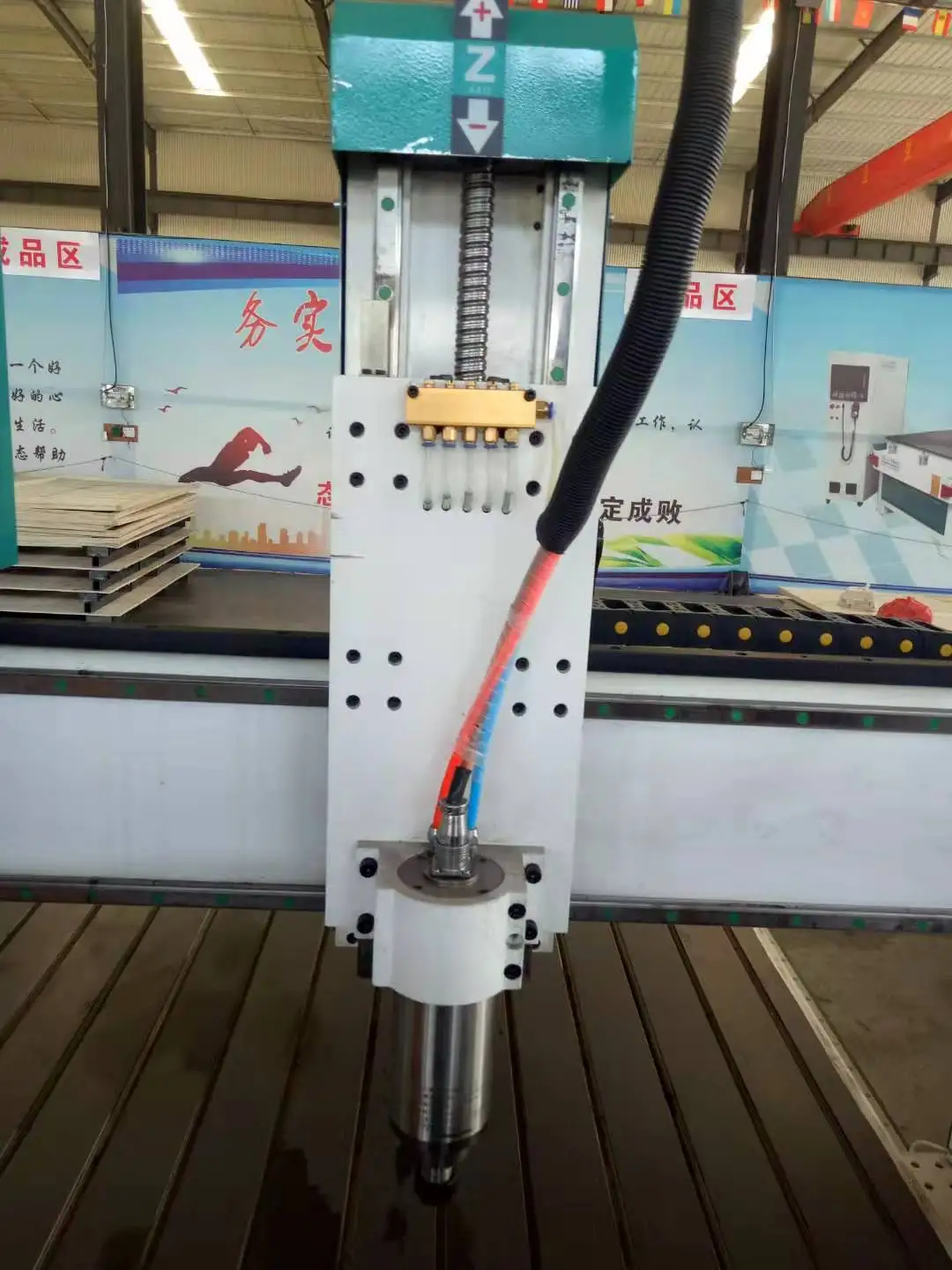

air cooling spindle
water cooling spindle

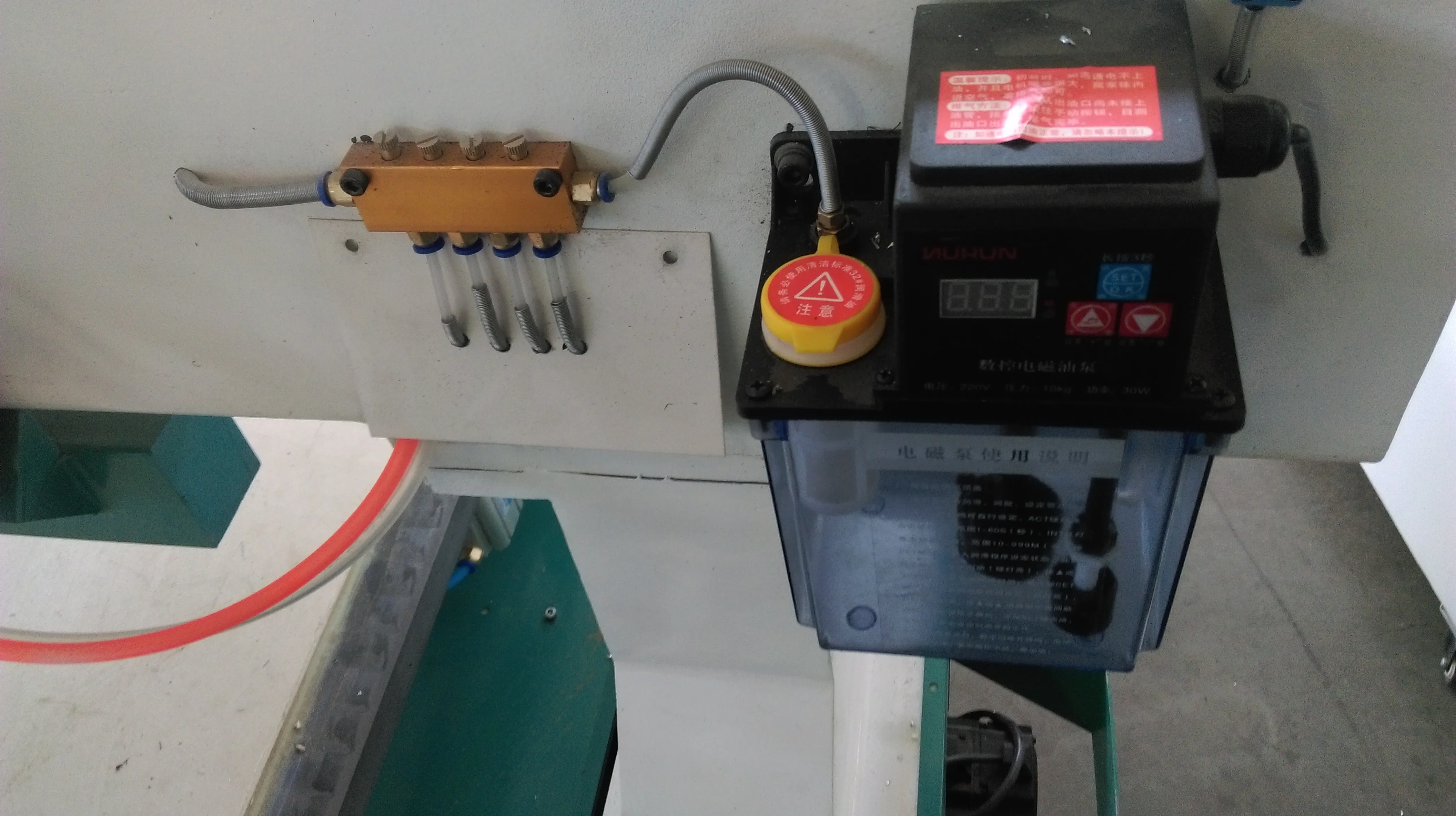

oiling
INVERTER
Application Industry
Woodworking: processing of various furniture such as door, window, cabinet, craft wood door, screen,etc
Advertisement: engraving and cutting various labels and number plate.
Art craft: engraving characters of any languages and graphics on gifts and souvenirs.Balustrade,furniture legs,stair railing ,cylinder items,handrail,desk or chair legs,teatray,The human body,avatar,3D cylinder mold,and a variety of rotational symmetry.
Applicable materials:Wood, aluminum board, plastic, density board, wave board, PVC, acrylic,crystal, light marble and other nonmetal materials and light metal materials.
Our Service
we can provide 3 ways for Installation and training:
The first way: you can come to our factory for training.we will offer professional guide. Direct and effective face-to-face
training.
The second way: our engineer will do a door-to-door instruction training service at your local site. but buyer is responsible for
our engineer 's round trip ticket, visa fee , hotel , food, training fee etc
The third way: we also can teach u how to operate and install by whatsapp, video , email etc.
We will ensure our machines running well in customers.
Packing & Delivery
Inner package: Stretchy film and plastic film for humidity.
Outside package: Standard marine export plywood case.
We can package according to your requests.
Our Exhibition
FAQ
Q: Are you a factory or a trade company?
A: We are a factory.
Q:Where is your factory?
A:Our factory located in Weifang city,Shandong Province,China.Warmly welcome to visit our factory!
Q.What's your payment terms?
A: Payment term is 30% TT as deposit,70% balance should be paid before shipping.
Q.Your delivery time is?
A:10-15 working days after deposit.
Q: Warranty?
A: Depend on the series of machine.
Q: Do you have patents or core technology?
A: Yes, for details, please contact our sales.
A: We are a factory.
Q:Where is your factory?
A:Our factory located in Weifang city,Shandong Province,China.Warmly welcome to visit our factory!
Q.What's your payment terms?
A: Payment term is 30% TT as deposit,70% balance should be paid before shipping.
Q.Your delivery time is?
A:10-15 working days after deposit.
Q: Warranty?
A: Depend on the series of machine.
Q: Do you have patents or core technology?
A: Yes, for details, please contact our sales.
