Автоматическая машина для упаковки сушеных
- Категория: Packaging Machine >>>
- Поставщик: Hangzhou,Zon,Packaging,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 0.73 $* | 0.3 $* |
| Aug-15-2025 | 0.12 $* | 0.86 $* |
| Jul-15-2025 | 0.33 $* | 0.76 $* |
| Jun-15-2025 | 0.5 $* | 0.51 $* |
| May-15-2025 | 0.49 $* | 0.20 $* |
| Apr-15-2025 | 0.9 $* | 0.45 $* |
| Mar-15-2025 | 0.45 $* | 0.27 $* |
| Feb-15-2025 | 0.8 $* | 0.84 $* |
| Jan-15-2025 | 0.79 $* | 0.48 $* |
Характеристики
Product Description
1.Product Application

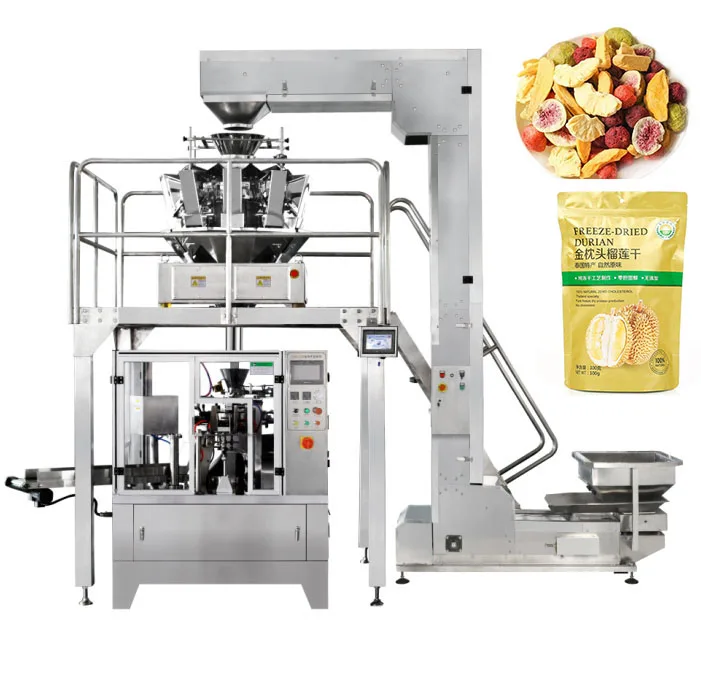

ZH-G8 Rotary packing machine is developed for premade bag, stand-up bag with or without zipper. It is suitable for packing product of powder, irregular shape, thick liquid and liquid, such as gourmet powder, chicken powder, seasoning powder, candy, fruits, nut, pet food, roasted seeds, puffed food, frozen food, small hardware and hand sanitizer.
2. Technical Specification of ZH-BG10 | ||
Model | ZH-BG10 | |
System Output | ≥8.4 Ton/Day | |
Packing Speed | 30-50 bag/min | |
Packing Accuracy | ±0.1-1.5g | |
3.System Construction | ||
1).Z type hoister: Raise material to multihead weigher which controls the start and stop of the hoister. | ||
2).10 heads multi weigher: Used for quantitative weighing. | ||
3).Platform: Support the 10 heads multi weigher.Power Parameter | ||
4).Rotary packing machine:Pack the material with high speed. And data printed,fill and seal cut are completed . | ||
4. Main function | ||
1. Material conveying, weighing are completed automatically. | ||
2. High weighing precision and material drop is controlled by manual with low system cost. | ||
3. Easy to upgrade to automatic system. | ||
Detailed Images
1.Bucket Conveyor
Machine Frame: 304SS or Mildsteel frame
304ss Chain
Conveyor Height : 2.5-3.8m
Conveyor Volume : 2.5-5CBM/Hour
Bucket hopper volume :0.8L,2L,4L,10L
Bucket hopper material: 304SS, Food grade plastics
Bucket can be removed, and it is convenient to clean
2.Multihead weigher
We usually use multihead weigher to measure the target weight.
Machine type:4 head, 10head ,14 head,20 head
Machine accuracy :± 0.1g
Material weight range: 20-5kg

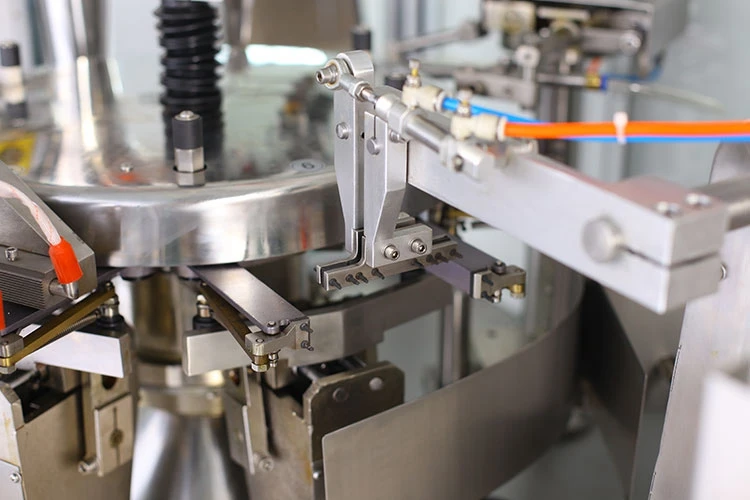

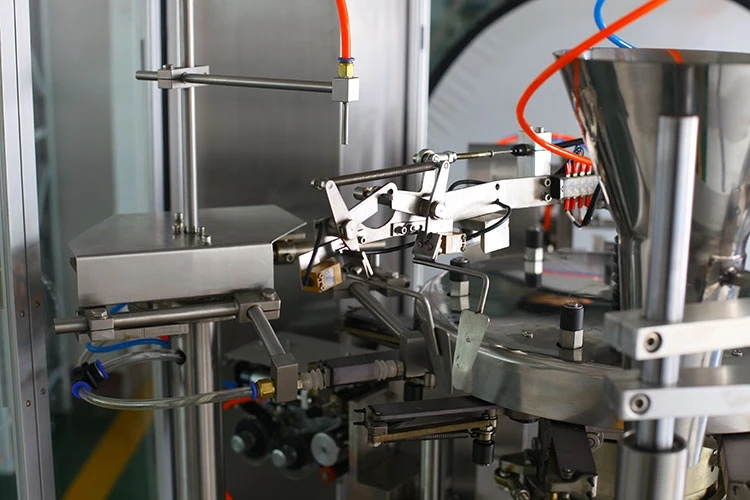

3.Rotary packing machine
304SS Frame. Suitable pre-made bag packing .
Model | ZH-GD6 | ZH-GD8 | |
Working Position | Six Position | Eight Position | |
Max Packing Speed | 30-50Bag/Min | ||
Pouch Material | PE PP Laminated film,etc | ||
Pouch Pattern | Flat pouch (3-sealing ,4-sealing,pillow)Stand -up pouch , Stand-up pouch with zipper | ||
Pouch Size | W:70-150mm L:75-300mm W:100-200mm L:100-350mm W:200-300mm L:200-450mm | ||
Interface | 7 ''HMI | ||
Power Paramennt | 380V 50/60Hz 4000W | ||
Package Size( mm) | 1770(L)*1700(W)*1800(H) | ||
Compress Air(Kg) | 0.6M 3/Min,0.8Mpa | ||
Net Weight(Kg) | 1000 | 1200 | |
Bag type as follow
Factory Show
FAQ
Q 1: If we are interested in your products, can we go to visit your factory to know more about you please?
A 1: Of course! Welcome to visit our factory, we will show you the production line, our office, and our traditional life in China. Just one thing, please inform us your route at least 2 weeks in advance so that we can make a perfect journey for you.
Q 2: What about the voltage of products? Can they be customized?
A 2: Yes, of course. The voltage can be customized according to your require.
Q 3: Which payment term can you accept?
A 3: 40%T/T in advanced, 60%T/T against the B/L copy.
Q 4. Do you test all your goods before delivery?
A 4: Yes, we have 100% test before delivery, and if you need,we can record a video about the test process of machine to you.
Q 5: How do you make our business long-term and good relationship?
A 5: 1. We keep good quality , a competitive price and comprehensive service to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from
3.We always regularly phone or send a massage to customers and ask some question about machine working so that we can understand and help them better.
Q 6: Will you provide some spares of the machine?
A 6: Of course.
Q 7: Are you factory or trade company?
A 7: We are factory, and we have ourselves trading company.
