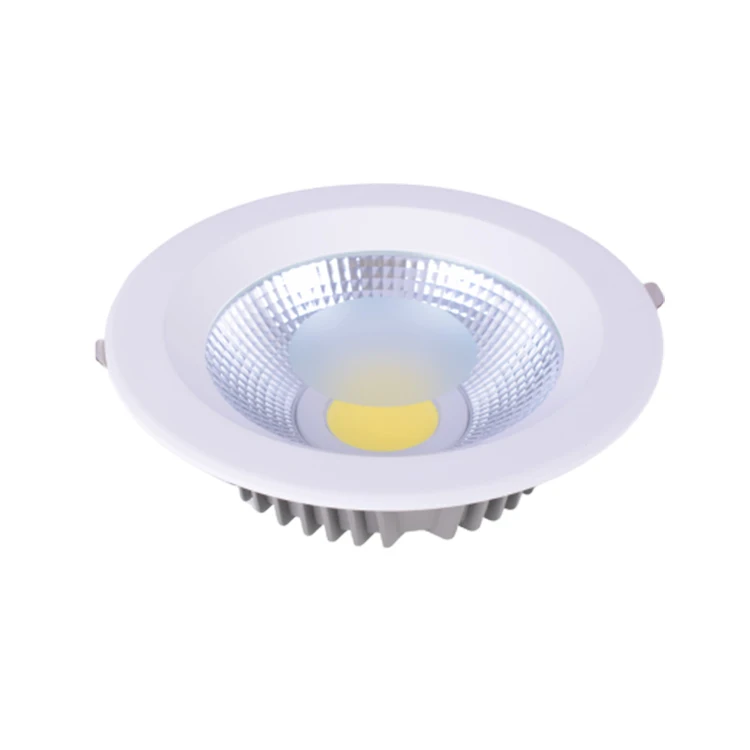

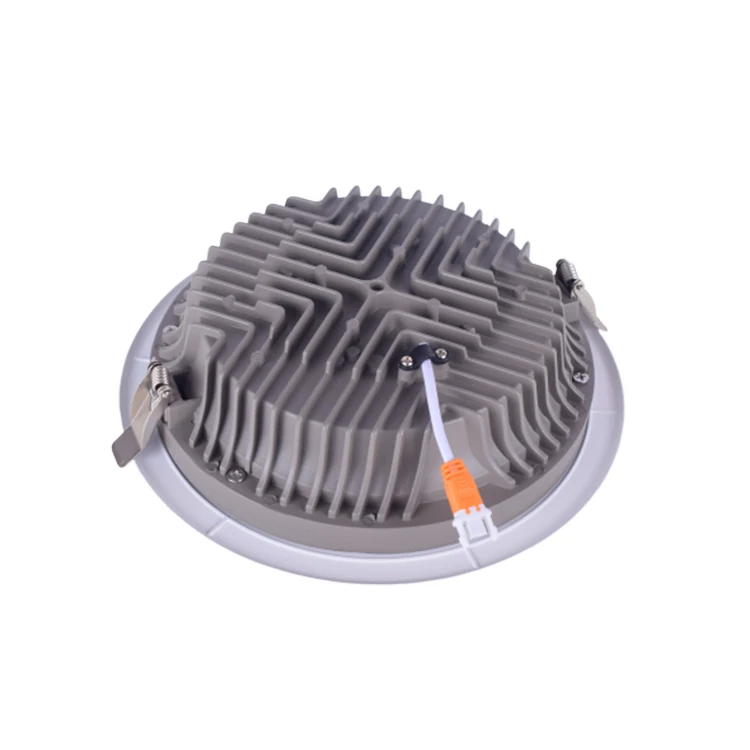

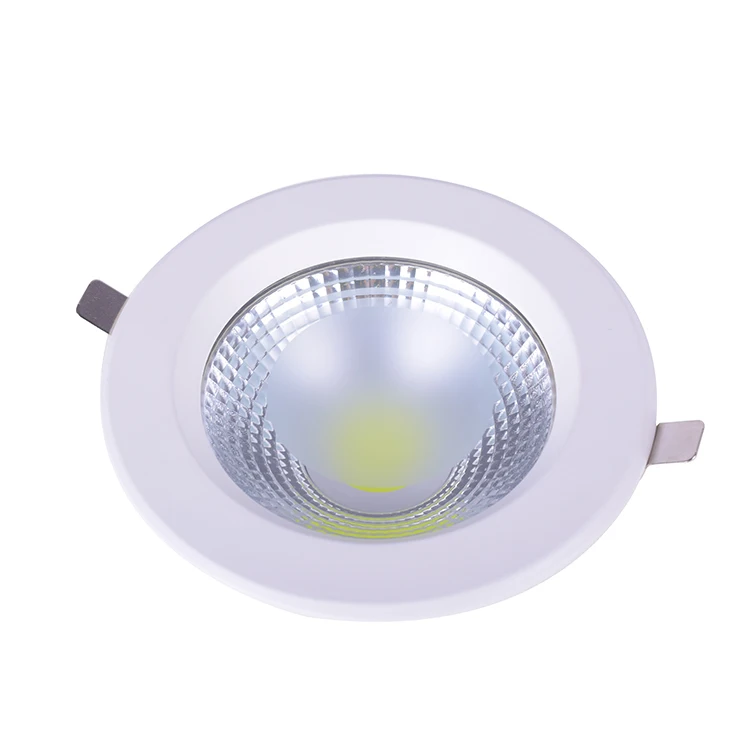

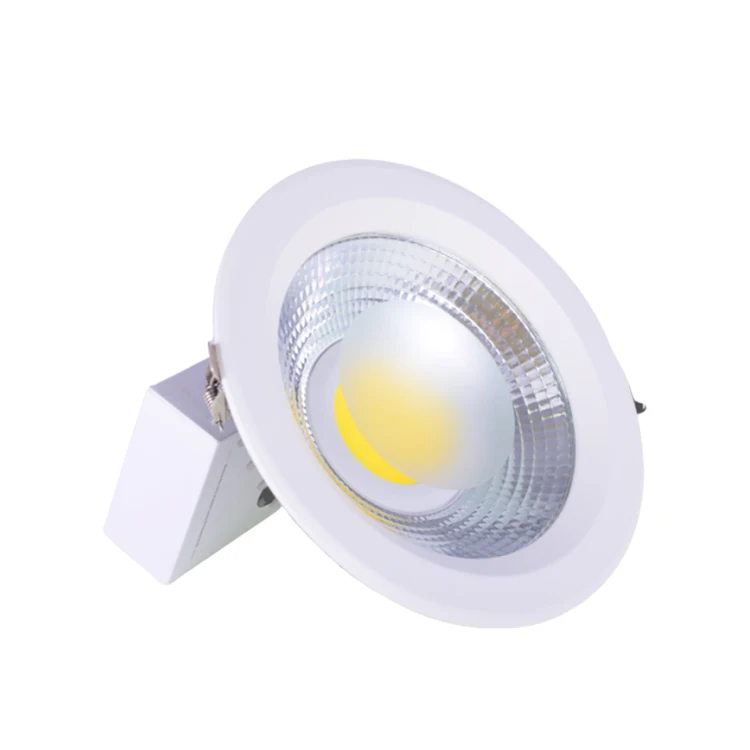

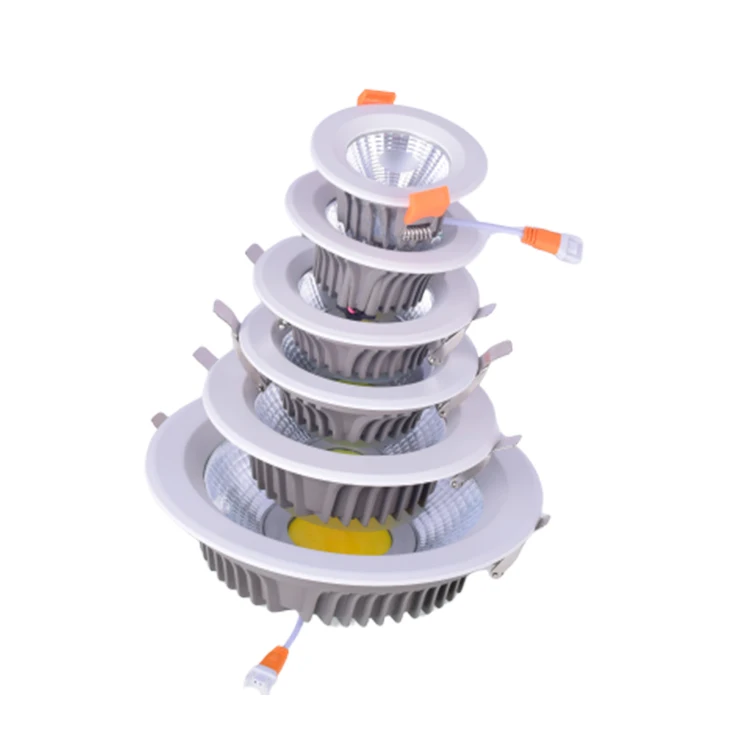

Free Sample Recessed Round 7W 10W 15W 30W Down Light Waterproof Ceiling COB LED Downlight
Бесплатный образец встраиваемый круглый потолочный светильник 7 Вт 10 15 30 водонепроницаемый COB
- Категория: Светильники >>>
- Поставщик: Zhongshan,Guzhen,Boyu,Lighting,Electronics,Factory
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-16-2025 | 6.32 $* | 6.52 $* |
| Jul-16-2025 | 5.63 $* | 5.67 $* |
| Jun-16-2025 | 6.46 $* | 6.38 $* |
| May-16-2025 | 6.19 $* | 6.43 $* |
| Apr-16-2025 | 5.57 $* | 5.13 $* |
| Mar-16-2025 | 6.84 $* | 6.99 $* |
| Feb-16-2025 | 6.10 $* | 6.24 $* |
| Jan-16-2025 | 6.86 $* | 6.22 $* |
Характеристики
![]()
Free Sample Recessed Round 7W 10W 15W 30W Down Light Waterproof Ceiling COB LED Downlight
Product Description
| DATASHEET | |||||||
| Information | Model No. | BY-X1-5W | BY-X1-7W | BY-X1-10W | BY-X1-15W | BY-X1-20W | BY-X1-30W |
| Light source | COB | ||||||
| Electrical Information | Power(W) | 5/7/10/15/20/30w | |||||
| Voltage | AC100-277V 50-60Hz | ||||||
| Driver efficiency | >90% | ||||||
| Power factor | 0.95 | ||||||
| Optical Information | Luminous flux(lm) | 500 | 700 | 1000 | 1500 | 2000 | 3000 |
| Luminous efficacy(lm/w) | 100LM/W | 100LM/W | 100LM/W | 100LM/W | 100LM/W | 100LM/W | |
| Opening Dimension | 70mm | 85mm | 105mm | 140mm | 165mm | 200mm | |
| CRI | >80 | ||||||
| Color temperature | 3000k/4000k/6500k | ||||||
| Beam angle | 120° | ||||||
| Mechanical Information | Housing material | Aluminum+ PC | |||||
| Lens material | optical PC | ||||||
| Ambient temperature | -30℃~50℃ | ||||||
| IP Rating | IP44 | ||||||
| Packaging Information | Product size(MM) | 90*42mm | 90*42mm | 130*60mm | 165*60mm | 190*60mm | 220*73mm |
| Opening Dimension | 75mm | 75mm | 110mm | 140mm | 170mm | 200mm | |
| Packaging size(CM) | 100*52mm | 100*52mm | 140*70mm | 175*70mm | 200*70mm | 230*83mm | |
| N.W. about(KG) | 0.168 | 0.17 | 0.31 | 0.40 | 0.53 | 0.7 | |
| G.W. about(KG) | 0.21 | 0.215 | 0.4 | 0.52 | 0.61 | 0.8 | |
led downlight
Installation Details:
Company Information
Very welcome to visit our factory! We will pick up you at the airport.
