Откидной барьер система распознавания отпечатков пальцев откидной идентификационных карт

Описание и отзывы

Трекер стоимости

Характеристики

Flap Barrier Fingerprint system Flap Barrier ID cards system Flap Turnstile



Product Introduction:

1.This series of turnstile adopt the unique technology of our company---the precise photo electricity limit and gear to orient the closure. The turnstile be unlocked and reset because of the specific motor. The closure is very precise and stable. This series of turnstile adopt standard electricity socket. It can read boom code card, ID card, IC card and so on.

2.There is a series of turnstiles. You can choose the item and specificalion. They can be used in school, metro and chamber and so on. This series is of very high-tech. In order lo guarantee it can run safely, please carefully read this instruclion!



Technical Parameters :

PRODUCT INFORMATION
Model	UT560-B
Brand	UNIQSCAN

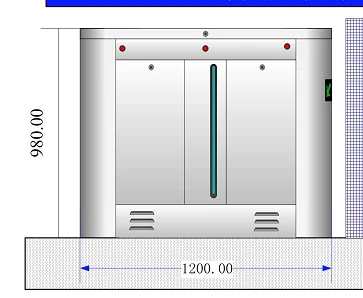

Dimension	1200*300*980 mm
Material	304 # stainless steel
Tickness:	Head: 1.5mm , Cabinet:1.2mm
Input Voltage	AC220±10%,50HZ
Driving motor	24V
Failure-free operation	5 million/time
Weight	35kg
Traffic speed	35 persons/min
Infrared sensor	3 pairs
Flap Opening/Closing Time	0.2s
Channel width	≤550mm
Operating temperature	-30℃-70℃
Communication interface	RS485/TCP/IP
Working environment	indoor and outdoor



Detail photo :



Related Products :



Our Case :

Our Factory :
