Rika RK510-01 FDR датчик влажности почвы с четырьмя игольчатыми зондами


Поделиться:


Цена:55,00 $ - 80,00 $*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Aug-15-2025 70.61 $* 71.61 $*
Jul-15-2025 57.44 $* 58.0 $*
Jun-15-2025 69.69 $* 70.65 $*
May-15-2025 68.66 $* 69.33 $*
Apr-15-2025 54.63 $* 55.69 $*
Mar-15-2025 67.57 $* 68.44 $*
Feb-15-2025 67.75 $* 68.40 $*
Jan-15-2025 66.56 $* 67.27 $*

Характеристики

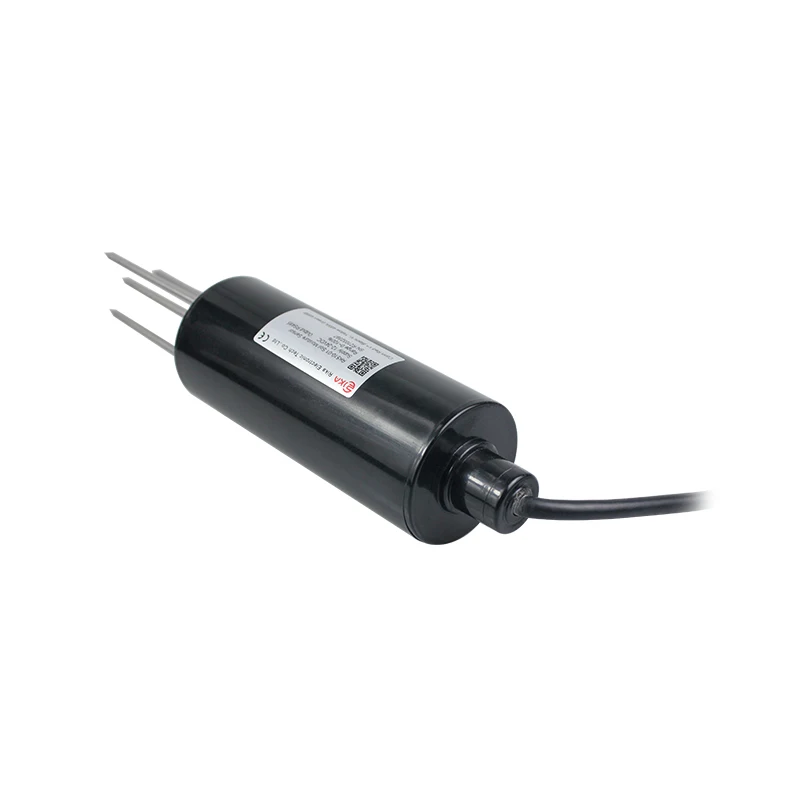

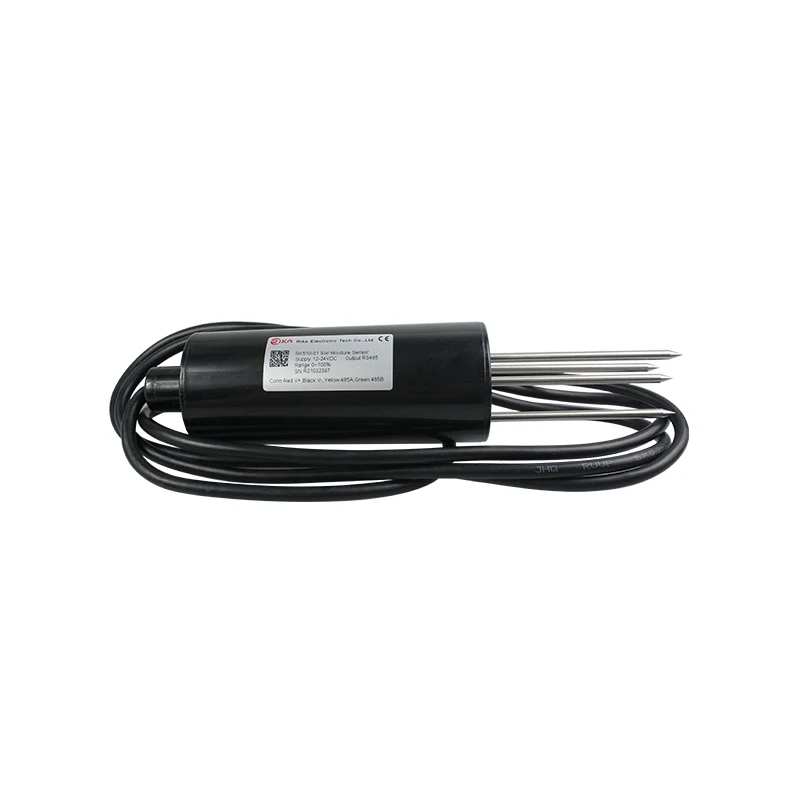

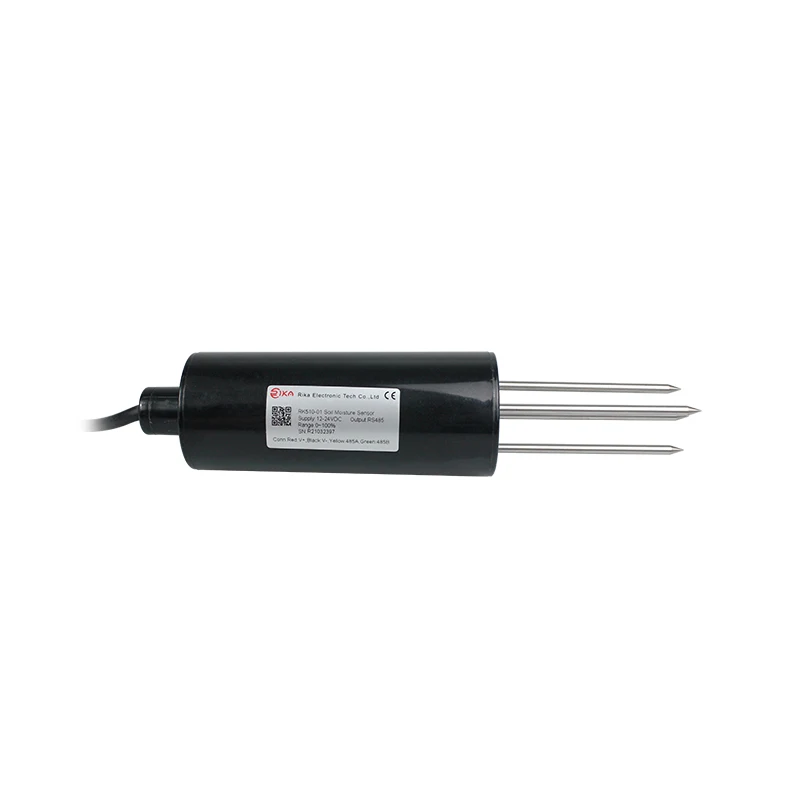

Rika RK510-01 FDR Soil Moisture Sensor with Four 316L needle probe






Product Description







RK510-01 Soil Moisture Sensor (Plant Care Hygrometer) is based on FDR(Frequency Domain Reflectometry) principle to measures the volumetric water content in soil. The stainless steel probe is inserted into soil surface or soil profile to test soil moisture quickly. The probe can be permanently embedded underground and be connected to a data logger for unlimited testing.





Features:



  • Four 316L needle probe

  • High stability

  • High accuracy

  • Fast response

  • Easy Installation


* Is not affected by chemical fertilizer and the influence of metal ions

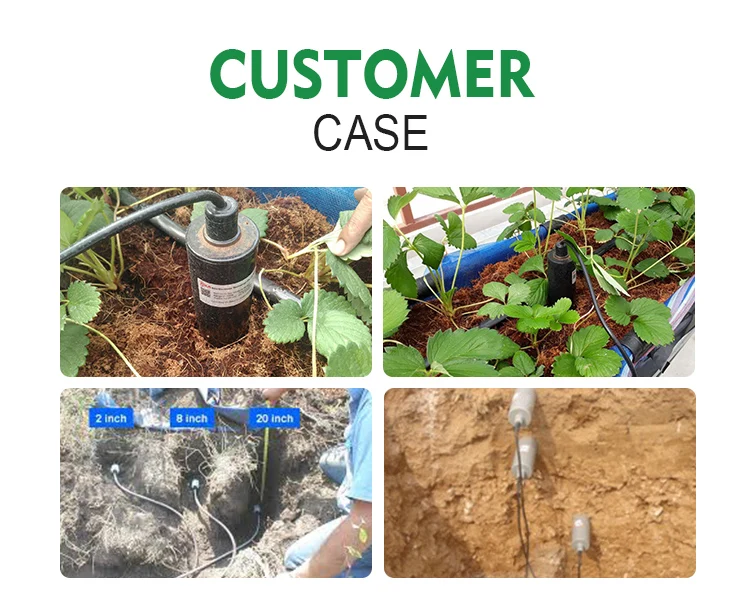

Applications:



  • Agriculture irrigation

  • Greenhouse

  • Grass farm

  • Environment monitoring

  • Water conservation,

  • Soil testing






Specification

































































Item



Technical Specification



Range



0-100%(m3/m3)



Accuracy



±2%



Output Signal



0-1.1V,4-20mA optional



Response Time



<1s



Stable time



After power on 10 s



Supply



7-15VDC



Effective testing area



90% of the influence is in the cylinder around the central probe whose dimension is Ø2.5*6cm



Housing



ABS



Dimensions



Ø40*133mm(the probe is 60mm)



Operating Temperature



-30℃-+70℃



Ingress Protection



IP65



Storage



10-60@20%-90%RH



Probe material



304 stainless steel












Details Show


 RK510-01_01RK510-01_02RK510-01_03RK510-01_04RK510-01_05RK510-01_06RK510-01_07RK510-01_08


get discount





Related Products

















Soil / Liquid Temp Sensor




Soil PH Sensor




Soil EC/Salinity Sensor




DO Sensor




Soil Temp, Moisture & EC Sensor




ORP Sensor












Company Information








FAQ





Q: Are you the final manufacturer?
A: Yes, We are SENSOR manufacturer and exporter in china with 10+ years experience and with the factory authorized by SGS.





Q: Do you offer the OEM service?
A: Yes, we can offer OEM service and design the logo marking for you. But the minimum quantity is 10pcs for the first order .





Q: Do you offer free samples?
A: Sorry , we do not offer free samples .  You should pay for the samples and freight cost.





Q: What payment ways do you accept?
A: You can pay us by T/T , PayPal , and West Union .





Q: What is your delivery time?
A: It is in 6-8 working days since the payment confirmed . If quantity is more than 100pcs /order, it will need extra 3-5 working days.





Q: What is your normal shipping method?
A:  Goods will be sent by DHL / FEDEX / UPS / EMS / TNT / or other proposed forwarders.



Q: How is your quality assurance service?
A: Our service is free exchange within one month and 12 months quality guarantee.





Q: Could we make a visit to your factory?
A: Yes, you are welcomed . But before that, we will do the visiting investigation.
