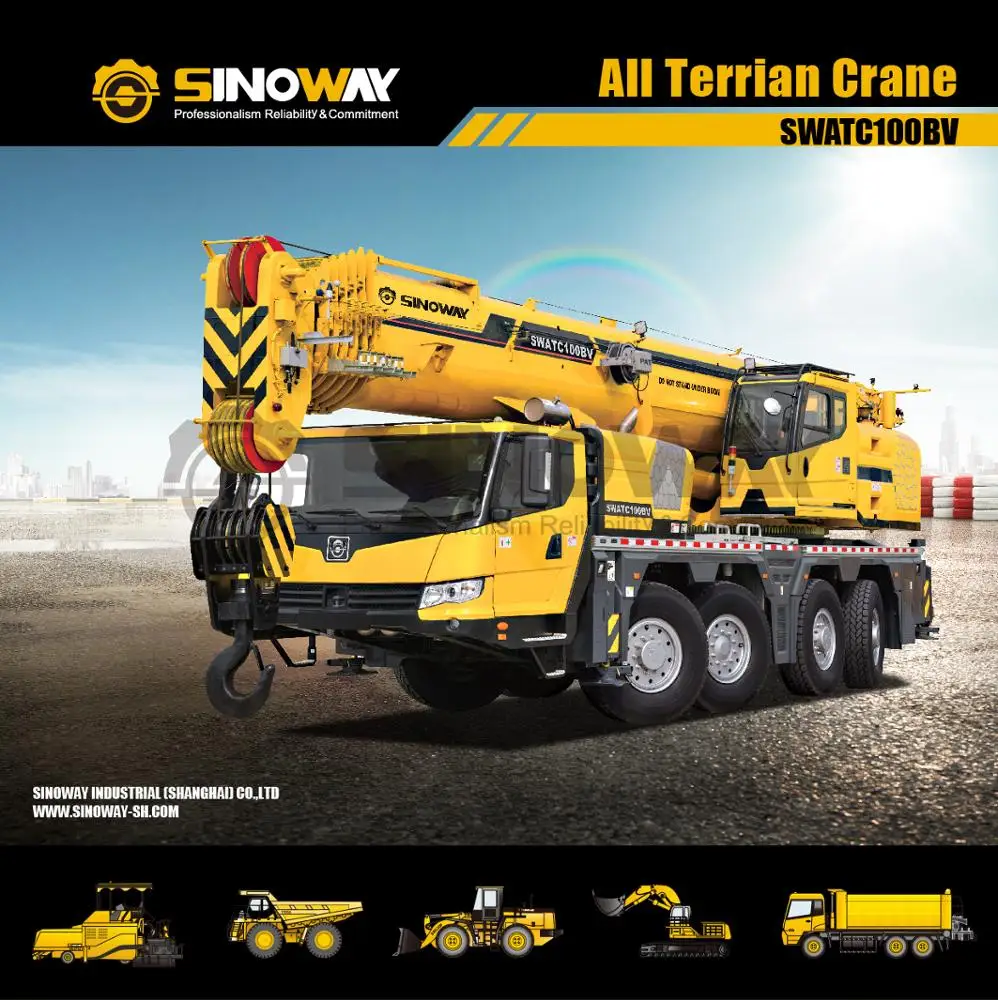

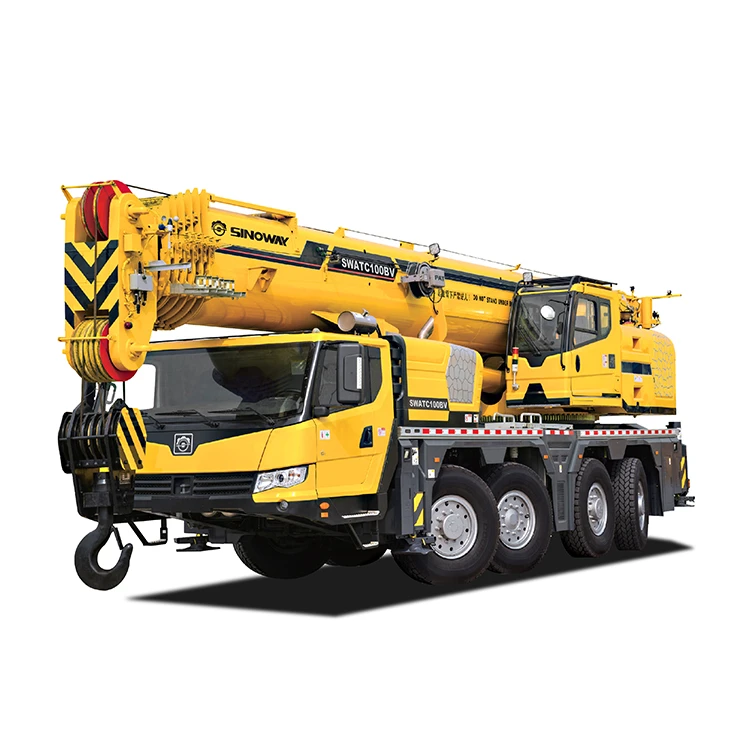

Хорошее качество 100 тонн вездеходный кран Китай гидравлический мобильный на
- Категория: Автокраны >>>
- Поставщик: Sinoway,Industrial,(Shanghai),Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.19 $* | 0.85 $* |
| Aug-16-2025 | 0.8 $* | 0.28 $* |
| Jul-16-2025 | 0.11 $* | 0.37 $* |
| Jun-16-2025 | 0.70 $* | 0.22 $* |
| May-16-2025 | 0.46 $* | 0.97 $* |
| Apr-16-2025 | 0.38 $* | 0.40 $* |
| Mar-16-2025 | 0.64 $* | 0.69 $* |
| Feb-16-2025 | 0.4 $* | 0.87 $* |
| Jan-16-2025 | 0.52 $* | 0.42 $* |
Характеристики
Products Description
Powerful Cummine engine and Deutz engine. In-house designed and manufactured by SINOWAY, and load- bearing structure is optimized.It is made of high strength steel and has anti-torsion box structure with aluminum walking surface covered.
Seven-section boom with U-type profile is designed to be resistant to distortion and made of high strength steel, which allow the boom to have excellent stability. The single-cylinder pinning system is used as telescoping system. Variable boom combinations are available.
Single-row four-point ball contact external tooth slewing ring is driven by the planetary gear reducer of slewing mechanism driven by a hydraulic motor, may continuously slew 360°. Power control or free slewing function is available, and the slewing speed may be infinitely regulated.
Front two axles are mechanically steered, rear two axles are equipped with electric- hydraulic steering system.
Hydro pneumatic suspension system with Germany HYDAC diaphragm accumulator equipped, significantly improves the smoothness during travel.
24V DC, negative ground, 2 batteries of 12V. There is a perfect illuminating system complying with Chinese road traffic standard, including head lamps, front and rear fog lamps and reversing lamp, etc.
CAN Bus system is used for the chassis, LCD display is used for date indication; the intelligent system contributes to fast, stable and exact data transfer. Braking integrated management, and fault diagnosis and warning are available.
New full-dimension enclosed cab, luxury and comfort. It is designed to be leakproof, anti-corrosive and shockproof. It is equipped with a windshield offering outstanding visibility, electrical adjustable rear mirrors, electric control washer, electronic lifters of doors and windows, heater & air conditioner, radio cassette player, etc. An air suspension seat for the driver is installed to supply comfort and reduce fatigue.
Newly designed cab appearance includes exquisite door handles and step coating, decoration of rear of side window and A-pillars, headlamps and air-inlet grille.
Seven-section boom with U-type profile is designed to be resistant to distortion and made of high strength steel, which allow the boom to have excellent stability. The single-cylinder pinning system is used as telescoping system. Variable boom combinations are available.
Single-row four-point ball contact external tooth slewing ring is driven by the planetary gear reducer of slewing mechanism driven by a hydraulic motor, may continuously slew 360°. Power control or free slewing function is available, and the slewing speed may be infinitely regulated.
Front two axles are mechanically steered, rear two axles are equipped with electric- hydraulic steering system.
Hydro pneumatic suspension system with Germany HYDAC diaphragm accumulator equipped, significantly improves the smoothness during travel.
24V DC, negative ground, 2 batteries of 12V. There is a perfect illuminating system complying with Chinese road traffic standard, including head lamps, front and rear fog lamps and reversing lamp, etc.
CAN Bus system is used for the chassis, LCD display is used for date indication; the intelligent system contributes to fast, stable and exact data transfer. Braking integrated management, and fault diagnosis and warning are available.
New full-dimension enclosed cab, luxury and comfort. It is designed to be leakproof, anti-corrosive and shockproof. It is equipped with a windshield offering outstanding visibility, electrical adjustable rear mirrors, electric control washer, electronic lifters of doors and windows, heater & air conditioner, radio cassette player, etc. An air suspension seat for the driver is installed to supply comfort and reduce fatigue.
Newly designed cab appearance includes exquisite door handles and step coating, decoration of rear of side window and A-pillars, headlamps and air-inlet grille.
Product Paramenters
Main performance | |
Max. total rated lifting capacity | 100t |
Min. rated working radius | 3m |
Counterweight (Turning radius at turntable tail) | 4230mm |
Auxiliary winch (Turning radius at turntable tail) | 4510mm |
Max. load moment (Max. rated load moment) | 3009kN.m |
Max. load moment (Base boom) | 3000kN.m |
Max. load moment (Medium length boom) | 3009kN.m |
Max. load moment (Fully-extended boom) | 1922kN.m |
Max. load moment (Fully-extended boom + Jib) | 533kN.m |
Outrigger span (Longitudinal) | 8.76m |
Outrigger span (Lateral) | 7m |
Hoist height (Base boom) | 12.7m |
Hoist height (Fully-extended boom) | 60.6m |
Hoist height (Fully-extended boom + Jib) | 88m |
Boom length (Base boom) | 11.7m |
Boom length (Fully-extended boom) | 60m |
Boom length (Fully-extended boom + Jib) | 88.2m |
Jib offset angle | 0°, 15°, 30° |
Working speed | |
Elevating time(Boom raising) | ≤50s |
Telescoping time(Fully extended/retracted) | ≤550s |
Max. slewing speed | ≥1.7m/min |
Main winch (single line, 5th layer, no load) | ≥130m/min |
Auxiliary winch (single line, 2nd layer, no load) | ≥97m/min |
Outrigger beam(Extending/Retracting) | ≤40s/≤30s |
Outrigger jack(Extending/Retracting) | ≤40s/≤30s |
Exterior noise level | ≤122dB (A) |
Noise level at seated position | ≤90dB (A) |
Outline size(length×width×height) | 13180×2750×4000mm |
Wheel base | 1600+2475+1650mm |
Track(Front/Rear) | 2340mm |
Front / Rear overhang | 3440/2255mm |
Front / Rear extension | 1295/465mm or 1235/525mm |
Total weight in travel configuration | 48000kg |
Axle load(1st axle) | 12000kg |
Axle load(2st axle) | 12000kg |
Axle load(3st axle) | 12000kg |
Axle load(4st axle) | 12000kg |
Chassis engine model | Cummins |
Rated power/rotation speed | 306kw/1900r/min |
Max. output torque/rotation speed | 2010N.m/1200r/min |
Superstructure engine model | Deutz |
Rated power/rotation speed | 174kw/2300r/min |
Max. output torque/rotation speed | 854N.m/1400r/min |
Max. travel speed | 80km/h |
Min. travel speed | 3km/h |
Min. turning diameter | 15m |
Min. turning diameter at boom tip | 22.7m |
Min. ground clearance | 280mm |
Approach angle | 17° |
Departure angle | 16.5° |
Braking distance (at 30 km/h ) | ≤10m |
Max. grade ability | 60% |
Fuel consumption per 100 km | 60L |
Product Show
