5 В Вт Гибкий полиимидный пленочный

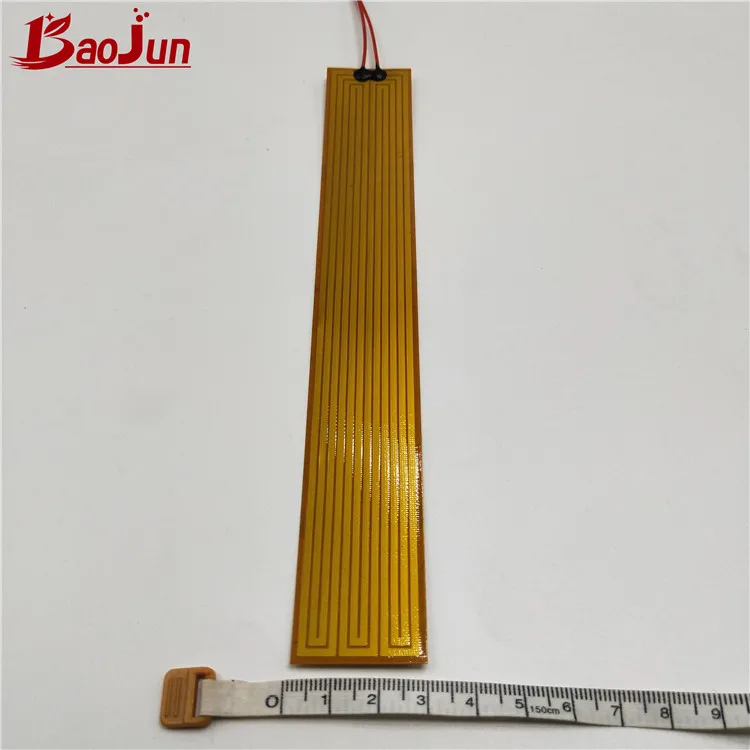

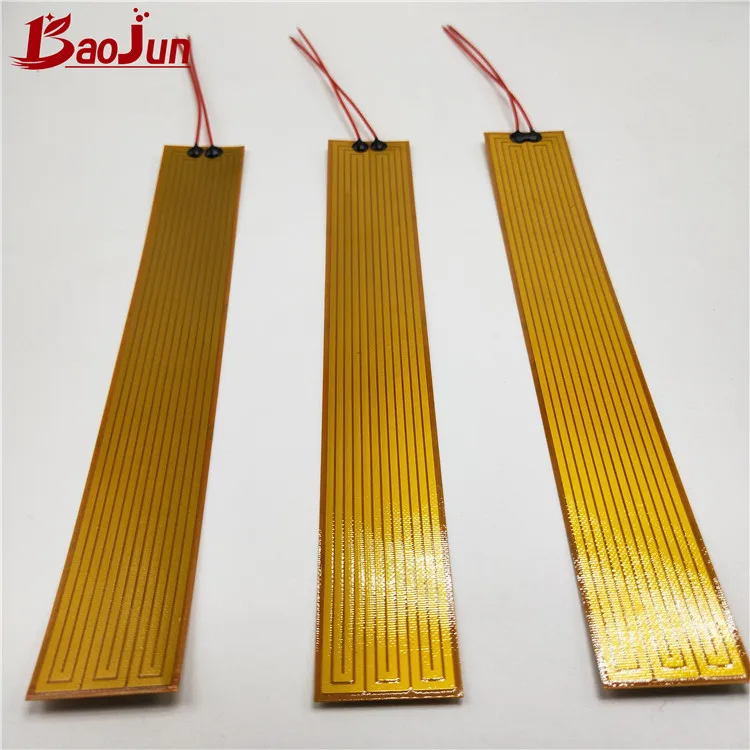

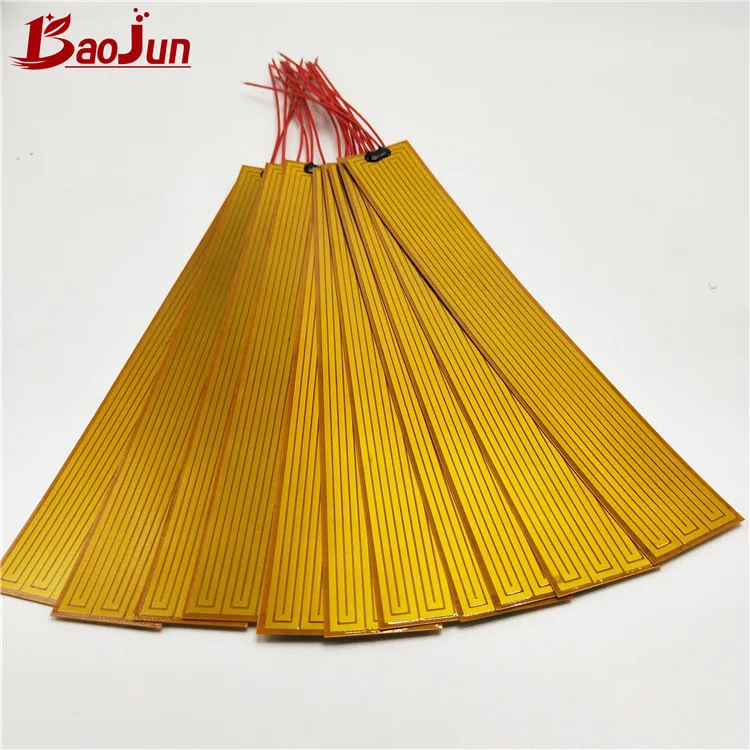

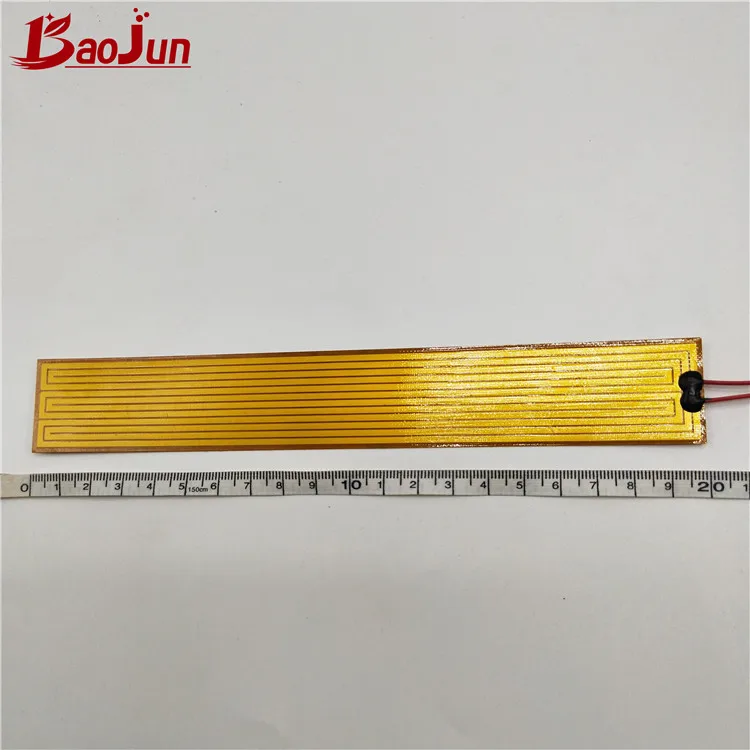

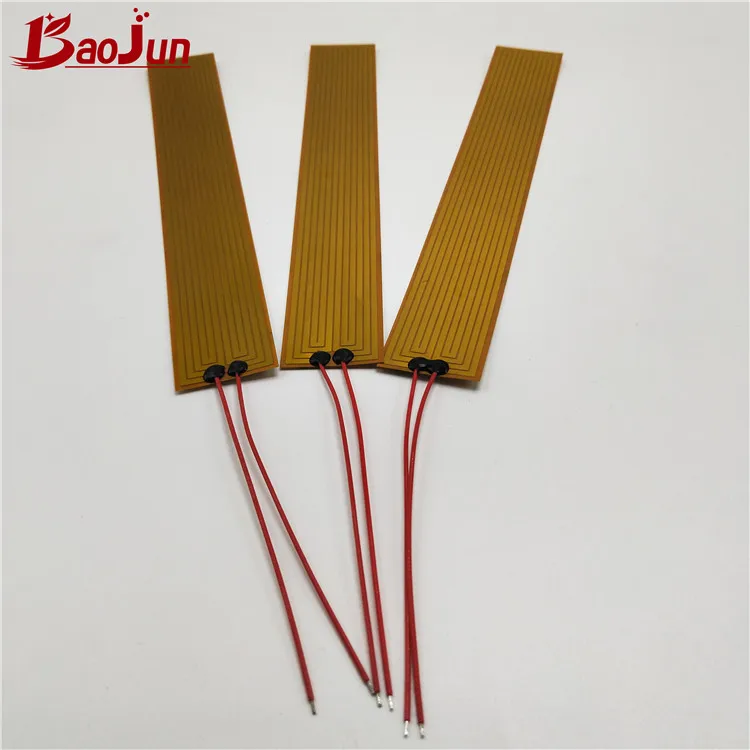

The polyimide film PI electrothermal film is a polyimide film as an outer insulator; the metal foil and the metal wire are internal conductive heating bodies, which are formed by heat sealing at high temperature and high pressure. Polyimide film electrothermal film has excellent dielectric strength; excellent electric strength; excellent heat transfer efficiency; excellent resistance stability. This makes it widely applicable to the field of heating and is capable of achieving relatively high temperature control accuracy.

Polyimide is a thin, translucent material, has excellent dielectric strength. In the narrow space or require lighter, heater exposed to vacuum, oil or chemicals application environment, polyimide heaters are ideal. Compared with silicone heating film, PET film or ceramic electric heating film, polyimide is more compact.

Polyimide film electric heating film has been successfully applied to Fengyun series artificial satellites, Long March series launch vehicles, Dongfeng, Hongqi and other series of missiles, as well as aircraft, ships, tanks, artillery gyroscopes, accelerometers, fire control radar isothermal Control and heating system.

1) Heater thin and light so you can just position on the need for heating without heating part can be avoided.
2) Etched foil heating technology provides fast and efficient heat transfer and uniform heating surface, the temperature difference is minimal.
3) Customization options (for example: SMT components, flex cable and connectors) can provide the perfect complete solution that can significantly reduce assembly time and increase productivity.
4) Custom configured to provide balanced heating output performance to improve process yield and productivity, in accordance with requirements of additional temperature control device and temperature sensing devices.
5) There FEP adhesive can be 200 ° C (392 ° F)
6) Suitable for vacuum environments (NASA-RP-1061)
7) Resistant to most chemicals: acids and alkaline solvents erosion

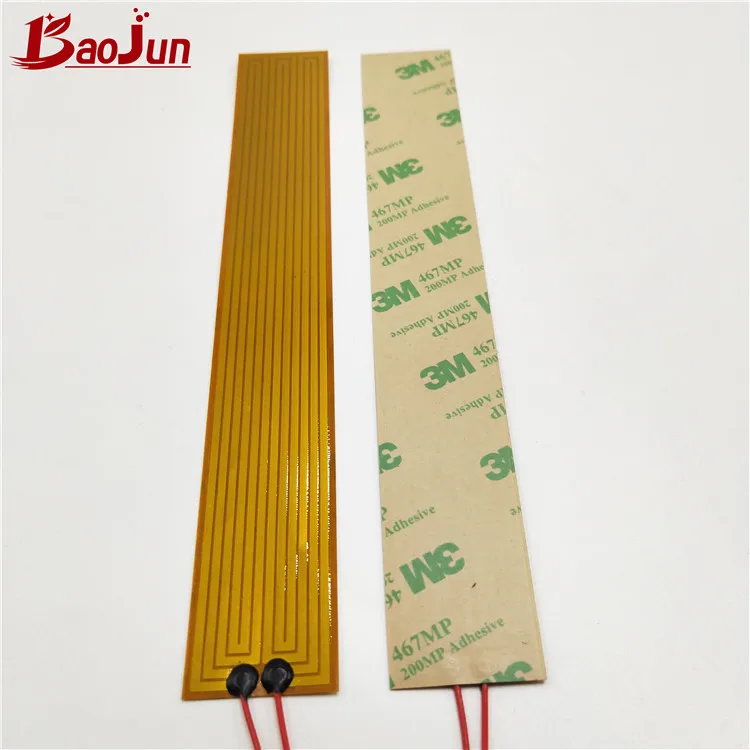

8) If you are using polyimide insulated wires (custom option) can resist 106 rads of radiation, PSA adhesive stickers can be installed or epoxy adhesive, silicone adhesive installation.
9) Providing a variety of complex shapes design, and different power designs. Membrane in the same piece electrically heated heating circuit can be designed and holding circuit
10) Providing a liquid immersion design (non-standard)
