ISO4064 multi jet brass body dry dial R125 water meter with external adjustment

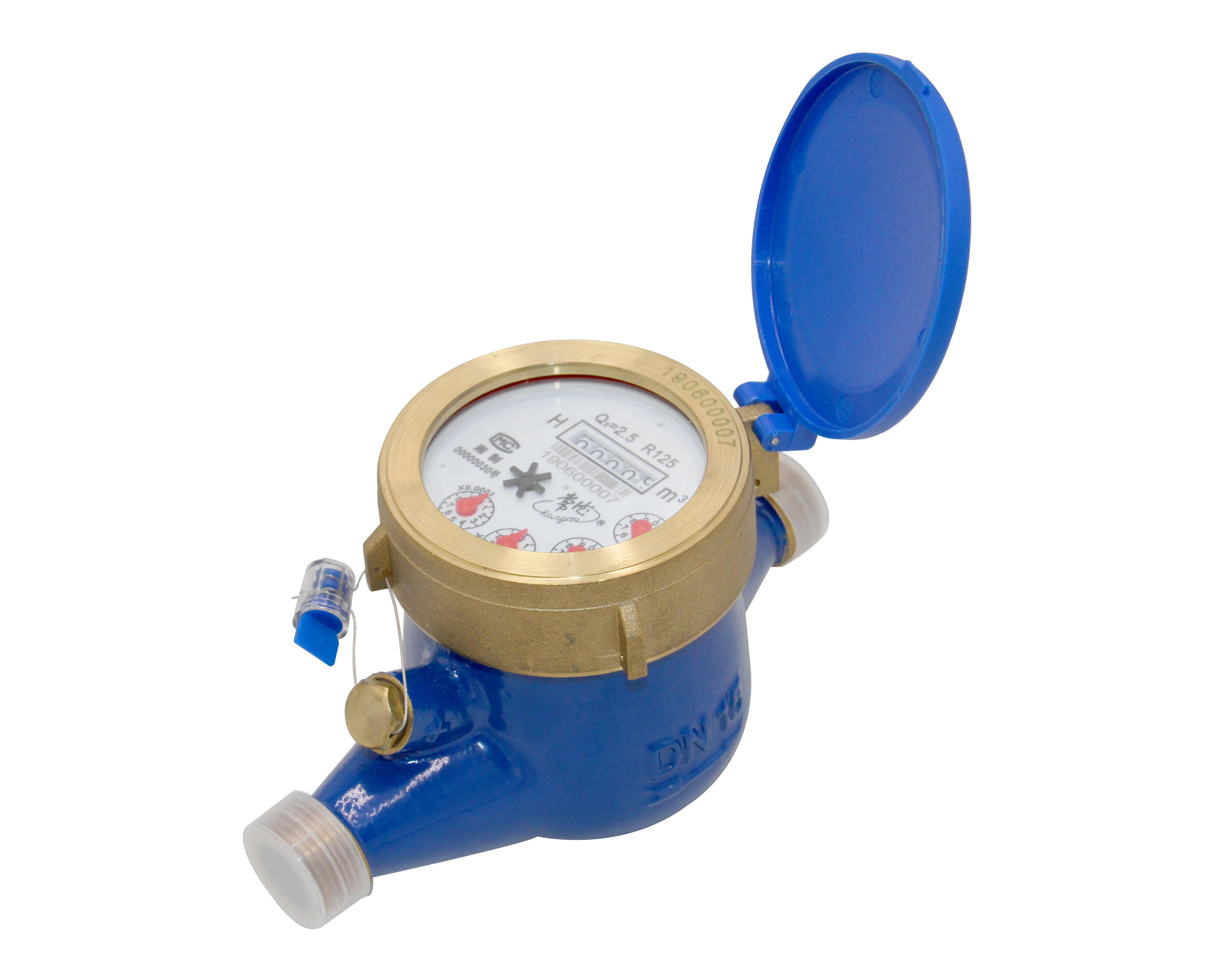

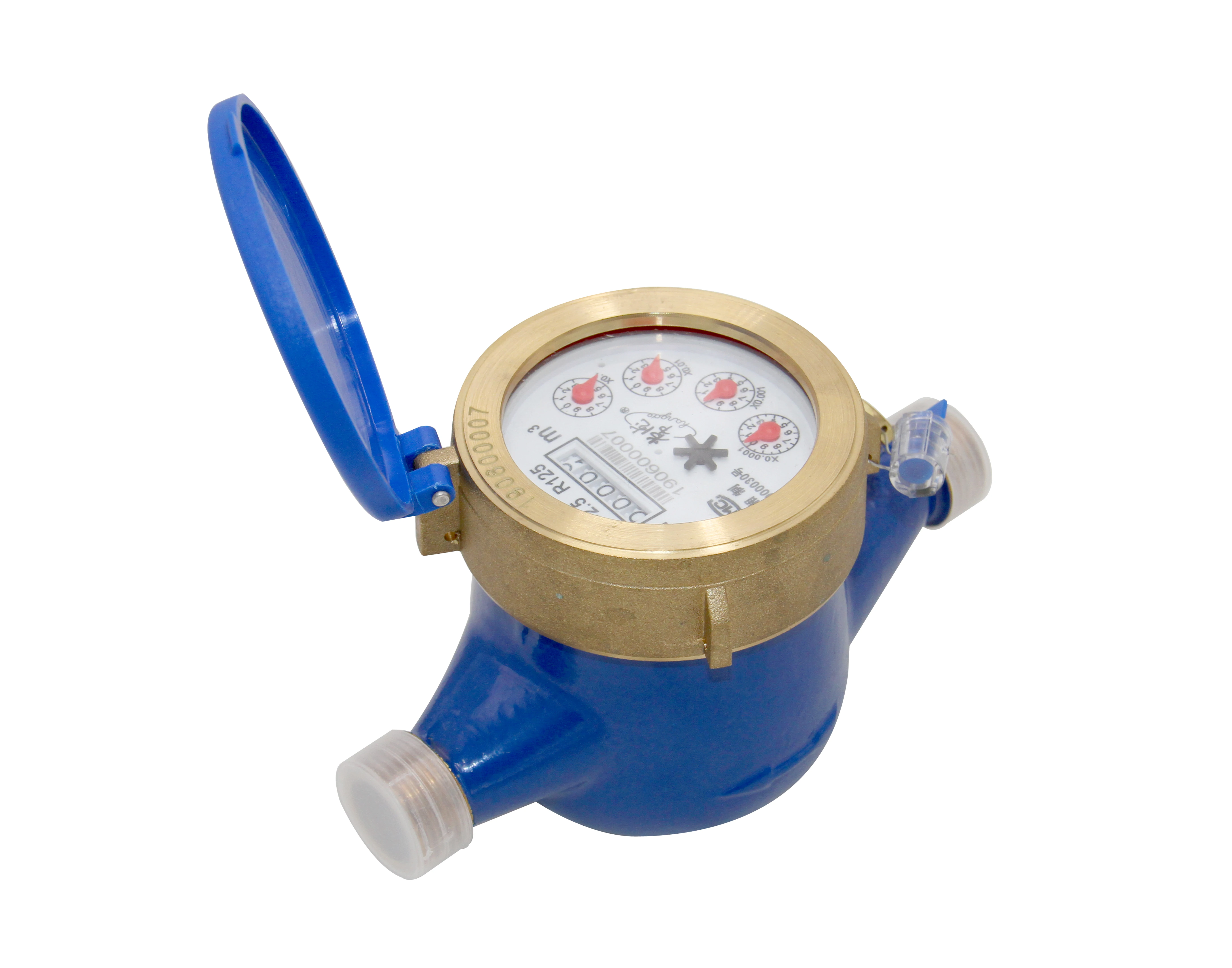

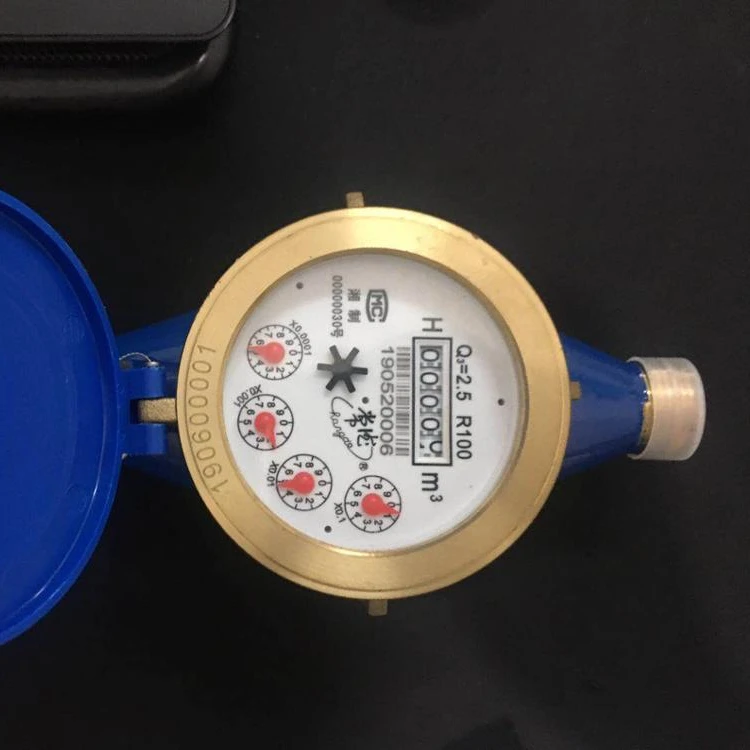

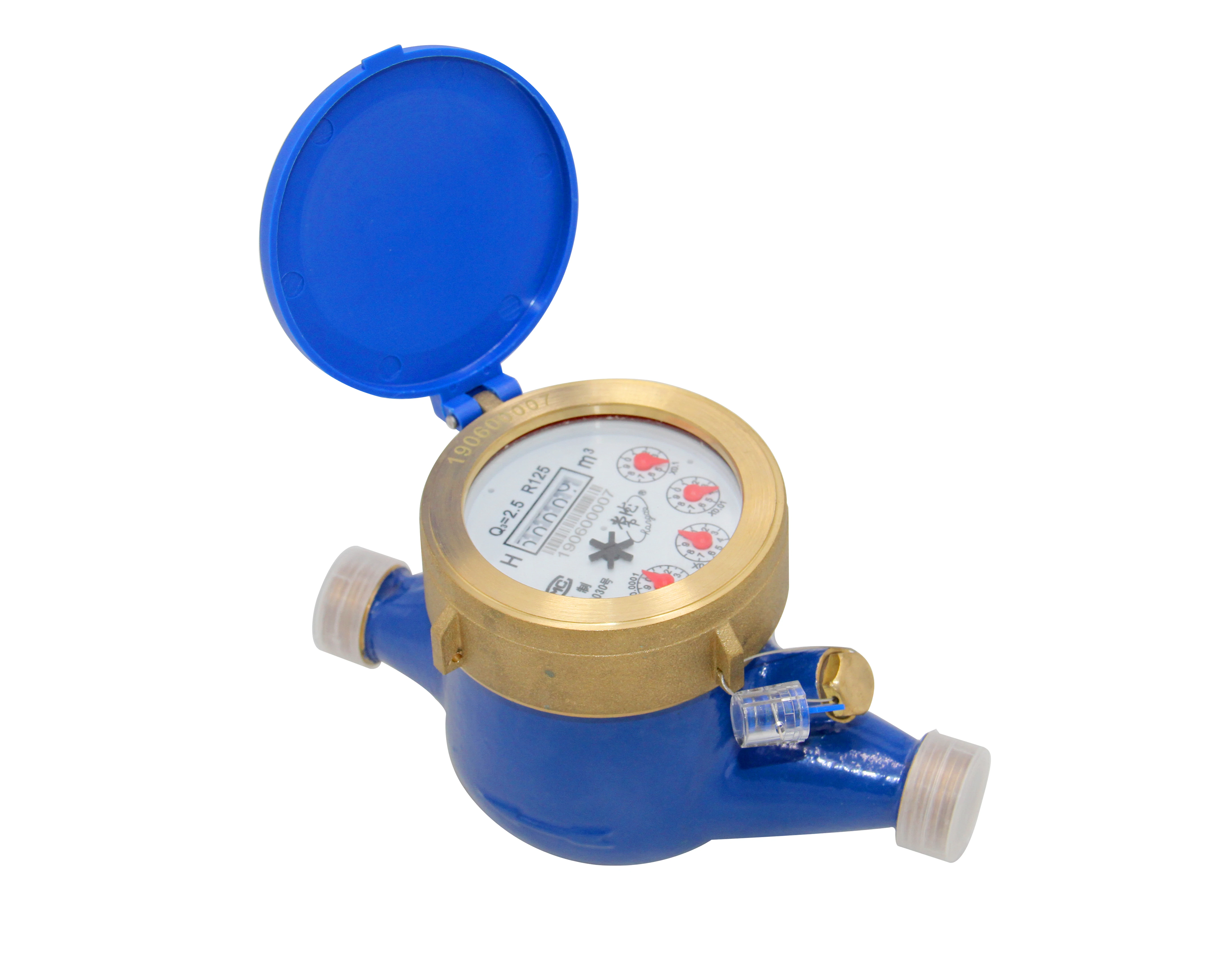

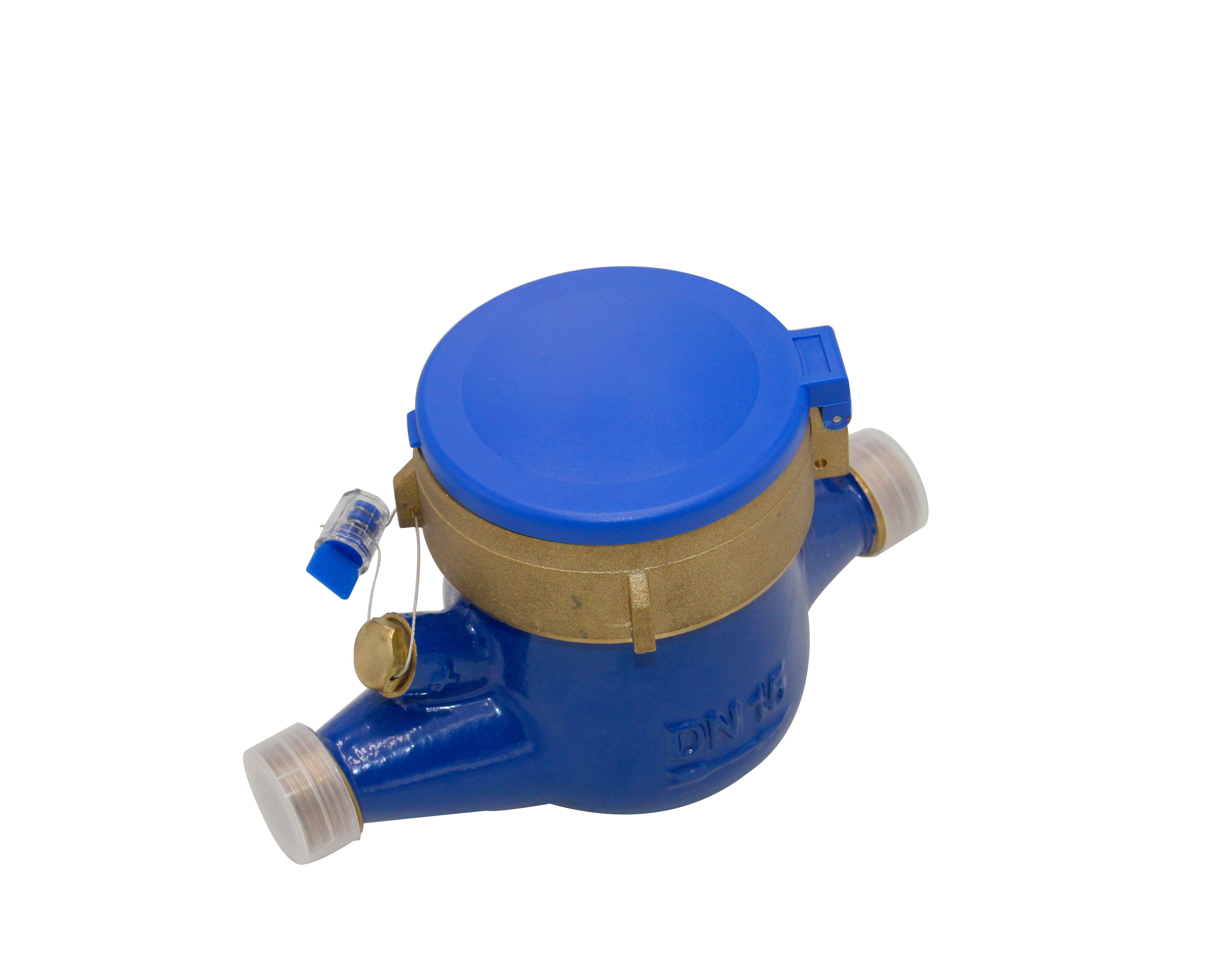

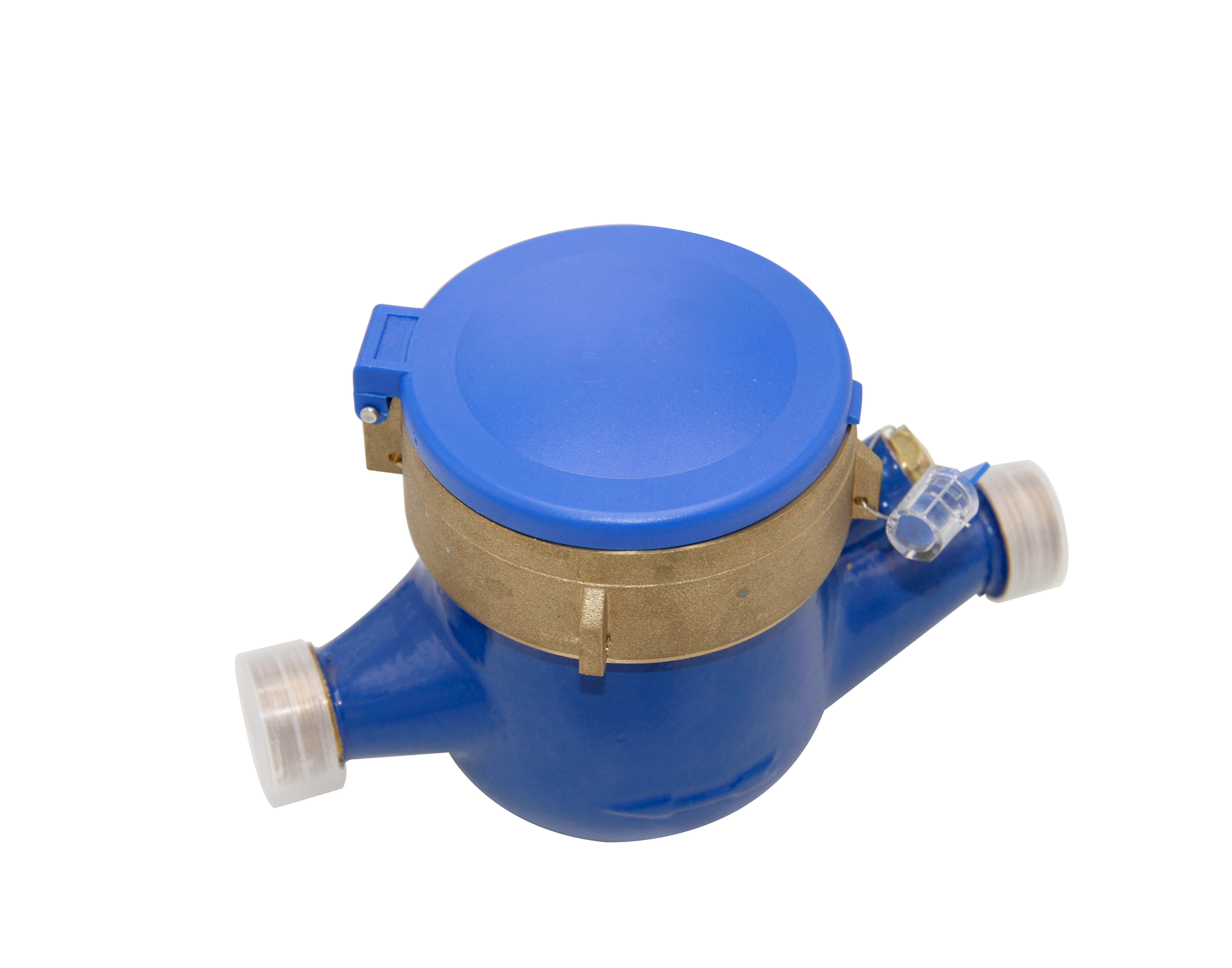

Dry dial water meter(LXSG-15-50)



Brief introduction:

The dry dial water meter is mainly composed of a meter case, a cover, a counting mechanism, a measuring mechanism, etc. The counting mechanism and impeller are completely isolated by magnetic transmission, and the reading part of the wheel is dry and keeps the reading part clear for a long time by using water.Anti-fog, anti-fouling and other characteristics.



Characteristic:

High accuracy, accurate measurement, convenient maintenance, technical index up to ISO4064 standard, dry counter and measured water can keep the indication clear for a long time, and water contact parts are made of high quality anti-corrosion and anti-fouling material to make standard pipe thread.Can be installed with wireless and wired remote transmission function, the realization of remote meter reading intelligent metering terminal.



Working condition(s):

Water temperature 0.1~30℃(50℃ for option)

Working pressure≤1.0MPa.(1.6Mpa for option)
