Характеристики

Product Features

SINOWAY SWTC80W is a truck crane of full range slewing function, telescopic boom sections and pilot-operated proportional controlled systems. The crane adopts self-manufactured full-width 4-axle special purpose chassis (8×4 drive, offering convenient and flexible hydraulically powered steering), providing wide vision, spacious cab and luxurious equipment.
The latest directional control valve and tandem pump system ensure that each executive mechanism makes full use of its working capability. The easy-controlled, flexible, reliable and stepless speed regulated joysticks (L / R) can provide the crane with smooth simultaneous movements between “Spool winches up”, “Reel winches off”, “Derricking”,“Slewing” and “Telescope boom in / out”, which greatly improve the crane’s working efficiency. The safety devices such as relief valve, balance valve, hydraulic lock and brake valve fitted in hydraulic system prevent the accidents caused by oil line overload and oil pipe ruptures.
Hydraulic system load feedback and constant power control is applied to provide strong lifting capacity and good micro-mobility.
Unique steering buffer design guarantees smooth braking operation.
The safety devices such as load moment limiter and the complete lighting systems ensure your safety during operation and are convenient for night work.

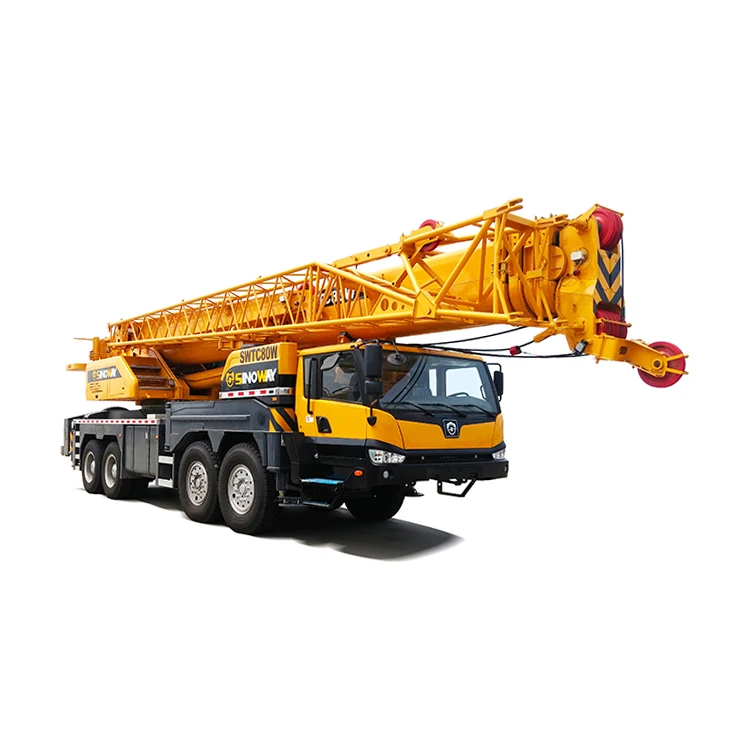

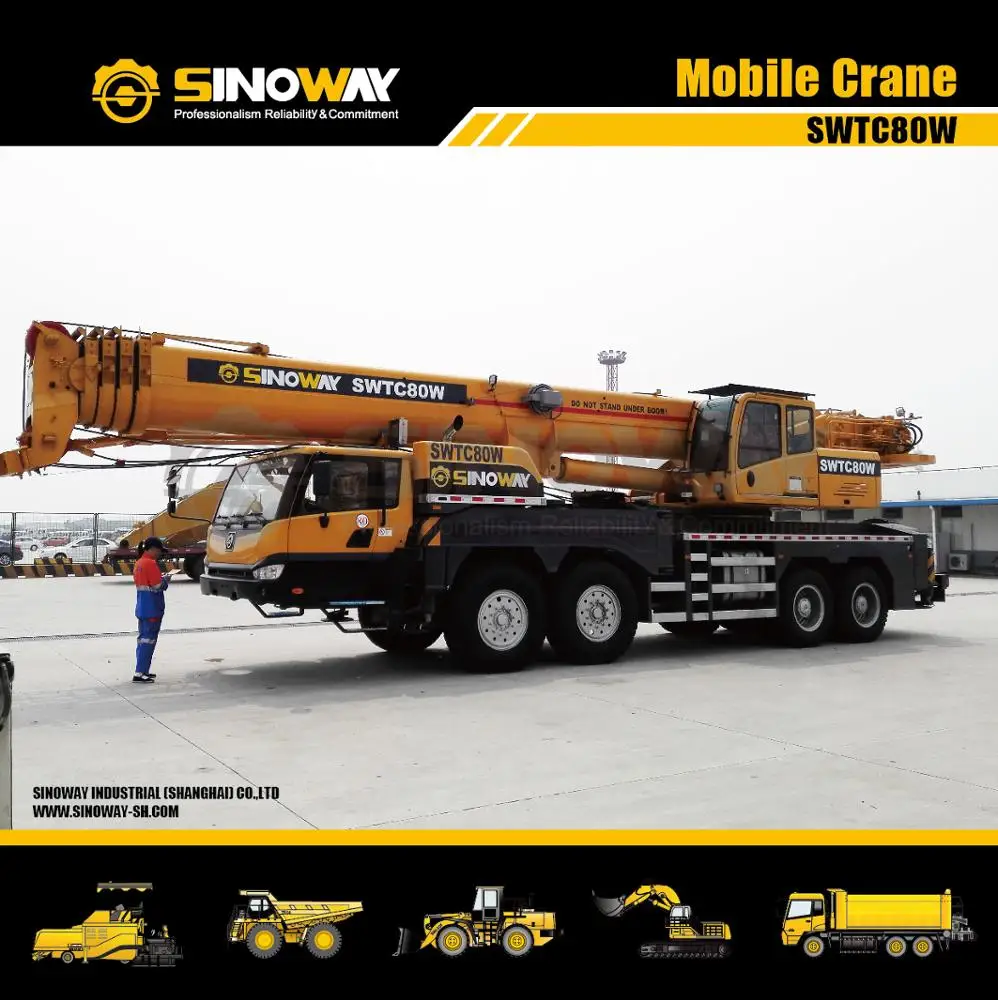

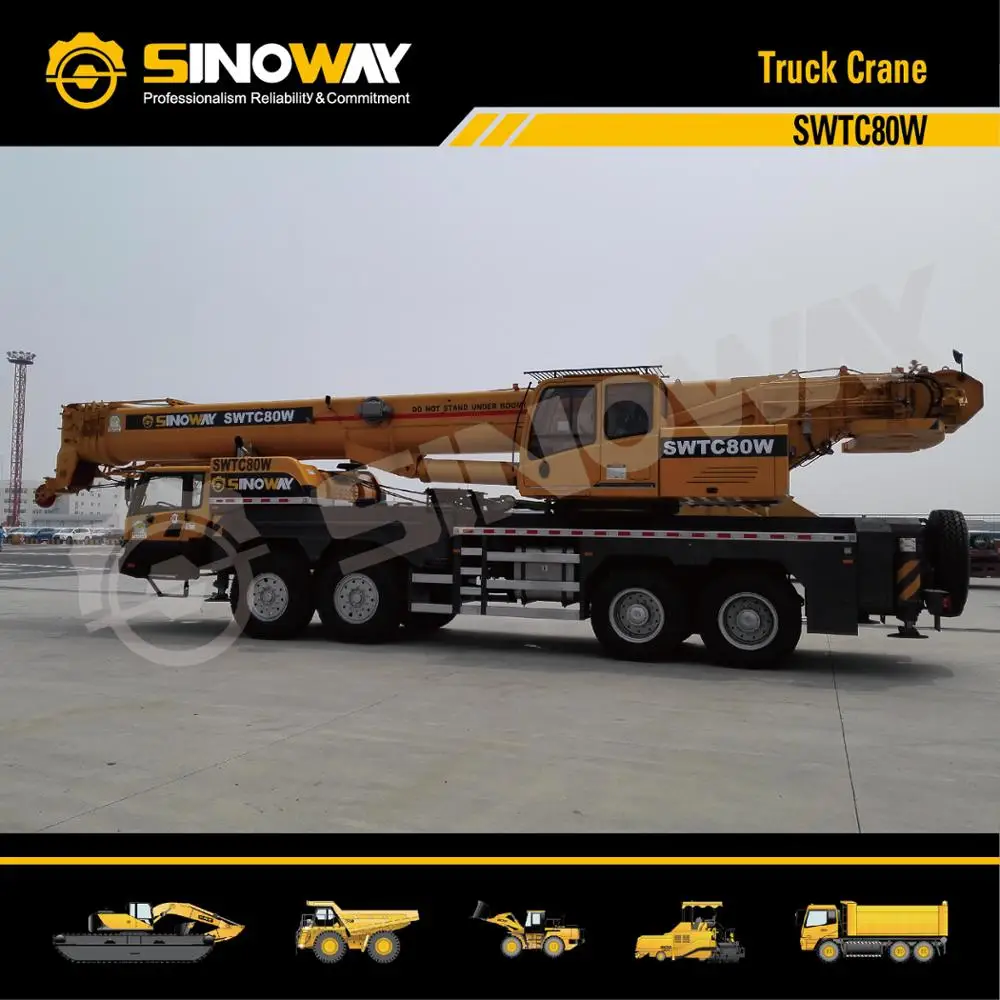

Product Show

Product Paramenters

Dimensions
Overall length	14770mm
Overall width	2800mm
Overall height	3890mm
Weight
Dead weight in travel state	49870kg
Front axle load	24000kg
Rear axle load	26000kg
Power
Engine model	WP12.375N MC11.39-30
Engine rated output	276kw/1900rpm/290kw/1900rpm
Engine rated torque	1800N.m/(1000~1400)rpm/1900N.m/(1000~1400)rpm
Travel
Max. travel speed	80km/h
Min. turning diameter	24m
Min. ground clearance	371mm
Approach angle	17°
Departure angle	15.5°
Max. grade ability	40%
Fuel consumption of per 100km	≤45L
Lifting performance
Max. total rated lifting load	80t
Min. rated working radius	3m
Turning radius at swing table tail	4670mm
Base boom max. load moment	3000kN.m
Base boom	12.4m
Full-extend boom	47.5m
Full-extend boom+Jib	65mm
Outrigger longitudinal distance span	8.075
Outrigger lateral distance span	7.9m
Working speed
Boom elevating Time	70s
Boom telescoping Time	150s
Max. slewing speed	≤1.9r/min
Main winch max. speed(no load)	130m/min
Auxiliary winch max. speed(no load)	110m/min
