OEM квартира программируемая детская комната электронный динамик RF беспроводной дверной
- Категория: Doorbells >>>
- Поставщик: Shenzhen,AnkhMaway,Electronic,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 0.46 $* | 0.92 $* |
| Aug-17-2025 | 0.28 $* | 0.83 $* |
| Jul-17-2025 | 0.21 $* | 0.53 $* |
| Jun-17-2025 | 0.54 $* | 0.69 $* |
| May-17-2025 | 0.93 $* | 0.3 $* |
| Apr-17-2025 | 0.7 $* | 0.21 $* |
| Mar-17-2025 | 0.70 $* | 0.61 $* |
| Feb-17-2025 | 0.58 $* | 0.56 $* |
| Jan-17-2025 | 0.30 $* | 0.90 $* |
Характеристики
Product Description
Electronic RF Wireless Doorbell
Touch Series Wireless Doorbell is a smart wireless doorbell for touch-sensing launch, just
Touch the outdoor transmitter to send a signal to the indoor receiver. Transmitter and receiver
You can freely learn the code, easy to operate, and easy to use without electromagnetic interference.
Touch the outdoor transmitter to send a signal to the indoor receiver. Transmitter and receiver
You can freely learn the code, easy to operate, and easy to use without electromagnetic interference.
-Simple operation, easy to use, no electromagnetic interference.
Features
- Wireless frequency: 315 & 433 MZ
- 900ft maximum wireless range in the open air
- 52 different options of ringtons
- 5 levels adjustable volume,minimum is mute
- Up to 8 outdoor transmitters can be paired with one indoor receiver
- 900ft maximum wireless range in the open air
- 52 different options of ringtons
- 5 levels adjustable volume,minimum is mute
- Up to 8 outdoor transmitters can be paired with one indoor receiver

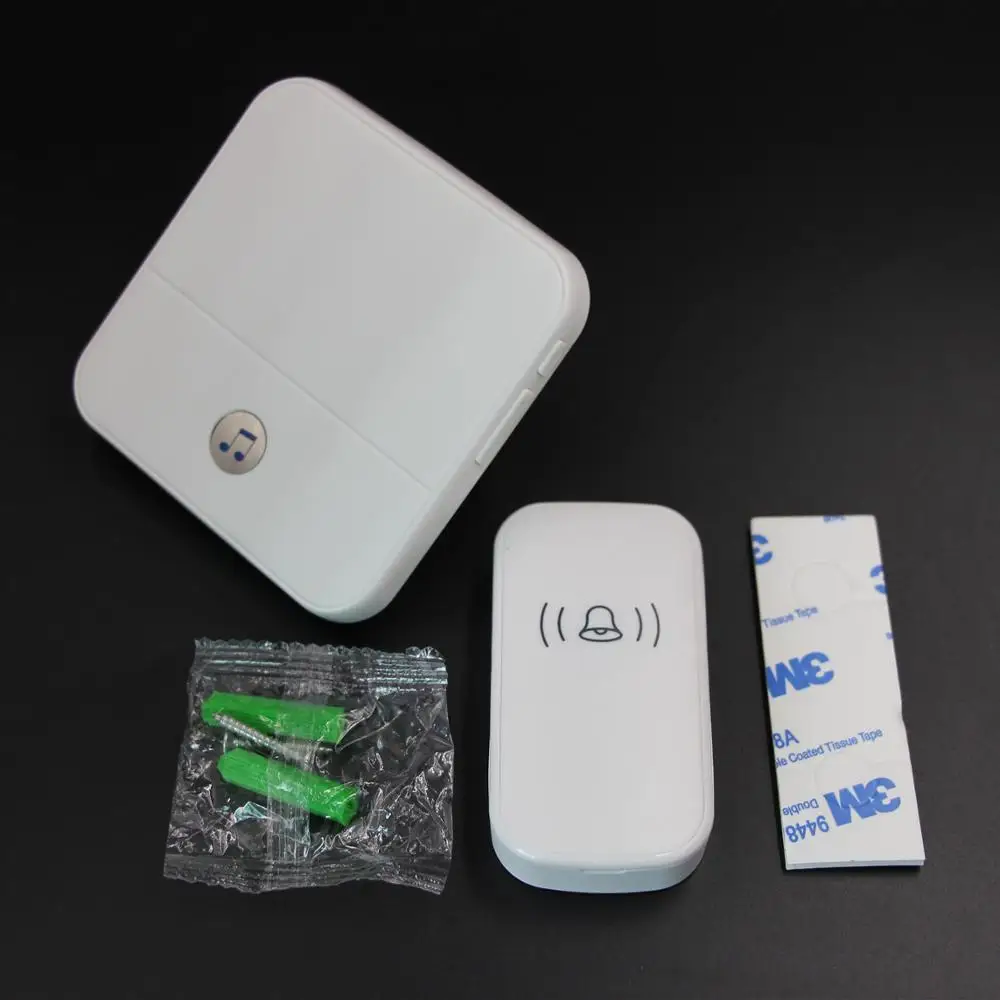

Packing List
1 x Plug-in Chime
1 x Touch Button
1 x DC12V 23A battery for Touch Button
2 x mounting screws
2 x screw pegs
1 x Double-sided adhesive tape
1 x instruction manual
1 x Touch Button
1 x DC12V 23A battery for Touch Button
2 x mounting screws
2 x screw pegs
1 x Double-sided adhesive tape
1 x instruction manual
Product Paramenters
Receiver/Plug-in Chime | Transmitter/Touch Button | ||||
Working voltage | AC 90~260V | Power Consumption | ≤0.01mW | ||
Standby Power Consumption | ≤10 mW | Battery | 12V/23A alkaline battery | ||
Output Power | 0.15W | Modulation mode | ASK/ OOK | ||
Sensitivity | -112dbm | Working Current | 20mA | ||
Volume | MAX 100db | Transmit Power | 0dbm | ||
Working Frequency | 433.92 MHz±75KHz | ||||
Safety Instructions
1. Please install your doorbell according to this manual to avoid any malfunctions or damage.
2. The Plug-in Chime is designed for indoor use only.
3. The Plug-in Chime is not user serviceable, there is a danger of electric shock if opened.
4. Use only high quality alkaline battery. Using poor quality batteries will reduce the maximum
range.
5. Do not expose either unit directly to rain/dripping or immerse in water.
6. Do not mount either unit close to a fireplace or expose to high temperature.
7. Never use any cleaning chemicals or wet cloth to clean the unit. Only use a dry, clean and soft
cloth/micro fiber cloth.
8. Do not position the Push Button onto any metal surface or UPVC door frames, as this will
reduce the operation range.
9. If not using the Plug-in Chime for long periods, unplug it from the socket and remove the
battery from Push Button to prevent leakage.
10. Dispose the old battery in accordance with the relevant legislation.
2. The Plug-in Chime is designed for indoor use only.
3. The Plug-in Chime is not user serviceable, there is a danger of electric shock if opened.
4. Use only high quality alkaline battery. Using poor quality batteries will reduce the maximum
range.
5. Do not expose either unit directly to rain/dripping or immerse in water.
6. Do not mount either unit close to a fireplace or expose to high temperature.
7. Never use any cleaning chemicals or wet cloth to clean the unit. Only use a dry, clean and soft
cloth/micro fiber cloth.
8. Do not position the Push Button onto any metal surface or UPVC door frames, as this will
reduce the operation range.
9. If not using the Plug-in Chime for long periods, unplug it from the socket and remove the
battery from Push Button to prevent leakage.
10. Dispose the old battery in accordance with the relevant legislation.
Related Product
SOS Personal Alarm System
Model namber：805
Wireless Range：up to 250+ feet in open air
Selectable Ringtone：52
Work Frequency：315MHz/433MHz
Volume：5 levels, 10db to 110db
Working voltage：AC 90~260V
Button Wireless Door Bell
Model namber：B8013
Wireless Range：up to 250+ feet in open air
Selectable Ringtone：52
Work Frequency：315MHz/433MHz
Volume：5 levels, 10db to 110db
Selectable Ringtone：52
Work Frequency：315MHz/433MHz
Volume：5 levels, 10db to 110db
Working voltage：AC 90~260V
Touch Series Door Bell
Model namber：A8013
Wireless Range：up to 250+ feet in open air
Selectable Ringtone：52
Work Frequency：315MHz/433MHz
Volume：5 levels, 10db to 110db
Selectable Ringtone：52
Work Frequency：315MHz/433MHz
Volume：5 levels, 10db to 110db
Working voltage：AC 90~260V
Details Images
Product Application
Doorbell for apartment / privite house / office / school / hospital / villas / kids bedroom...
Warehouse emergency management
Our Service
Case customization
For the bulk purchase consumer, we provide the case customization and even the hardware design just for your customized housing
Logo printing customization
We can print your own logo on the case in any color (Gradient color will relatively cost more).
