Полностью автоматическая крышка для подъемника и
- Категория: Укупорочные машины >>>
- Поставщик: Shanghai,Npack,Automation,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 5117.1 $* | 5373.43 $* |
| Aug-18-2025 | 5074.52 $* | 5328.99 $* |
| Jul-18-2025 | 4257.52 $* | 4470.17 $* |
| Jun-18-2025 | 4988.88 $* | 5237.48 $* |
| May-18-2025 | 4343.30 $* | 4560.31 $* |
| Apr-18-2025 | 4902.86 $* | 5147.88 $* |
| Mar-18-2025 | 4859.39 $* | 5102.38 $* |
| Feb-18-2025 | 4816.33 $* | 5057.45 $* |
| Jan-18-2025 | 4773.24 $* | 5012.13 $* |
Характеристики

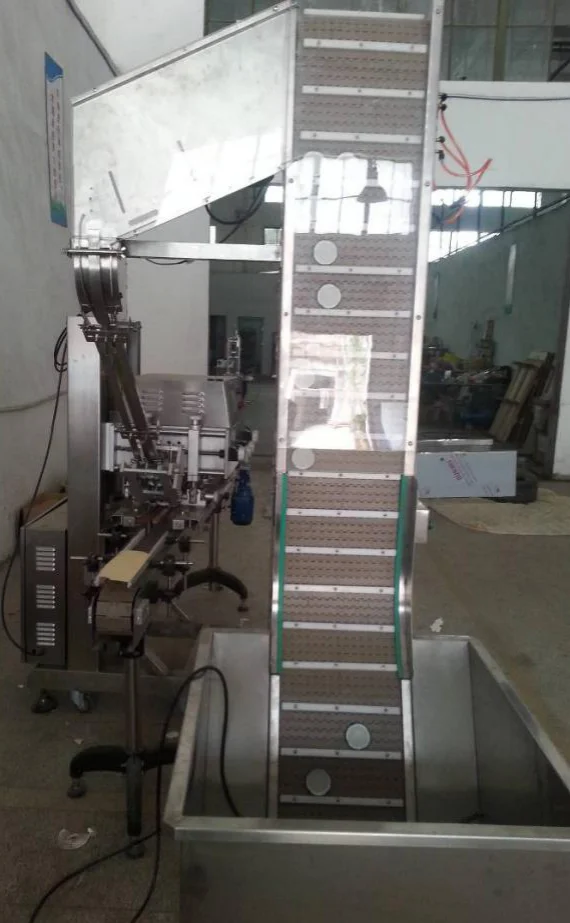

NP-CSE CAP ELEVATOR
This elevator with good conveying ability, lift elevator is designed to elevate different types of caps with different
specifications. The elevator is suitable to automatically convey plastic and metal bottle caps into the caps collection device of
capper main machine. The conveying chain adopts high strength wear proof plate chain, lengthening the service life of chains and
hopper. The high elevate height, slow stable conveying speed and advanced design, ensure the stability of the whole machine. Easy
operation and maintenance with little consumerable spare parts.
specifications. The elevator is suitable to automatically convey plastic and metal bottle caps into the caps collection device of
capper main machine. The conveying chain adopts high strength wear proof plate chain, lengthening the service life of chains and
hopper. The high elevate height, slow stable conveying speed and advanced design, ensure the stability of the whole machine. Easy
operation and maintenance with little consumerable spare parts.
Item No. | NP-CSE |
Cap Diameter | 20-120mm |
Dimensions | 2550*1090*1140mm |
Weight | 200KG |
The adjustment of caps guide rail
The gallery should be bigger than the diameter of the caps.
Oblique bar adjustment
The distance between the oblique bar and the elevate bar is 1-3mm. The ideal status is there is no rubs between the oblique bar
and elevate bar while operation.
and elevate bar while operation.
Connection and adjustment

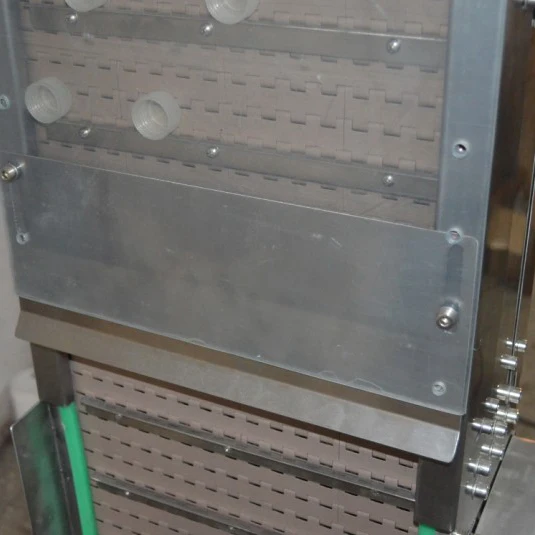

Hyaline PC cover position adjustment. The distance between the inner side of hyaline PC cover and the convey chain shall 2-6mm
more than the height of the caps.
more than the height of the caps.
The adjustment of guide rail
Adjust to a suitable distance for the smooth slide of caps as per caps diameter and height.
Main Feature:
1.Simple structure and easy operation
2.304 stainless steel materials thus easy maintain and cleaning
3.Hopper (Volume at about 150L) is capable to store numbers of caps
4.Constant elevating speed and stepless adjustment.
5.AC 220V motor drive, good generality
2.304 stainless steel materials thus easy maintain and cleaning
3.Hopper (Volume at about 150L) is capable to store numbers of caps
4.Constant elevating speed and stepless adjustment.
5.AC 220V motor drive, good generality
