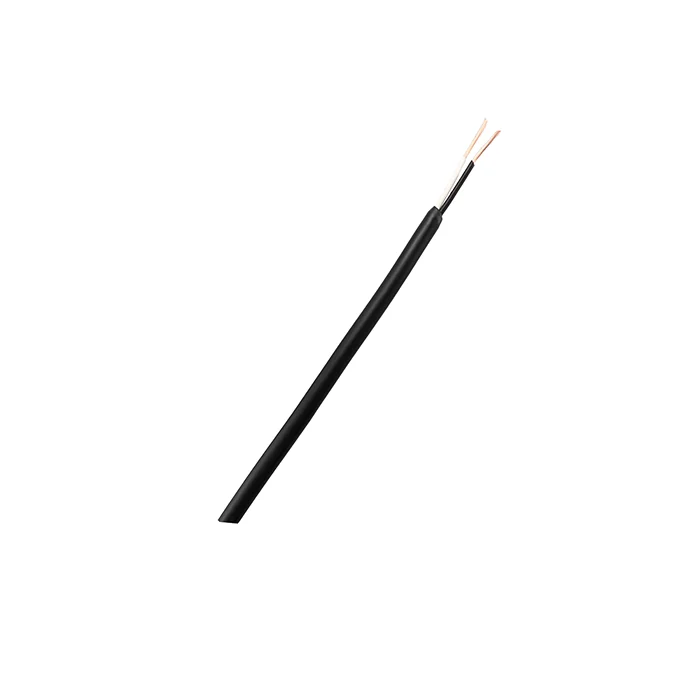

UL2547 2core 28AWG double pvc multi-core hook up wire

All our wires and cables are made of 99.99% pure oxygen free copper and high quality PVC which comply with the European Union RoHS environmental protection instruction.

SPECIFICATION:   UL2547  2 core 28AWG 7/0.127mm

RATED TEMPERATURE: 80 centigrade degree

REFERENCE STANDARD: UL758

Pass FLAME TEST: UL VW-1,  FT1 flame test

Insulation material  :PVC

Jacket Material :PVC







CONDUCTOR				INSULATION		SHIELD	JACKET		MAX.COND RESISTANCE (Ω/kft,20℃)
AWG	CONSTRUCTION (No./mm)	DIA (mm)	(NO.)	THICKNESS (mm)	OD (mm)	CONSTRUCTION (No./mm)	THICKNESS (mm)	OD (mm)
30	7/0.10	0.3	2	0.23	0.70	45/0.10	0.40	2.60	116
			3	0.23	0.70	48/0.10	0.40	2.80
28	7/0.127	0.38	2	0.23	0.85	50/0.10	0.40	2.80	72.8
			3	0.23	0.85	56/0.10	0.40	3.00
26	7/0.16	0.48	2	0.23	1.00	58/0.10	0.40	3.00	45.8
			3	0.23	1.00	52/0.12	0.40	3.20
24	11/0.16	0.61	2	0.23	1.10	51/0.12	0.40	3.30	28.7
			3	0.23	1.10	57/0.12	0.40	3.45
22	17/0.16	0.76	2	0.23	1.30	60/0.12	0.40	3.70	18.1
			3	0.23	1.30	64/0.12	0.40	3.90
20	26/0.16	0.94	2	0.23	1.50	69/0.12	0.40	4.10	11.2
			3	0.23	1.50	74/0.12	0.40	4.30
18	41/0.16	1.18	2	0.23	1.80	82/0.12	0.55	5.00	7.06
			3	0.23	1.80	88/0.12	0.55	5.30



     Q: Are you manufacturer or trading company?

     A: We are the factory who specialize in the production of ul electrical wire,automotive wire

          building wire , motor lead wire and solar cable since 2009.



     Q: How can I go to your factory?

     A: We are located in Lingkou Industrial Park , Danyang City , Jiangsu Province , China.

          There’re tow kind transportation methods.

          1) Flight to Shanghai , and aboard one-hour Harmony train from Shanghai Station to

          Danyang  Station.

          2)Flight to Changzhou , and aboard 20-minute Harmony train from Changzhou Station to

          Danyang Station.



     Q: Can you show us your products test report?

     A: Of course . I can e-mail the copy one to you.

         Our products have passed RoHS & REACH test.



     Q: Can I have the sample?

     A:  Yes . The free samples are available . You just need to afford the freight cost.



     Q: How long can I expect to get the samples?

     A:  If there’ stock , it can be delivered within 1 day . If not , it will be 3-5 days.



     Q: OEM can be accepted?

     A:  Yes , it can be accepted.



     Q: Some special wire can be producted?

     A:  Yes , we can do the customer wire according to your drawings or specifications.



     Q: What’s your delivery time?

     A:  It depends on your quantity.
