H/L Напряжение зажим измеритель тока с хранения

Model

ETCR9100 H/L Voltage Clamp Current Meter

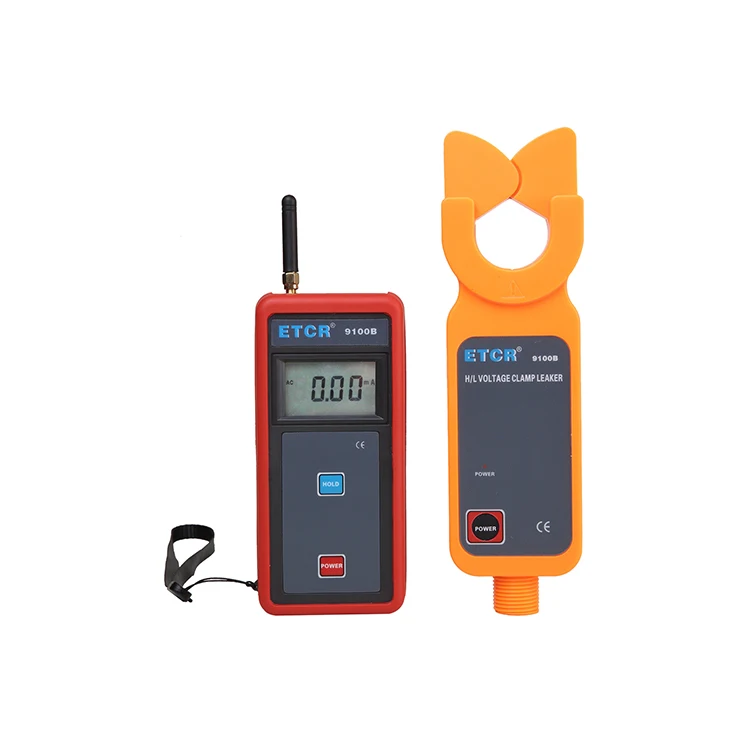

ETCR9100B Wireless H/L Voltage Clamp Current Meter

Measurement Range

AC 0.00mA~600A(50/60Hz Auto)

AC 0.00mA~600A(50/60Hz Auto)

Resolution

0.01mA

0.01mA

Test Accuracy

0.00mA~100A:      ±1%±5dgt

0.00mA~100A:      ±1%±5dgt

101A~600A:        ±2%±5dgt

101A~600A:        ±2%±5dgt

Power supply

6V DC(LR03×4 alkaline dry batteries)

6V DC(LR03×4 alkaline dry batteries)

CT size

33mm

33mm

Meter Dimension

68mm×245mm×40mm

68mm×245mm×40mm,

Receiver:78mm×165mm×42mm

Insulation Rod Dimension

32mm,1m×5

32mm,1m×5

Weight

3450g(include insulation rot and battery)

3630g(include insulation rot and battery)

LCD Dimension

47mm×28.5mm

Sampling Rate

2 times/second

*PEAK Hold

Automatically hold the highest test value. In the test mode, long press the PEAK key until the PEAK light on, which turns on the PEAK hold function (only for ETCR9100)

*Communication Mode

wireless transmission, straight distance transmission 30m(only to ETCR9100B)

Data Hold

In usual test mode, press HOLD key to keep the data, display “HOLD” symbol, press HOLD key again cancel

Data Storage

99 groups , storage process display MEM symbol , “FULL” symbol display indicate that storage full

Data Access

“MR” symbol indication, can access all storage data

Overflow Display

Exceed measure range overflow function: “OL A” symbol display

Automatic Shut Down

15 minutes after boot up, the meter shuts down automatically without any operation, to reduce battery consumption

Battery Voltage

When battery voltage is lower than 4.8V, low battery voltage symbol “” will display and remind to replace battery.

Line Voltage

Below 60kV current test with insulation skin wire, below 35kV current test with bare wire(operation with insulation rods)

Insulation Strength

Between the 5^th insulation rod and high voltage meter shell: AC 100kV/rms;

Between high voltage meter shell and iron core: AC1000V/rms

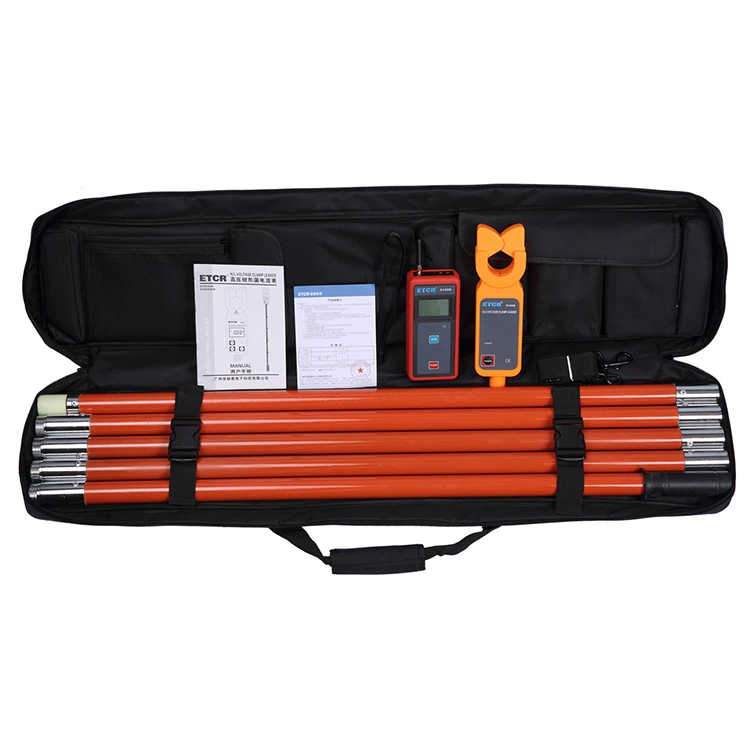

Accessories

Meter: 1PCS; insulation rod (1m): 5PCS; Tool bag: 1SET

Meter: 1PCS; Receiver: 1PCS; Insulation rod (1m): 5PCS; Tool bag: 1SET
