Оригинальный usb-модем sierra wavecom fastrack m2m xtend
- Категория: Modems >>>
- Поставщик: Shenzhen,Bailingjia,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-16-2025 | 121.36 $* | 123.20 $* |
| Jul-16-2025 | 98.82 $* | 100.72 $* |
| Jun-16-2025 | 119.14 $* | 121.83 $* |
| May-16-2025 | 118.35 $* | 120.59 $* |
| Apr-16-2025 | 94.94 $* | 96.33 $* |
| Mar-16-2025 | 116.68 $* | 118.26 $* |
| Feb-16-2025 | 115.27 $* | 117.69 $* |
| Jan-16-2025 | 114.14 $* | 116.88 $* |
Характеристики
original sierra wavecom fastrack usb modem m2m xtend fxt009 modem
Product Description
Picture show:
Features and Services:
| Features | Description | |
| Open AT Application Framework | ♦Open AT Application Framework programmable: –Native execution of embedded standard ANSI C applications –Custom AT command creation –Custom application library creation –Standalone operation ♦Interface for embedded applications ♦Library compatible | |
| Standard | ♦ 850MHz / 900 MHz ♦ E-GSM compliant ♦ Output power: class 4 (2W) ♦ Fully compliant with ETSI GSM ♦ phase 2 + normal MS | ♦1800 MHz / 1900MHz ♦Output power: class 1 (1W) ♦Fully compliant with ETSI GSM phase 2 + normal MS |
| GPRS | ♦ Class 10 ♦ Class 12 (FX100 only) ♦ PBCCH support ♦ Coding schemes: CS1 to CS4 ♦ Compliant with SMG31bis ♦ Embedded TCP/IP stack | |
| EGPRS | ♦ Class 10 ♦ Class 12 (FX100 only) ♦ PBCCH support ♦ Coding schemes: CS1 to CS4 ♦ Compliant with SMG31bis ♦ Embedded TCP/IP stack | |
| Interface | ♦ RS232 (V.24/V.28) Serial interface supporting: –Baud rate (bits/s): 300, 600, 1200, 2400, 4800, 9600, 19200, 38400, 57600,115200, 230400, 460800 and 921600 –Autobauding (bits/s): from 1200 to 921600 –2 General Purpose Input/Output gates (GPIOs) available ♦ 1.8 V / 3 V SIM interface ♦ AT command set based on V.25ter and GSM 07.05 & 07.07 | |
| SMS | ♦Text & PDU ♦POINT TO POINT (MT/MO) ♦Cell broadcast | |
| Data | ♦Data circuit asynchronous ♦Transparent and Non Transparent modes ♦Up to 14.400 bits/s ♦MNP Class 2 error correction ♦V42.bis data compression | |
| UMTS Data Transfer (FX100 only) | BAND I, II, V, VI, VIII (2100/1900/850/800/900) up to 384kbits/s | |
| HSXPA (FX100 only) | ♦BAND I, II, V, VI, VIII (2100/1900/850/800/900) ♦HSDPA Cat 10 up to 14.4Mbits/s ♦HSUPA Cat 6 up to 5.76Mbits/s | |
| FAX (FXT009 only) | Automatic fax group 3 (class 1 and class 2) | |
| Audio | ♦Echo cancellation ♦Noise reduction ♦Full Rate, Enhanced Full Rate, Half Rate operation and Adaptive Multi-Rate (FR/EFR/HR/AMR) ♦Dual Tone Multi Frequency function (DTMF). Note that this can be supported by FX100 with Firmware 7.52.A1 or later. | |

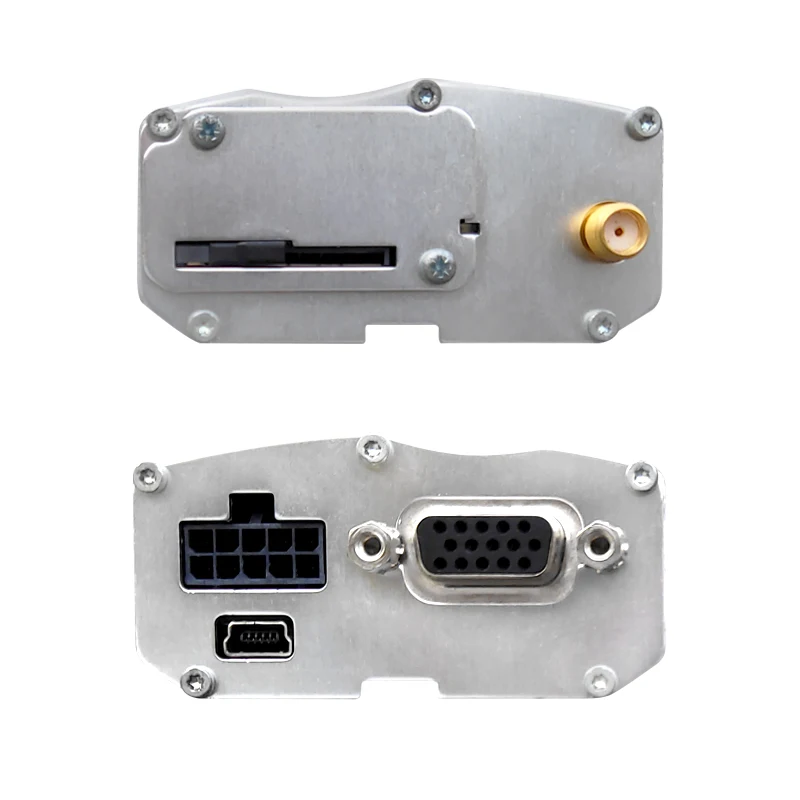

Interfaces:
This section describes the different interfaces that connect with the FX Series. The FX Series comes
with the following interfaces:
♦ 10-pin Micro-Fit Connector
♦ USB Interface (mini-B connector)
♦ 15-pin Sub-D Serial Interface
♦ Main RF Interface
♦ Secondary RF Interface (for FX100 only)
♦ GPS RF Interface (for FX100 only)
♦ SIM Interface
♦ LED Status Indicator
Power Supply Connector:
The power supply connector is a 10-pin Micro-Fit connector that is used for:
♦ External DC Power Supply connection with voltage from +4.75V to +32V, at 3A on FXT009
and 3.7A on FX100
♦ GPIOs connection and GPIO voltage reference
♦ ON/OFF pin to power OFF the FX Series
♦ Interrupt pin
Serial Interface:
A SUB-D 15-pin connector is available as a serial interface to directly communicate with the FX Series.
This serial interface is used for:
♦ RS232 serial link connection
♦ Audio lines connection (microphone and speaker)
♦ BOOT signal connection (not used in FX100)
♦ RESET signal connection
USB Interface:
Aside from the serial interface, the Mini-B USB interface (USB slave) may also be used to directly
communicate with the FX Series.
Ethernet Expansion Card Installation:
Expansion Card Removal:
To remove the X-card from the FX Series, insert the extraction tool hook into the X-card extraction hole located under the PCB. Once in place, pull the extraction tool to extract the X-card from the FX Series.
Packaging & Shipping
Packing : Neutral packing
Shipping: DHL/EMS/UPS/TNT/FEDEX
Our Services
We offer the best services and sale after to our customers, Pls feel free to contact us!
Before packing,we have strict testing system to insure the high quality of our goods. all of our product with 1 year warranty.
