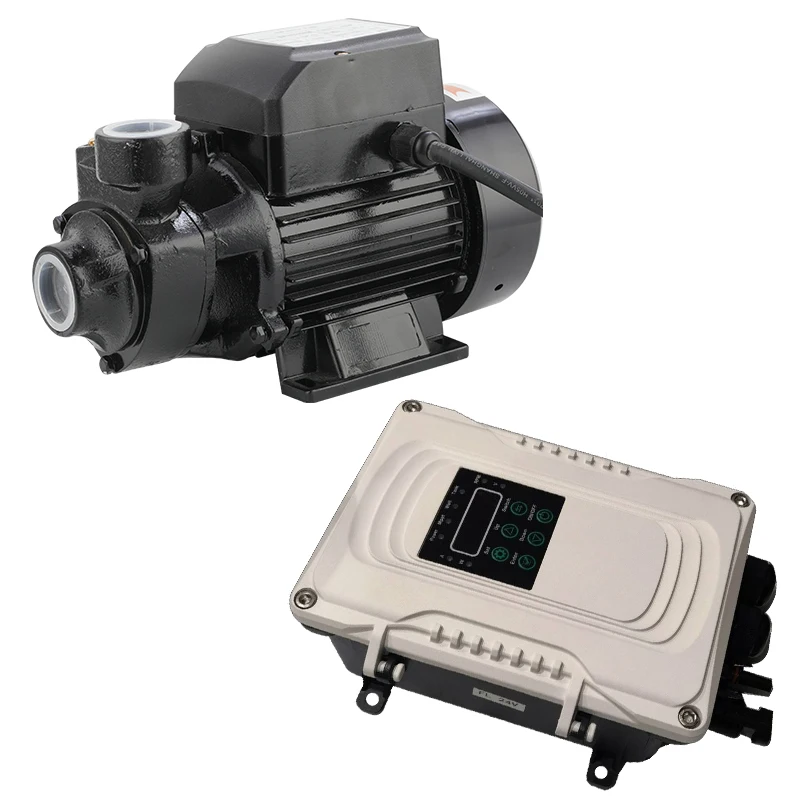

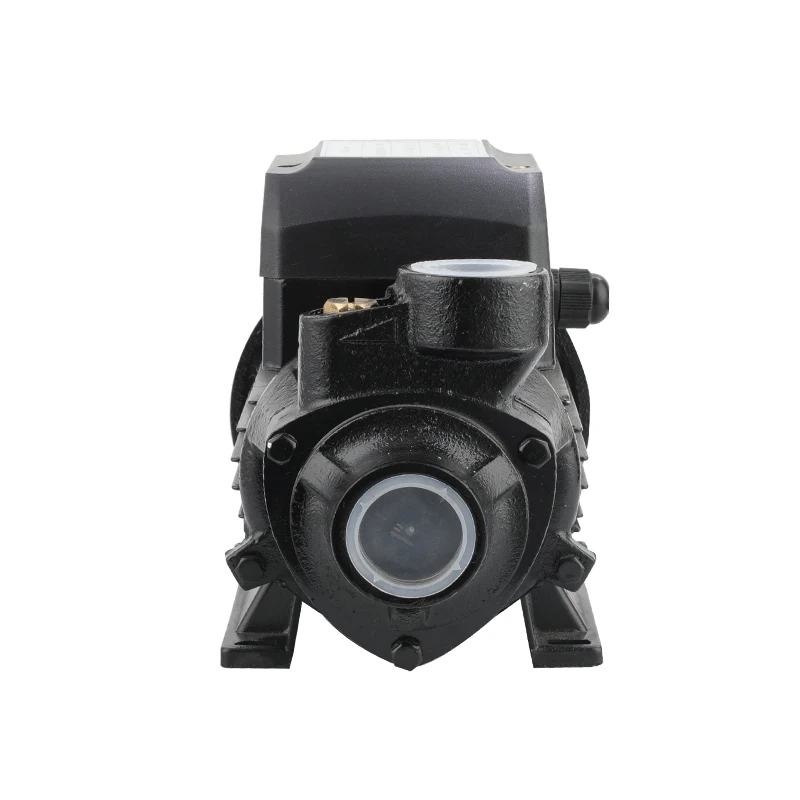

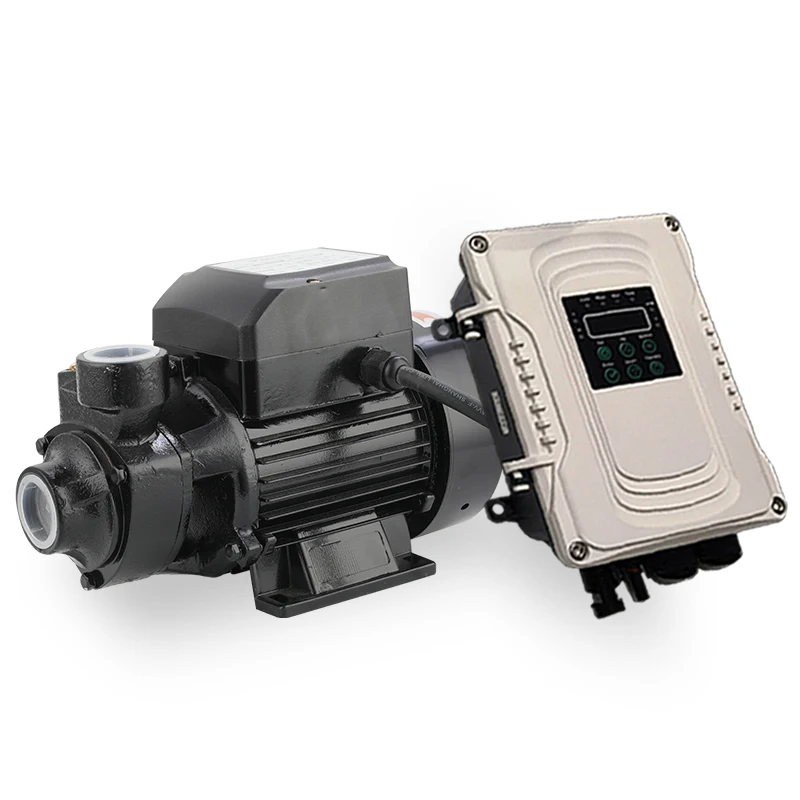

24 В 48 550 Вт 750 1100 постоянный ток насос для поверхностной воды на солнечной батарее бытовой
- Категория: Насосы >>>
- Поставщик: Hangzhou,Qinjie,Electromechanical,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-16-2025 | 215.2 $* | 219.93 $* |
| Jul-16-2025 | 174.76 $* | 177.61 $* |
| Jun-16-2025 | 211.5 $* | 215.64 $* |
| May-16-2025 | 210.33 $* | 214.91 $* |
| Apr-16-2025 | 167.14 $* | 170.5 $* |
| Mar-16-2025 | 206.83 $* | 210.74 $* |
| Feb-16-2025 | 204.52 $* | 208.70 $* |
| Jan-16-2025 | 203.95 $* | 207.9 $* |
Характеристики
Pump Description
Pump Details
MPPT Controller
◆MPPT function, the solar power utilization rate is higher.
◆LED displays the power,voltage,current,speed etc working conditon.
◆Automatically start and stop working.
◆Water proof and leak-proof:bouble seal effect.
◆Soft start: no impulse current, protect the pump motor.
◆High voltage/low voltage protection, over-current/over-load.
◆Protection, the winding won't be burned.
◆LED displays the power,voltage,current,speed etc working conditon.
◆Automatically start and stop working.
◆Water proof and leak-proof:bouble seal effect.
◆Soft start: no impulse current, protect the pump motor.
◆High voltage/low voltage protection, over-current/over-load.
◆Protection, the winding won't be burned.
Product Parameter and connection
DC Solar Water Pump for Deep Well | ||
Pump Data | Model: SQB3.0/60-D72/750 Power: 750W Voltage:72V Max flow: 3m3/h Max head: 60m(can pump 360m horizontal distance) Outlet Dia: 1*1inch Solar panels suggest :4*275W | |
Pump Size (mm) | A B C D E 298 135 180 25 25 | |
Technical Data of Other Solar Pump Model
Model | Pump | Solar Panels | Max. Flow (m³/h) | Max. Head (m) | Outlet Dia. (inch) | Solar Panels (PCS) | ||||
Voltage (V) | Power (W) | Voc (V) | Power (W) | |||||||
SQB2.0/25-D24/210 | 24 | 210 | 25-50 | 315 | 2.0 | 25 | 1×1 | 1*330W | ||
SQB2.2/35-D24/280 | 24 | 280 | 25-50 | 420 | 2.0 | 25 | 1×1 | 2*275W | ||
SQB3.0/50-D48/550 | 48 | 550 | 50-100 | 825 | 3.0 | 50 | 1×1 | 4*275W | ||
SQB3.0/60-D72/750 | 72 | 750 | 75-150V | 1125 | 3.0 | 60 | 1×1 | 3*350W | ||
SCPM6.6/35-D72/750P | 72 | 750 | 75-150V | 1125 | 6.6 | 35 | 1*1 | 3*350W | ||
SCPM4.8/22-D48/370 | 48 | 370 | 50-100 | 555 | 4.8 | 22 | 1*1 | 2*275W | ||
SCPM6.6/35-D48/750 | 48 | 750 | 50-100 | 1125 | 6.6 | 35 | 1*1 | 3*350W | ||
SCPM16/18-D48/750 | 48 | 750 | 50-100 | 1125 | 16 | 18 | 1.5*1.5 | 3*350W | ||
SCPM27/15-D72/1100 | 72 | 1100 | 75-150V | 1650 | 27 | 15 | 2*2 | 6*275W | ||
SCPM55-17-D110-1500 | 110 | 1500 | 100-200 | 1200 | 55 | 17 | 3*3 | 8*275W | ||
SCPM70-16-220/300-2.2 | DC220/AC300 | 2200 | 360-450 | 2900 | 70 | 16 | 4*4 | 8*400W | ||
SJET2.5/35-D48/370 | 48 | 370 | 50-100 | 555 | 2.5 | 35 | 1*1 | 2*275W | ||
SJET2.7/45-D48/550 | 48 | 550 | 50-100 | 825 | 2.7 | 45 | 1×1 | 4*275W | ||
SJET3.0/55-D72/750 | 72 | 750 | 75-150V | 1125 | 3.0 | 55 | 1×1 | 4*275W | ||
SZB2.1/25-D24/180 | 24 | 180 | 25-50 | 270 | 2.1 | 25 | 1*1 | 1*275W | ||
SZB2.5/35-D24/300 | 24 | 300 | 25-50 | 450 | 2.5 | 35 | 1*1 | 2*275W | ||
SZB3.2/40-D48/550 | 48 | 550 | 50-100 | 825 | 3.2 | 40 | 1*1 | 4*275W | ||
SZB4.0/45-D48/750 | 72 | 750 | 50-100 | 1125 | 4 | 45 | 1*1 | 4*275W | ||
SJP6/9-24/200 | 24 | 200 | 25-50 | 300 | 6 | 9 | 1.5*1.5 | 1*330W | ||
SJP17/15-D48/500 | 48 | 500 | 50-100 | 750 | 17 | 15 | 2×2 | 4*275W | ||
SJP21/19-D72/900 | 72 | 900 | 75-150V | 1350 | 21 | 19 | 2×2 | 6*275W | ||
SJP31/19-D72/1200 | 72 | 1200 | 75-150V | 1800 | 31 | 19 | 3×3 | 6*330W | ||
All in one solar pump system supplier
The price on our shop is only pump and controller, if you need solar panel and other accesories, pls contact with us!
Packing List

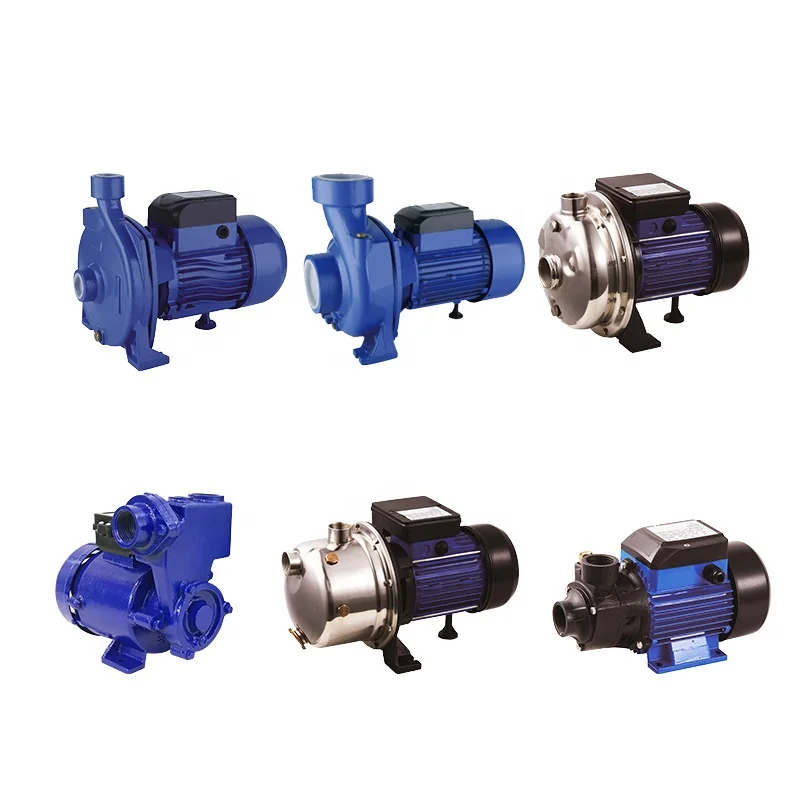

Related Solar Products
How to Follow Us!
Feedback of Solar Pump
Brief introduction of company
Hangzhou Qinjie Electromechanical Co.,ltd is a branch company established by Feili Pump in 2015, based in Hangzhou city-famous E-commerce city, provincial capital of Zhejiang Province.
We mainly produce and sell series of pump includes solar water pumps, submersible pumps, pipeline pumps and fountain pumps. Our goal is providing high-quality, cost-effective solar water pumps to customers around the world, let's make world more eco friendly!
Hangzhou Qinjie followed ISO9001 quality system, has strict quality control procedure, use good raw material for all pumps to make sure pump's quality. We have a 9,000 square meter workshop and two assembly lines with the ability to produce motors, assemble pumps, test and develop. Currently has 5 utility model patents.
At the same time, we implement After-ales service feedback system which can offer solutions within 24 hours to support customers if need.
At present, our pumps have obtained relevant export certificates such as CE, SGS CB, and our pumps have gained certain market share and brand recognition in Southeast Asia, Africa and North America.
We mainly produce and sell series of pump includes solar water pumps, submersible pumps, pipeline pumps and fountain pumps. Our goal is providing high-quality, cost-effective solar water pumps to customers around the world, let's make world more eco friendly!
Hangzhou Qinjie followed ISO9001 quality system, has strict quality control procedure, use good raw material for all pumps to make sure pump's quality. We have a 9,000 square meter workshop and two assembly lines with the ability to produce motors, assemble pumps, test and develop. Currently has 5 utility model patents.
At the same time, we implement After-ales service feedback system which can offer solutions within 24 hours to support customers if need.
At present, our pumps have obtained relevant export certificates such as CE, SGS CB, and our pumps have gained certain market share and brand recognition in Southeast Asia, Africa and North America.
From production to delivery
Production Process
Shipping
Equipemet

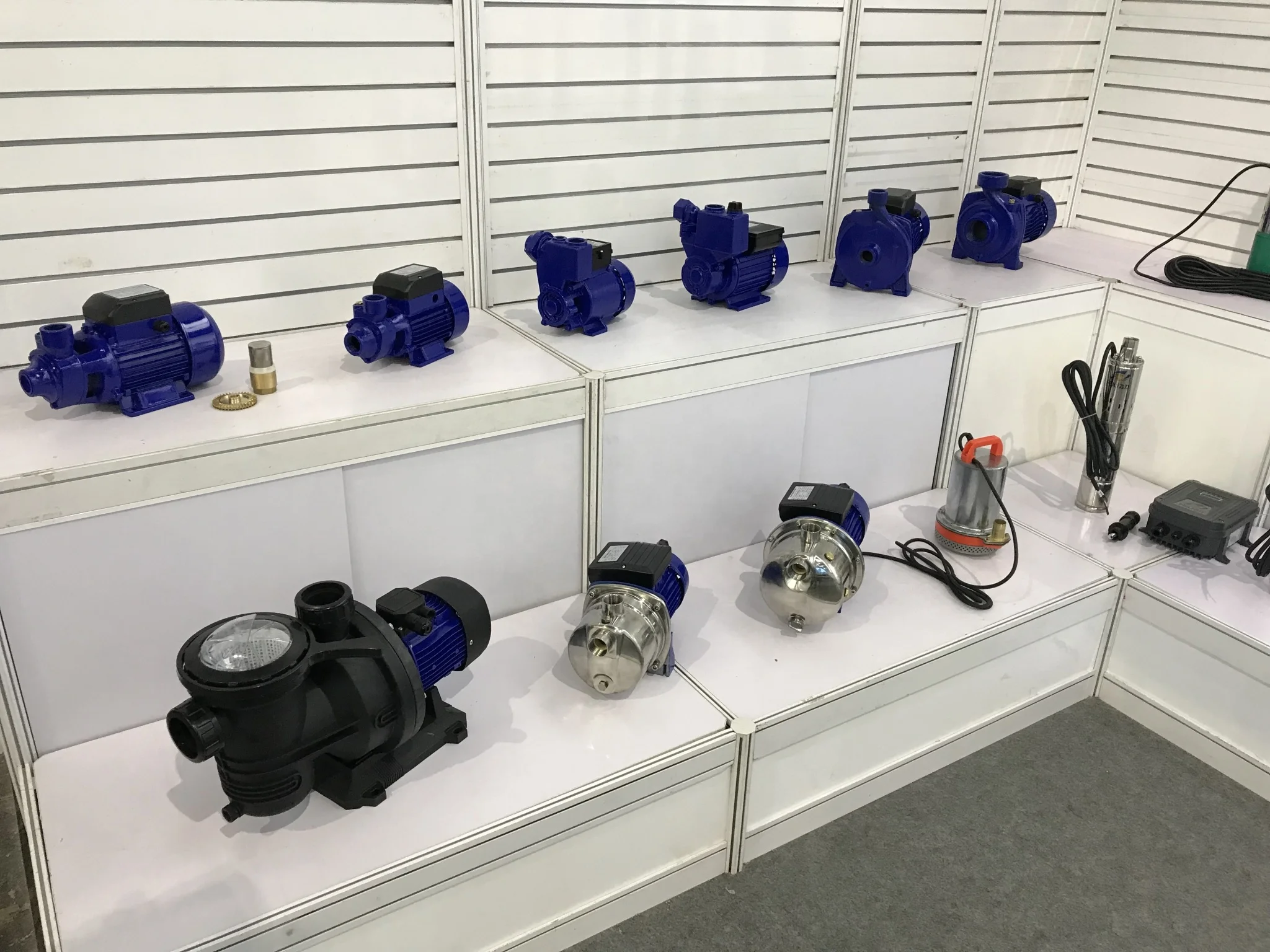

Real picture of workshops
