DFUN Stand-by Batteries Monitoring System for Monitoring Battery Cells & Strings

What is Included?

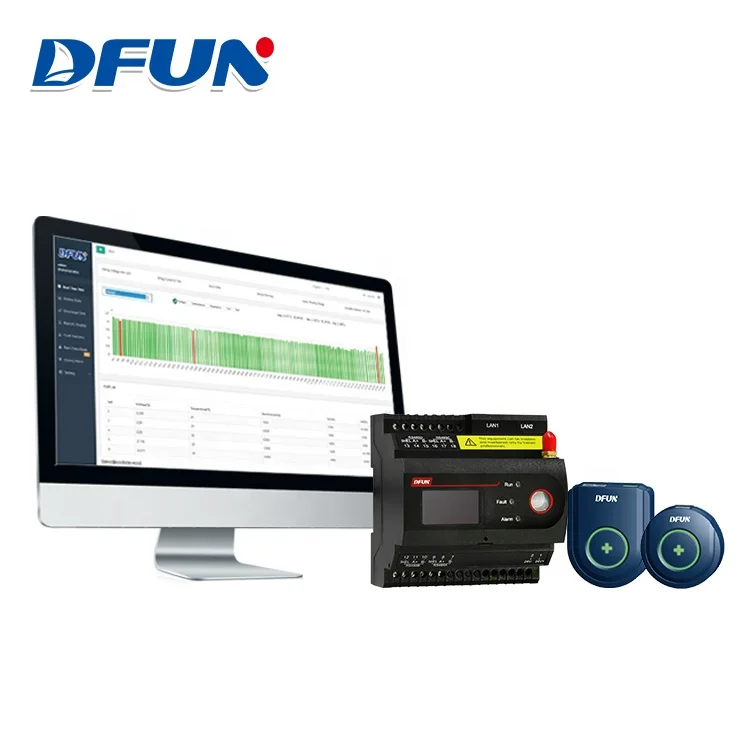

PBAT-GATE --- Data Center Battery Monitoring Solution

Feature

▸ Build-in Web Server

▸ With Data Management and Data Report

▸Real-time Monitoring 1~4 Strings, Max. 480pcs Batteries

▸Data logging for all measuring data for 12 months

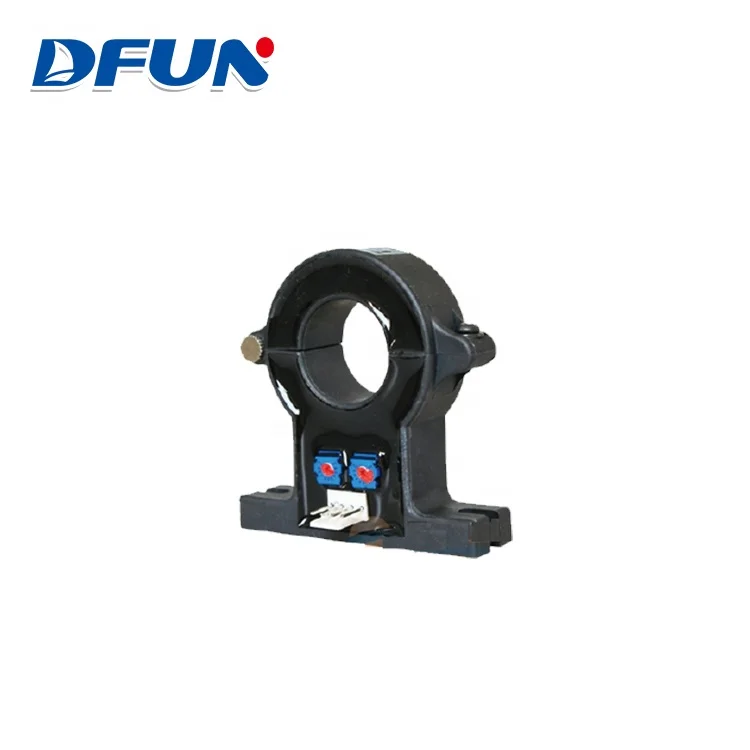

▸ Charge and Discharge Current

▸Internal Temperature, Impedance

▸String Voltage & Current, Cell Battery Voltage, SOC, SOH (upper limit / lower limit)
▸Support 4G sending SMS alarm

▸ Auto-balancing

Products Description

Battery Type	Lead Acid Battery
Application	Data Center, UPS
Operating System	Embedded Linux
Memory	512MB flash, 8G TF memory card
Total Strings	1~4 Strings
Cell Voltage	2V (1.6~2.6V) 6V (4.8~10V) 12V (7.5~15.6V)
Sleeping Mode	≤10mA
Communication	4 RS485 Serial ports, 2 Ethernet ports (4CL), 2 RS485 Serial ports, 2 Ethernet ports (2ZL)
Communication Protocol	SNMP, Modbus TCP
Weight	Gateway: 650g String Sensor: 400g Battery Sensor: 120g
Baudrate	1200bps ~ 115200bps
Sensor LED Indicates	Green: Normal Status Red: Abnormal Status
HMI	Local Display and Operation (Optional), 7" inch Touch-Screen
Operation Temperature	-15℃ ~ + 55℃
Operation Humidity	10% ~ 95% Non-condensing
Certification	EMC, ROHS, CE, ISO9001

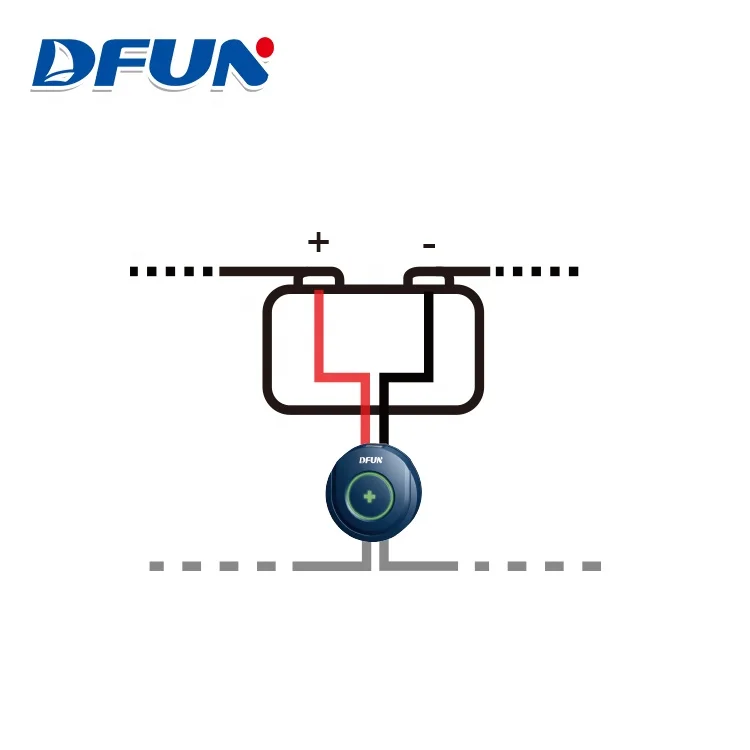

Cell Sensor Hardware Structure

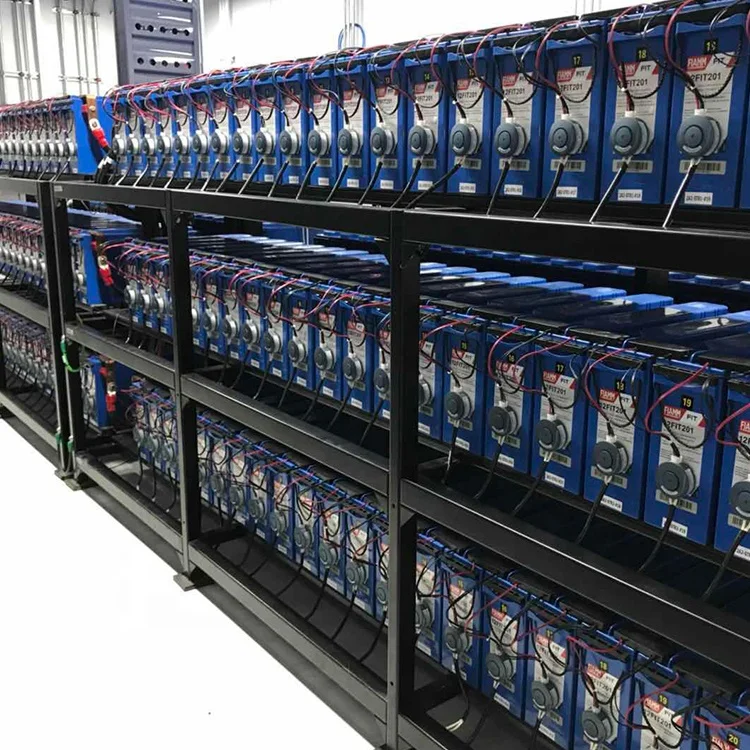

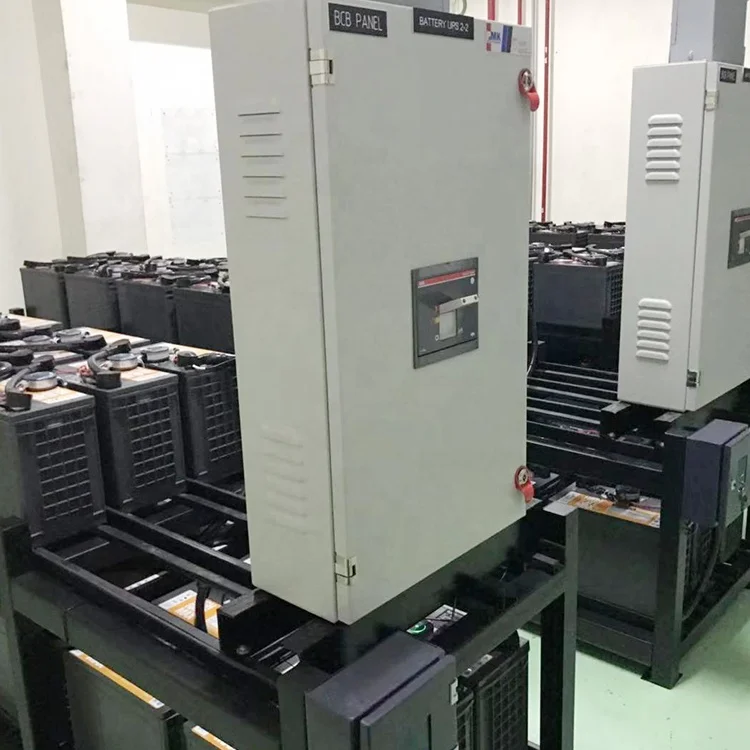

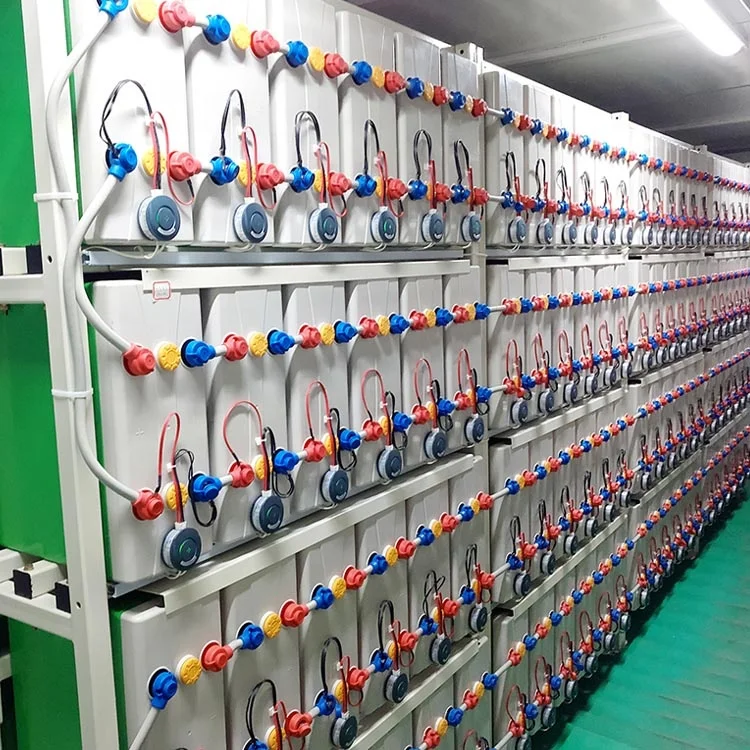

Project Reference
