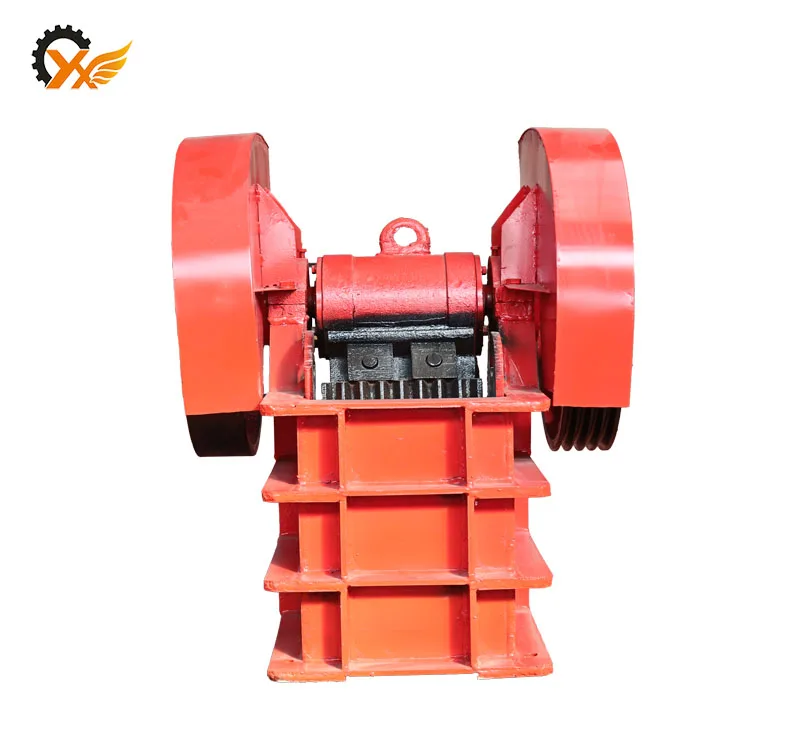

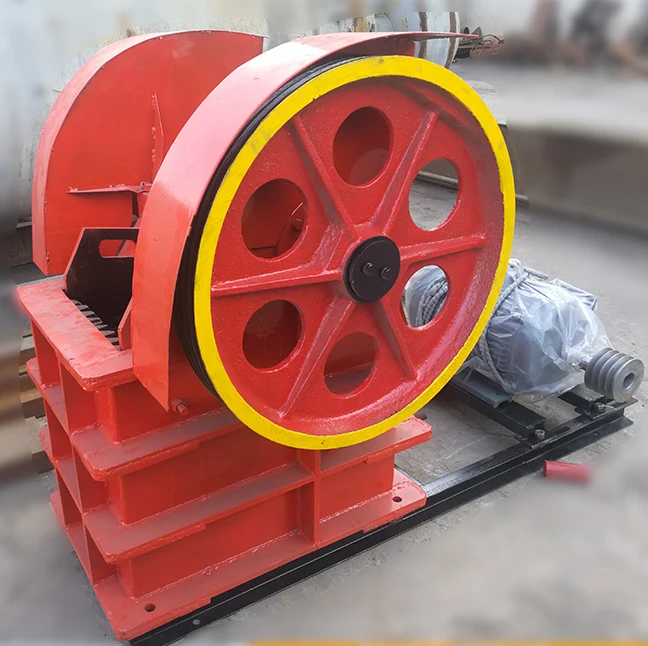

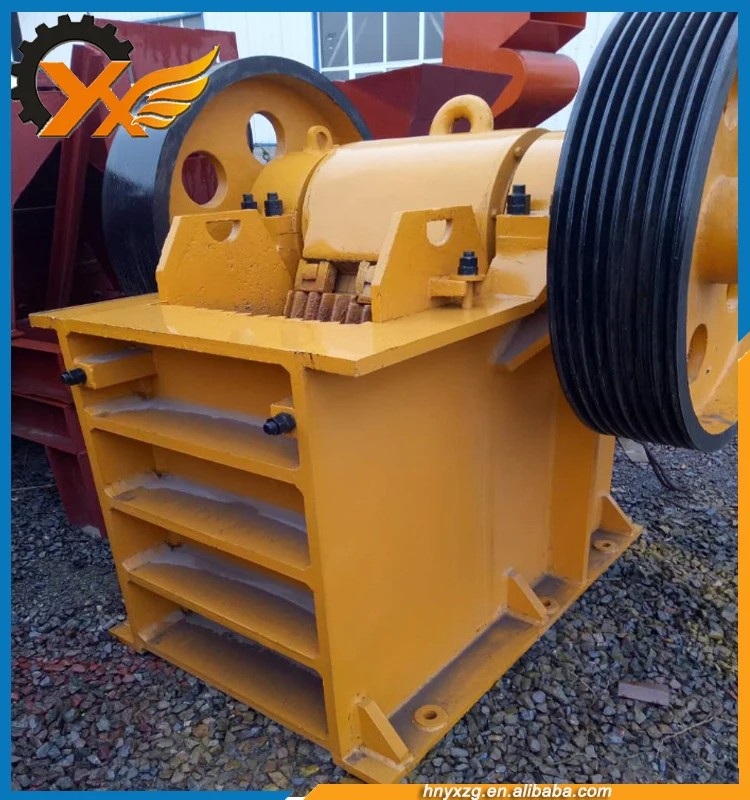

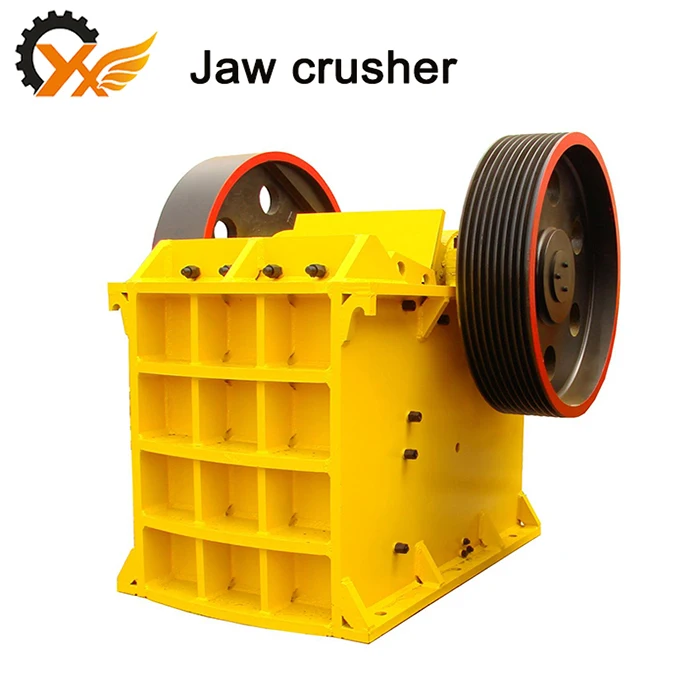

Популярная небольшая щековая дробилка PE400X600 для измельчения камня из карьера


Поделиться:


Цена:1 500,00 $ - 1 600,00 $*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-16-2025 1785.58 $* 1874.49 $*
Aug-16-2025 1770.63 $* 1859.50 $*
Jul-16-2025 1485.87 $* 1559.78 $*
Jun-16-2025 1740.86 $* 1827.73 $*
May-16-2025 1515.21 $* 1591.54 $*
Apr-16-2025 1710.37 $* 1796.89 $*
Mar-16-2025 1695.20 $* 1780.58 $*
Feb-16-2025 1680.54 $* 1764.44 $*
Jan-16-2025 1665.22 $* 1748.96 $*

Характеристики


From Reliable manufacturer,best quality,good service>>

                                                                                                                                                                                                     Miss.Anna

                                                   Whatsapp:+8613837185504

                                                                    Twitter:@Annayuxiang

Popular Ore quarry stone crushing small Jaw crusher PE400X600



Product Description


Jaw Crusher is widely used aggregate crusher to crush all kinds of materials with a compressive strength lower than 320MPa in mining,metallurgy,public road,railway,hydropower and many other industries.



Working Principle



The basic structure of a jaw crusher generally includes seven parts such as driving medium,rack,the jaw plate and side rack ,flywheel,lubrication device,adjusting device and the reset spring.

The main structure of the Jaw Crusher are composed of stander, eccentric shaft, belt pulley, flywheel, movable jaw plate, wrist plate ,adjustable gap screw, offsetting spring, fixed jaw plate. The wrist plate also has the effect of guarding.

This Jaw Crusher's crushing style is the type of driving extrusion. The motor drives the belt and belt pulley to make the moveable jaw move through the eccentric shaft. When movable jaw is rising ,the included angle between the wrist plate and movable jaw becomes bigger to drive the movable plate to be close to the movable plate. At the same time the material is squeezed and rubbed, rolled to achieve multiple crushing;

When movable jaw is descending, the included angle between the wrist plate and movable jaw becomes smaller. Now the crushed material is discharged from the crushing cavity, with the continuous rotation of the motor, the movable jaw crushing and discharging the material periodically to realize batch production.




Parameter list

 Jaw crusher technical parameters >>



Model



Feeder Openining size(mm)
Max. Feeding size (mm)Discharging Opening Size(mm)Capacity (t/h)Motor Power (KW)

Weight

(kg)

Overall Size(mm)
PE150x250150x25013015-451-45.5700896x745x935
PE250x300250x30016515-552-8118001050x987x1000
PE250x400250x40021025-605-2015-18.530001215x1520x1030
PE400x600400x60034040-9010-403072001650x1588x1050
PE350x750350x75029015-5020-503789001485x1680x1648
PE500x750500x750425500-10034-8855113201956x1918x1920
PE600x900600x90048060-12540-12075176002250x2733x2280
PE750x1060750x106063060-15080-16090305302531x2455x2783
PE900x1200900x1200750110-165110-220110500003100x2760x3260
PE1200x15001200x15001020115-195400-8001601000003710x3446x4075
PE150x750150x75012510-405-151536001310x1118x1145
PE250x1000250x100021015-6010-3230-3773501550x1946x1380
PE250x1200250x120021015-6012-383787001530x1964x1380
PE300x1300300x130025025-6015-6565116002000x2320x1730



PE 150x250 size :










Why us



1. Deep-chamber Crushing, High Efficiency and Energy Conservation.

The optimized deep-chamber crushing has no dead zone, so the feeding and crushing efficiency is greatly improved. It can save energy 15%-30% per machine, and the system can save energy more than 1 time.

2. Strong Bearing Capacity and High Stability

The combination of bigger heavy eccentric shaft processed by forging stock, high-manganese steel jaw plate and high-level cast steel movable jaw make the equipment has a stronger bearing capacity and higher stability.

3. Advanced Processing Technology and Long Service Life

Learn advanced manufacturing technology and make a digital analysis of every part's functioning state. It has a compact inner structure and longer service life.

4. Centralized Lubrication System and Easy Maintenance

The uniquely designed centralized lubrication system makes it much quicker in part lubrication and less in maintenance work.

5. Simple Structure, Convenient Check and Repair

Simplify the excessive components on the basic principle of compound pendulum, making the whole equipment simple, efficient, strong in crushing capability, convenient in operation and maintenance and low in operation cost.

6. Big Regulation Range of Discharging Granularity, Multi-Functions

The spacer type discharging regulation device improves its adjustment range of discharging granularity and flexibility, so it can satisfy all kind of processing requirements of customers.

7. Low Noise and Little Dust

This equipment is accordance with the national environmental protection standard. It has low noise and can be equipped with dust removing device. The working environment conforms to the environmental protection requirements totally.

Main parts







Sharp tools make good work


Yuxiang Machinery Factory has brought advanced manfacturing equipments from home & abroad. Numerical control machine tools with high-precision, large processing equipments & special test equipments provide strong safeguard for product quality and ompany development.













Overall Bearing Support


Overall cast steel bearing support fully compatible with the rack, avoiding the combined bearing support has a unnecessary radical load on the bearing during the fastening process, making the bearing to run more smoothly.

Integrated Motor Installation
Integrated installation of motor seat and frame can not only save installation space, reduce the length of v-belt, but also can prolong v-belt working time, since the frame, motor seat, synchronous move of motor, adjustable motor seat bring v-belt tension adjustment.







The  Stone jaw crusher mainly consists of main frame, movable( swing ) jaw, eccentric shaft, toggle plates etc. Toggle plate, toggle block, and toggle seat protect the jaw crusher from damage caused by uncrushable material in the crushing chamber. This construction helps to maintain a stable crushing angle. Simple & quick discharge gap adjustment, precise product grain distribution.







Extraordinary Cavity Design

Symmetrical V-shaped cavity design, high inclination-angle of the toggle, big stroke and reasonable speed, allows a bigger feeding size, higher capacity, uniform particle size and lower wearing of the plate.
  Convenient Particle Size Adjustment
Stone jaw crusher adopts mechanical or hydraulic adjustment for the discharge range, compared with shim adjustment, double wedge adjustment operations is simpler, secure, fast, and saves more downtime.

Technical priority

 How to adjust the output size of small rock crusher/small jaw crusher?



The output size of the small rock crusher /small jaw crusher is adjustable. The following article will show you how to adjust the output size of small rock crusher /small jaw crusher.




When adjusting and arranging the discharge opening of small rock crusher /small jaw crusher, unscrew the nut of tension rod which strains the part appropriately at first, unclamp spring, unclamp wedge a bolt, unclamp the wedge one, tighten the jack bolt, it push forward the toggle seat and achieve some space, then take out the shim reaching the needs of discharging opening; if add more shim, it can reduce the opening; when the discharge opening of  small rock crusher / smalljaw crusher reaching the needs, unscrew the jack bolt and the toggle seat with shims will be back to the frame under the weight of movable jaw. Please note that the toggle seats should not contact with frame, then tighten the bolts and firm the framework, tighten the tension rod nut appropriately and tighten up the spring, namely finish adjustment.

Packaging & Shipping





Related Products

hammer crushers

also called hammer mill,is suitable for crushing various hard and brittle materials.

Weight:3.5t,0.8t

Capacity:5-75t/h

More details>>>



Get Quotation>>



 ball mill machine (18).jpg



                      Ball mill

Yu Xiang's major product, professional technology support and all-around service can be offered to you

Weight:37000KG

Capacity:0.65-90T/H

More details>>>



Get Quotation>>





wet pan mill



mainly used to process the gold, silver, lead, zinc, iron, molybdenum, copper, antimony.

Capacity:0.8-1t

Weight:5t

More details>>>



Get Quotation>>

 wet pan mills.jpg

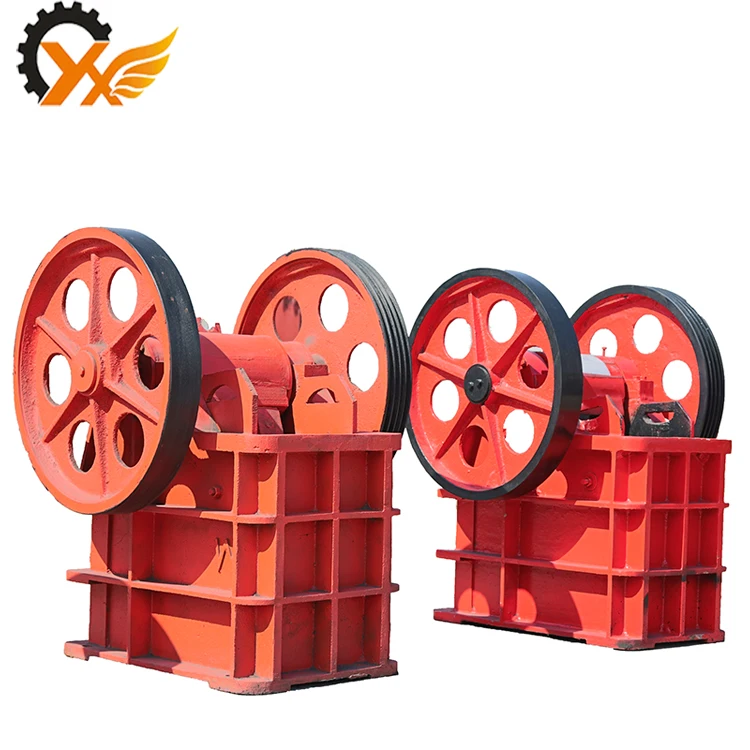

We have below different designs

moveable,with diesel,with bracket etc. just for you!

jaw crusher20.jpg



Company information:

GONGYI YUXIANG HEAVY MACHINERY CO.,LTD. is an professional manufacturer of wet pan mill&mining series machines,with R&D team, excellent technical team, sales team and strong production capability, we have been devoting our self to the development and promotion of gold mining machinery and all our products have got CE certificates.



Yuxiang compan.jpg



Below is our video about pe-250 x 400 jaw crusher working on Youtube:



modelYoutube addressDescription
1200 A wet pan millhttps://www.youtube.com/watch?v=7-7GeVzX0Dk&t=269sGold ores --- crushed by jaw crusher---milled by gold mill--- refine the gold by mercury.
PE250x400 jaw crusher

https://www.youtube.com/watch?v=WQJ4Czpz2-c

Jaw crusher to crush the stones
PE150x250 jaw crusherhttps://www.youtube.com/watch?v=iY5x4dEIgIM&feature=youtu.beThis video is from my customer using.
With generatorhttps://www.youtube.com/watch?v=BVKse6NqLYYit shows the generator working with Gold mill together.
About our companyhttps://www.youtube.com/watch?v=eM9_dzx3alAthe video shows our company with some gold mill which is deliveried to other customers.

And you can add me on Facebook by : Yanli

                                     on Twitter: @Annayuxiang
