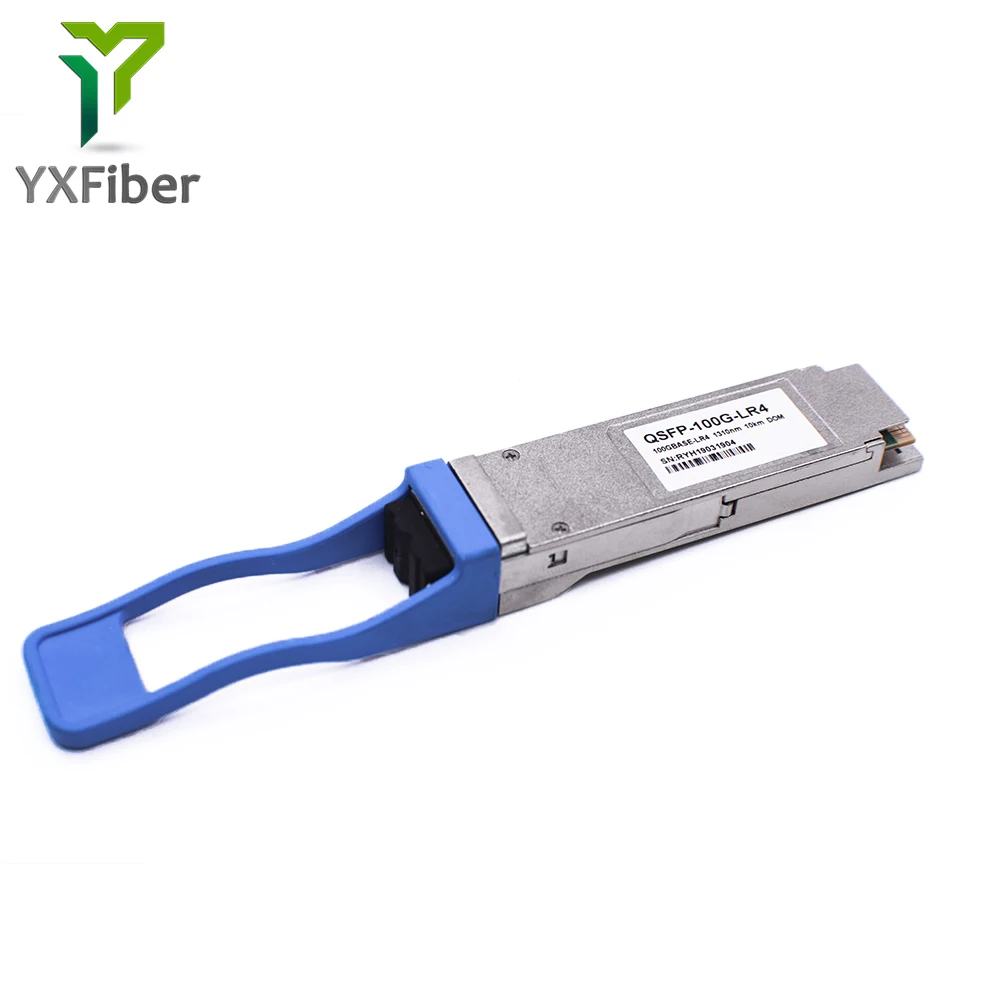

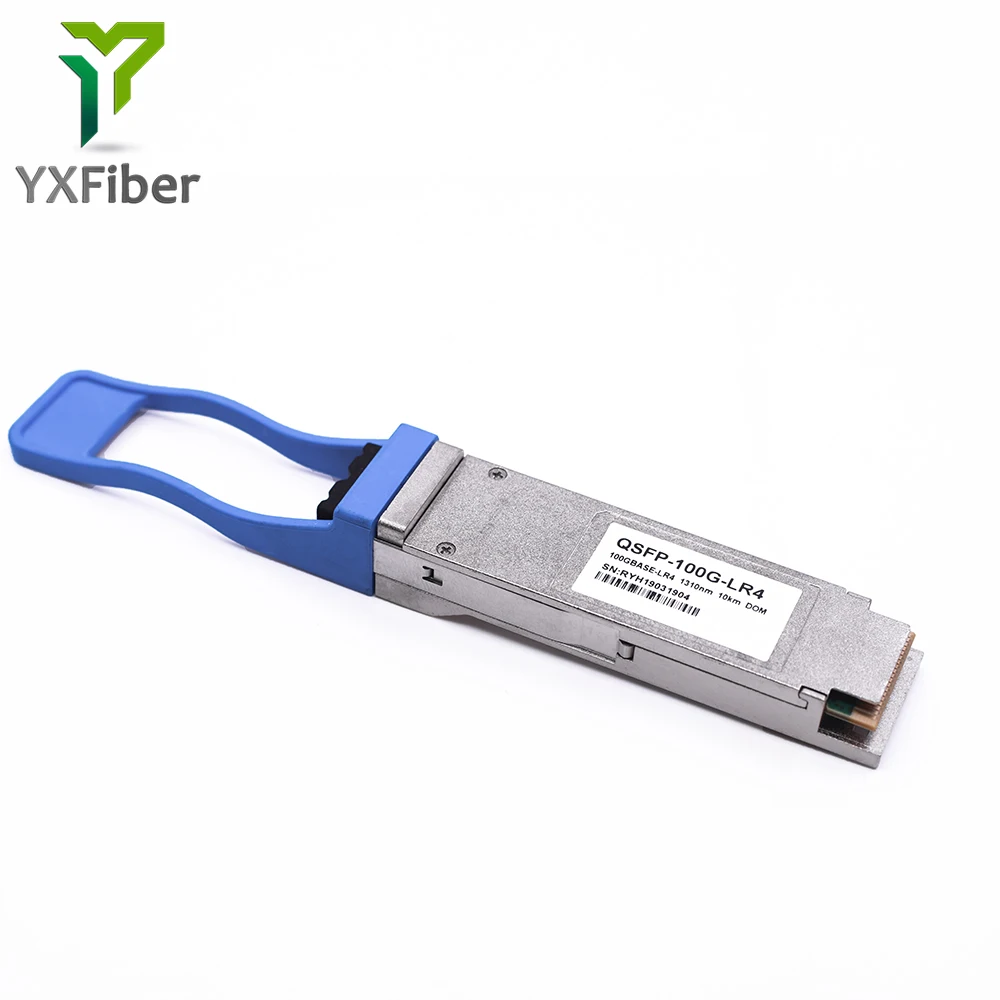

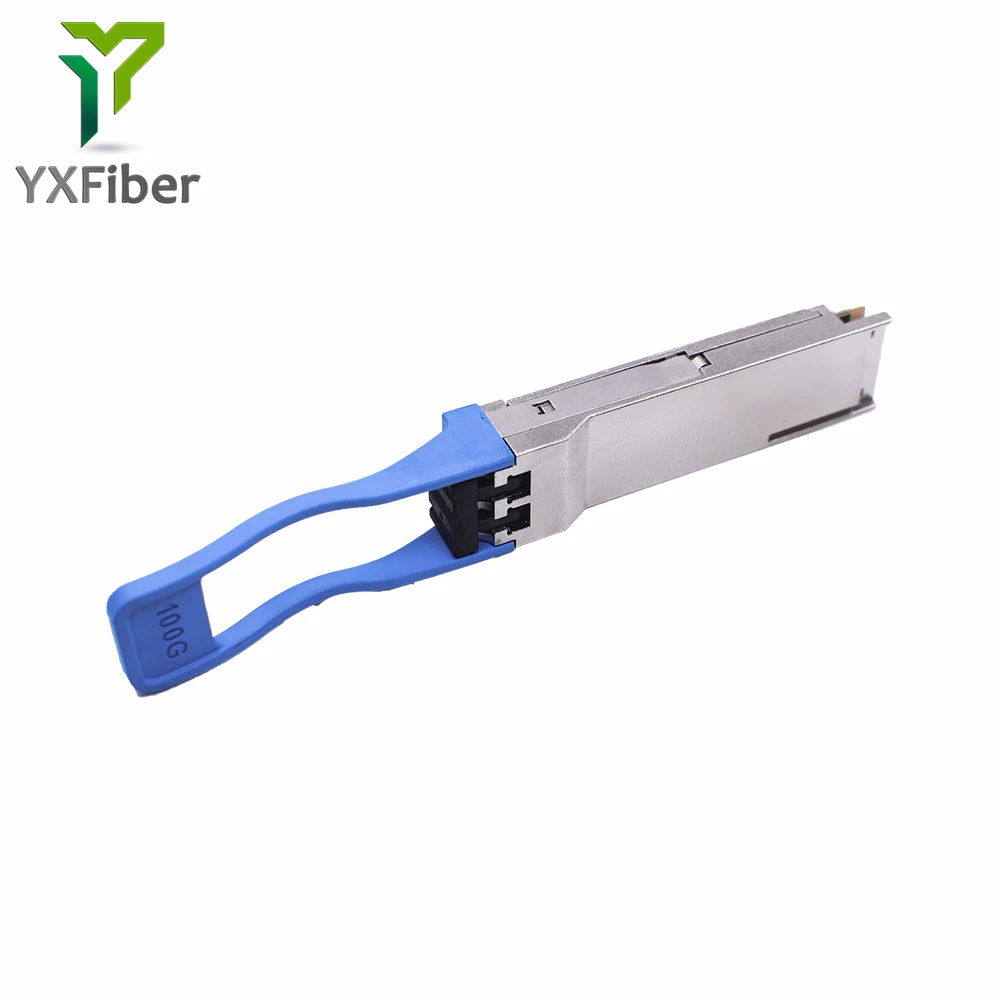

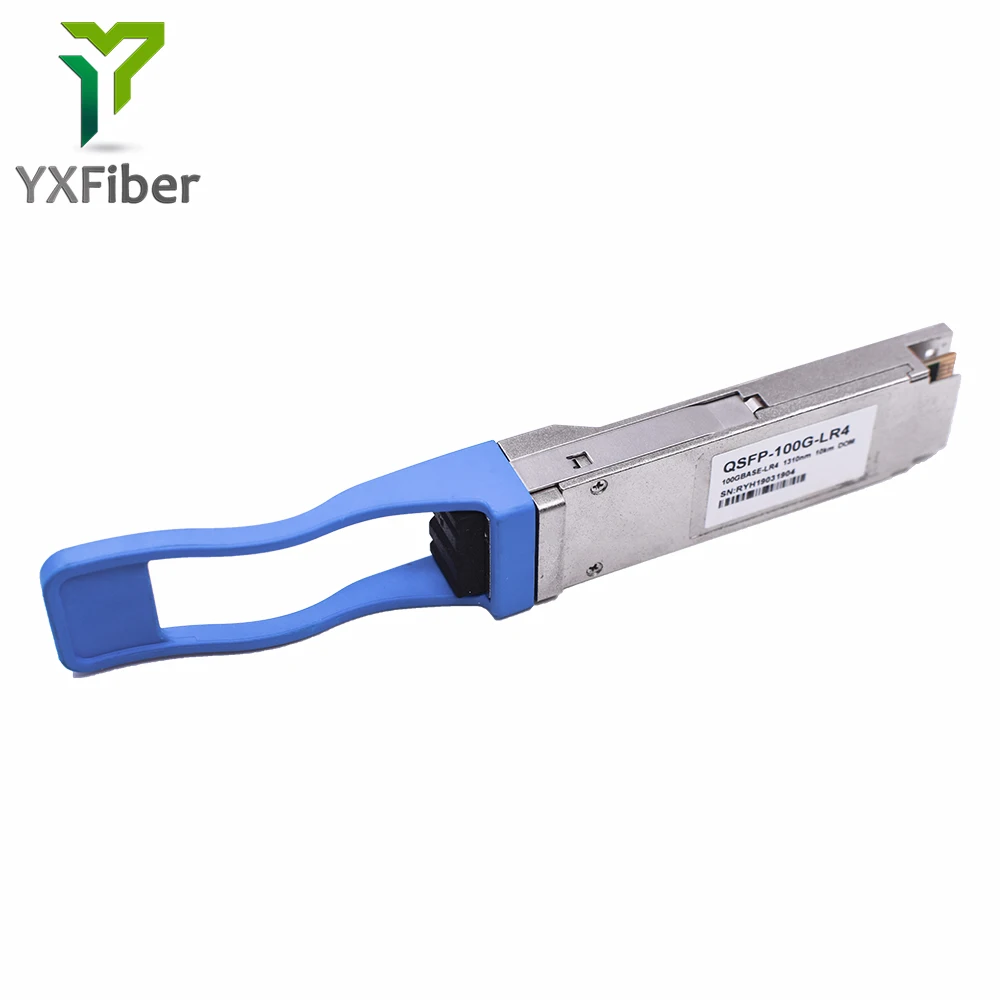

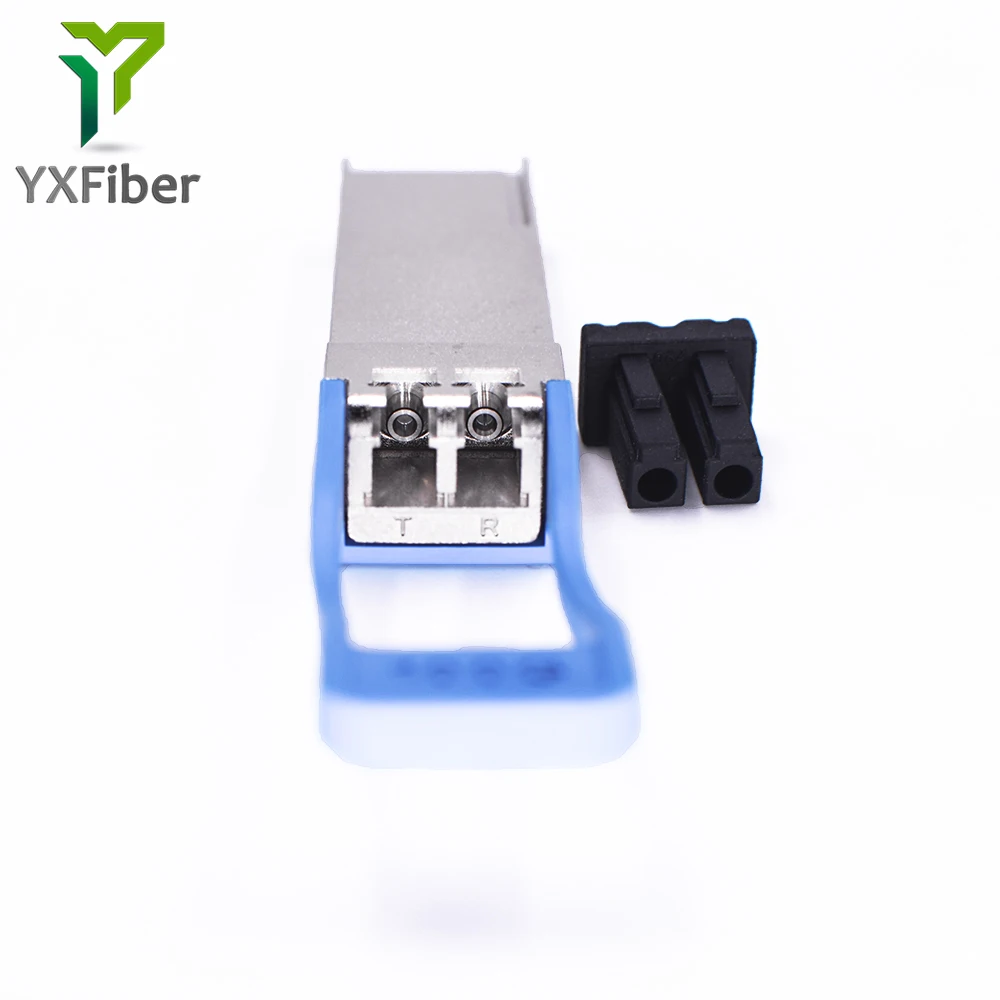

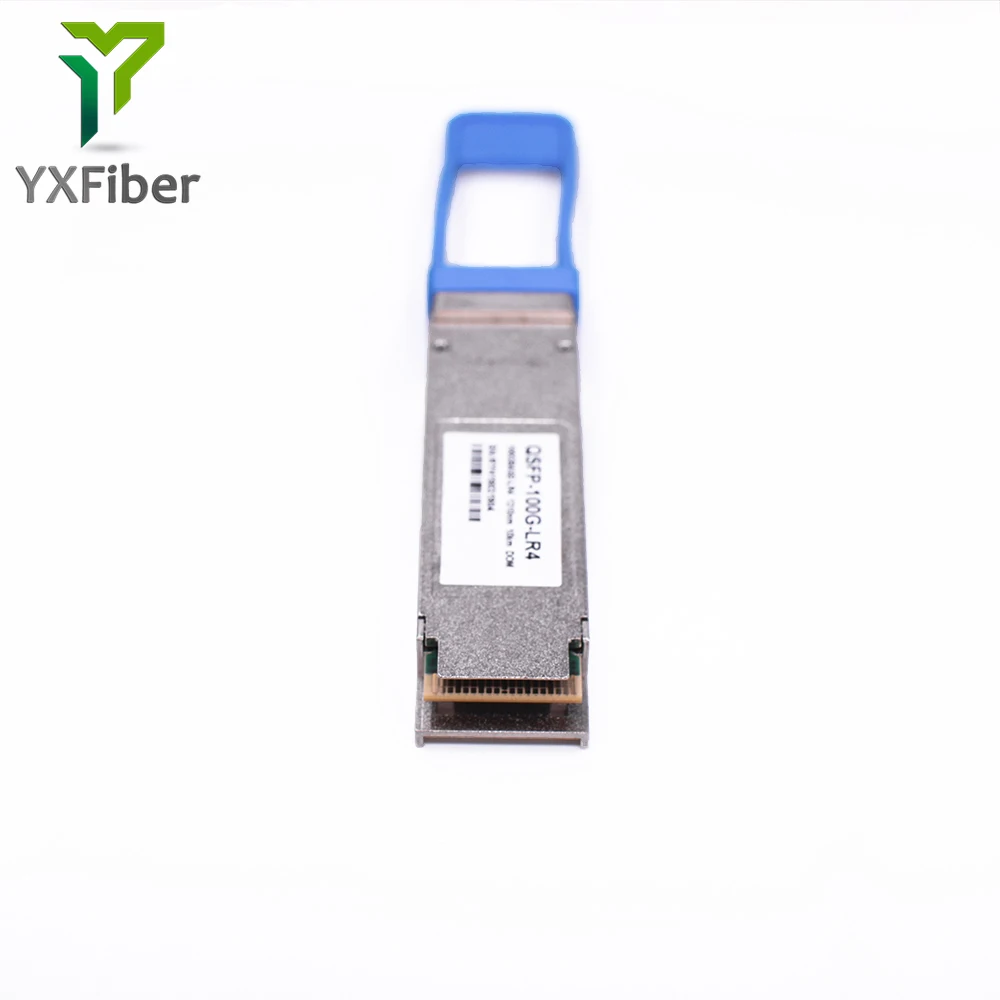

QSFP28 100G LR4 10 км 1310nm LC коннектор оптический модуль QSFP-100G-LR4 для программирования в производственных

Описание и отзывы

Трекер стоимости

Характеристики

100G QSFP28 LR4 optical Transceiver integrates receiver and transmitter path on one module. In the transmit side, four lanes of serial data streams are recovered, retimed, and passed to four laser drivers. The laser drivers control 4-Distributed Feedback Laser (DFB) with center wavelength of 1296 nm, 1300nm, 1305nm and 1309 nm. The optical signals are multiplexed to a single –mode fiber through an industry standard LC connector. In the receive side, the four lanes of optical data streams are optically de-multiplexed by the integrated optical de-multiplexer. Each data stream is recovered by a PIN photo-detector and trans-impedance amplifier, retimed. This module features a hot-pluggable electrical interface, low power consumption and MDIO management interface.

The product is designed with form factor, optical/electrical connection and digital diagnostic interface according to the QSFP28 Multi-Source Agreement (MSA) and compliant to IEEE 802.3bm.



Features

l Up to 10km transmission distance

l Supports 103.1Gb/s aggregate bit rate

l 4×26Gb/s cooled LAN-WDM DFB TOSA

l 4×26Gb/s PIN ROSA

l Single +3.3V power supply

l Power consumption ≤3.5W

l Operating case temperature: 0~70°C



Applications

l 100GBASE-LR4 Ethernet Links



Compliance

l Compliant with FCC 47 CFR Part 15, Class B

l Compliant to IEEE 802.3ba 100GBASE-LR4

l Compliant with QSFP+ MSA.

l Compliant with SFF-8636.

l Compliant with IEEE802.3bm CAUI-4



Absolute Maximum Ratings

Parameter	Symbol	Min	Typical	Max	Unit	Notes
Storage Temperature	TSTG	-40		85	ºC
Operating Relative Humidity	RH	5		85	%
Supply Voltage	VCC	-0.5		3.6	V
Optical Input Power	PIN	5.5			dBm
Case Operating Temperature	Top	-5		75	ºC
