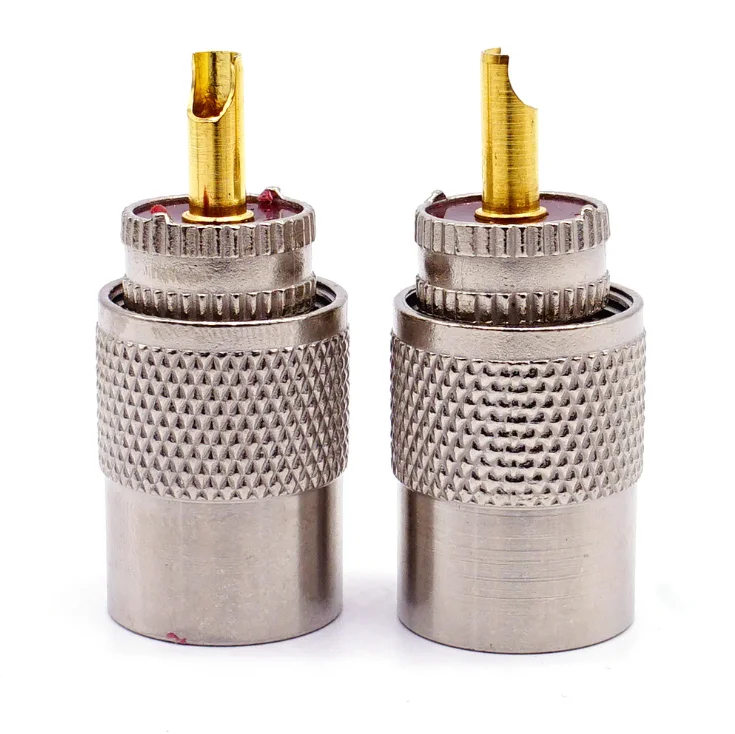

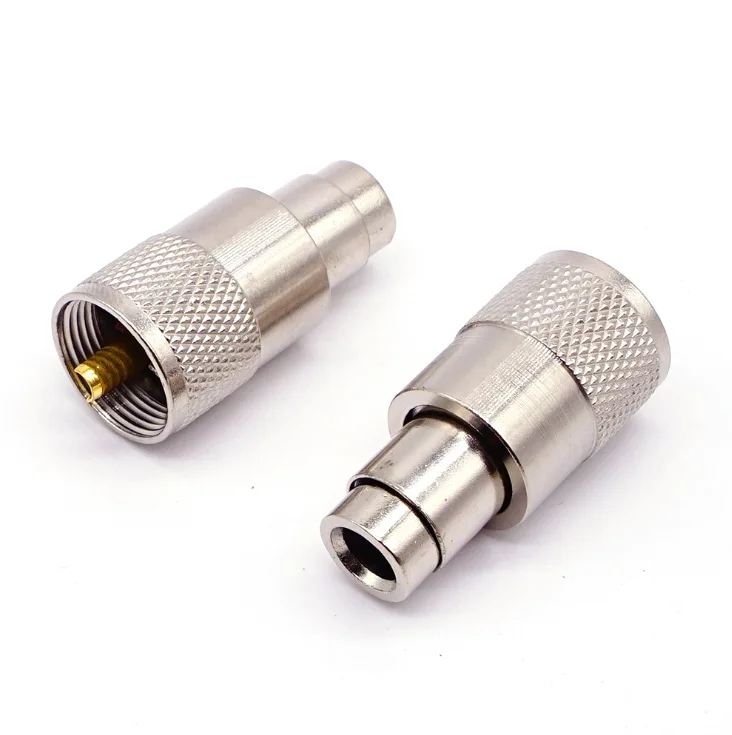

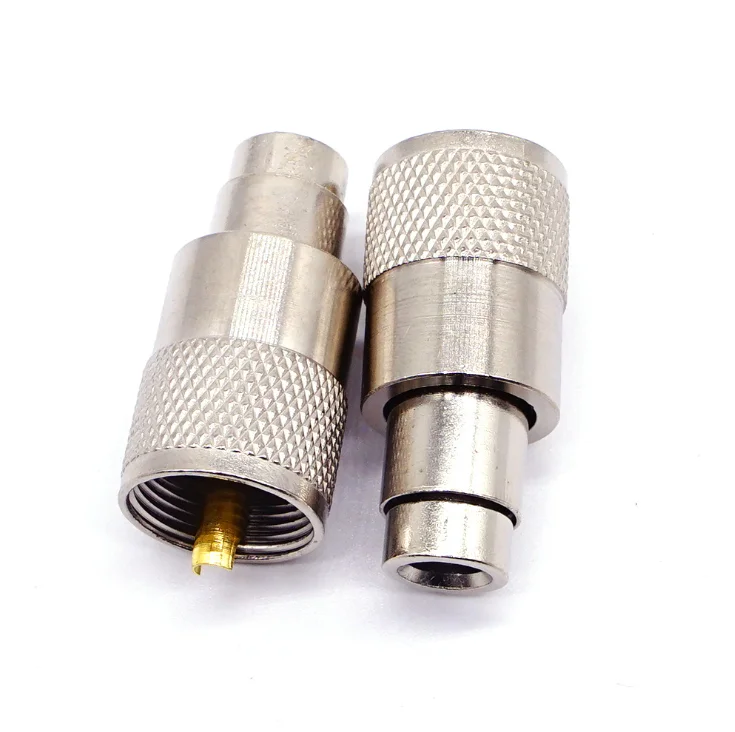

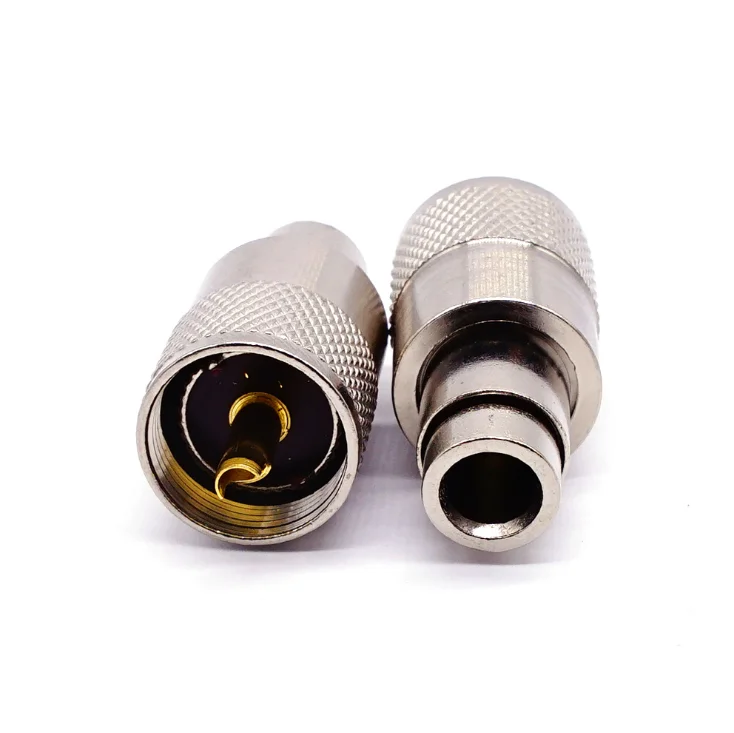

Rf coaxial PL259 UHF male clamp connector for RG58 RG8 LMR400 cable



Overview

TYPE UHF products is one kind of video frequency coaxial connectors with screw coupling and adopt tooth of end gearing. Impedance is not strictly defined, but usually applied at the frequency of 500MHz. This products are very suitable for the civil wave band communication system, closed-circuit television, the car radio device products etc. These connectors have characteristics of reliable connection, good vibration performance, and reasonable price.



Electrical Characteristics

Rf coaxial UHF pl259 male clamp connector for RG58 RG8 LMR400 cable
Model No.	UHF-J3
Interface	IEC 60169-12
Electrical
Characteristic Impedance	Non-constant
Frequency Range	DC-300MHz
VSWR	≤1.15@DC-300MHz
Center contact retention force	≥1.1N
Working Vlotage	750V RMS,50Hz,at sea level
Dielectric Withstanding Voltage	≥2000V RMS,50Hz,at sea level
Dielectric Resistance	≥5000MΩ
Contact Resistance	Center Contact ≤5mΩ	Outer Contact ≤5 mΩ
Mating	—
Mechanical
Durability	Mating cycles  ≥500

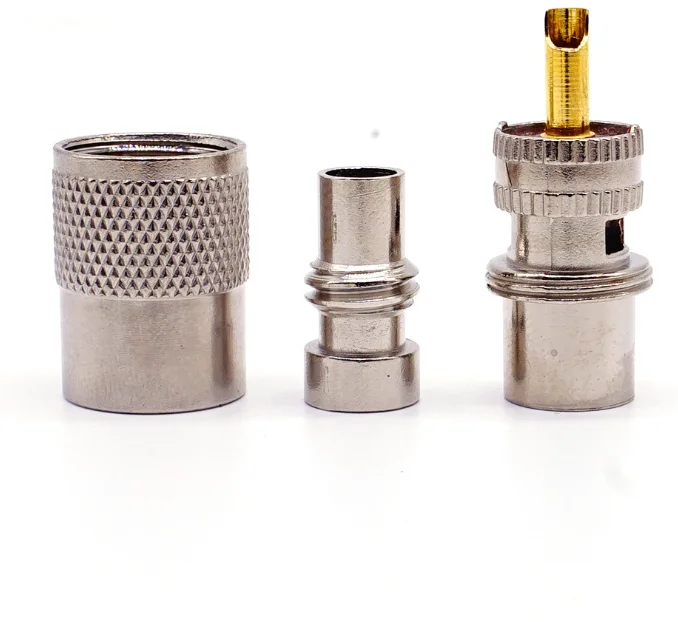

Material and Plating
Parts Name	Material	Plating
Body	Brass	Ni
Insulator	PTFE	—
Inner Conductor	Phosphor Bronze	Au
Coupling Nut	Brass	Ni
Gasket	Silicone Rubber	—
Cable Clamp	Brass	Ag
Washer	Brass	Ag
Environmental
Operating Temperature	_40 ℃-85  ℃
Weatherproof Rate	IP67
RoHs (2002/95/EC)	Compliant  by exemption
