New Arrive 12V 3.8A lead acid battery charger and 14.4V LiFePO4 Battery Charger

EPA1204F is 9 stages smart battery charger by  Microprocessor controlled with switch mode for 6V and 12V is selectable output .it is ideal for charging your CAR,MOTORCYCLE AND RIDE-ON TOY batteries,suit for type of batteries included AGM GEL VRLA SLA WET and deep-cycle.

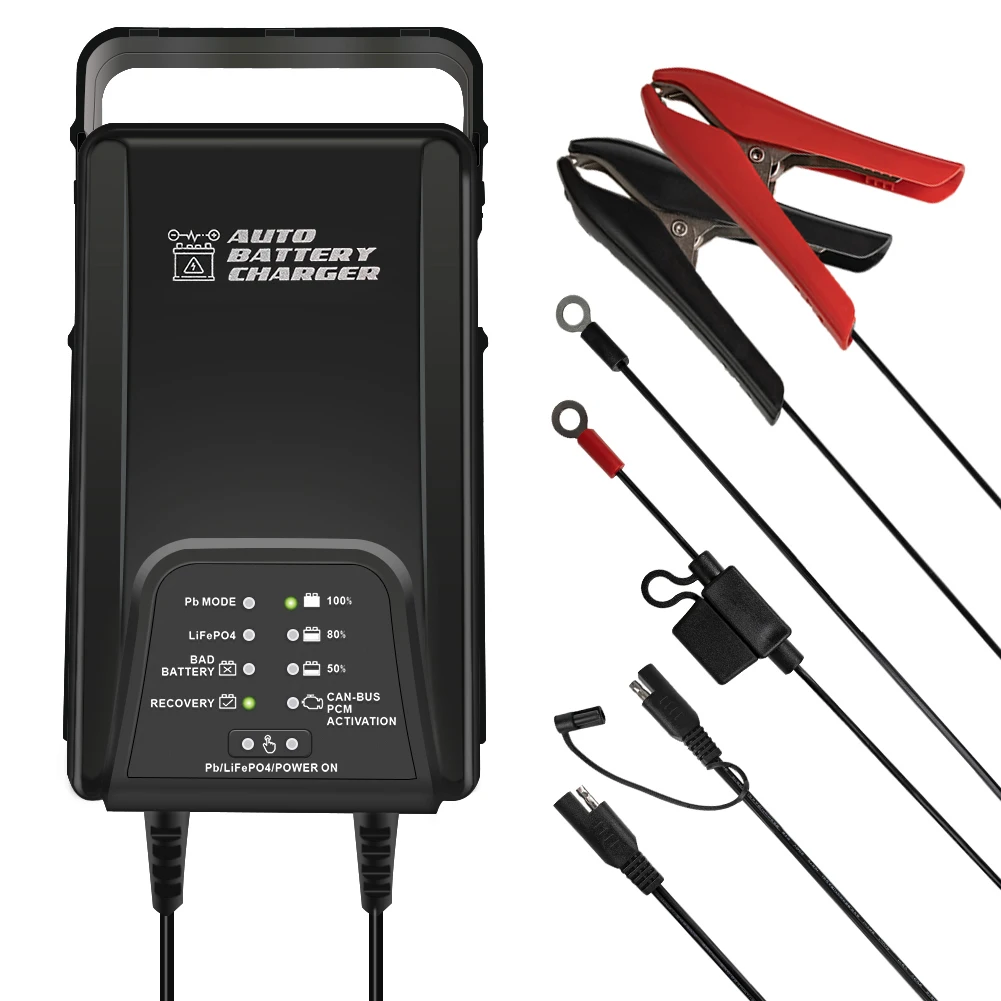

Product view



                        Fully charges and then Maintains















FEATURE:

DESIGNED  FOR MOTORCYCLE, CAR & MARINE BATTERIES



Fully automatic – faster, safer, smarter
Microprocessor controlled – automatically adjusts the amperage rate to charge and maintain
Monitors the battery and resumes continuous charging when battery becomes discharged
Multi-stage charging for added precision, safety and battery life
Automatic voltage detection
Glowing charger status interface
Charges standard, AGM and gel and deep-cycle batteries
Reverse hook-up protection

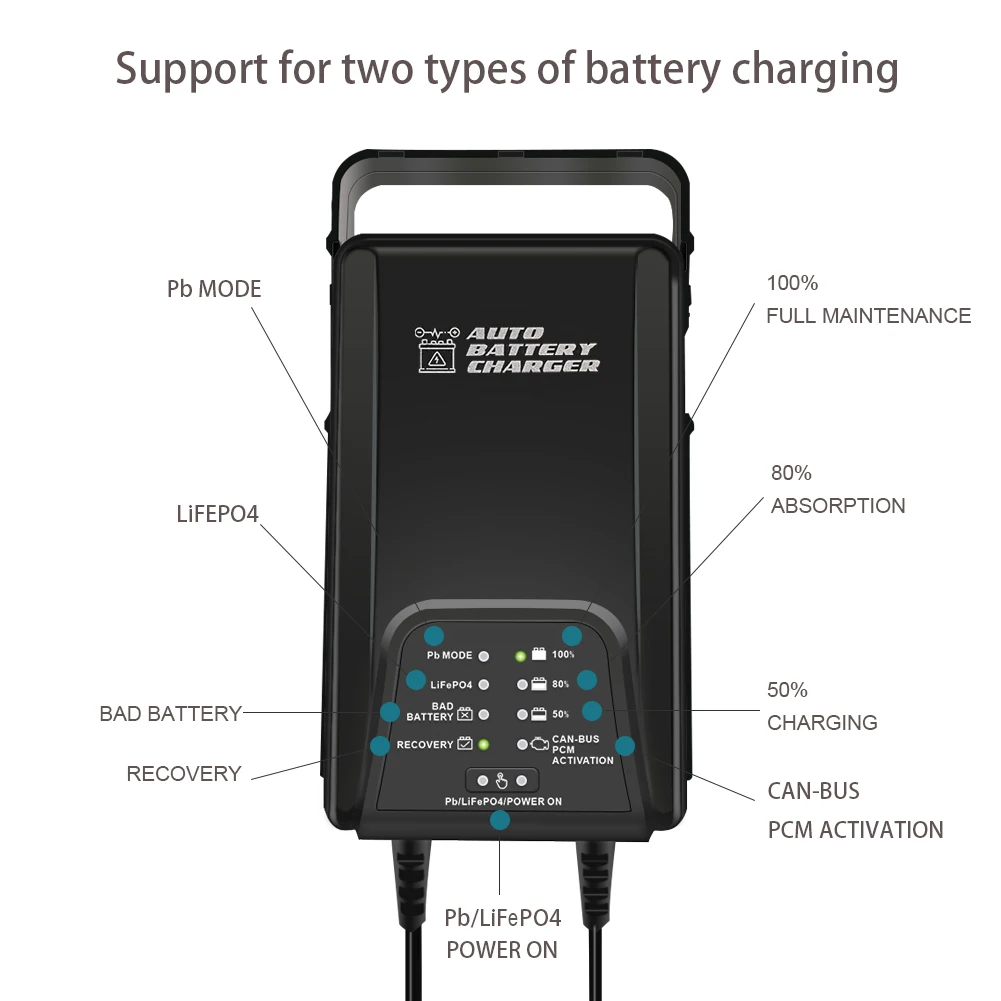

INDICATOR:

9LEDs indicate charging process for Lead Acid batteries Charging

Recovery(Can_BUS MODE)-Charging-Absorptiong-Full/Maintain
5LEDS indicate charging process for LiFePO4 batteries charger
PCM(Activation battery)-Charing-Absorption-Full

2LEDs indicate the Erro
Reverse
Bad Battery
2LEDs indicate the battery mode

Pd Mode

LiFePO4 Mode



9-stage charging process



 9 Stage Lead Acid Charge, Conditioning and Maintenance Process

1.Qualification Phase:

Initially ensures the battery is in good condition prior to launch of normal charge processes, as a safety  measure charge processes will not begin if battery is below 2 volts

2. Battery Rescue Phase

EP Battery Rescue starts if battery voltage has risen unusually high in the early portion of the recharge cycle. This is usually caused by plate Sulfation . Once the battery rescue phase has succeeded in getting the battery to accept power, normal battery charging will begin

3. Soft Start Phase:

Soft Start is applied when the charger has detected a battery at a very low initial state of charge. Voltage and

current are delivered at a specified rate to help the battery to recover prior to entering pulse charge mode

4. Pulse mode phase

EP Pulse mode provides a pulse charge to help the newly recovered battery to continue to accept charge as it enters the Reconditioning phase. To maintain the battery at a full state of charge

5. Recondition Phase

The EP Recondition phase follows when the Pulse Mode is completed, charging at a slightly higher voltage and amperage to"re-activate" the battery plates allowing for an improved charge acceptance and depth of charge

6.Bulk Charge Phase

With the battery now having gone through Qualification and Recovery phases as needed the EP Bulk

Charge phase gives the battery constant current, taking the battery up to 80% of its full capacity

7. Absorption Phase

In the EP Absorption phase the battery is given constant voltage while current is reduced based on

actions taken from ongoing battery monitoring until the battery is 100%o charged

8. Analysis(Check) Phase

The Battery will now be checked to ensure that it is holding a charge properly and the charger will determine if the battery is ready for use or not

9. Maintenance Phase

The battery can be left safely connected to the charger indefinitely. The charger will constantly monitor the

battery and " turn-on" again as needed to maintain the battery at a full state of readiness



EP 4 Stage LiFePo4 Charge, Conditioning Process

PCM Activation: Once the charger has been properly connected to the battery it will deliver a constant

pulse frequency to activate the PCM before it enters into the charge program



1. Soft Start Phase

Soft Start is applied when the charger has detected a battery at a very low initial state of charge. Voltage and

current are delivered at a specified rate to help the battery to recover prior to bulk charge

2. Bulk Charge Phase

With the battery now having been activated and gone through the Soft Start phase as needed the

EP Bulk Charge phase gives the battery constant current, taking the battery up to 80% of its full

3. Absorption Phase

In the EP Absorption phase the battery is given constant voltage while current is reduced based on

actions taken from ongoing battery monitoring until the battery is 100% charged4. Full Charge

4.Full charge

Charging is complete and the battery can be returned to service or left safely on the charger indefinitely
