Недорогая Высококачественная пескоструйная комната/Пескоструйная камера/Пескоструйная кабина с автоматической системой

1

Blasting Chamber

Square steel tube

100×50mm

Rock wool plate

δ50mm

Door open type

Manual

Room body wear resistance plate

4 mm white wear resistant rubber plate

Emergency door

1 pcs

Observation window

2 pcs

Emergency door location

The room body side

2

Blasting guns shot blaster

Model

Q0250

Blasting quantity

0.8m3

Spray capacity

35kg/min

Blasting gun quantity

2pcs

Nozzle material

Boron carbide

Pipe length

2x10000mm

Sand blaster quantity

1 set

4

LED Lighting system

Lamp

LED light lamps

Lamp quantity

20pcs

Lamp protective

Tempered glass

Power

20*0.05 kw

5

Abrasive circulation system

Separator

Separating capacity

15 T/H

Wind speed of separator

4-5 M/S

Waste content of separator

≤1% (Episodic multistage winnowing full curtain flow)

Quantity

1 set

Bucket elevator

Lifting capacity

15 T/H

Lifting speed

1.21 m/s

Power

2.2kw

Quantity

1 pcs

Screw conveyor

Conveying capacity

4*15 T/H

Screw diameter

180mm

Motor power

1.5kw*4

Quantity

4 sets

6

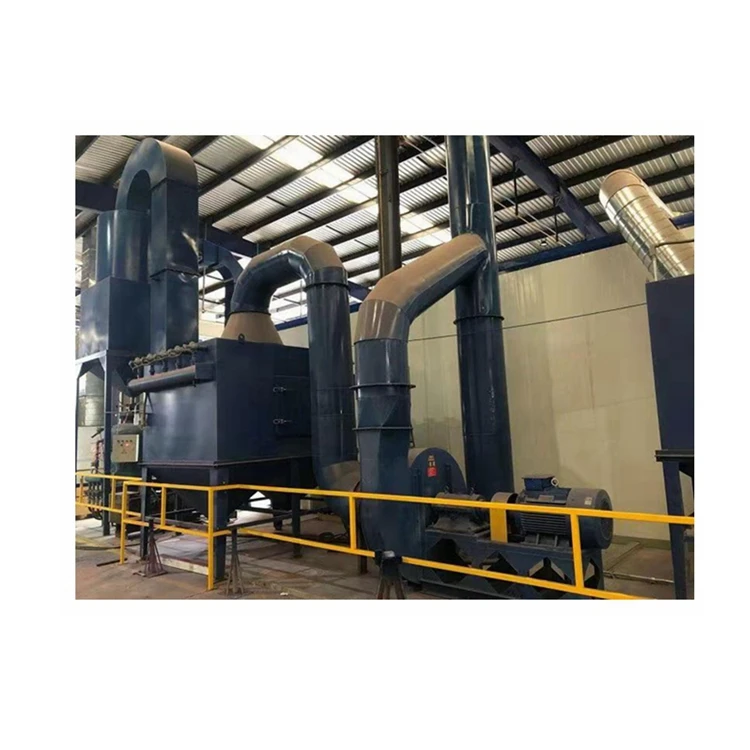

Dust removal system

Dust collector Quantity

1set

Fan power

18.5kw

Dust removal efficiency

>99.2%

Total pressure

2000pa

Ventilation volume

16000m3/h*2

Cartridge quantity

20-φ350×1000

Dust falling way

Automatic back pulse

Filtering level

Fireproofing, Antistatic

Filtering accuracy

1μm

Dust falling way

Automatic pulse backflushing

7

Discharged dust consistence

≤100 mg/m³

8

Dust content in the air after cleaning

10 mg/m³

9

The machine noise

≤95 dB

10

Total power

About 27.7kw

12

13

Packing

2*40HQ containers

14

Payment terms

a) 50% down payment after contract signed by TT.

b) 50% of order value before delivery by TT.

15

Installation costs on buyer

(Additional)

The buyer should arrange necessary workers to install the machine, one technician will supervise the installation of this machine in your plant, the buyer should pay their commission of $95 /technician/day (As advance charges only, will return the overcharge and demand payment of the shortage)

The buyer should bear following additional charges:

Visa, insurance, return air tickets, accommodation, food & transportation for our technicians.

Translator: who can speak Chinese.
