Двухслойный химический стеклянный реактор с жаккардовым покрытием 10 л 20 30 100 150 дешево Китай Дистилляция
- Категория: Reactors >>>
- Поставщик: Nanjing,Ningkai,Instrument,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 4165.85 $* | 4373.93 $* |
| Aug-20-2025 | 4130.77 $* | 4337.82 $* |
| Jul-20-2025 | 3465.3 $* | 3638.87 $* |
| Jun-20-2025 | 4060.80 $* | 4263.40 $* |
| May-20-2025 | 3535.56 $* | 3712.36 $* |
| Apr-20-2025 | 3990.27 $* | 4190.1 $* |
| Mar-20-2025 | 3955.12 $* | 4153.66 $* |
| Feb-20-2025 | 3920.61 $* | 4116.34 $* |
| Jan-20-2025 | 3885.57 $* | 4079.66 $* |
Характеристики
Product Description
Jacketed glass reactor can be used to do high temperature experiment(max temperature is 200℃), as well as low temperature experiment(min temperature is -60℃) and vacuum test.It is an ideal equipment for modern chemistry small and medium-size experiment bio-pharmaceuticals and new materials synthesis. Furthermore,the design of this reactor is unique,which can guarantee experiments of more convenient and safer.
Product Advantages & Features
1. Use G3.3 high borosilicate glass , with good and stable properties of chemistry and physics , eg: corrosion and heat resistance.
2. Alloy steel mechnical seal , PTFE soft connector , have a precise sealing performance when operated .
3. With PT100 sensor probe , high precision temperature meassurement , less error and high efficiency .
4. AC stepless variable motor , brushless , sparkless , low noise and strong torsion & high rotating speed(50-800/50-600rpm/min) .
5. Coated reinforced PTFE agitator , especially for high viscosity reaction solvents , surely the low viscosity menstruums .
At the same time , different types ( anchor , paddle , impeller , fram , screw and etc ) of stirring paddle can be selectable .
6. PTFE discharge valve , anti-corrosion , heat resistance , no dead angle , no vibration no sample accumulation and flush quickly.
7. Multi-necked reactor cover with four , five , six or more mouth can be offered to you .( mian ports : constant pressure funnel port , stirring port , liquid adding port , solid feeding port , temperature meassurement port ,evaporation reflux port ).
8. Explosion- proof devices ( Ex motor , Ex control panel , Ex temperature LCD display) can be optional .
9. Vertical high efficieny coil condenser or horizontal serpentine coil condenser ( 0.3-3 square meters ) .
10. PH meter , sand core filter , etc . Special kettle body structure can be design with custom made .
11. Vacumm gauage . Stainless cover is anti-corrosion and looks nice , fully sealed and filled with oil inside to protect the
components will be rusted and shocked .

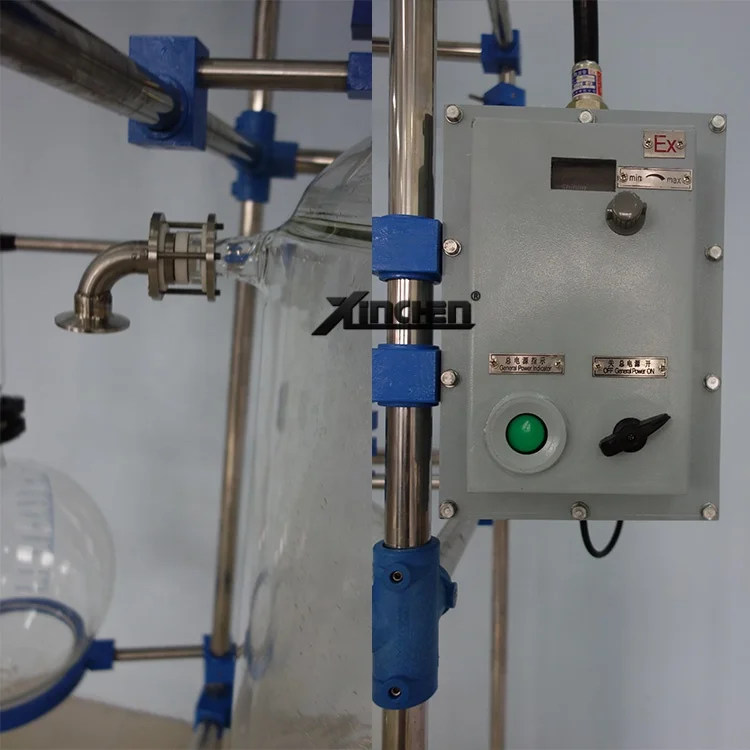

12. Control box . Explosion proof or nomal motor can be selected . Produced by domestic famous enterprise and authorized by national quality assurance authority .
2. Alloy steel mechnical seal , PTFE soft connector , have a precise sealing performance when operated .
3. With PT100 sensor probe , high precision temperature meassurement , less error and high efficiency .
4. AC stepless variable motor , brushless , sparkless , low noise and strong torsion & high rotating speed(50-800/50-600rpm/min) .
5. Coated reinforced PTFE agitator , especially for high viscosity reaction solvents , surely the low viscosity menstruums .
At the same time , different types ( anchor , paddle , impeller , fram , screw and etc ) of stirring paddle can be selectable .
6. PTFE discharge valve , anti-corrosion , heat resistance , no dead angle , no vibration no sample accumulation and flush quickly.
7. Multi-necked reactor cover with four , five , six or more mouth can be offered to you .( mian ports : constant pressure funnel port , stirring port , liquid adding port , solid feeding port , temperature meassurement port ,evaporation reflux port ).
8. Explosion- proof devices ( Ex motor , Ex control panel , Ex temperature LCD display) can be optional .
9. Vertical high efficieny coil condenser or horizontal serpentine coil condenser ( 0.3-3 square meters ) .
10. PH meter , sand core filter , etc . Special kettle body structure can be design with custom made .
11. Vacumm gauage . Stainless cover is anti-corrosion and looks nice , fully sealed and filled with oil inside to protect the
components will be rusted and shocked .
12. Control box . Explosion proof or nomal motor can be selected . Produced by domestic famous enterprise and authorized by national quality assurance authority .
Product Application
Jacketed glass reactors are widely used in Petroleum Industry , Chemical Industry , Food & Beverge Factory , Pharmaceutical Factory , Insectcide Factory , Metallurgical Industry , Scientific Institution , Environment Protection , Universities , Construction & Building areas , Biology , Cosmetics , various Oil Extraction and Purification , etc .
Product Paramenters
Model | XC-30L | XC-50L | XC-80L | XC-100L | XC-150L | XC-200L |
Volume(L) | 30 | 50 | 80 | 100 | 150 | 200 |
Jacket volume(L) | 10 | 16 | 24 | 30 | 45 | 60 |
Neck No | 6 | 6 | 6 | 6 | 6 | 6 |
Lid diameter(mm) | 265 | 265 | 340 | 340 | 340 | 340 |
Inner vessel external diameter(mm) | 330 | 365 | 410 | 460 | 550 | 600 |
Outer vessle external diameter(mm) | 365 | 410 | 460 | 550 | 600 | 650 |
Vessel height(mm) | 730 | 850 | 950 | 950 | 980 | 1200 |
Motor power(W) | 140 | 180 | 250 | 250 | 400 | 750 |
Vacuum degree(Mpa) | 0.096 | 0.096 | 0.096 | 0.096 | 0.096 | 0.096 |
Rotating speed(rpm) | 50-600 | 50-600 | 50-600 | 50-600 | 50-600 | 50-600 |
Torque(Ncm) | 210 | 300 | 350 | 350 | 400 | 400 |
Dimension(mm) | 500*500 *1600 | 600*600 *1800 | 700*700 *2400 | 700*700 *2600 | 800*800 *2800 | 1200*900 *3200 |
Voltage(V/Hz) | 220V/50Hz | 220V/50Hz | 220V/50Hz | 220V/50Hz | 220V/50Hz | 220V/50Hz |

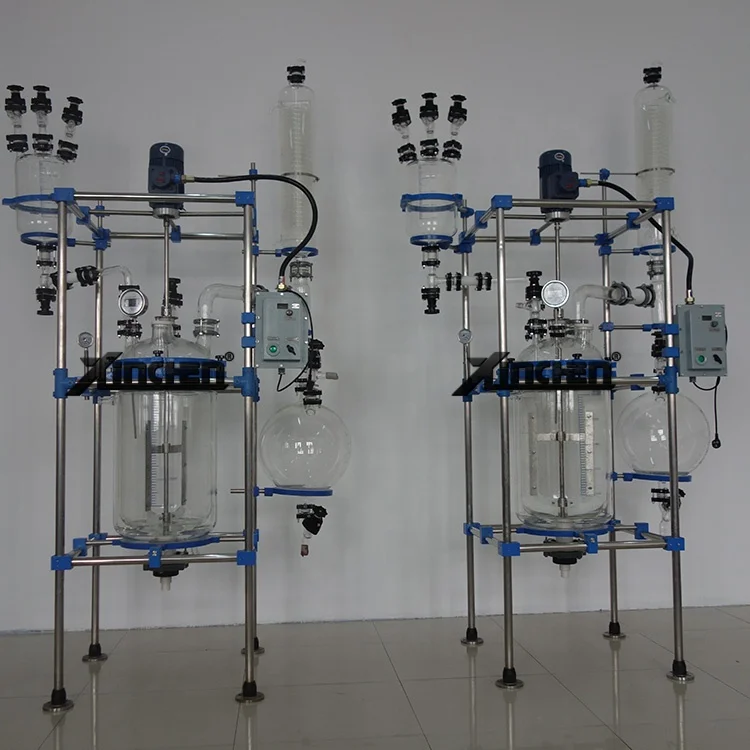

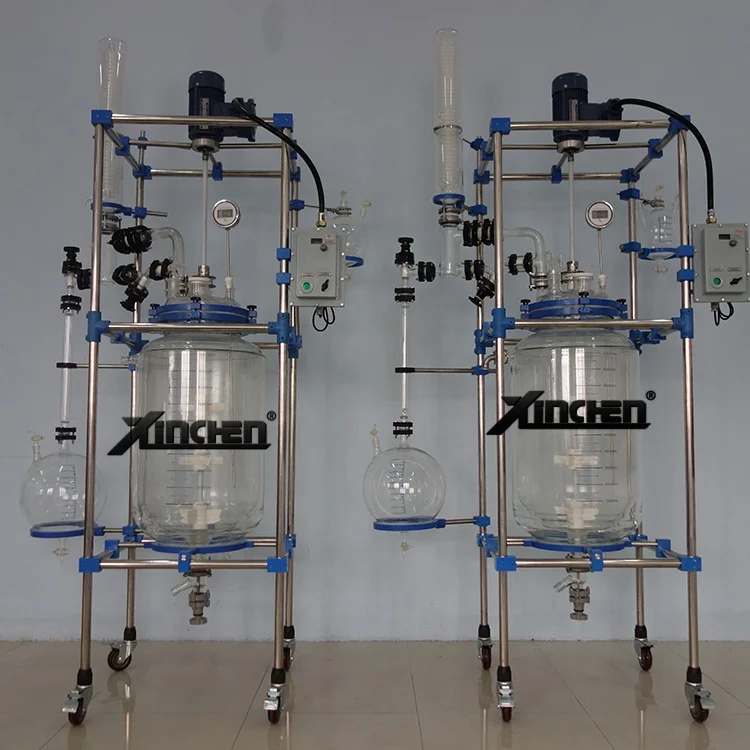

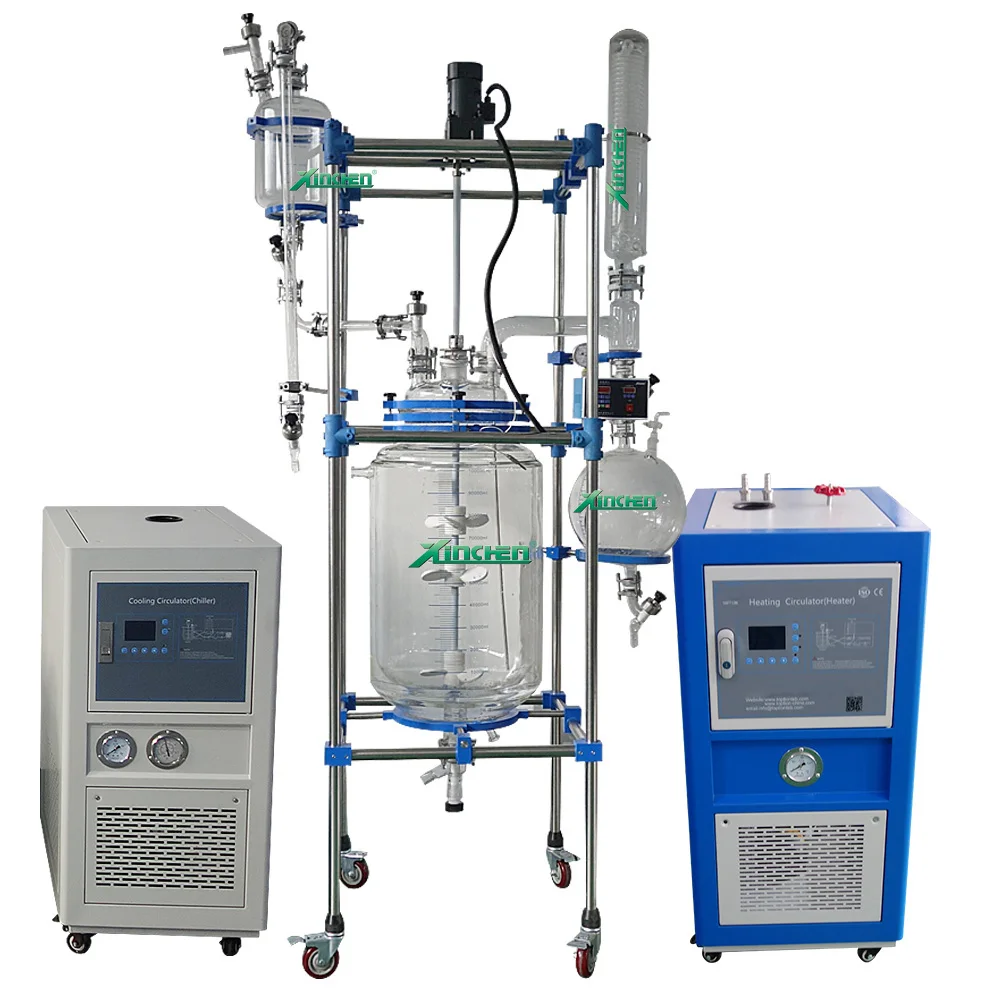

Details Images
Packaging & Shipping
Packaging: Standard carton package and wooden case package with inner protections( light weight material with protective ) . Some foam boards and bubble films wil be put into the inner package for any damage or other breakage with human wrong handling in loading and uploading . Shipping: By sea or by air as you wishes .( TNT , UPS , FedEx , EMS , DHL , SF or other logistics ) .
Related products
Customized 20L ultrasonic reactor , 80L three layer reactor with chiller , 10L chemical reactor with PLC control , 30L glass
reactor with 2L manual lift filter reactor , explosion proof three layer lifting reactor , glass distillation reaction device ,
50L lifting filter reactor, 50L double wall multifunctional reactor , 100L explosion proof complete of glass reactor , 20L vacuum suction filter , multifunctioal ultrasonic glass reactor , 200L double layer reactor with tail gas absorption device , 50L distillation column , PLC integrated control reaction device , 50L tail gas absorption device , distillation unit with wiped thin film evaporator , 50L single layer reaction kettle , 30L lifting filter , PLC integrated control reaction device , 1L lab grade rotary evaporator , 5L-50L pilot plant rotavapor , 10L-50L explosion proof evaporator , heating circulator , heating refrigeration circulator , low temperature circulator , ultrasonic cell crusher, super thermalstatic , industrial ultrasonic treatment equipment , hybridization oven , UV cross linker , homogenizer , dry bath , etc .
reactor with 2L manual lift filter reactor , explosion proof three layer lifting reactor , glass distillation reaction device ,
50L lifting filter reactor, 50L double wall multifunctional reactor , 100L explosion proof complete of glass reactor , 20L vacuum suction filter , multifunctioal ultrasonic glass reactor , 200L double layer reactor with tail gas absorption device , 50L distillation column , PLC integrated control reaction device , 50L tail gas absorption device , distillation unit with wiped thin film evaporator , 50L single layer reaction kettle , 30L lifting filter , PLC integrated control reaction device , 1L lab grade rotary evaporator , 5L-50L pilot plant rotavapor , 10L-50L explosion proof evaporator , heating circulator , heating refrigeration circulator , low temperature circulator , ultrasonic cell crusher, super thermalstatic , industrial ultrasonic treatment equipment , hybridization oven , UV cross linker , homogenizer , dry bath , etc .
Recommended Products
We would like to recommend our short path molecular distillation , ethanol cryogenic chiller , wiped film evaporator , cooling circulator , heating circulator , low temperature circulator , temperature control system ( heating control or heating
refrigeration control ) , heating refrigeration circulator . By the way the explosion proof is optional .
refrigeration control ) , heating refrigeration circulator . By the way the explosion proof is optional .
Our factory
Ningkai Instrument Co . Ltd is located in Nanjing , China , where own hundreds of universities and research institutes. And famous as its thousands of years long history culture. Profound culture and strong scientific research strength , provide sustainable and vigorous power for Ningkai development .
Main products include Glass Reactor(single layer, double- layer and three- layer) , Rotary Evaporator , Short Path Molecular
Distillation , Heating Circulators , Heating Refrigeration Circulator , Low Temperature Circulator , Ultrasonic Cell Crusher ,
Industrial Ultrasonic Treatment Equipment , Ultrasonic Cleaning Machine , High(Low) Temperature Constant Temperature Trough , Hybridization Oven , UV Cross-linker , Flap Type Homogenizer , Dry Bath and etc . Ningkai Instrument has exported its products to Europe , South America , North America , Latin America , Asia , Australia , Middle East , Africa and etc . Providing technical support for tens of thousands organizations to solve problems within their research , special for university , research institutes, inspection agencies , industries and etc .
Main products include Glass Reactor(single layer, double- layer and three- layer) , Rotary Evaporator , Short Path Molecular
Distillation , Heating Circulators , Heating Refrigeration Circulator , Low Temperature Circulator , Ultrasonic Cell Crusher ,
Industrial Ultrasonic Treatment Equipment , Ultrasonic Cleaning Machine , High(Low) Temperature Constant Temperature Trough , Hybridization Oven , UV Cross-linker , Flap Type Homogenizer , Dry Bath and etc . Ningkai Instrument has exported its products to Europe , South America , North America , Latin America , Asia , Australia , Middle East , Africa and etc . Providing technical support for tens of thousands organizations to solve problems within their research , special for university , research institutes, inspection agencies , industries and etc .
Handmade Fire Glass and Processing of Production
Our Advantages
1. We have been in this line for about ten years , with rich experience in marketing , develoing , researching , engineering , etc.
2. Different categories and series instruments for your selection .
3. You will enoy the complete and good service from the start of order to the end of transaction .
4. Our all products can be suppliable with cusotm made .
5. We have our own glass factory and produce the glass you want .
6. Strict quality control from incoming , assembly , soldering , maintainance , aging to the final shipping .
7. Production ability: 200-300 sets per month , maximum annual output 4000 sets , minimum output 3000 sets .
8. Engineering team presided over by professors level cheif engineer who has more than 10 years proctical working experience .
2. Different categories and series instruments for your selection .
3. You will enoy the complete and good service from the start of order to the end of transaction .
4. Our all products can be suppliable with cusotm made .
5. We have our own glass factory and produce the glass you want .
6. Strict quality control from incoming , assembly , soldering , maintainance , aging to the final shipping .
7. Production ability: 200-300 sets per month , maximum annual output 4000 sets , minimum output 3000 sets .
8. Engineering team presided over by professors level cheif engineer who has more than 10 years proctical working experience .
Our Partners
Peking University , Tsinghua University , Nanjing University , Tianjing University , Qiangyang Chemical Industry Company , AppTec , EYELA , Toption , etc .
Exhibition and Certification
2017-2018 CPHI Shanghai
Our service
Pre-sale Service
According to product’s using condition, technicians will offer rationalization proposals to assist clients to select proper types;
Provide detailed product performance specification;
Provide professional quoted price;
Provide 24-hour technical consulting reply.
Provide other corollary equipment according to client requirements.
In-sale Service
Begin to supervise from raw material, its qualified rate can reach to 100%;
Whole manufacturing process are in strict accordance with promised procedure requirements, product qualified rate can reach to 100%;
Provide product’s inspection record of key junctures to customers;
Provide production schedule photos to customers at regular intervals;
Package and transport products strictly accordance with export standard;
Provide transportation schedule information to clients timely.
After-sale Service
Provide targeted installation video;
Under the premise of correct installation, normal maintenance and using, we guarantee one-year warranty period;
When warranty period has expired, our sold products enjoys lifetime guarantee repair, we only charge cost price for changing product’s standard component and sealing component;
During installation and adjustment period, our after-sale service staff will communicate with customers frequently to know product’s running state in time. Assist customers to install and adjust products until customers are satisfied;
If product has malfunction during operation period, we’ll offer you satisfied answer in time.
Lifelong free technical support. Conduct satisfaction survey and inquiry equipment running condition to clients by telephone or e-mail semiannually from the first day of equipment running, put on records of acquired information.
Provide assistant service if product is damaged during transportation.
According to product’s using condition, technicians will offer rationalization proposals to assist clients to select proper types;
Provide detailed product performance specification;
Provide professional quoted price;
Provide 24-hour technical consulting reply.
Provide other corollary equipment according to client requirements.
In-sale Service
Begin to supervise from raw material, its qualified rate can reach to 100%;
Whole manufacturing process are in strict accordance with promised procedure requirements, product qualified rate can reach to 100%;
Provide product’s inspection record of key junctures to customers;
Provide production schedule photos to customers at regular intervals;
Package and transport products strictly accordance with export standard;
Provide transportation schedule information to clients timely.
After-sale Service
Provide targeted installation video;
Under the premise of correct installation, normal maintenance and using, we guarantee one-year warranty period;
When warranty period has expired, our sold products enjoys lifetime guarantee repair, we only charge cost price for changing product’s standard component and sealing component;
During installation and adjustment period, our after-sale service staff will communicate with customers frequently to know product’s running state in time. Assist customers to install and adjust products until customers are satisfied;
If product has malfunction during operation period, we’ll offer you satisfied answer in time.
Lifelong free technical support. Conduct satisfaction survey and inquiry equipment running condition to clients by telephone or e-mail semiannually from the first day of equipment running, put on records of acquired information.
Provide assistant service if product is damaged during transportation.
Glassware Specifications
According to the nominal diameter , the maximum allowable working pressure value(Mpa) of the pipe used shall comply with the following table:
DN | DN15 | DN20 | DN25 | DN40 | DN50 | DN80 | DN100 | DN200 | DN400 |
Mpa | 0.2 | 0.2 | 0.15 | 0.15 | 0.1 | 0.1 | 0.1 | 0.1 | 0.07 |
DN15 | DN20 | DN25 | DN40 | DN50 | N80 | DN100 | DN200 | DN215 | DN400 |
1/2" | 3/4" | 1" | 1.5" | 2" | 3" | 4" | 8" | 9" | 16" |
RFQ
1. What’s the difference between single-layer and double-layer glass reactor?
Single-layer glass reactor can directly heating or cooling, it is similar to water or oil bath, inferior in temperature control aspect; while double-layer glass reactor has interlayer between two layers, we can inject water or oil through temperature control equipment and form circulating system, in this way, no matter cooling or heating, its temperature control property is better.
2.How to decide which glass reactor I should buy? Single-layer or double-layer?
According to first question, please depend on specific heating or cooling requirements.
3.What is the glass texture?
Full set of glass part is produced by G3.3 borosilicate glass, owns excellent chemical and physical properties.
4.What’s the loading capacity of double-layer glass reactor?
Loading capacity of glass reactor generally is 1kg, use hot water and oil to do negative pressure heating.
5.What kind of oil does the reactor use to heat?
For temperature around 130℃, use silicone oil, glycerinum or 32# machine oil.
6.Is it easy to wash the reaction bottle?
Big access opening, convenient to wash.
7.What kind of payment term do you accept?
Normally we accept TT , Alibaba Escrow, and L/C. The exactly term with be discussed during the deal.
8.How will you delivery these goods?
It will be decided according to your quantity. Normally we will choose International Express, Air and sea..
9.How to package the products?
We package products in dedicated carton, you can order Non Fumigation wooden case if has special requirements.
Single-layer glass reactor can directly heating or cooling, it is similar to water or oil bath, inferior in temperature control aspect; while double-layer glass reactor has interlayer between two layers, we can inject water or oil through temperature control equipment and form circulating system, in this way, no matter cooling or heating, its temperature control property is better.
2.How to decide which glass reactor I should buy? Single-layer or double-layer?
According to first question, please depend on specific heating or cooling requirements.
3.What is the glass texture?
Full set of glass part is produced by G3.3 borosilicate glass, owns excellent chemical and physical properties.
4.What’s the loading capacity of double-layer glass reactor?
Loading capacity of glass reactor generally is 1kg, use hot water and oil to do negative pressure heating.
5.What kind of oil does the reactor use to heat?
For temperature around 130℃, use silicone oil, glycerinum or 32# machine oil.
6.Is it easy to wash the reaction bottle?
Big access opening, convenient to wash.
7.What kind of payment term do you accept?
Normally we accept TT , Alibaba Escrow, and L/C. The exactly term with be discussed during the deal.
8.How will you delivery these goods?
It will be decided according to your quantity. Normally we will choose International Express, Air and sea..
9.How to package the products?
We package products in dedicated carton, you can order Non Fumigation wooden case if has special requirements.
Our Beliefs
We believe , only the most excellent quality , most leading technology , most complete solution and best service could make Ningkai Instrument more and more better in the future . So we keep on continuing innovation and working hard , to provide you with the best solutions & products and make your research more precise and efficient .
Our team is young , professional and creative .
We are a customer-oriented and responsible team .
Our mission: to make your research more precise and efficient .
Our vision: to become the most competitive lab solution and intermediates provider.
Our value: Sharing & everyone wins , customer success , innovation and responsible .
Our team is young , professional and creative .
We are a customer-oriented and responsible team .
Our mission: to make your research more precise and efficient .
Our vision: to become the most competitive lab solution and intermediates provider.
Our value: Sharing & everyone wins , customer success , innovation and responsible .
Our Principle
A peaceful and harmonious biliateral relationship between two companies will make both winners .
